MiniArt 4

Compact MicroATX Case

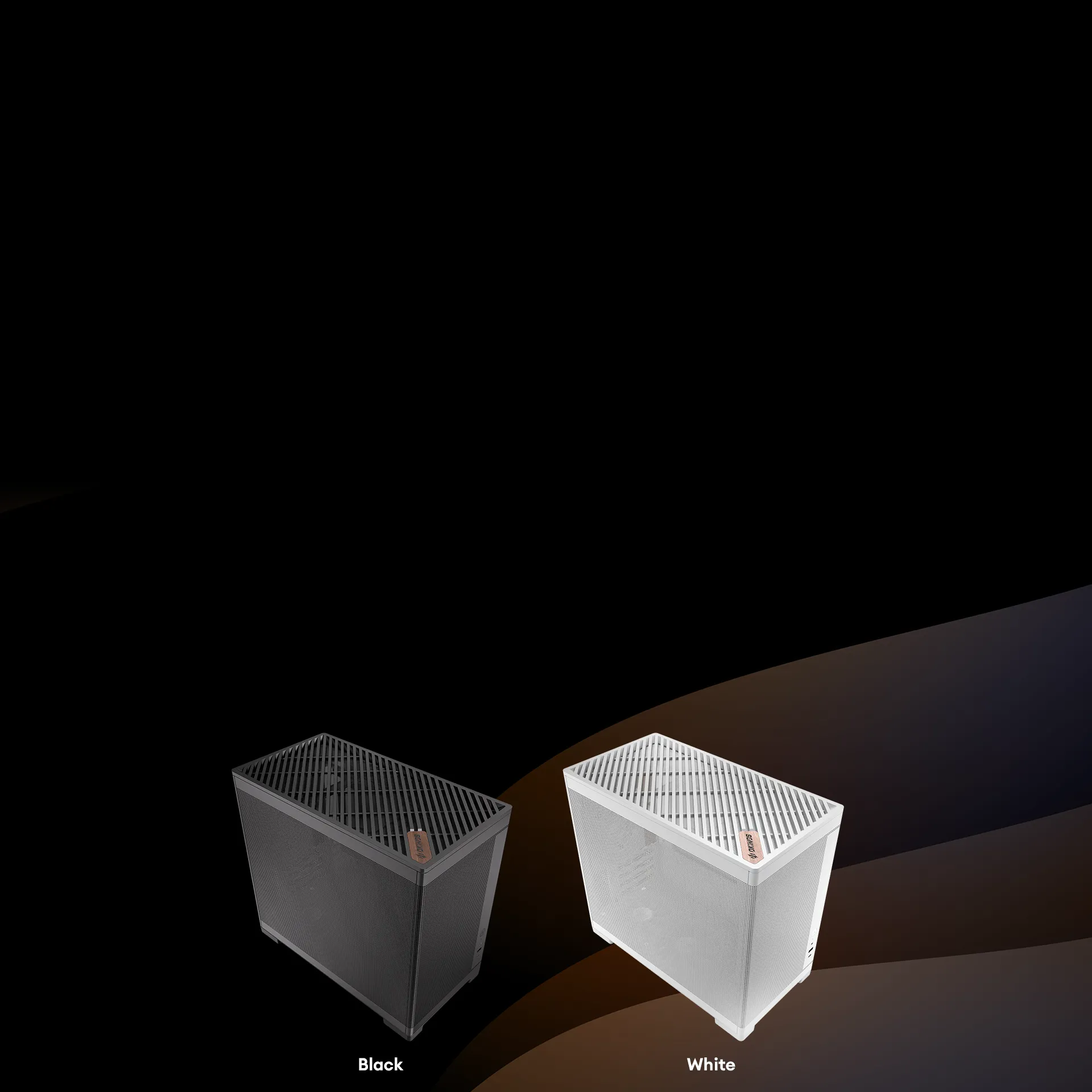

MATCH YOUR STYLE

Available in black and white to suit any PC theme. Whether you prefer a sleek black build or a clean white setup, this case fits your style.

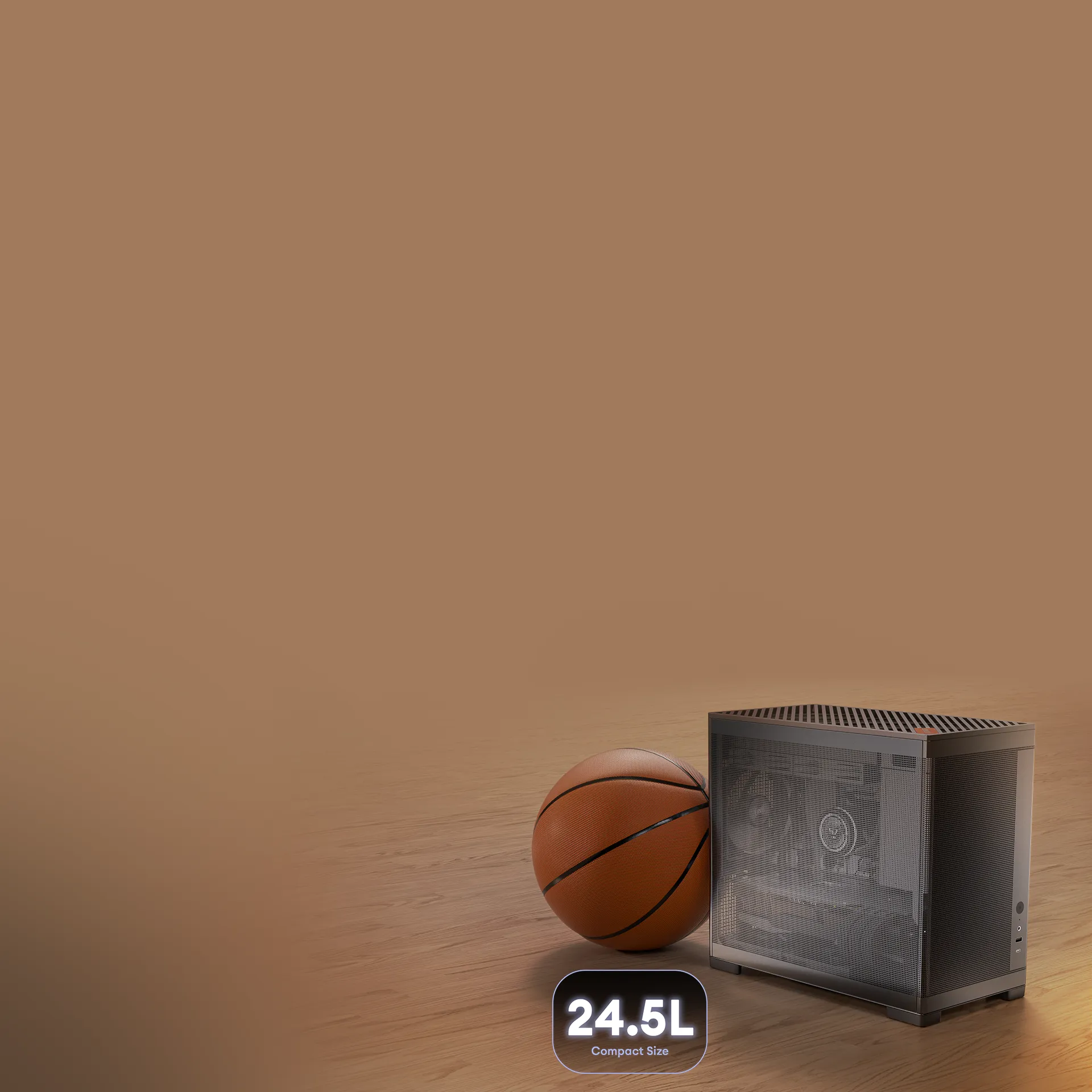

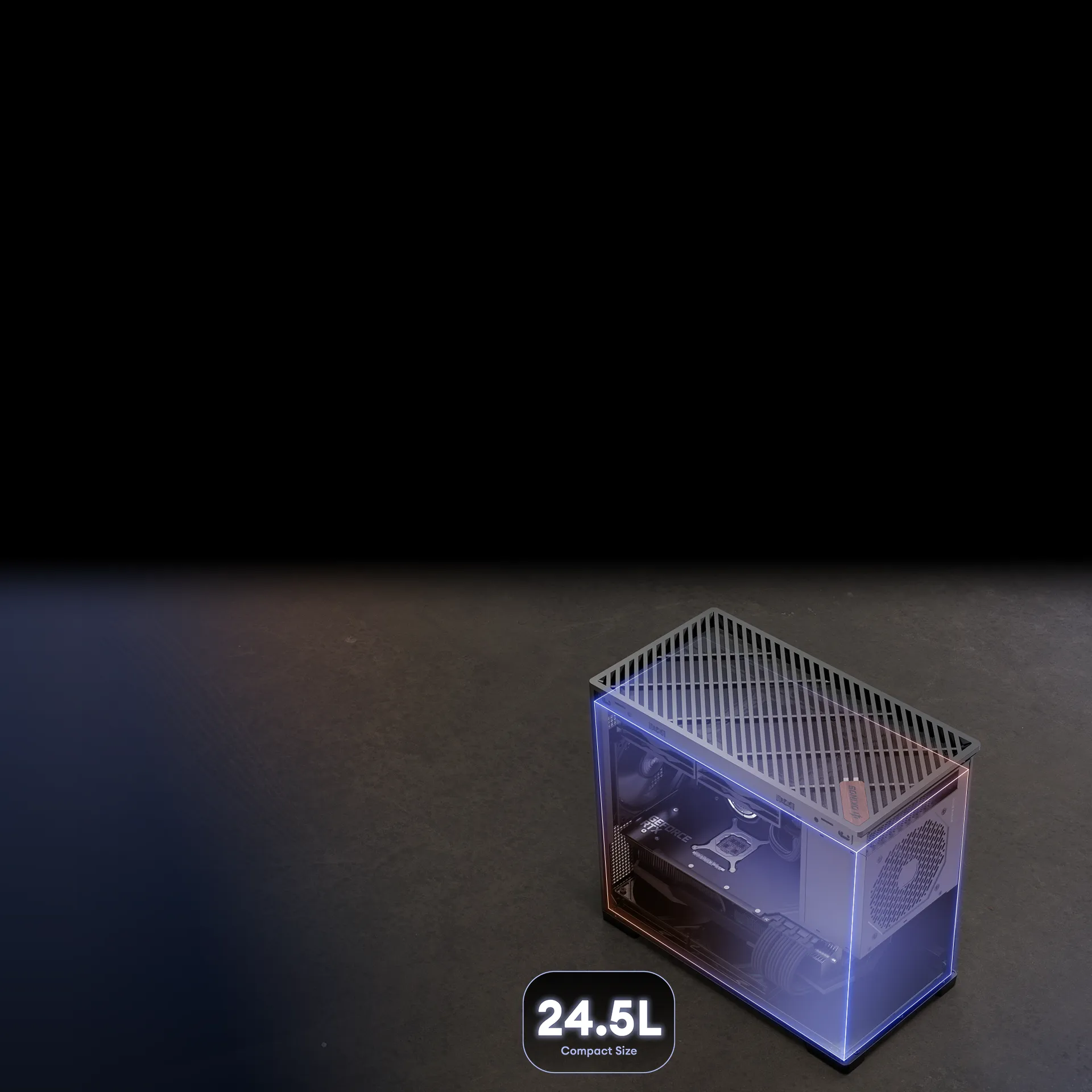

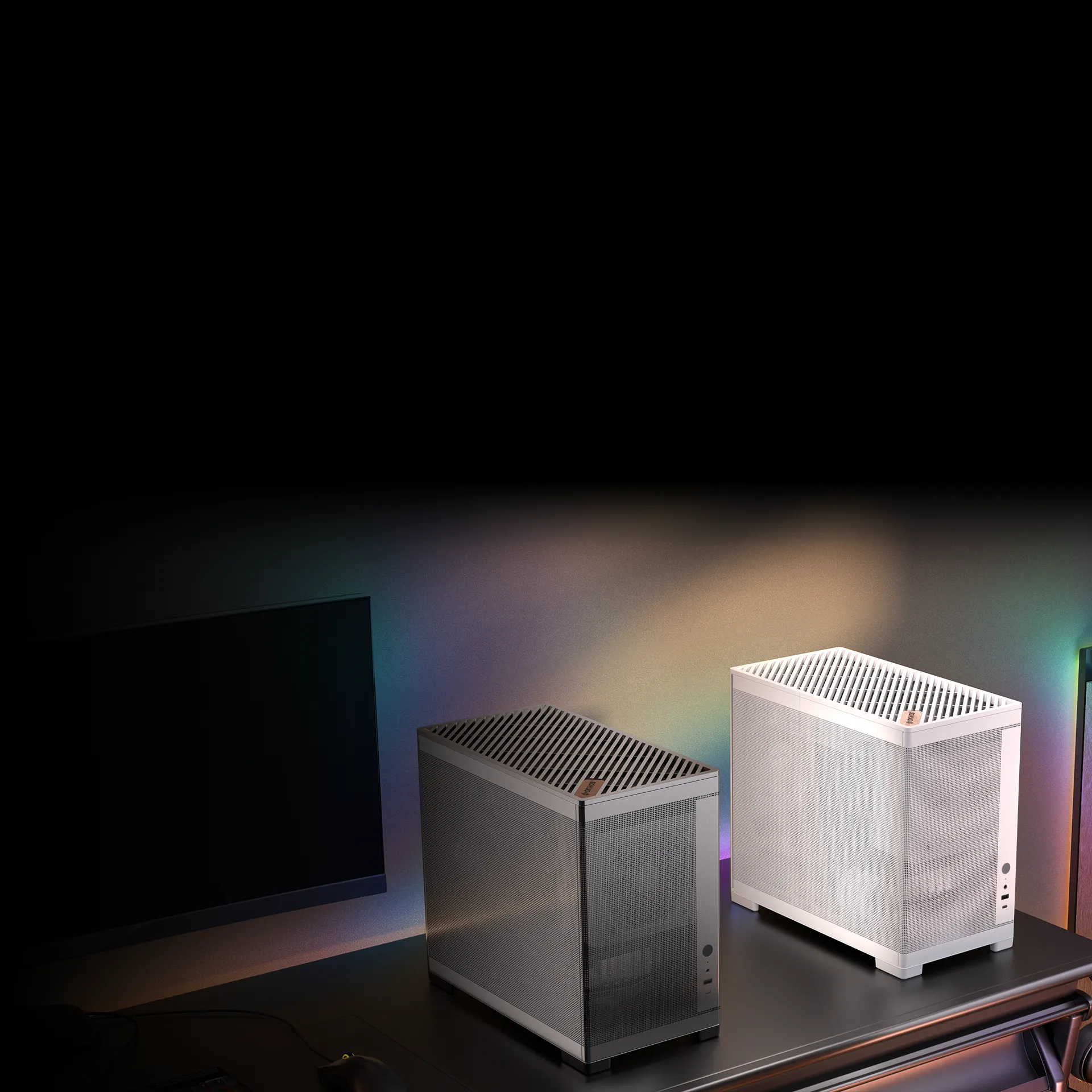

Advanced Computing, Basketball-Sized.

MiniArt 4 packs a full PC build into a remarkably compact form factor.

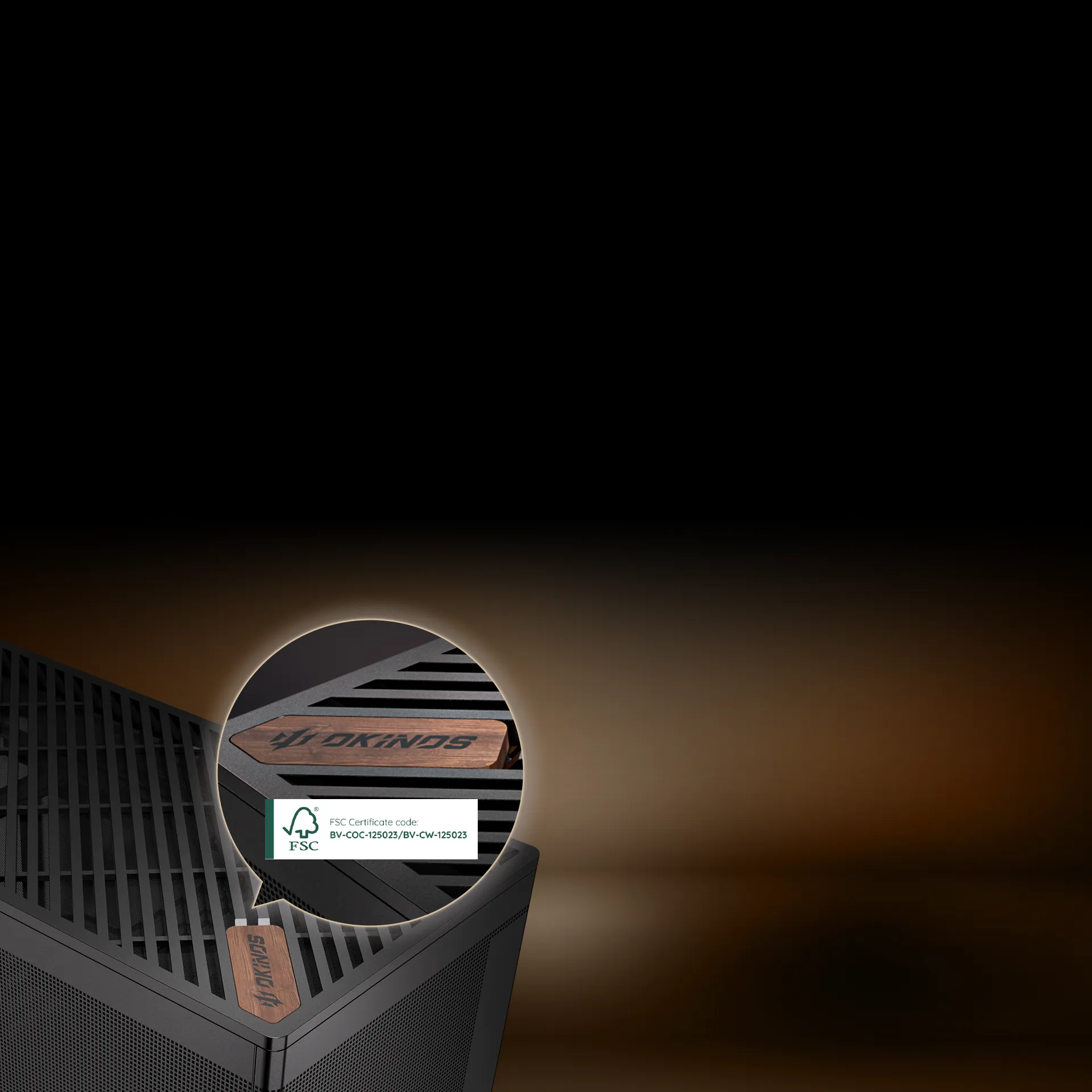

Wooden Logo Badge

FSC-certified North American black walnut ensures premium texture and eco-friendly quality.

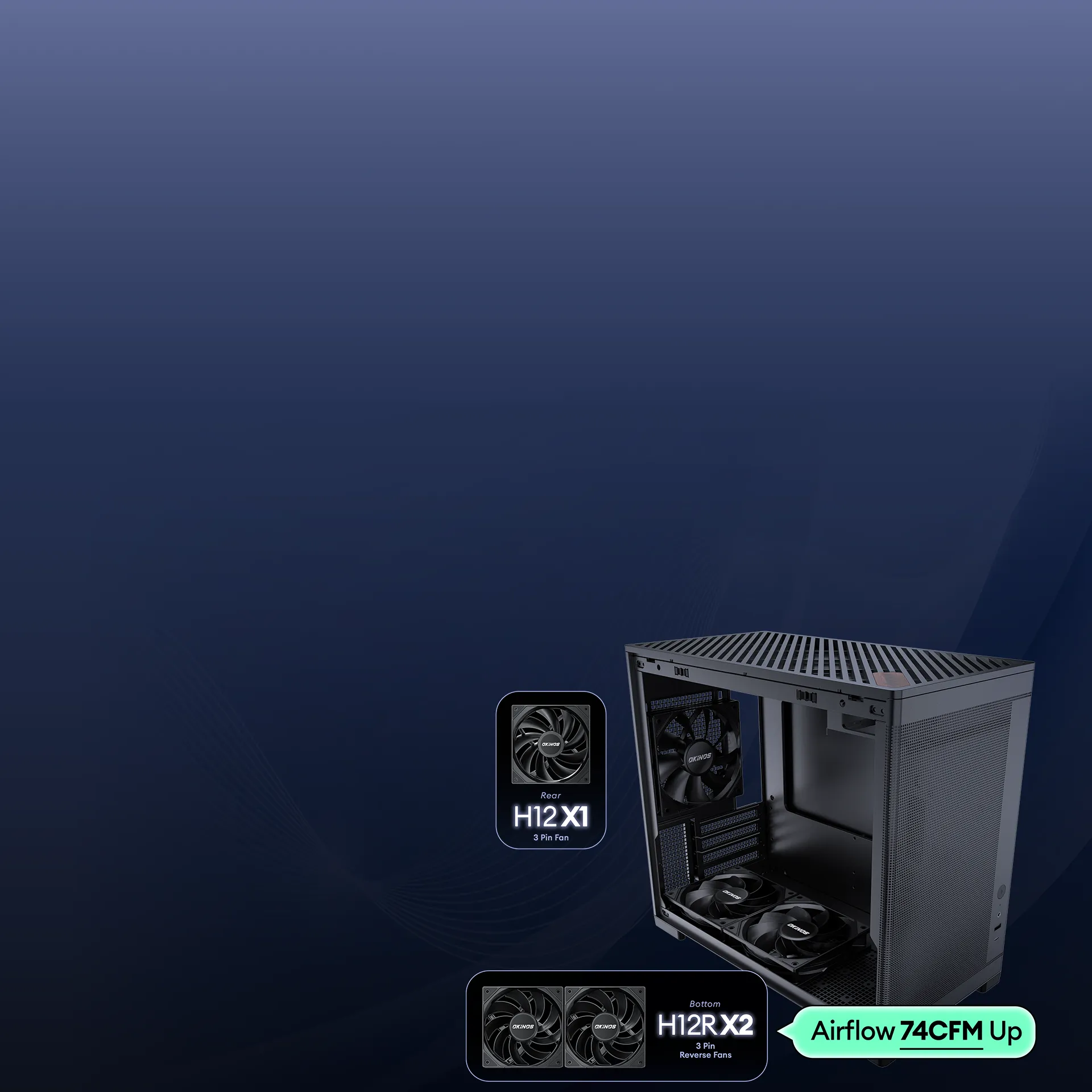

Efficient Cooling Configuration

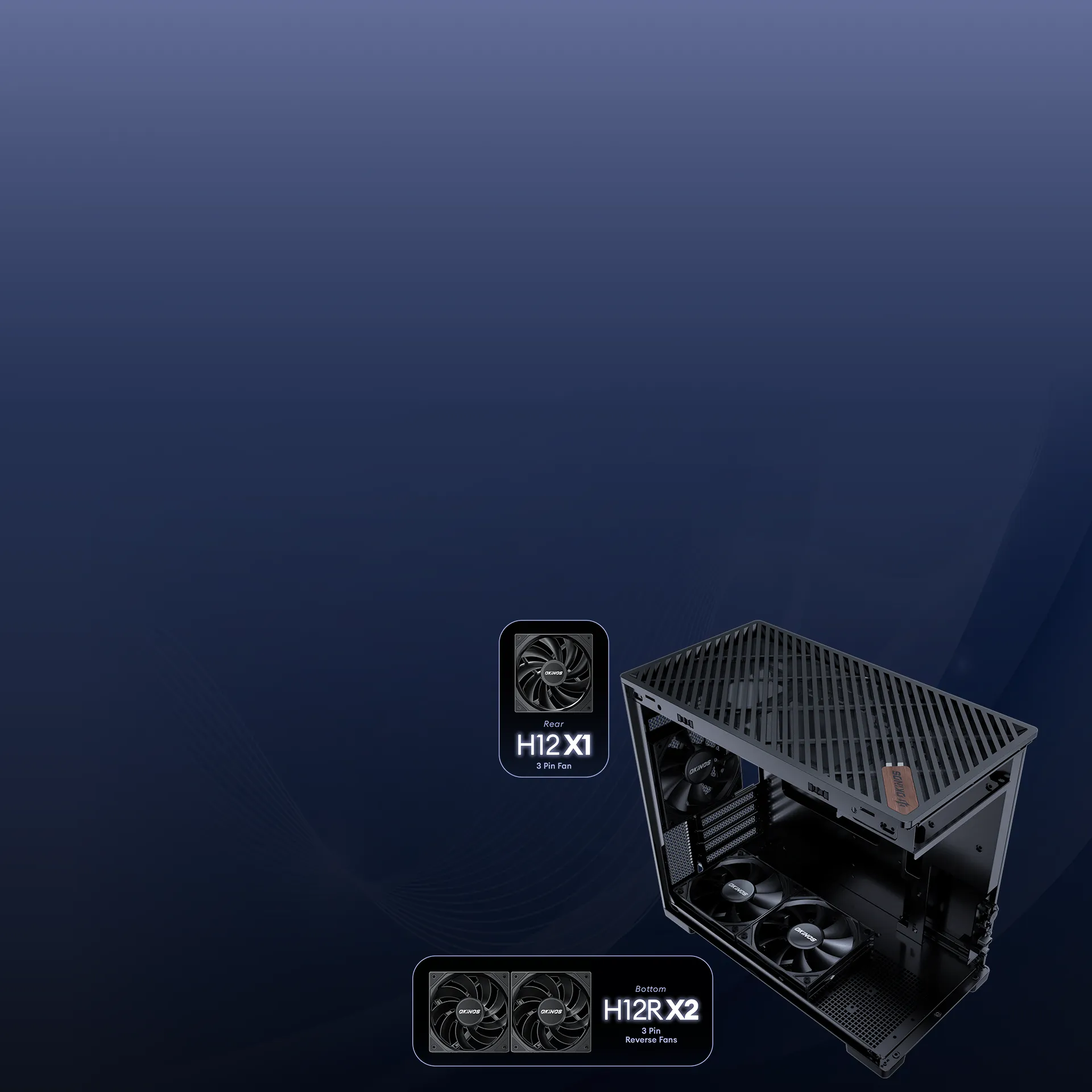

Pre-Installed 2x 120mm 3 Pin Reverse fans at the buttom and 1x 120mm 3 Pin fan at the rear, the case achieves a meticulously designed airflow path to ensure efficient cooling.

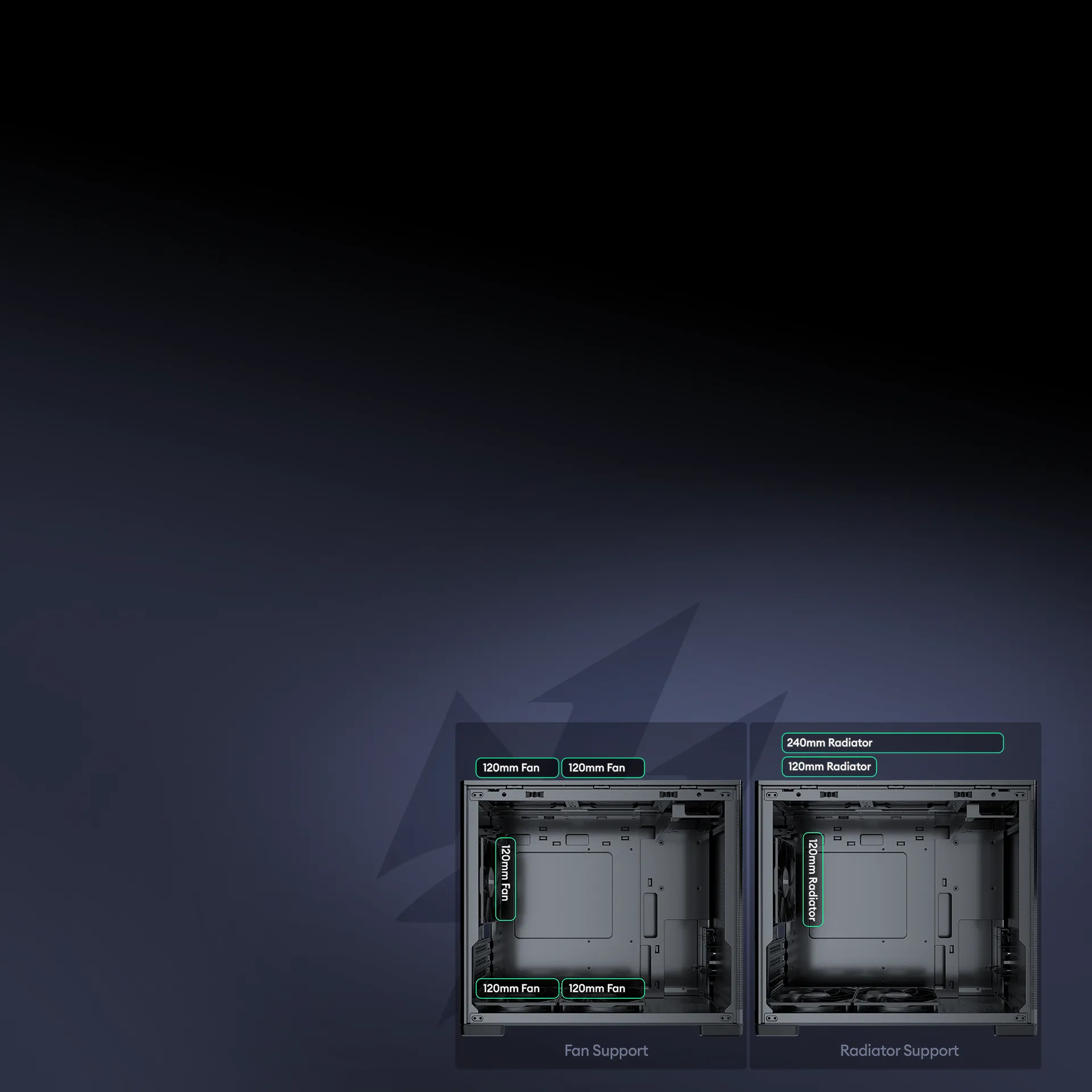

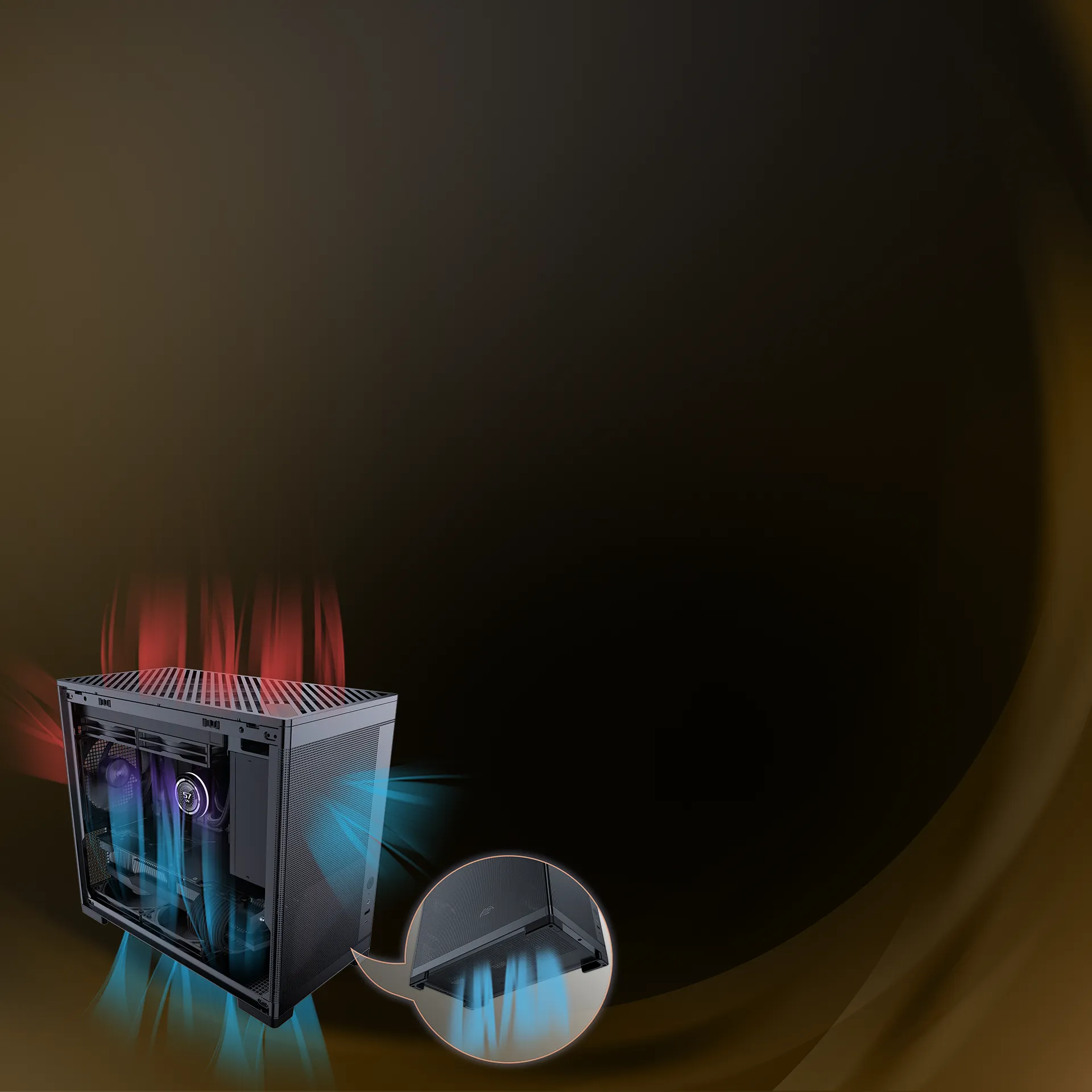

Vertical Airflow with Mesh Design

Accommodates up to 5 fans to deliver powerful airflow and maintain a stable system environment.

Mutli-Function Zone

Introducing Feature-Rich Multi-Functional Zone for Readily Accessable User-Computer Interaction.

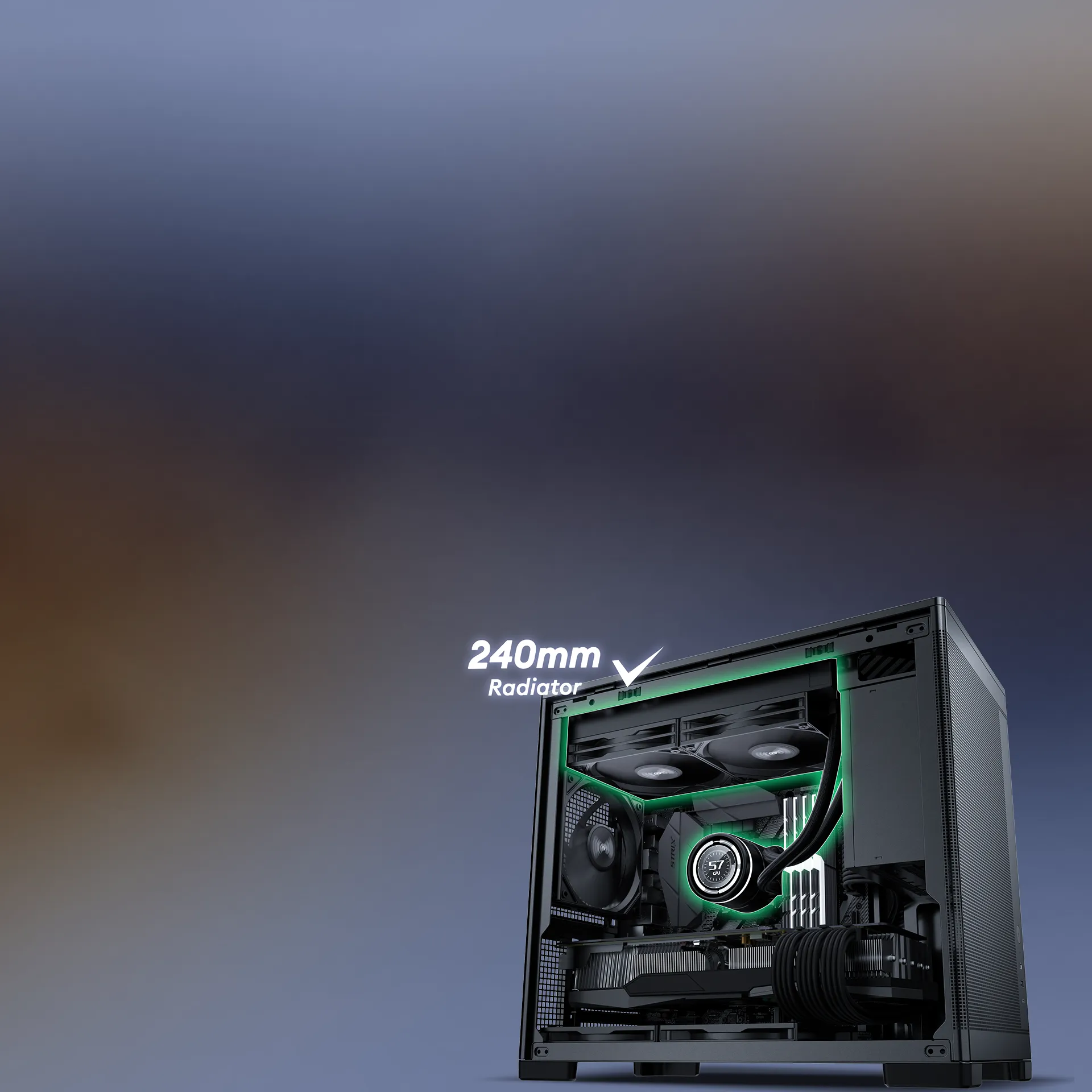

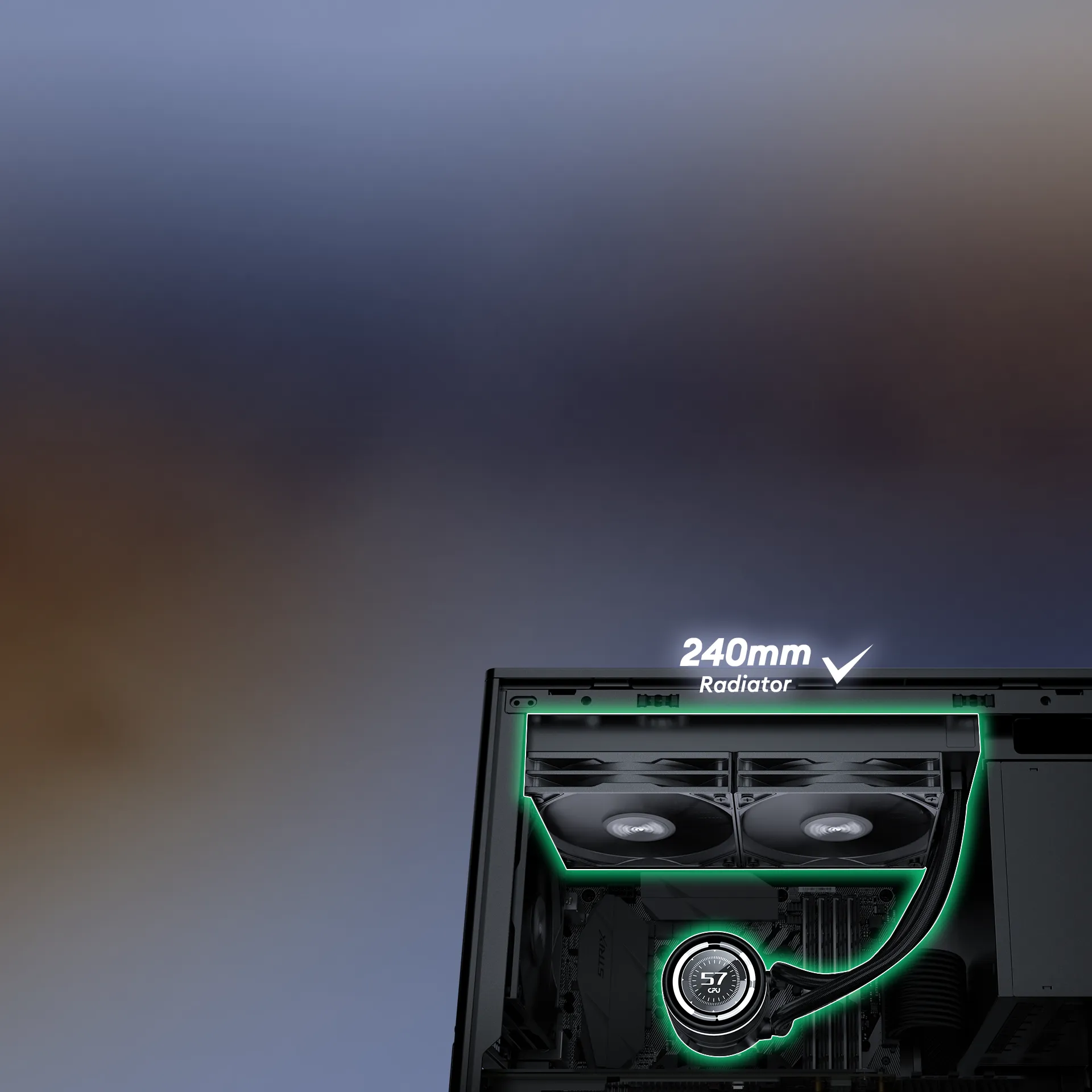

Compatible with 240mm Radiator on Top

Top Radiator | up to 240mm
Rear Radiator | up to 120mm

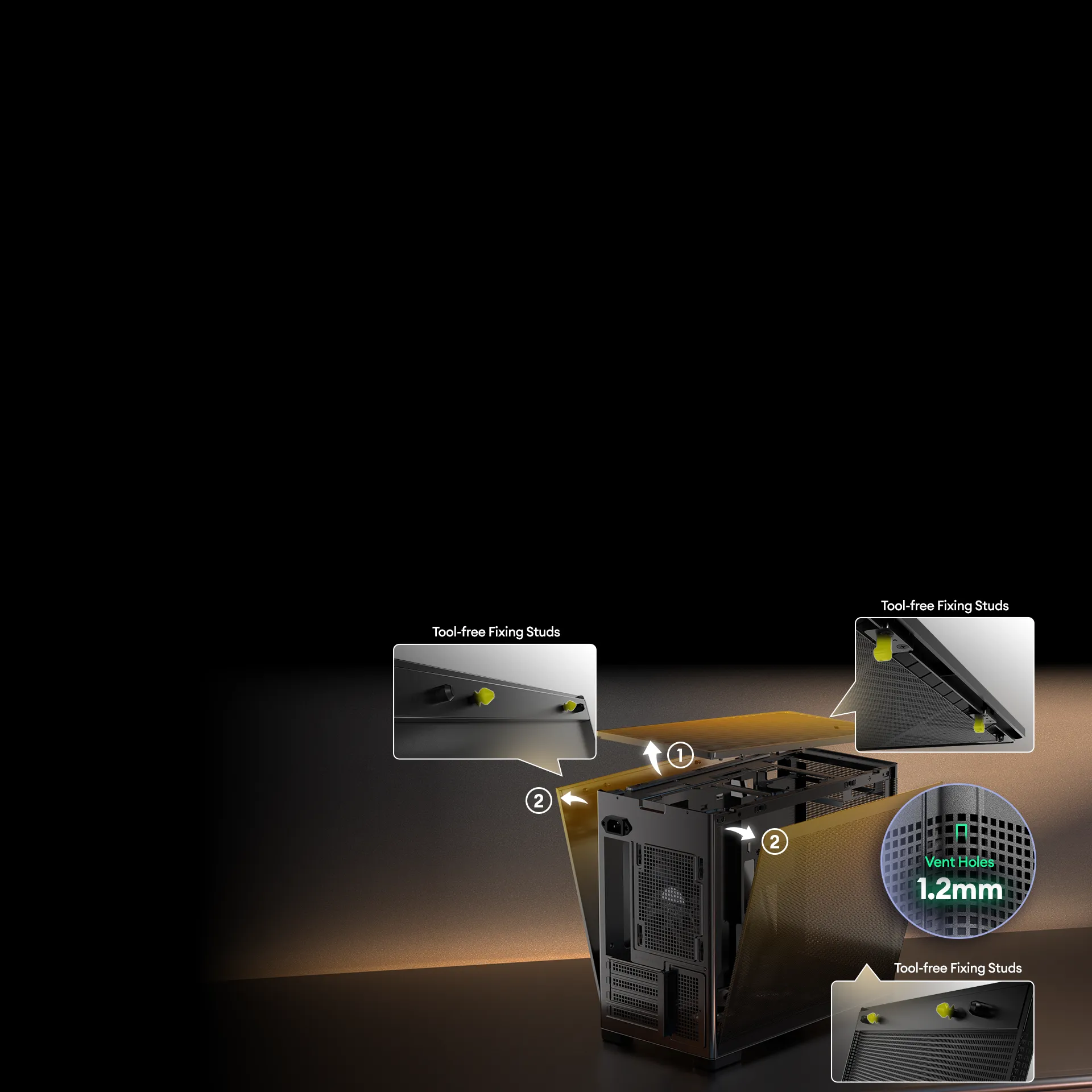

Tool-Free Panel

Tool-free top and side panels with 1.2 mm fine mesh, offering strong ventilation while maintaining effective dust protection.

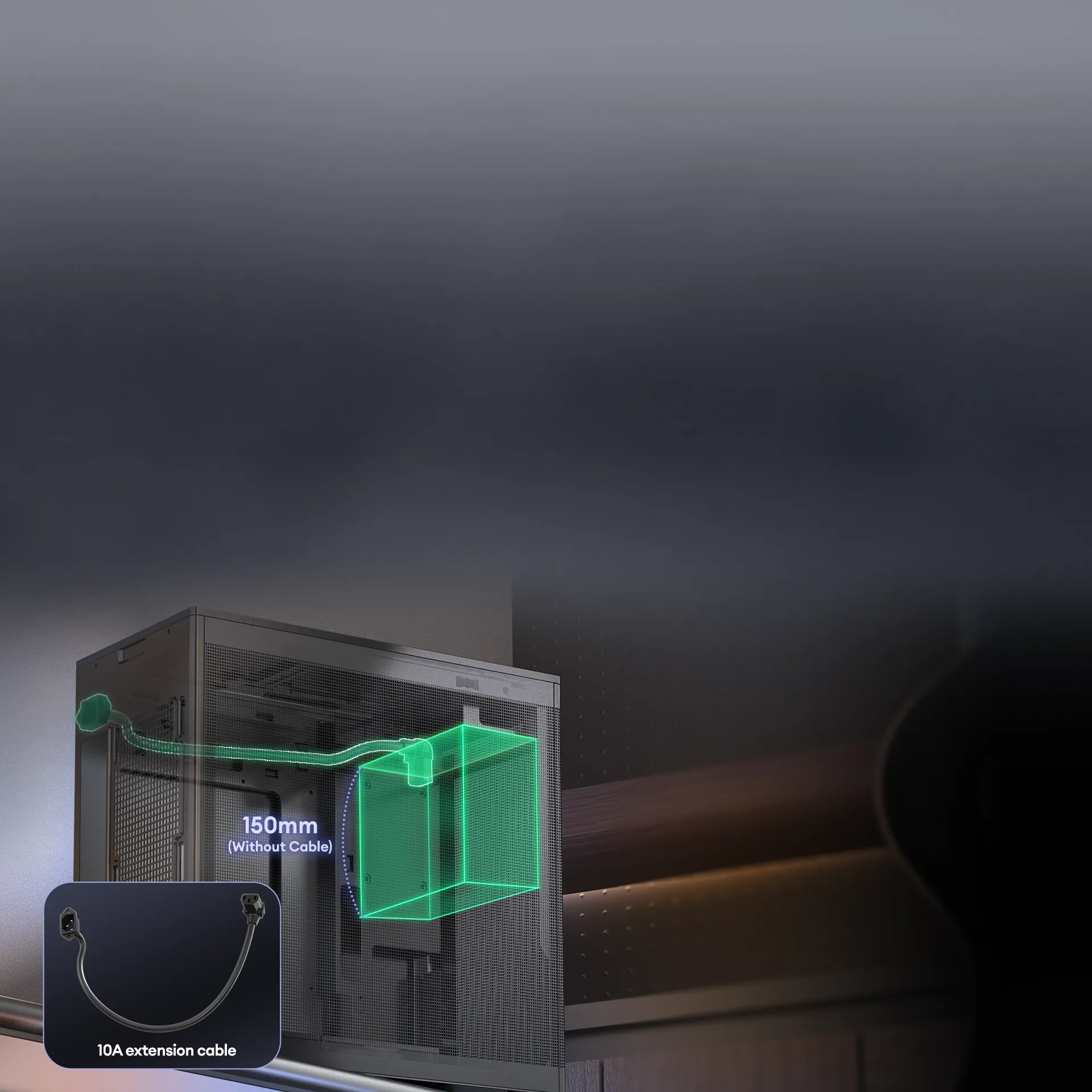

Front mounted PSU Design

PSU supports lengths (without cable) up to 150mm.
Includes 10A extension cable for stable power and flexible front access.

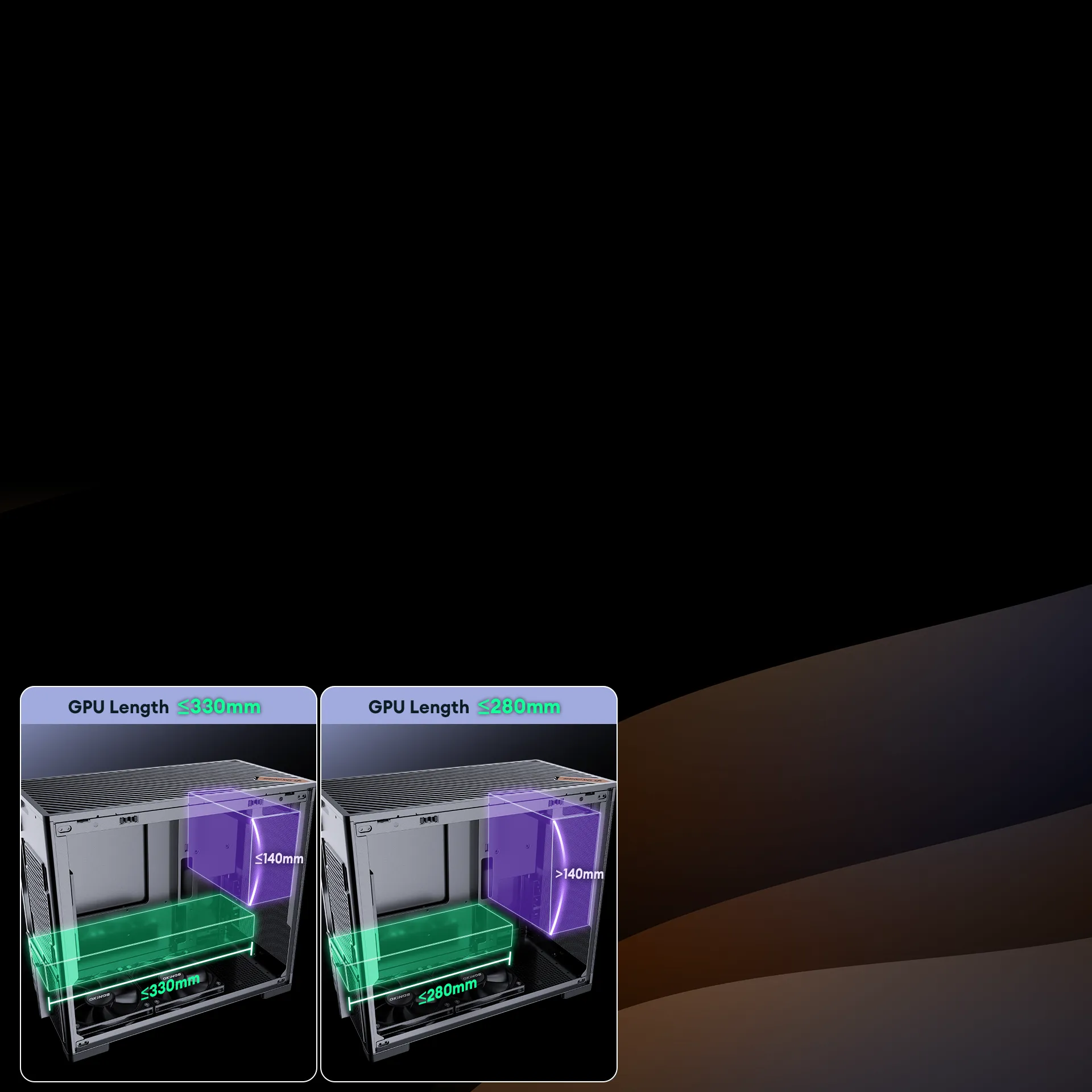

GPU Compatibility

≤330mm (Power Supply ≤ 140mm)
≤280mm (Power Supply > 140mm)

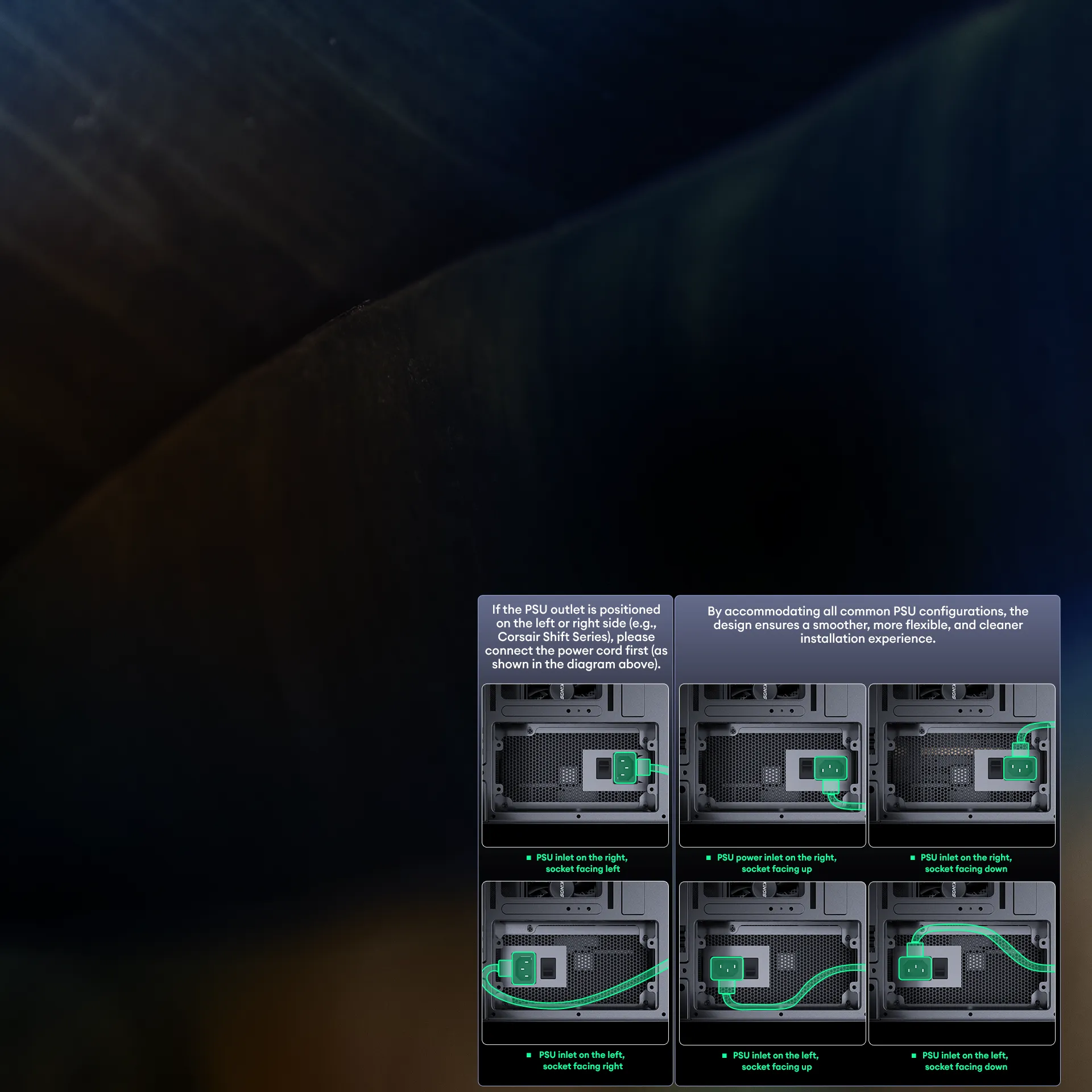

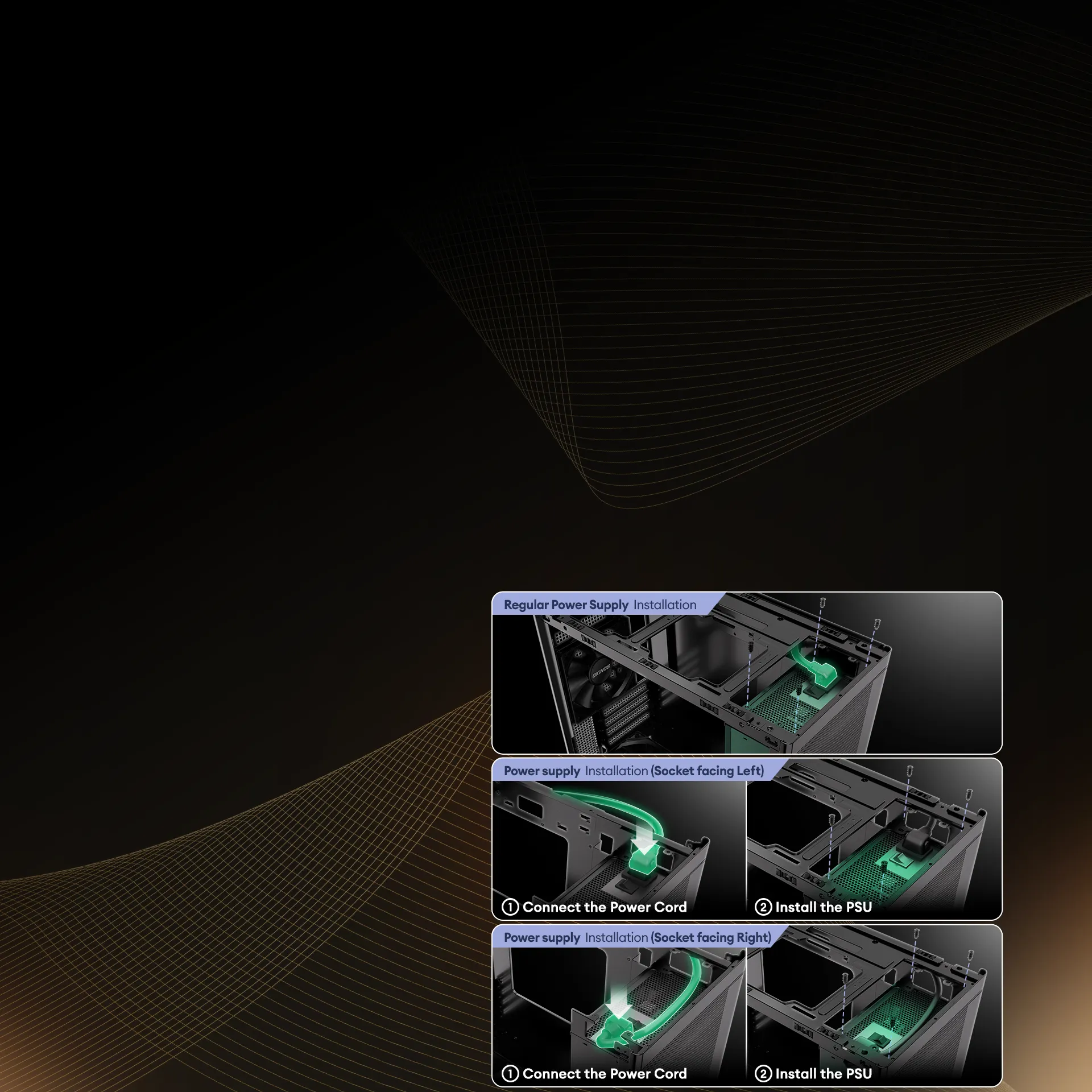

Power Extension Cable Installation

Full Dust Filter

A removable full-length filter maximizes airflow while keeping dust out, making maintenance easy and ensuring long-term protection.

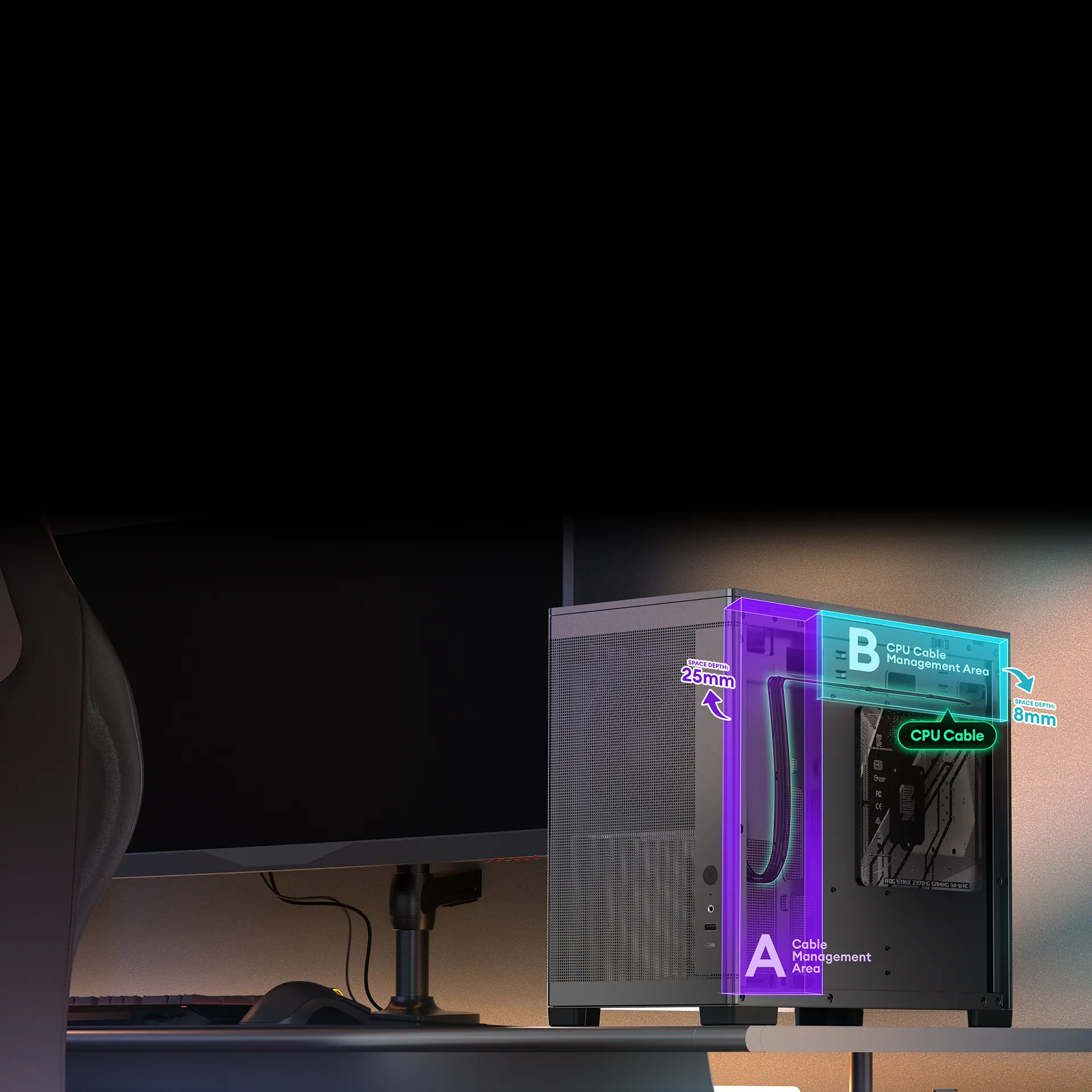

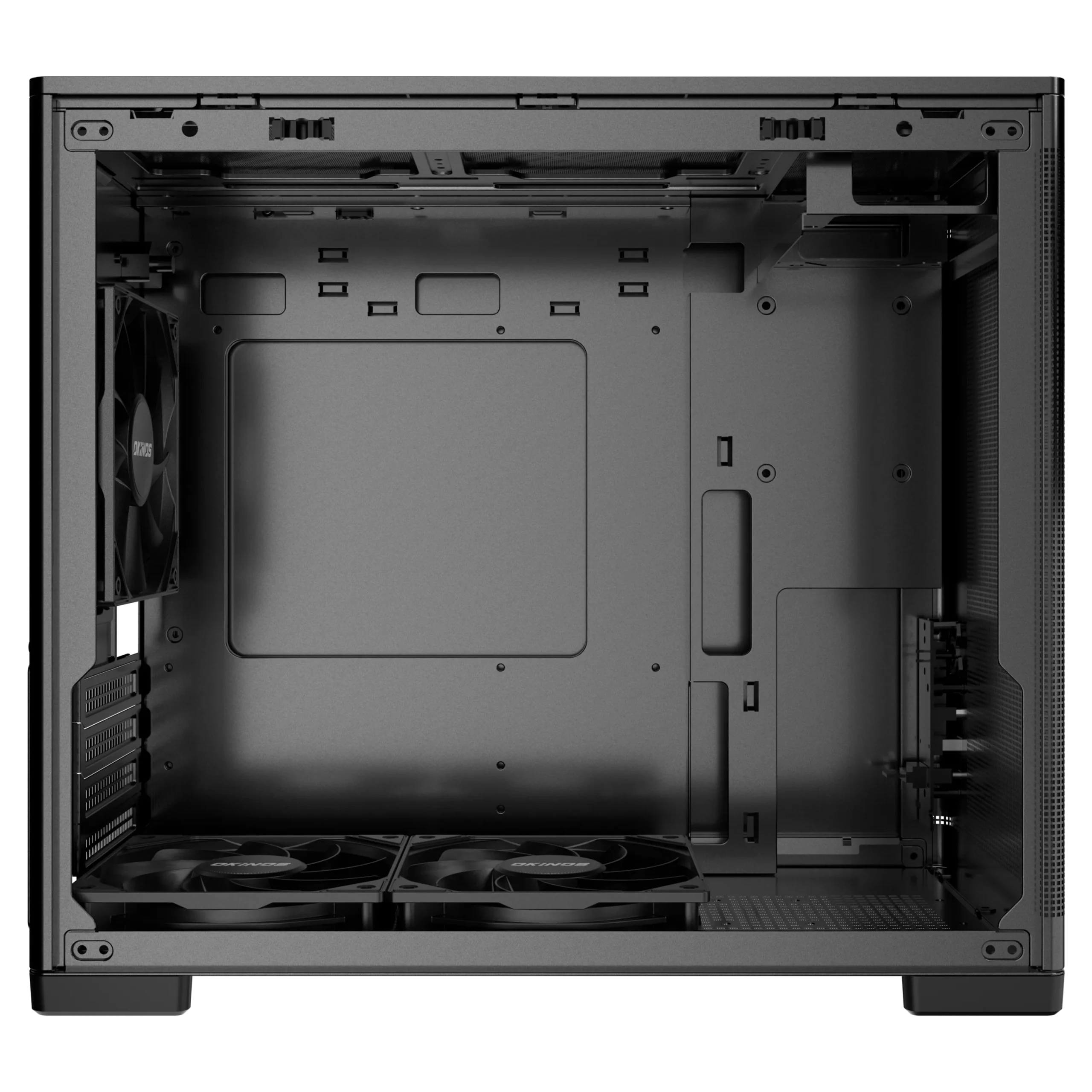

Streamlined Cable Management

Ample space allows for clean routing and a tidy, unobstructed interior.

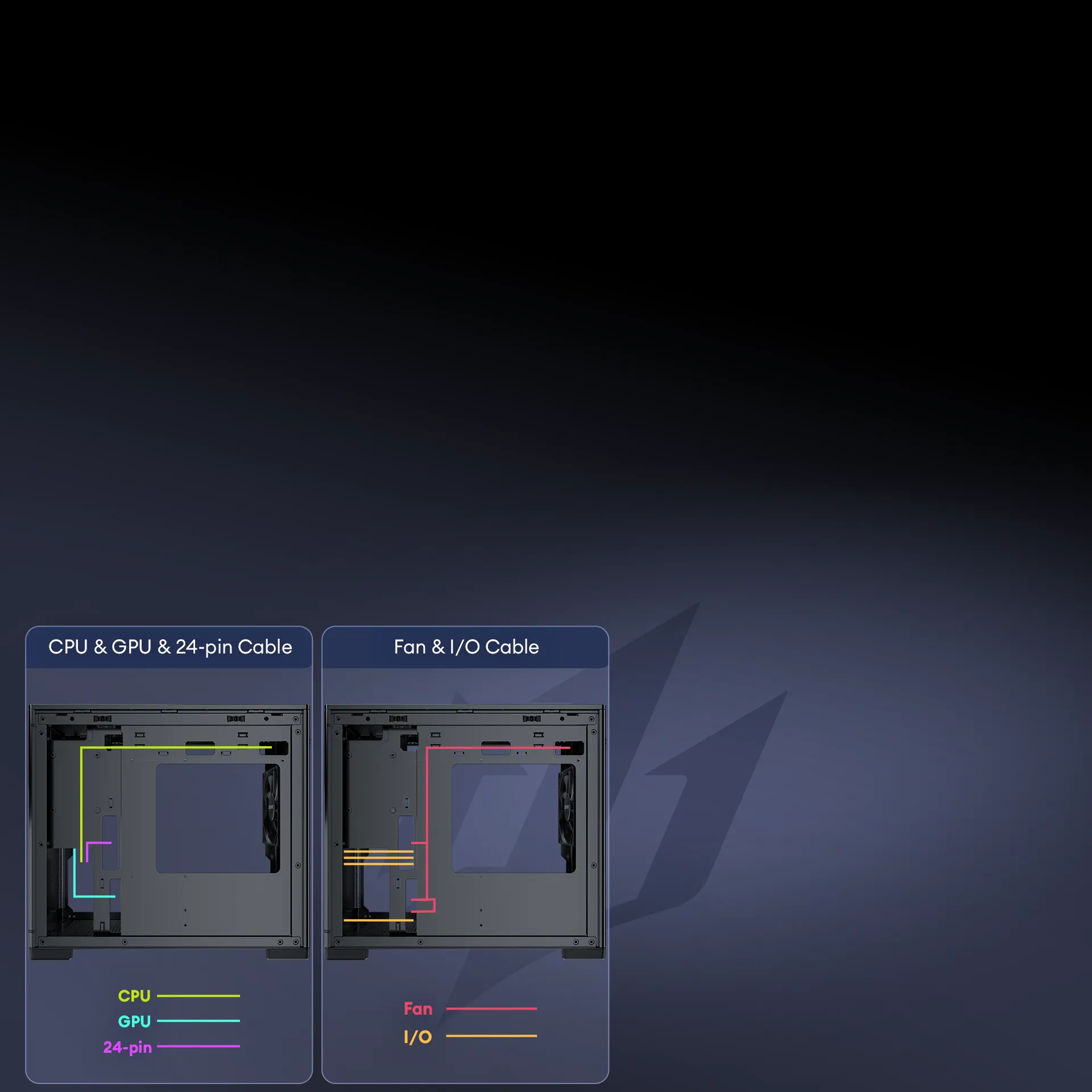

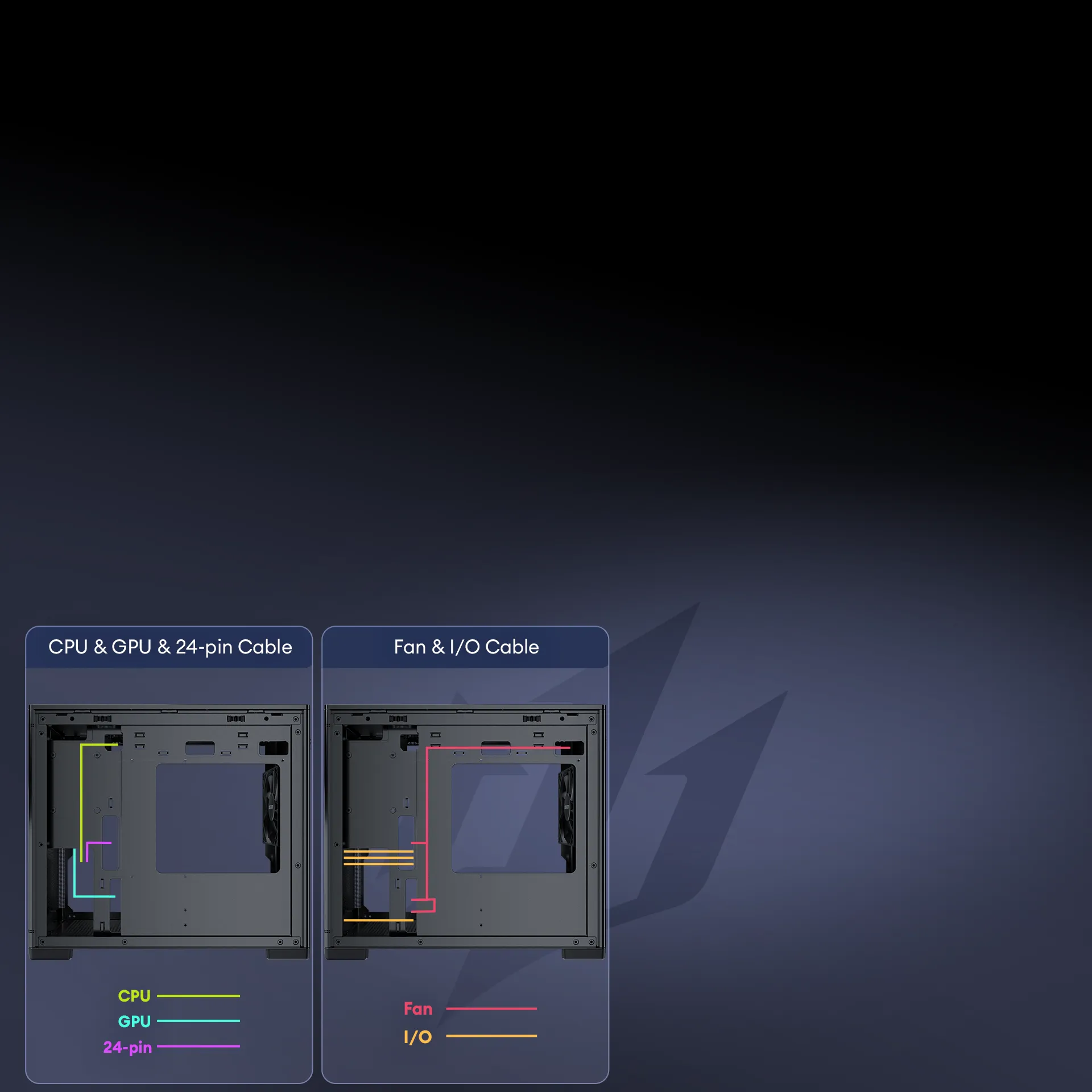

Cable Management Routing

Experience Ultimate Cooling Solution

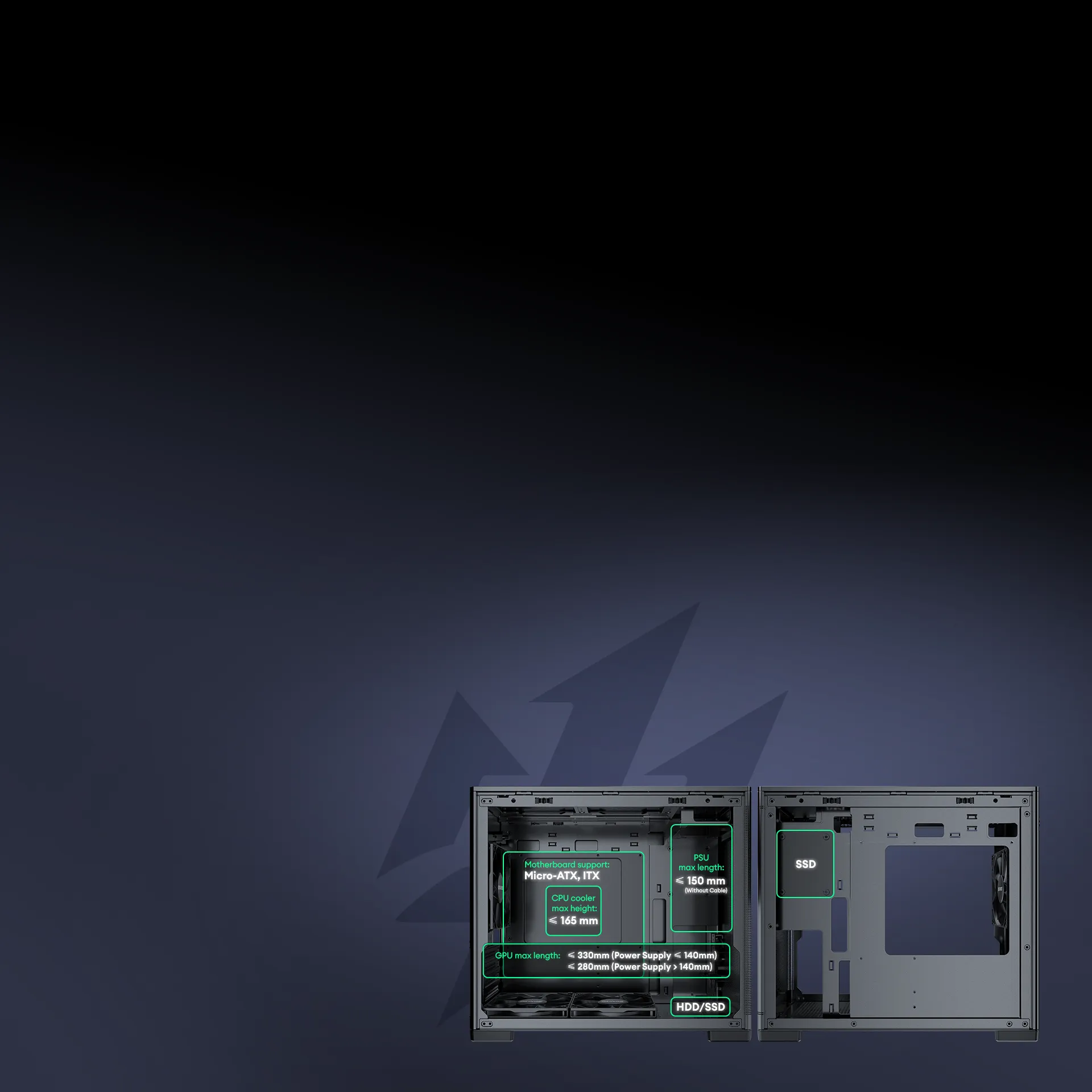

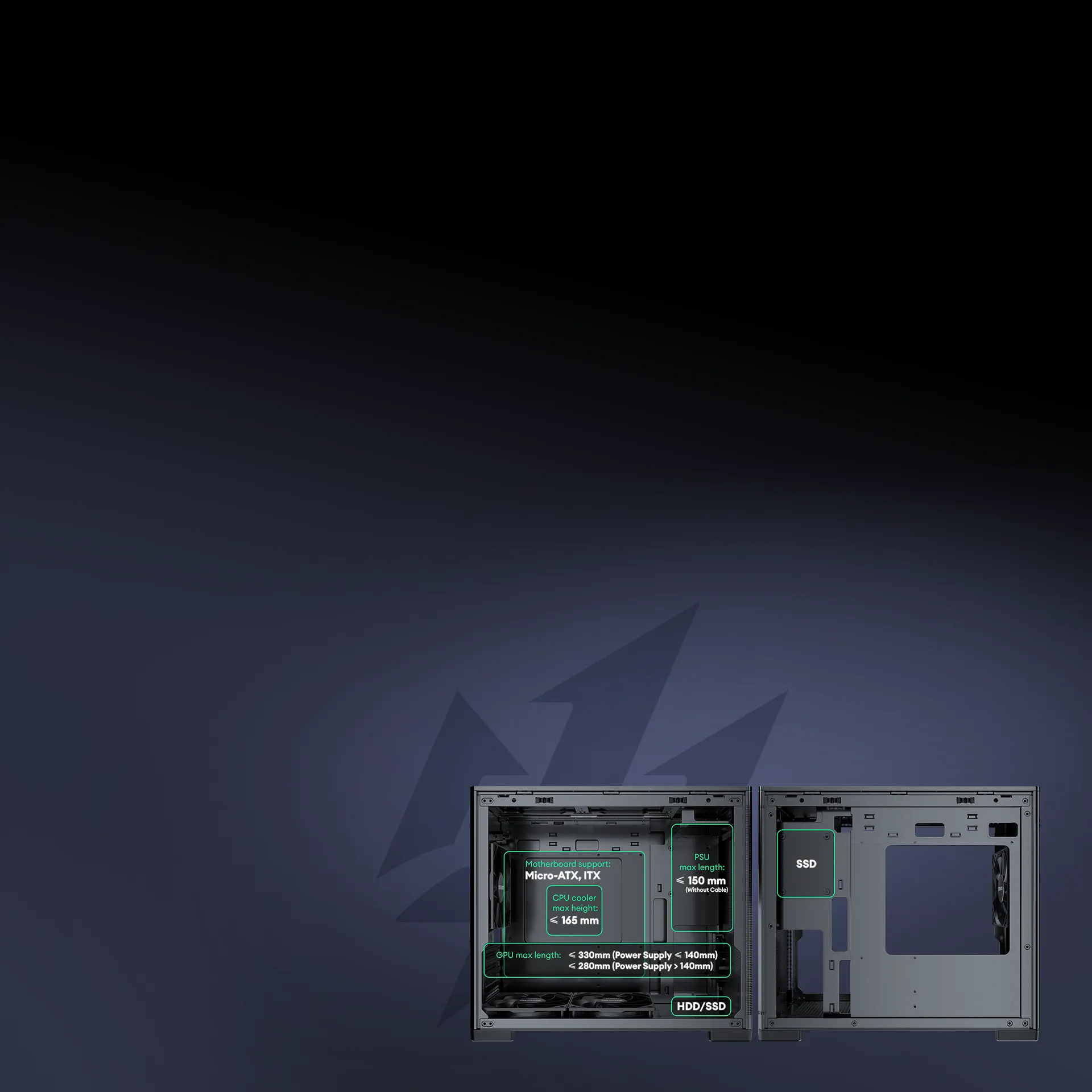

Compatibility

Specifications

Model Name

MiniArt 4

Model Number

OKICC-MA4-MATXB

EAN

4897121941468

Dimensions

395 x 200 x 343 (DWH)

Form Factor

Mini Tower

Materials

Steel + Plastic +Wood

Mainboard Support

Micro-ATX , ITX

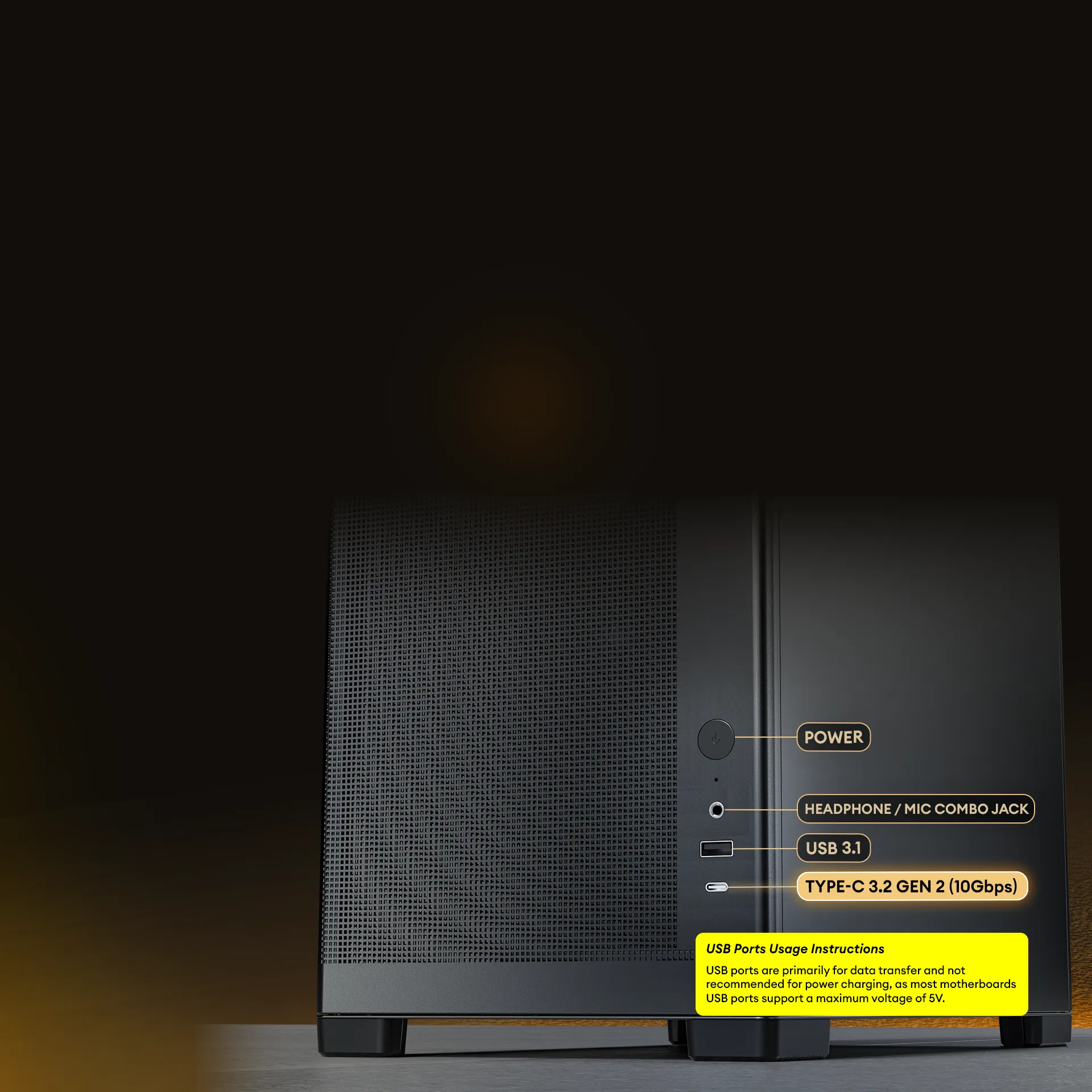

Front Access & Controls

Power, USB3.0 x 1, Type-C 3.2 Gen 2 (10Gbps)x 1, Headphone/Mic Combo Jack

Side Panel

Mesh

Drive Bays

Expansion Slots

3.5″ / 2.5′

1 / 1

2.5″

Fan Support

Top

2 x 120mm

Bottom

2 x 120mm

Rear

1 x 120mm

Included Fan(s)

2 x 120mm H12R 3 Pin Reverse Fans at the bottom + 1 x 120mm H12 3 Pin Fan at the rear

Radiator Support

Top

240/120mm

Rear

120mm

Clearance

Max GPU Length

≤330mm (Power Supply ≤ 140mm)
≤280mm (Power Supply > 140mm)

Max CPU Cooler Height

≤165mm

Max PSU Length

(Without Cable) ≤150mm

Miscellaneous

Dust Filter

Top/Bottom

Net Weight

4.04Kg

Gross Weight

4.99Kg

Special Features

Compact 24.5L Chassis with Full Mesh and Walnut Badge Accent – Combines refined craftsmanship with excellent airflow and flexible component layout in a sleek, space-efficient design.
Vertical Airflow Design – Promotes smooth upward airflow to effectively dissipate heat from key components, ensuring stable and long-lasting system performance.
Tool-Free Top and Side Panels – 1.2mm fine mesh panels provide excellent ventilation while keeping dust out, and can be easily removed for quick access.
Front I/O with Type-C 3.2 Gen 2 (10Gbps) Port – Convenient high-speed connectivity right at your fingertips.
Supports 240mm Top Radiator – Accommodates high-performance liquid cooling for enhanced thermal management.

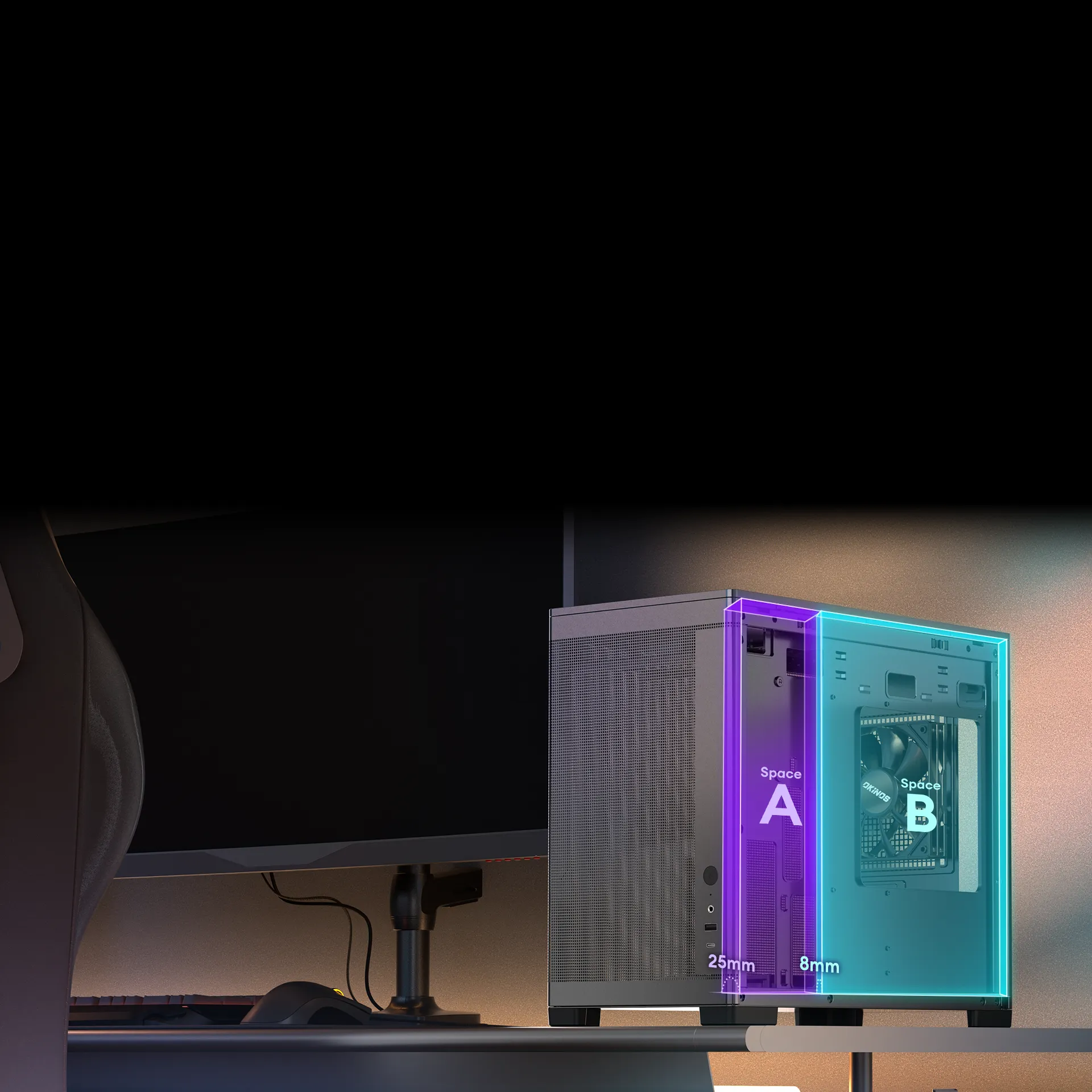

Optimized Cable Management – Up to 25mm clearance at the front and 8mm behind the motherboard tray allows tidy cable routing for a clean, organized build.
High-Spec 10A Extension Cable – Ensures stable power delivery while providing flexible reach for front-panel connections.
Full-Size Dust Filters – Top and bottom filters keep dust out while maintaining excellent airflow, enhancing overall system durability.
