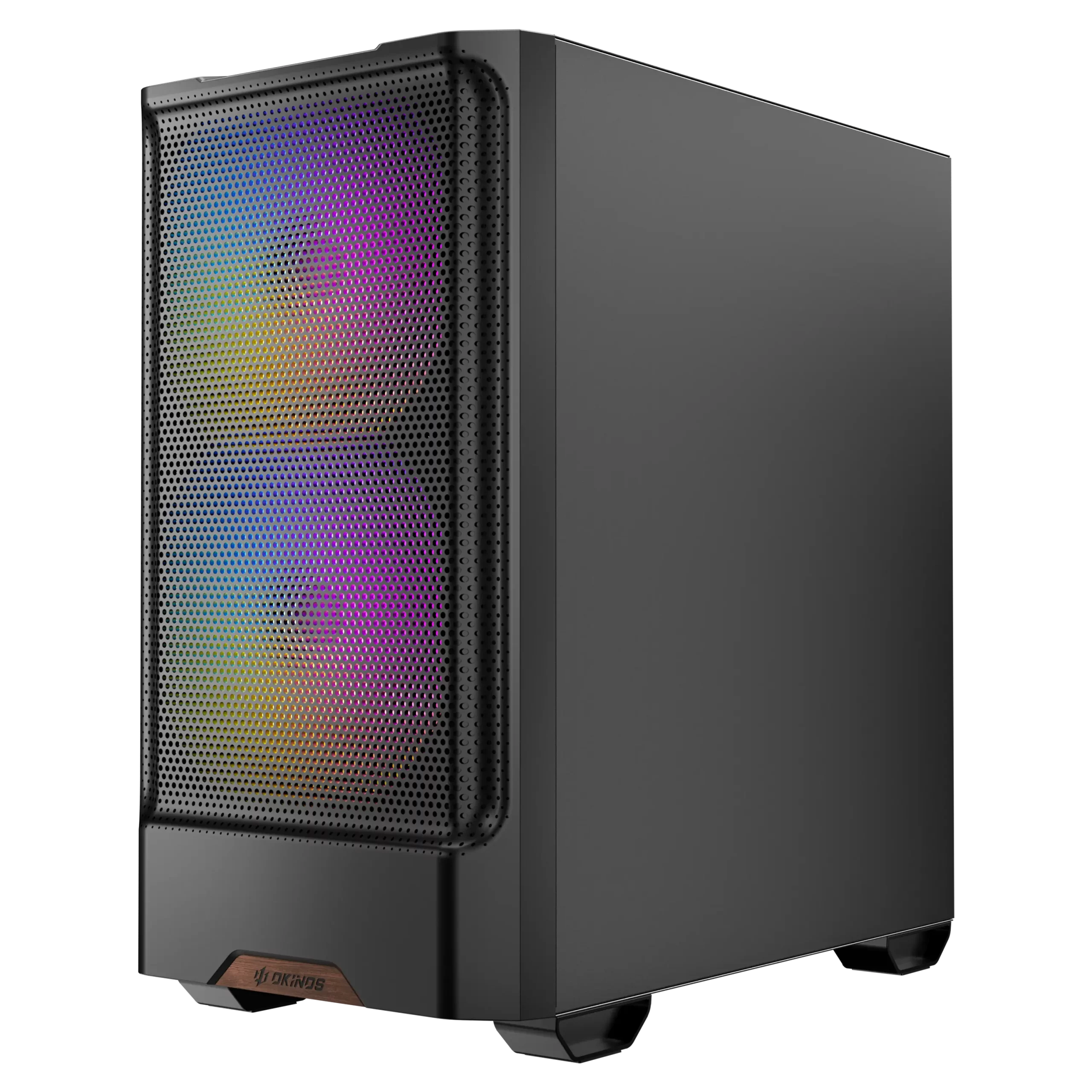

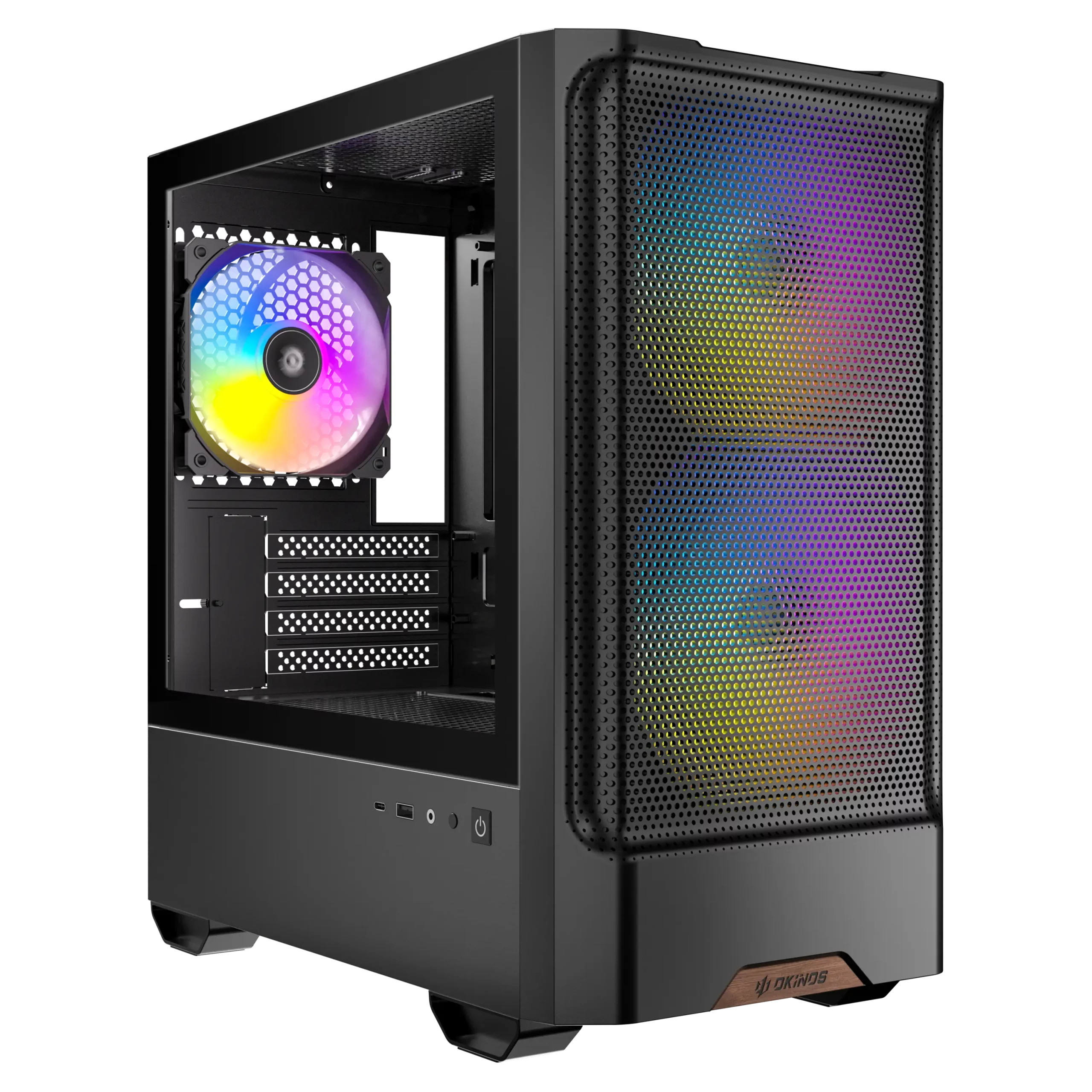

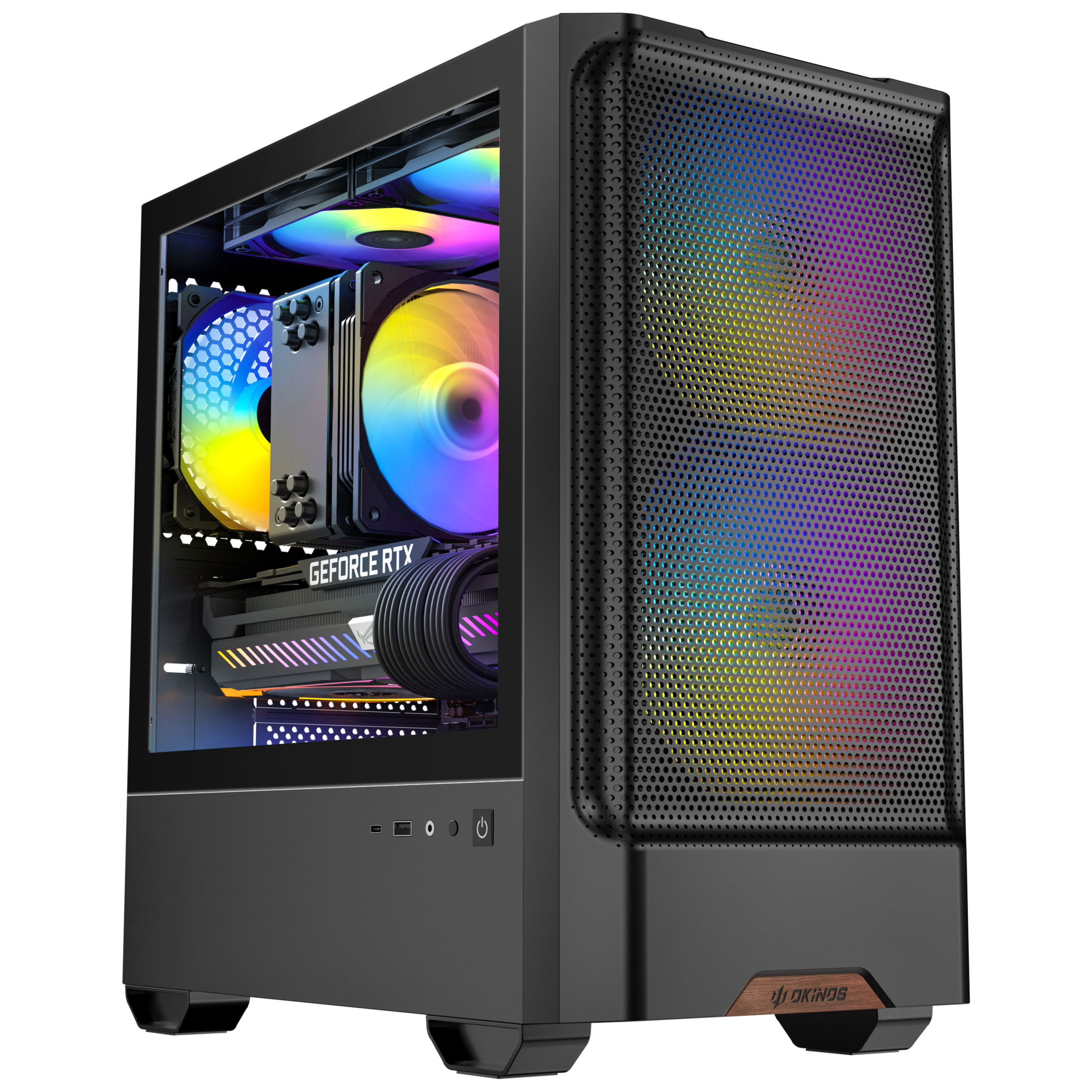

314 ARGB
Compact MicroATX Case

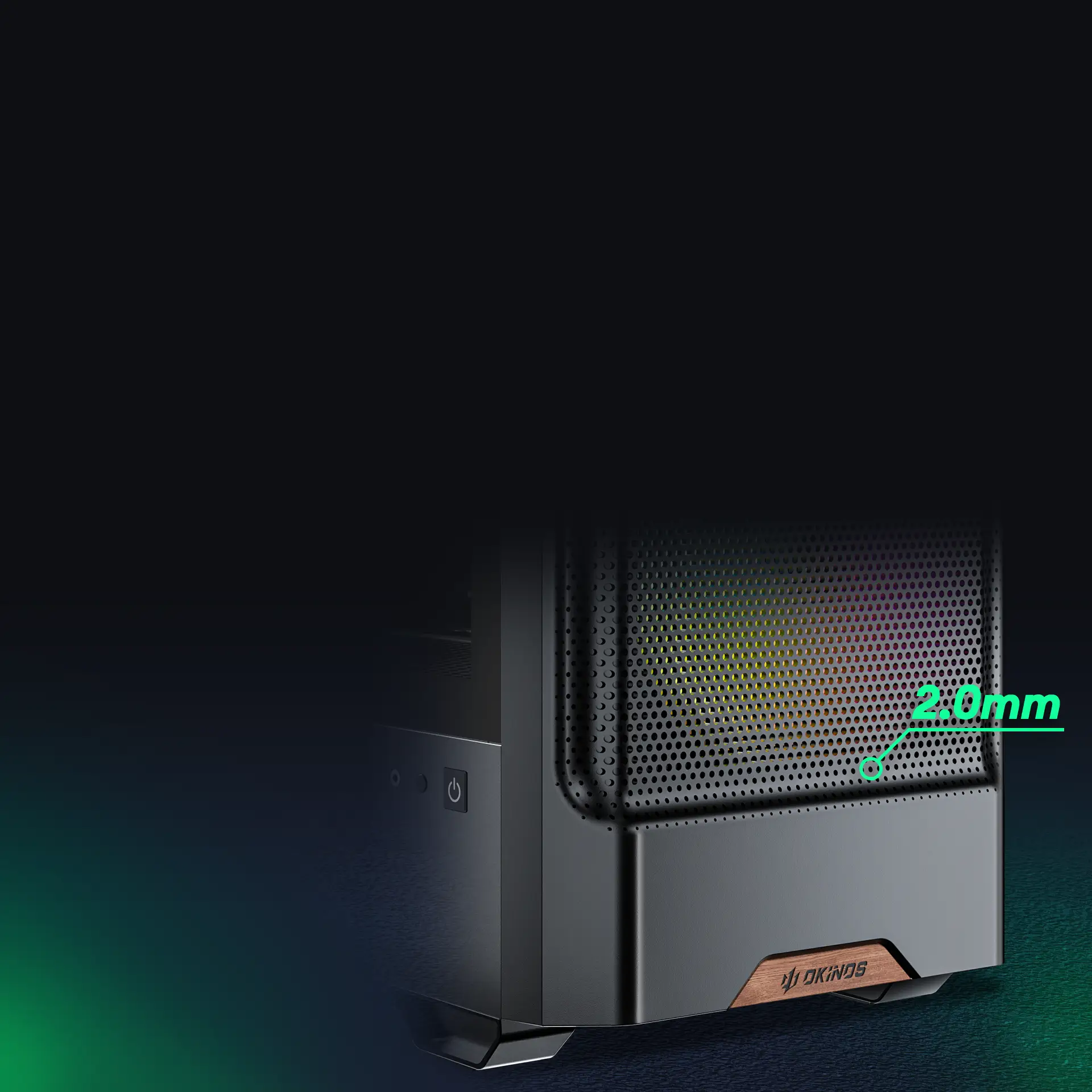

2mm Round Mesh Design
The round mesh (2.0mm for the front panel) ensure optimal airflow for efficient cooling and a stylish look.

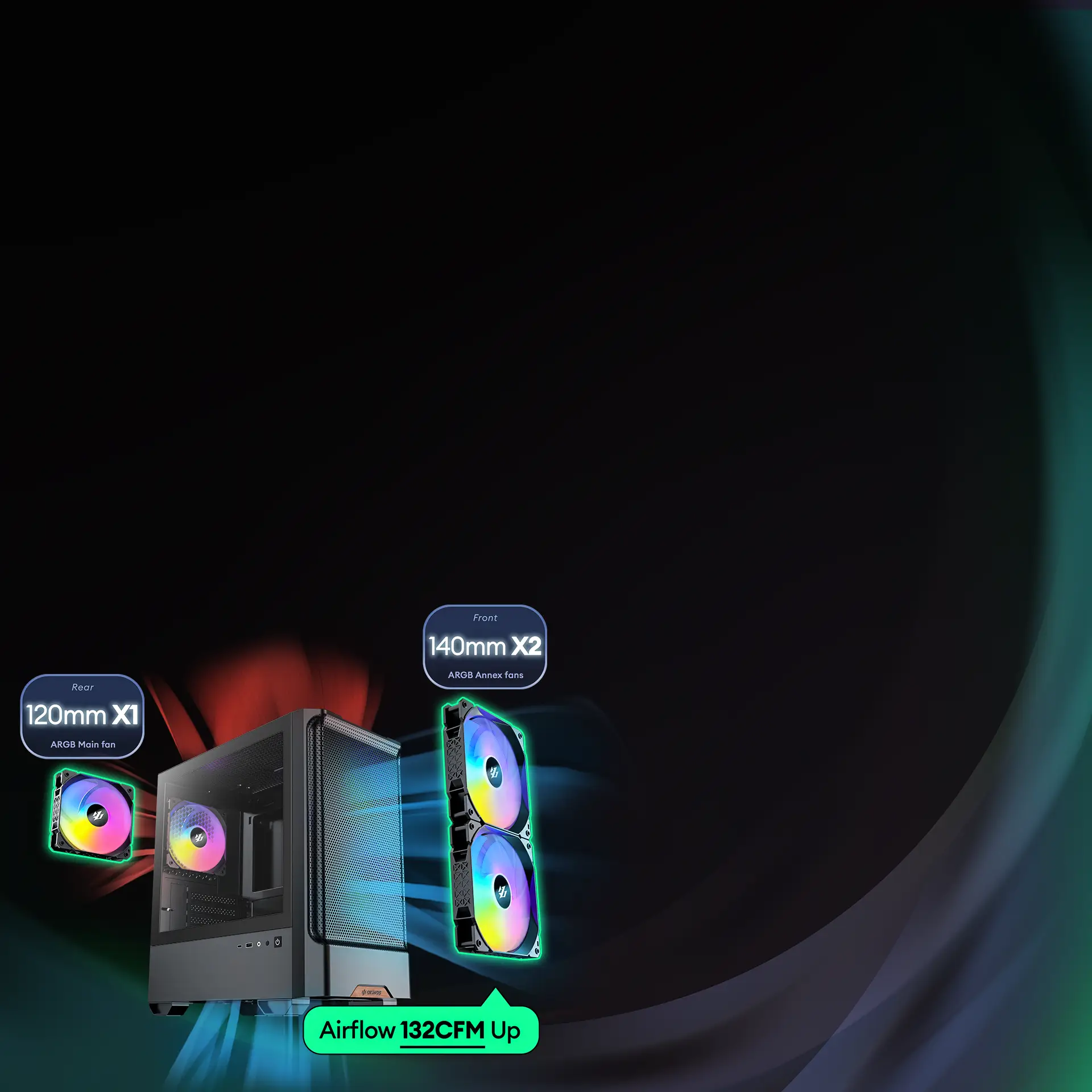

Optimized Airflow with Mesh Design
Supports up to 6 fans, delivering powerful and consistent airflow for a stable system environment.
Front mesh vents enhance ventilation and maximize cooling efficiency.

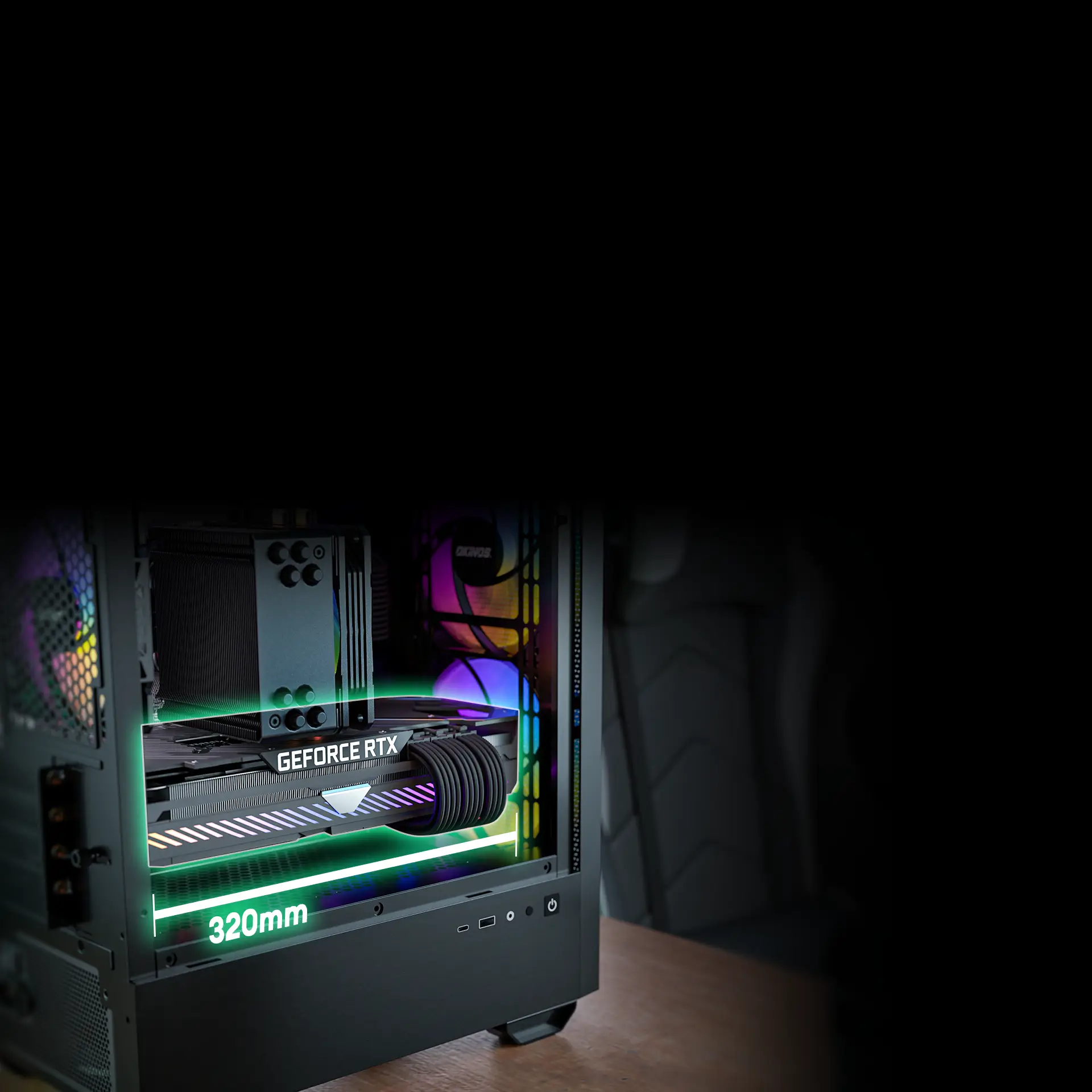

GPU Compatibility
Max. GPU Length ≤ 320mm

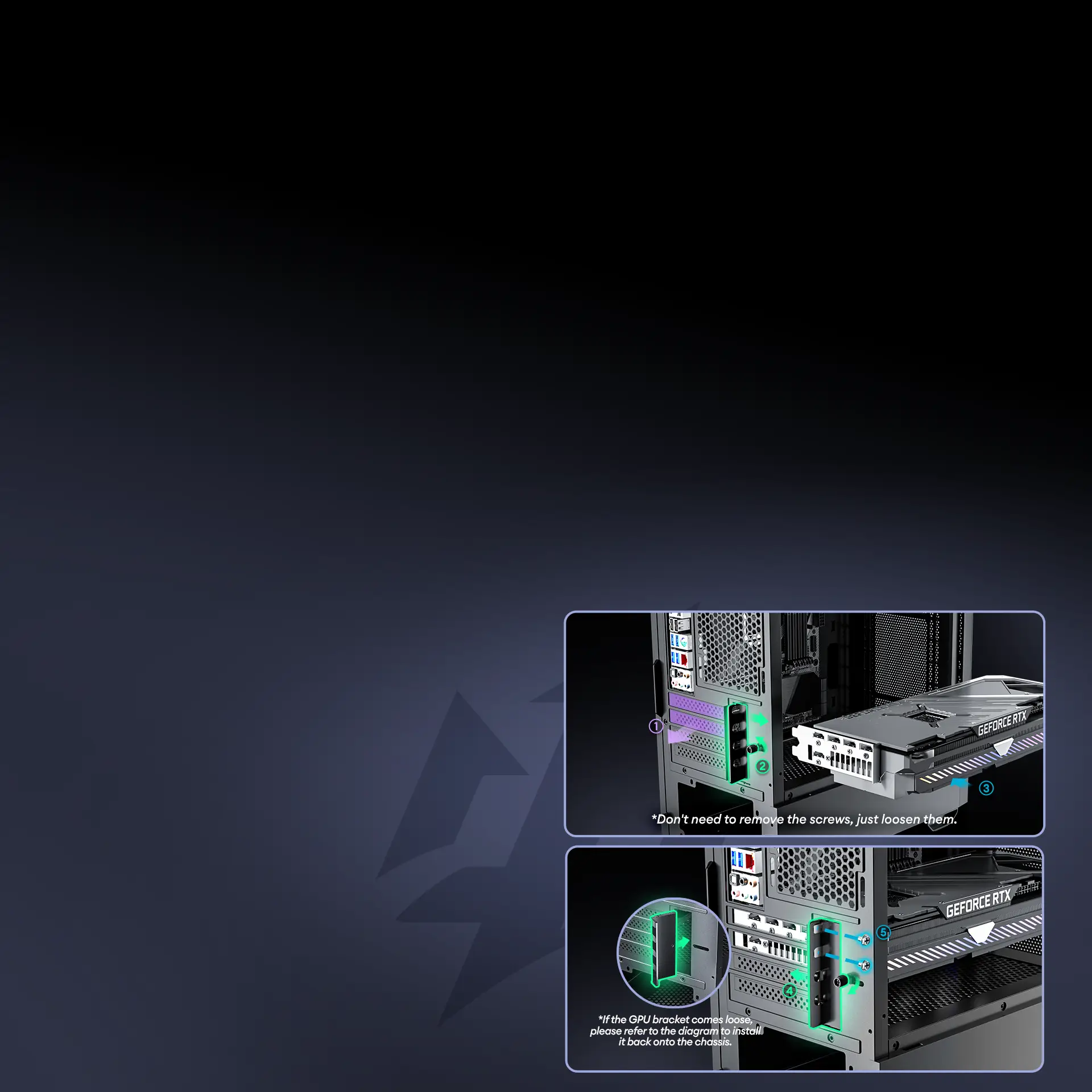

GPU Installation

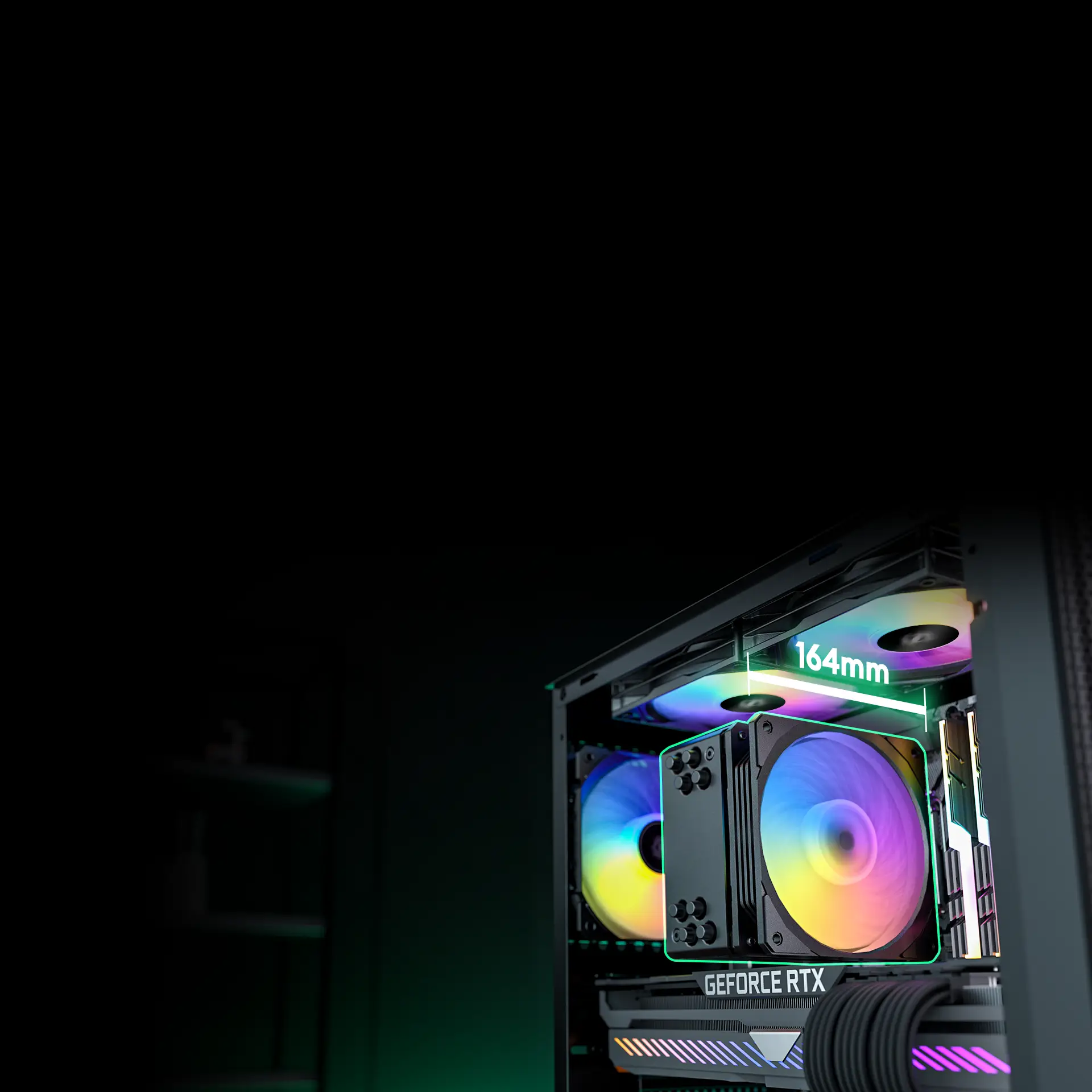

CPU Air Cooling Compatibility
Max. CPU Cooler Height ≤ 164mm

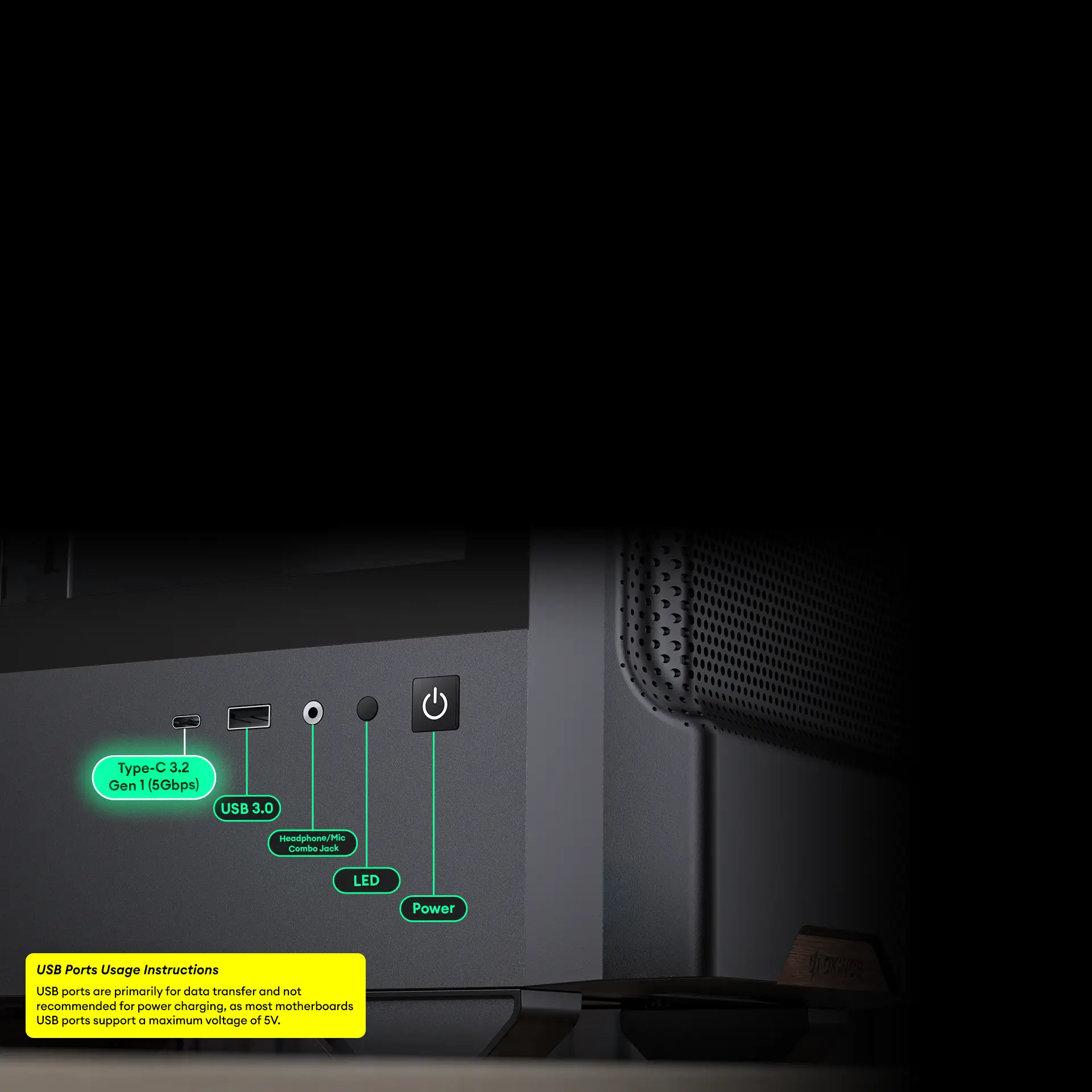

Mutli-Function Zone
Introducing Feature-Rich Multi-Functional Zone for Readily Accessable User-Computer Interaction.

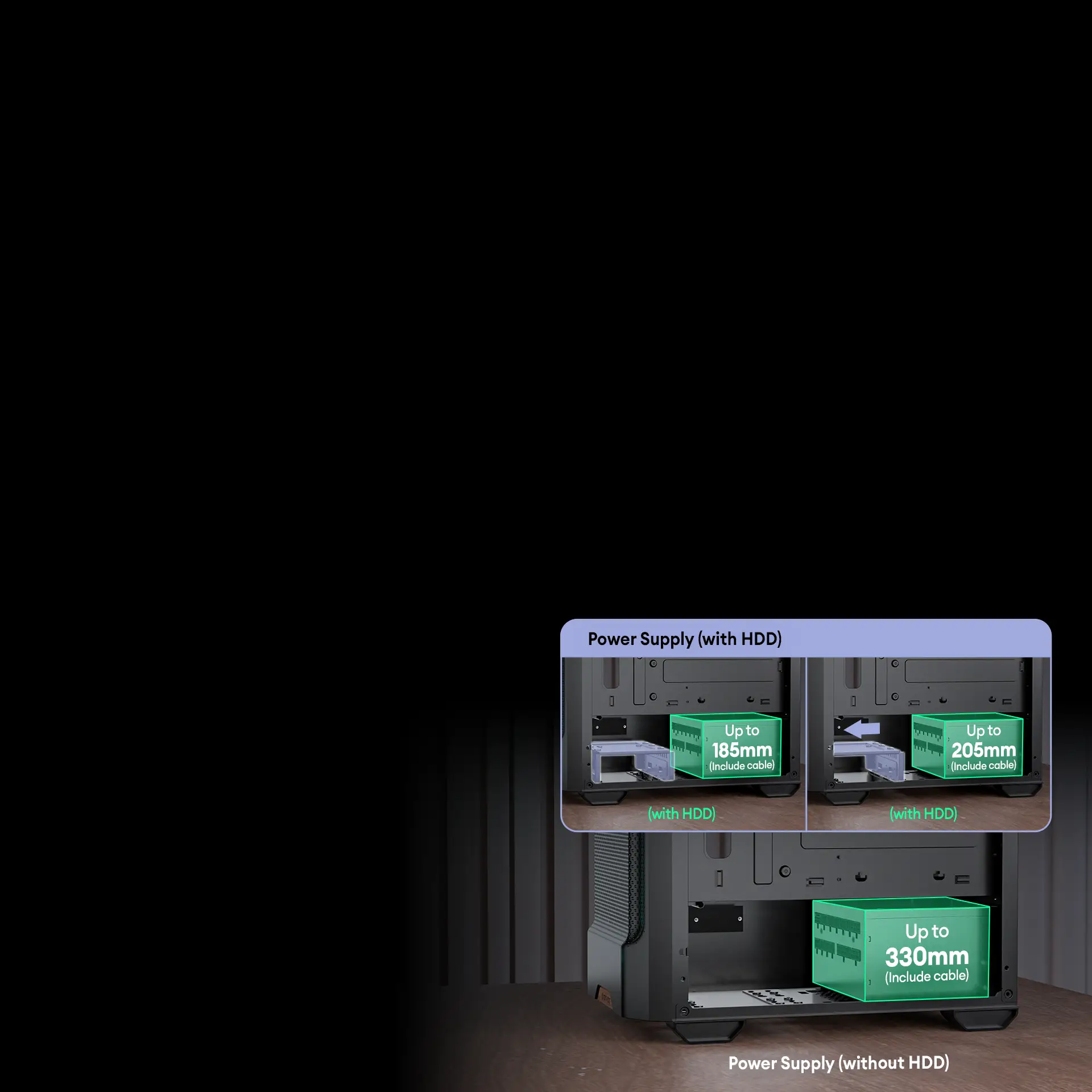

PSU Installation
PSU supports lengths (including cables) up to 330mm.

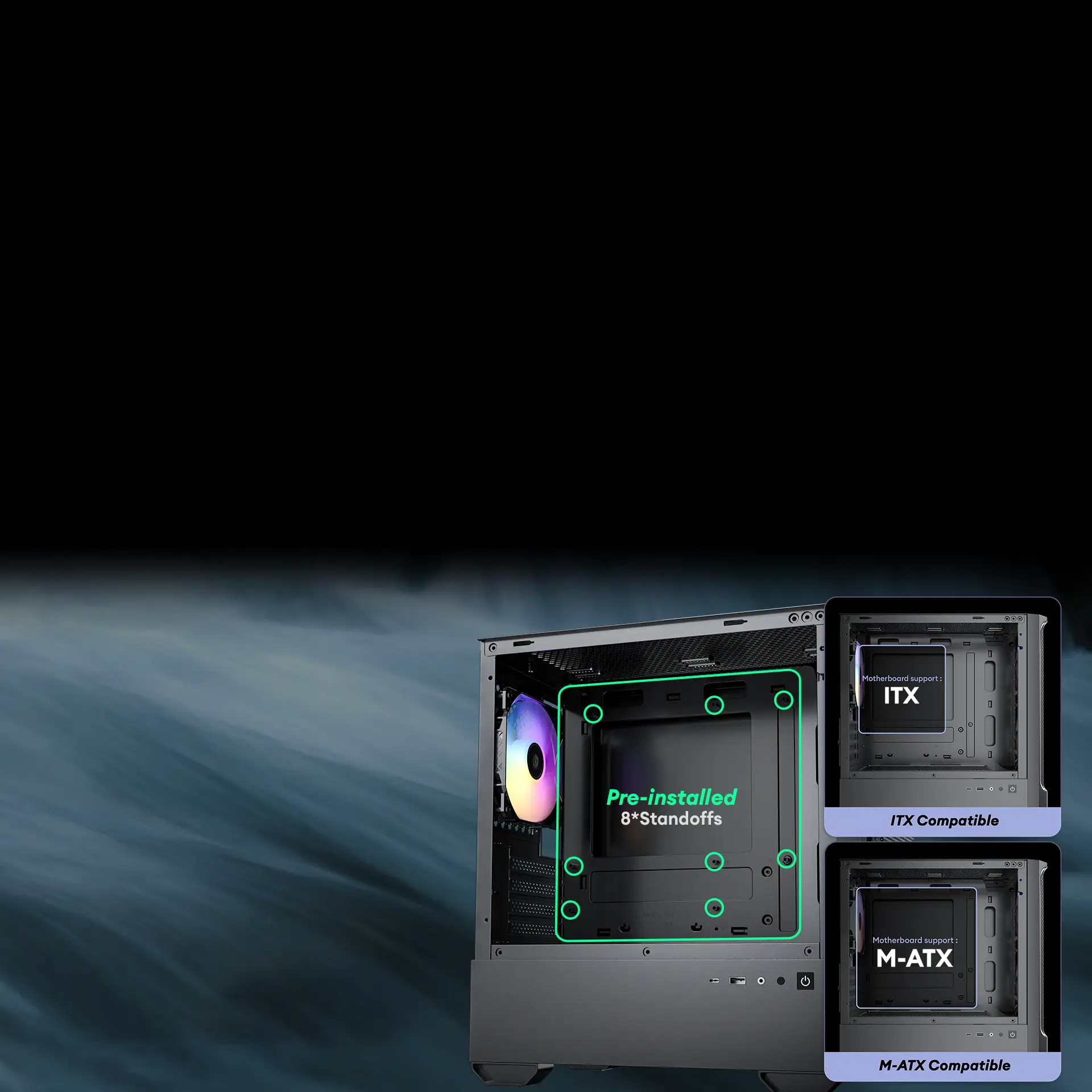

Standoffs & Motherboard Compatible
8 pre-installed standoffs in the case and 3 additional in the accessory box for easy motherboard installation.
Experience Ultimate Cooling Solution

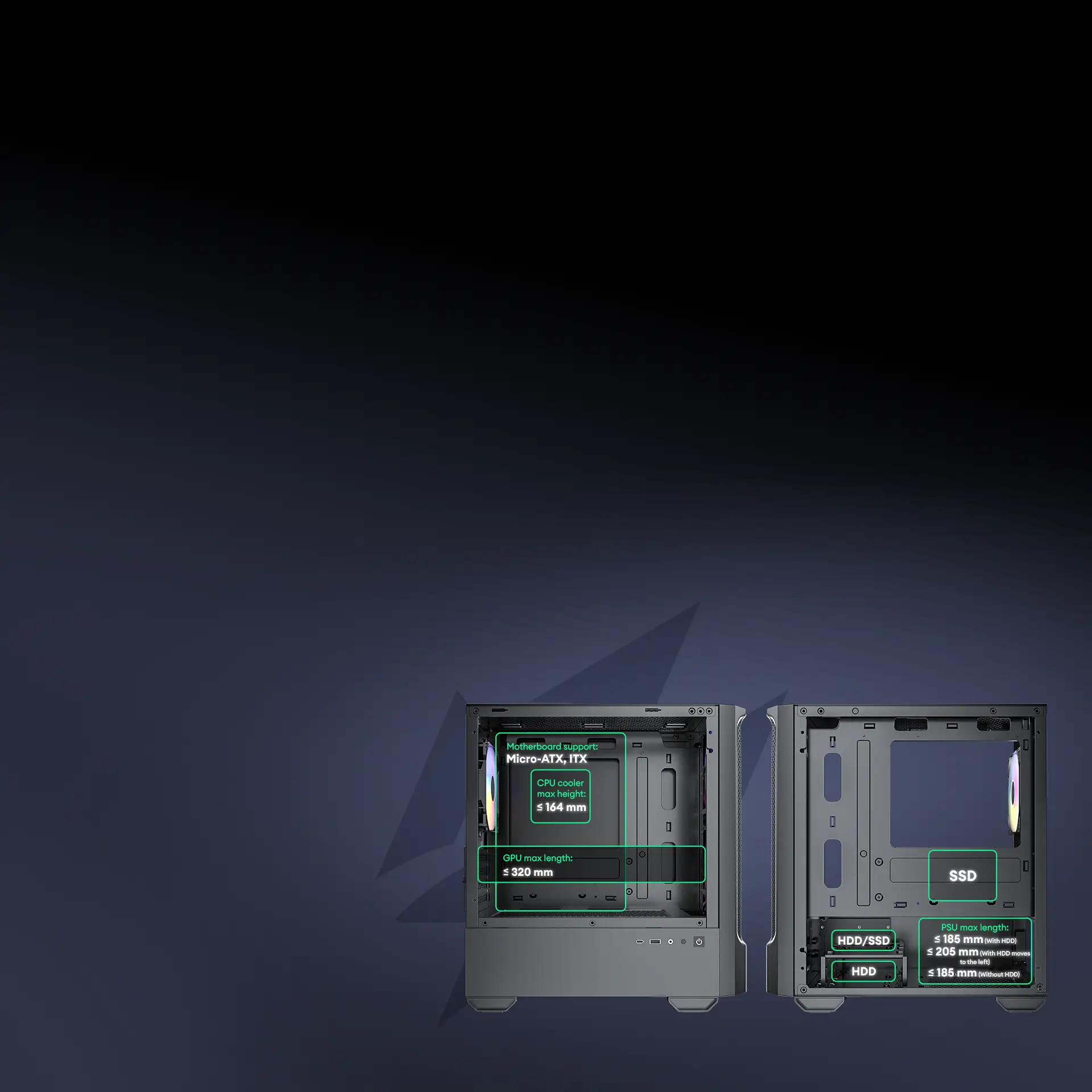

Compatibility

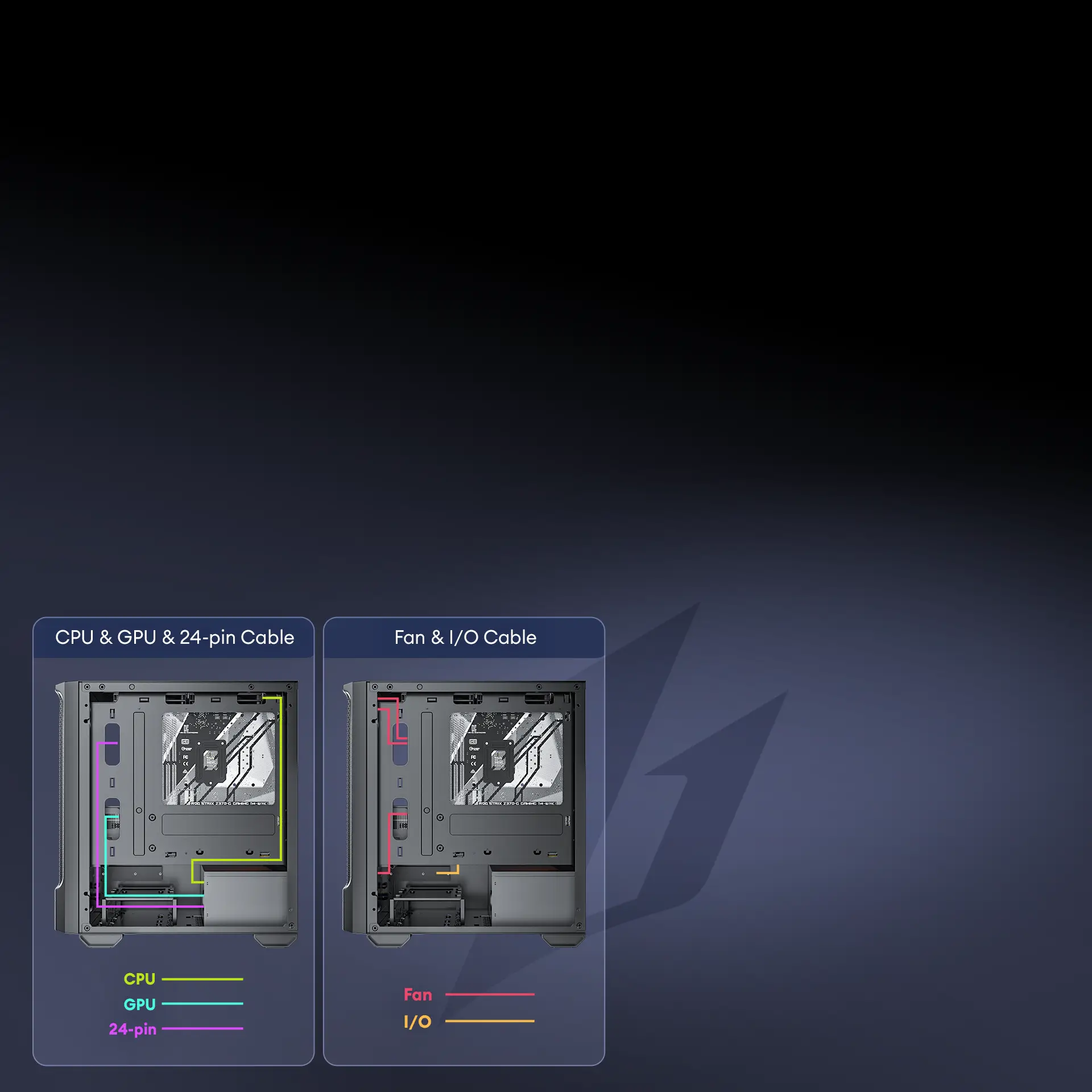

Cable Management Routing
There are 23mm depth for easy cable management.
Specifications
Model Name
314 ARGB
Model Number
OKICC-314-MATXBA
EAN
4897121941550
Dimensions
379 x 210 x 402mm (DWH)
Form Factor
Mini Tower
Materials
Steel + Plastic
Mainboard Support
Micro-ATX, ITX
Front Access & Controls
Power, LED Control Button, USB 3.0 x 1, Type-C 3.2 Gen 1 (5Gbps) x 1, Headphone / Mic Combo Jack
Side Panel
Tempered Glass
Drive Bays
Expansion Slots
4
3.5″ / 2.5″
2 / 1
2.5″
1

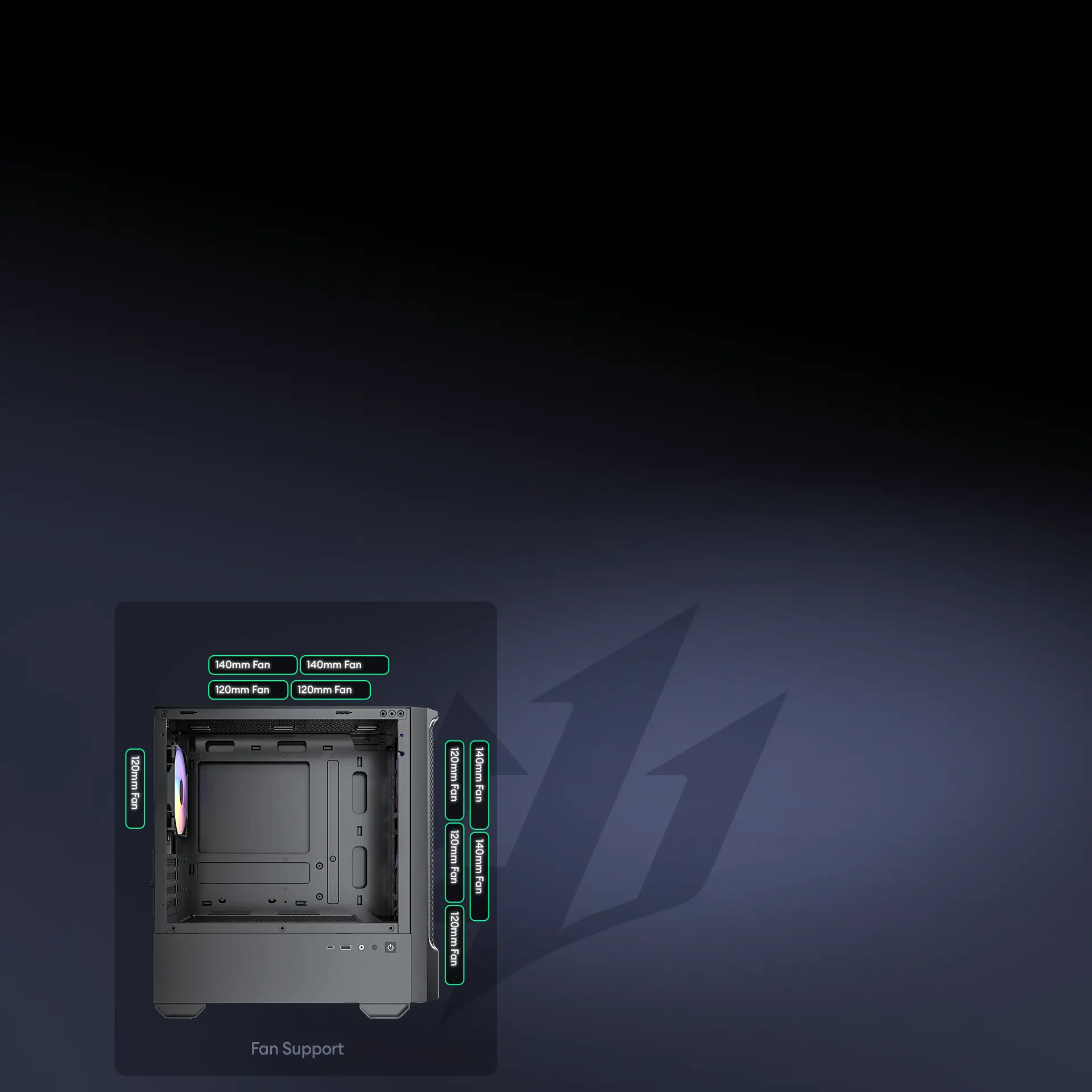

Fan Support
Front
3 x 120mm / 2 x 140mm
Top
2 x 120mm / 2 x 140mm

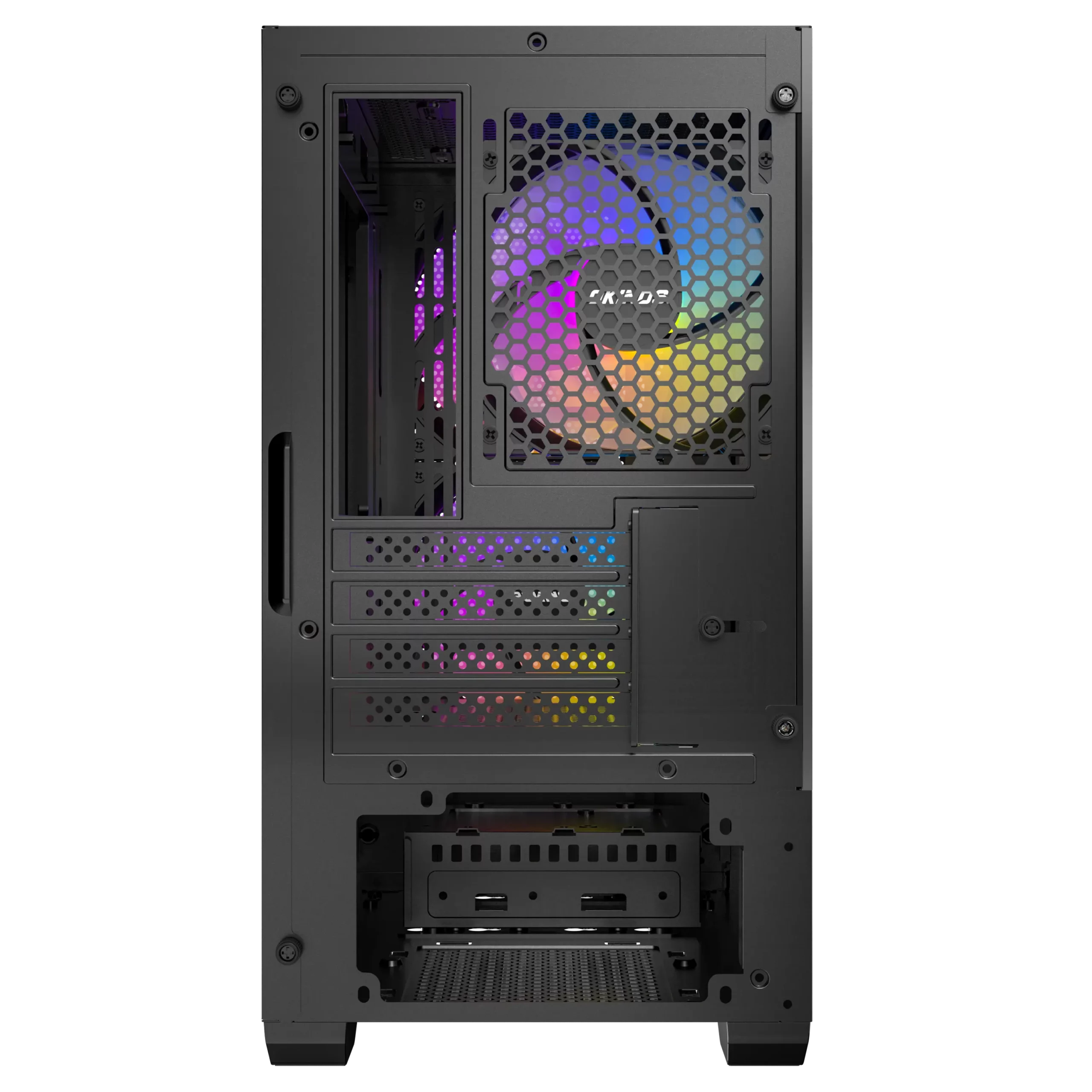

Rear
1 x 120mm
Included Fan(s)
2 x 140mm ARGB fans at the front + 1 x 120mm ARGB fan at the rear
Clearance
Max GPU Length
≤320mm
Max CPU Cooler Height
≤164mm
Max PSU Length
(Include cable) ≤ 185mm (With HDD)
(Include cable) ≤ 205mm (With HDD moves to the left)
(Include cable) ≤ 330mm (Without HDD)
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
4.1 Kg
Gross Weight
4.9 Kg
Special Features
1. Front panel mesh design for enhanced airflow and a clean, modern look
2. 23mm cable management space for easier and neater routing
3. Pre-installed cooling system with 2 × 140mm front ARGB fans and 1 × 120mm rear ARGB fan (1000 RPM)
4. Removable and adjustable HDD cage to support longer power supplies
5. Magnetic top and bottom dust filters to keep airflow clean and prevent dust buildup
