Four-Sided Infinity Mirror Lighting
Infinity Mirror lighting wraps around all four sides of the fan frame, creating a seamless 3D light effect.

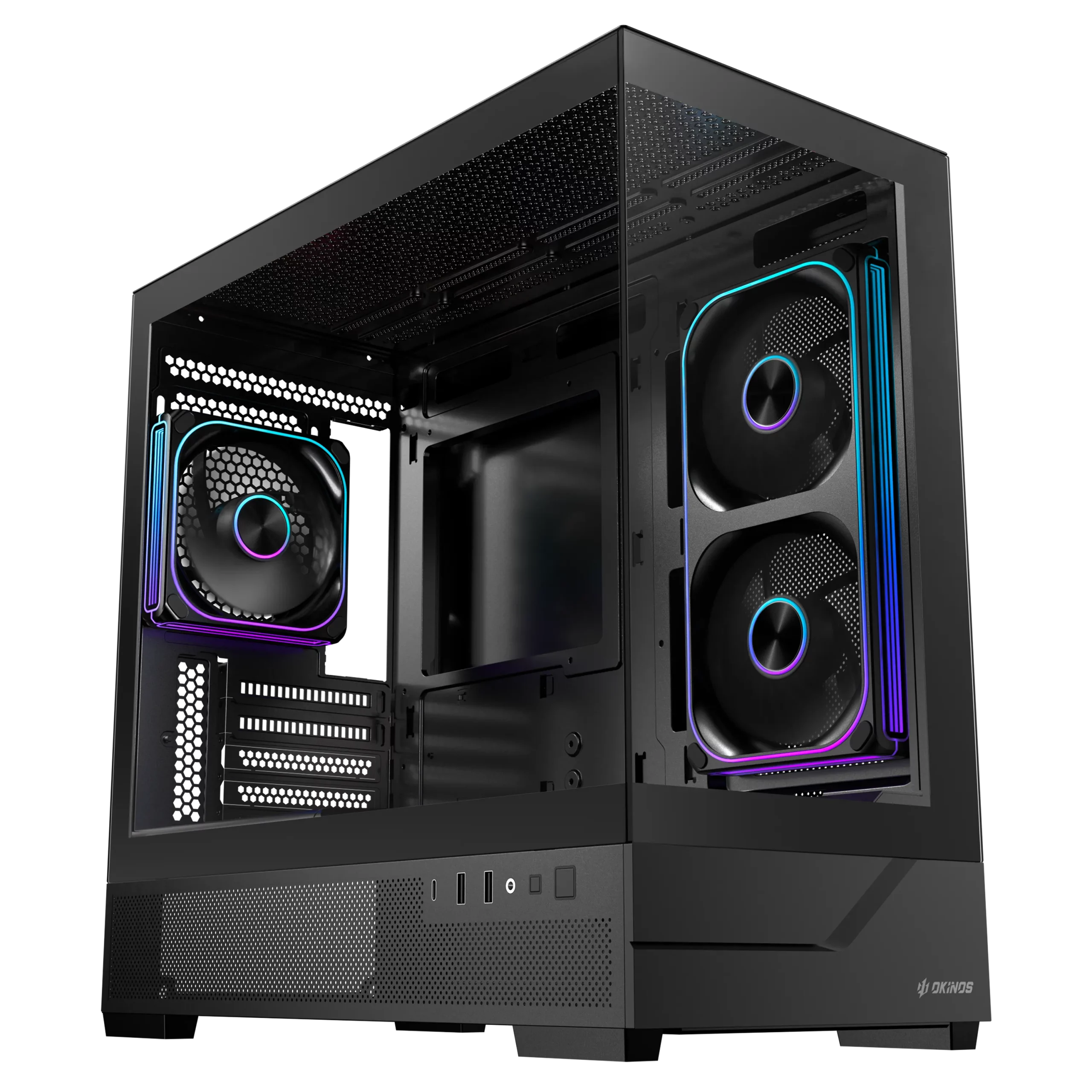

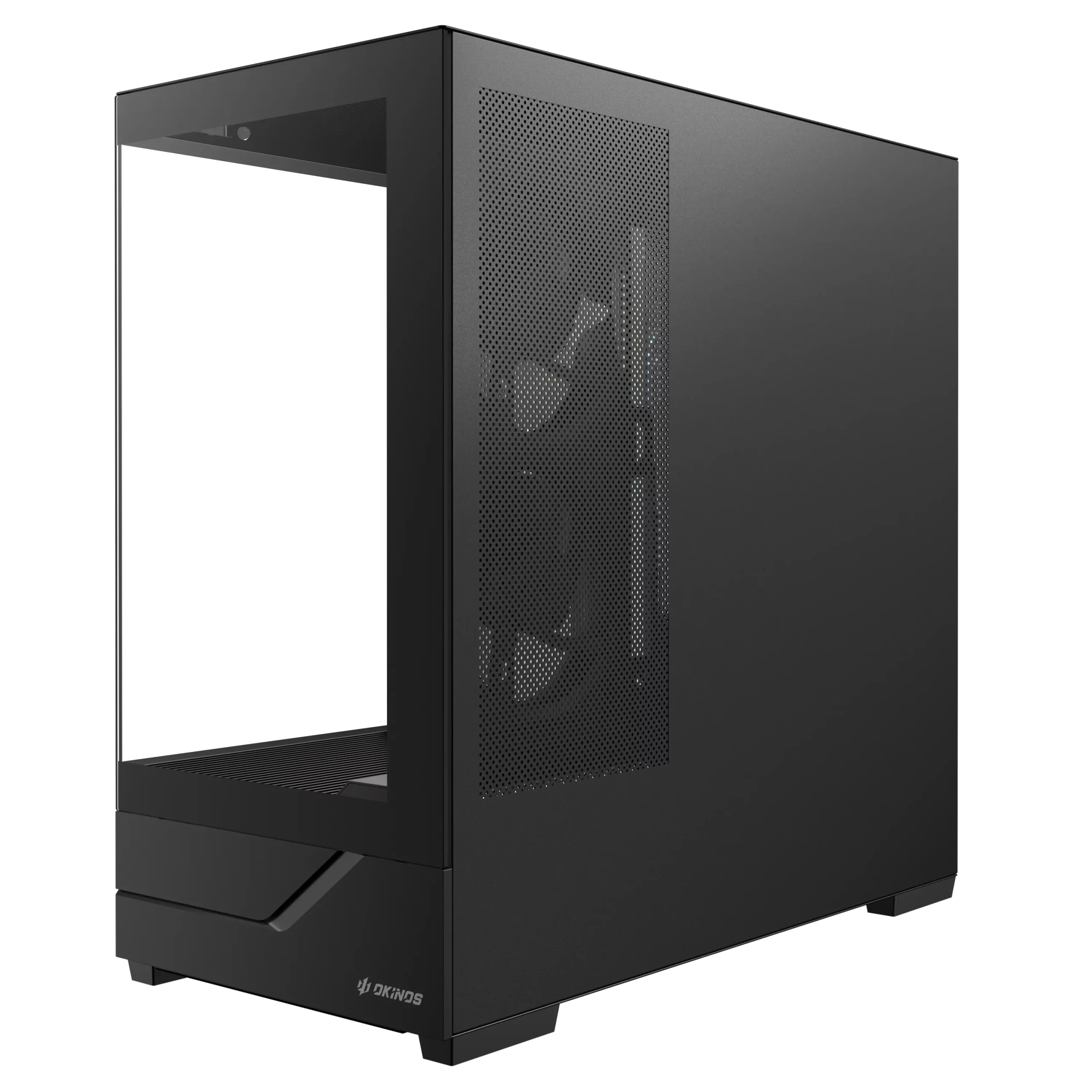

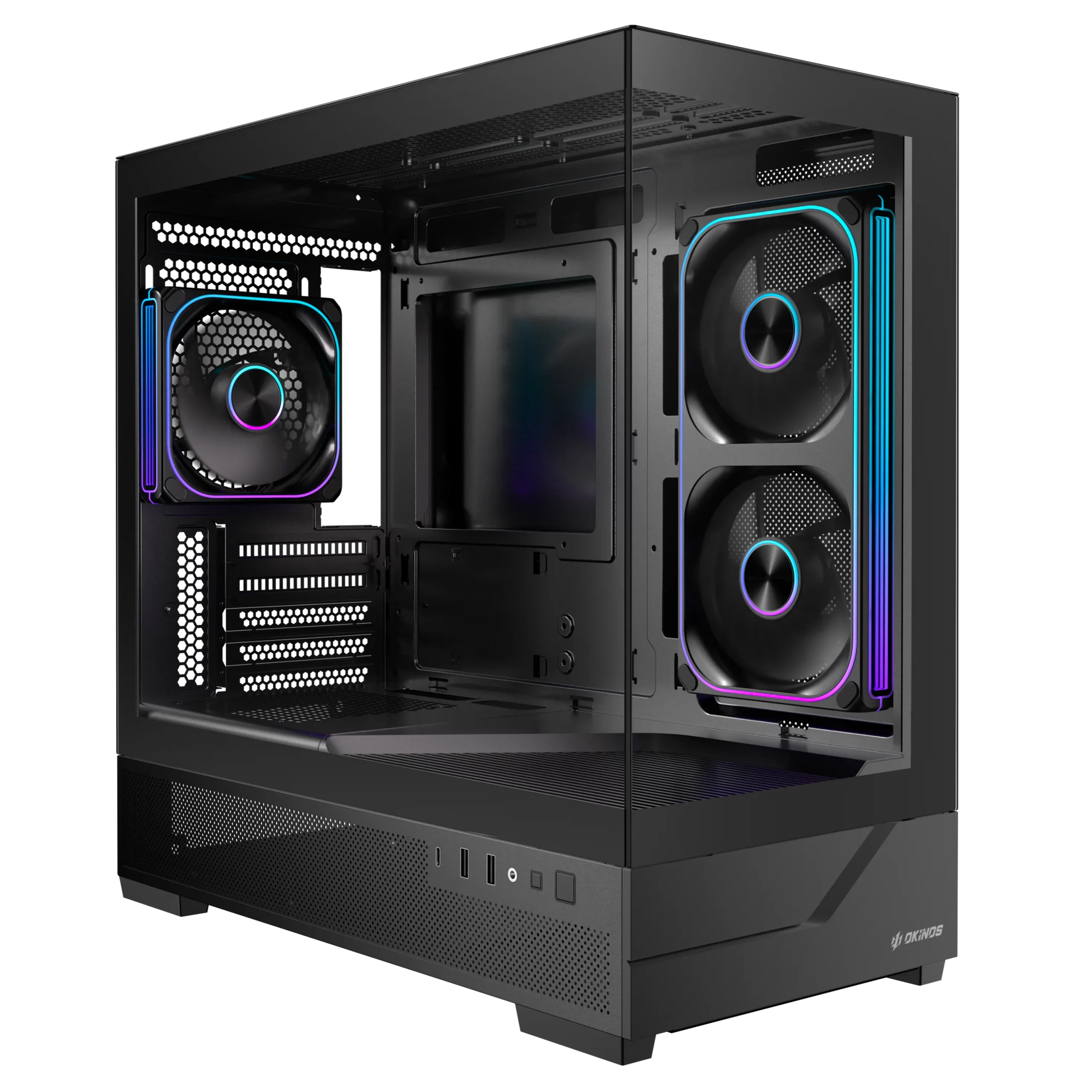

AQUA 5 VISTA
Compact MicroATX Case

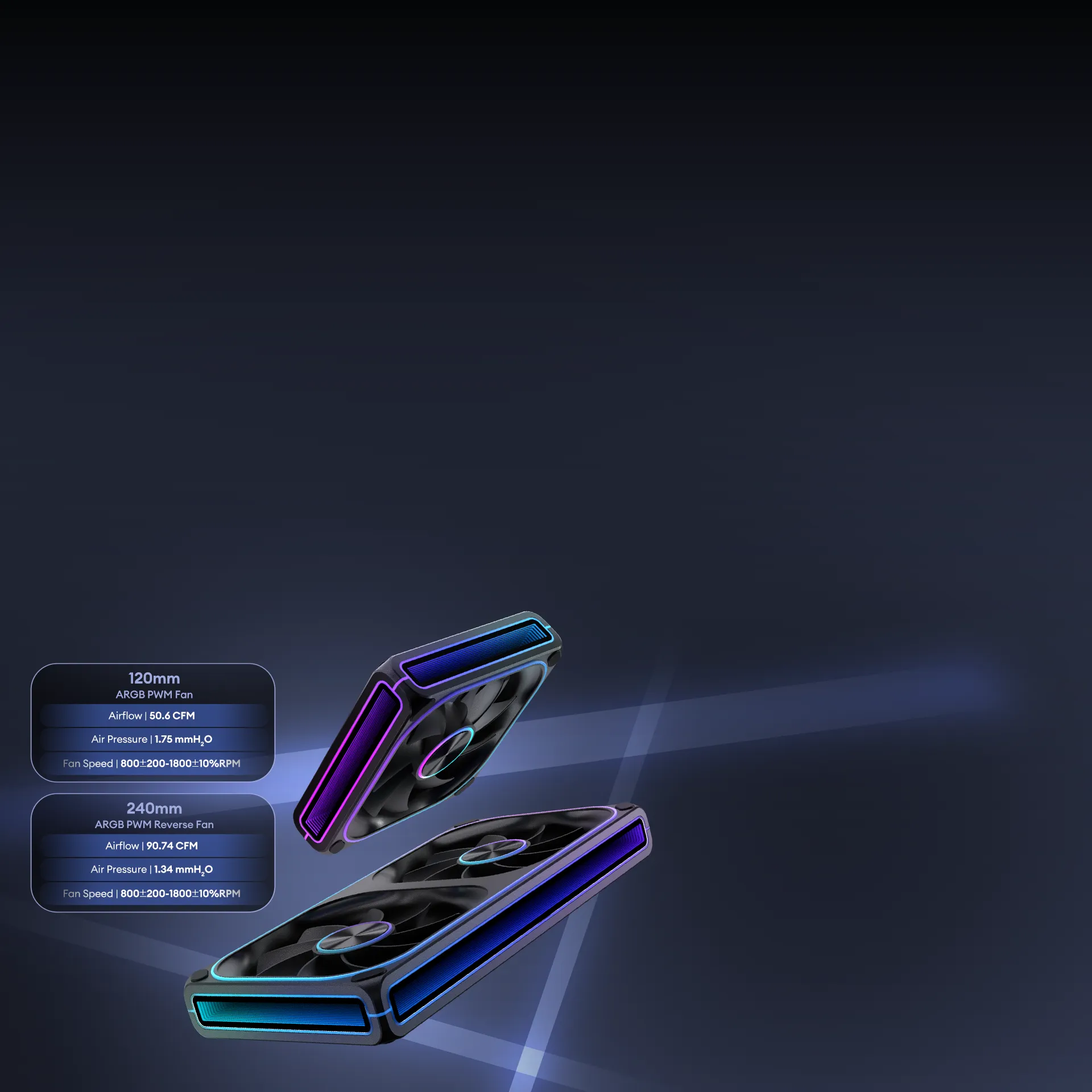

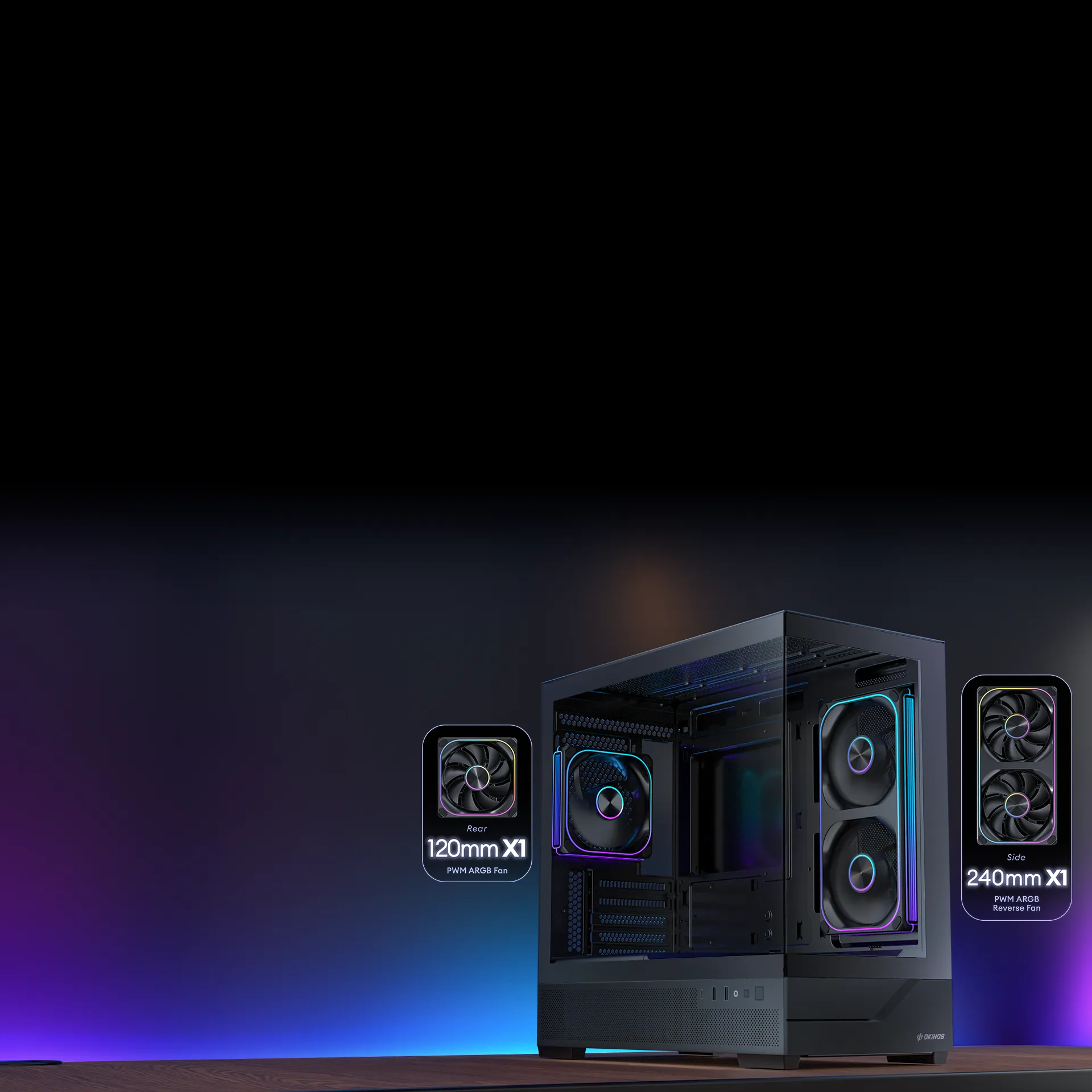

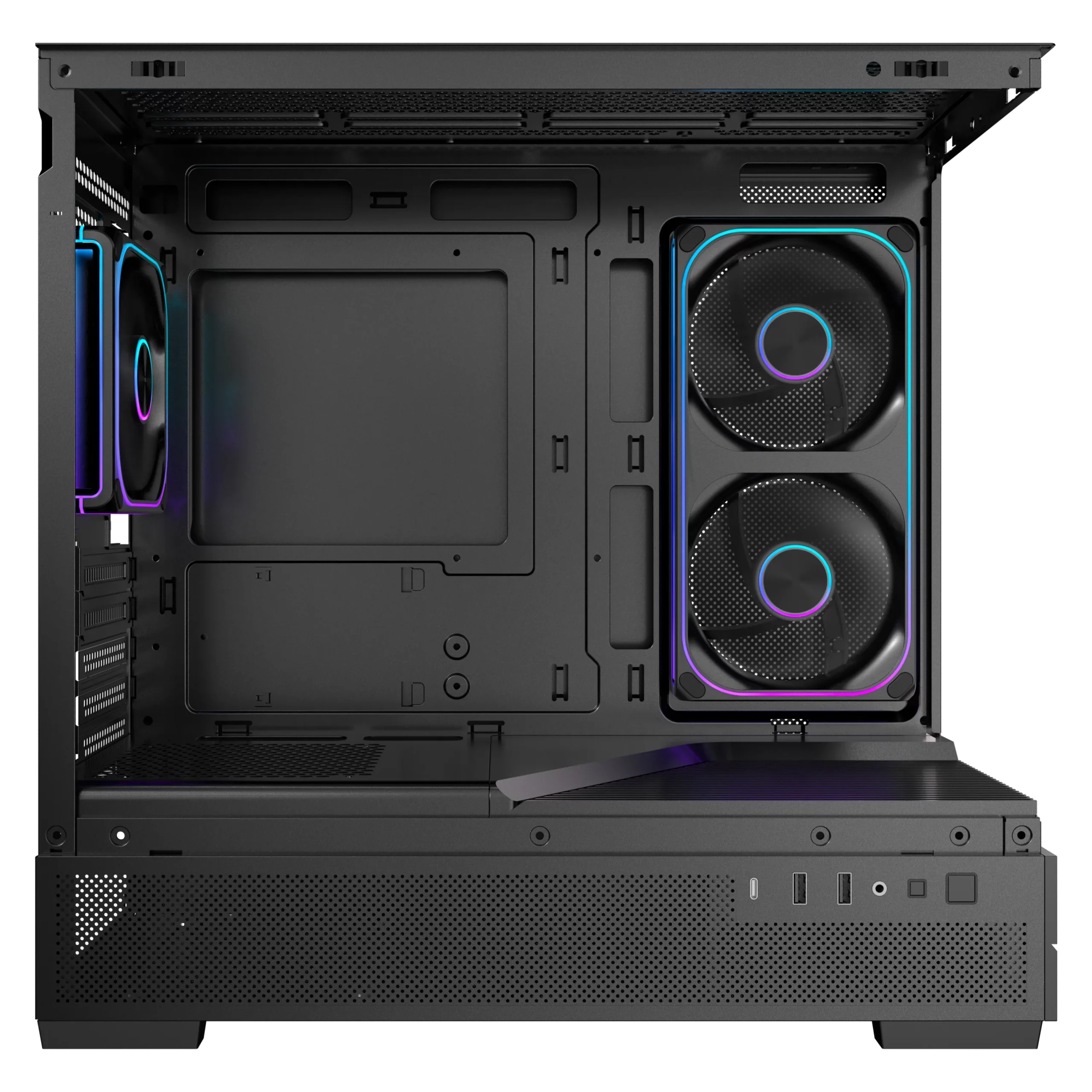

Efficient Cooling Configuration
Pre-Installed 1x 240mm PWM ARGB Reverse fan at the side and 1x 120mm PWM ARGB fan at the rear, the case achieves a meticulously designed airflow path to ensure efficient cooling.
*Daisy-chain PWM & ARGB connectors for cleaner, simpler builds.
Important RGB Lighting Notice

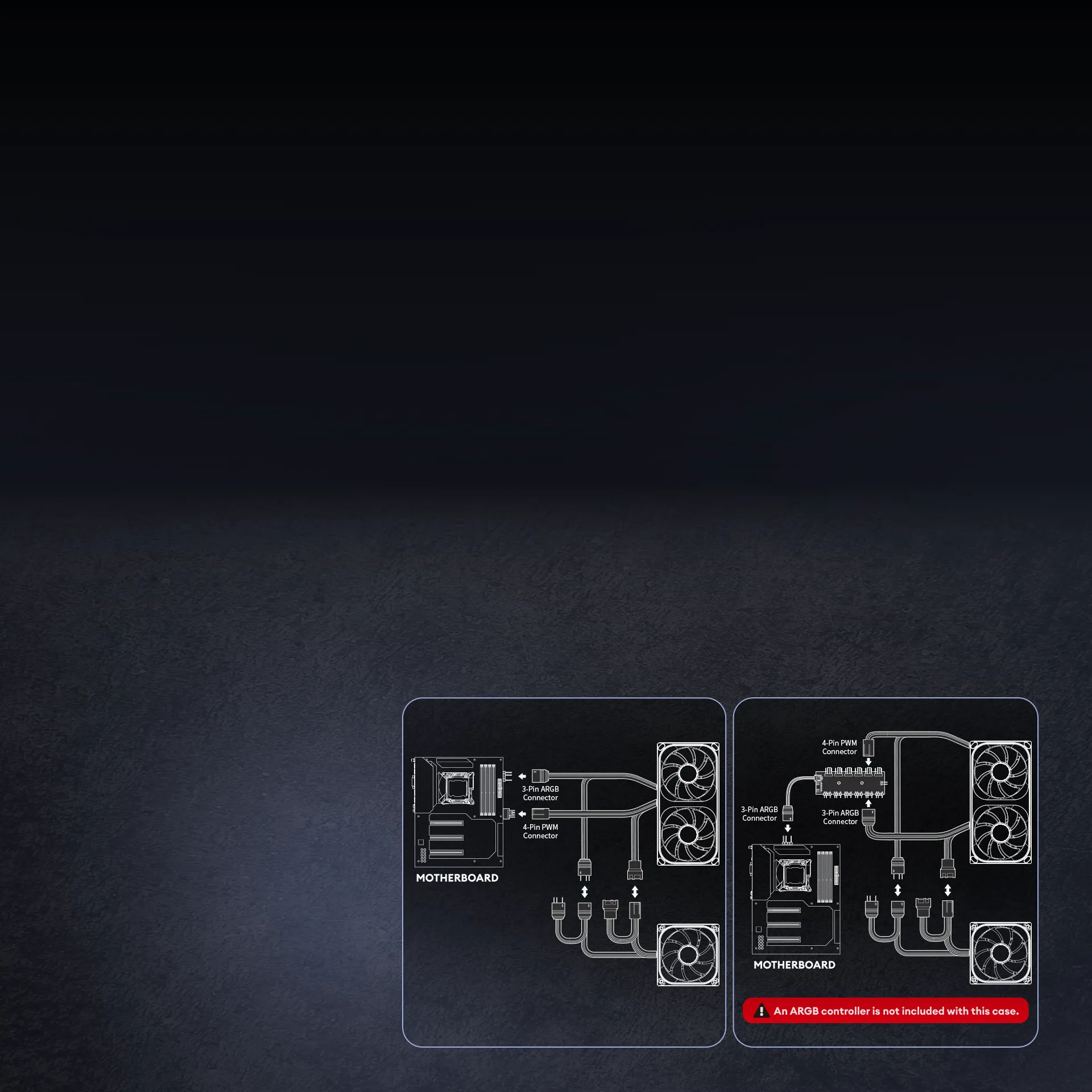

Motherboard Compatibility
For fan lighting effects, we recommend connecting the fans to ARGB header on the motherboard.
– Motherboard connection : Requires a motherboard with a 3-pin 5V addressable RGB header that supports 60 or more addressable LEDs.
– Controller connection : Connect the fan ARGB cable to the external ARGB hub. The hub must support 60 or more addressable LEDs.
IMPORTANT
If you are using a third-party lighting controller, make sure each ARGB port on the controller can drive at least 60 ARGB LEDs. If your controller does not meet this requirement, the lighting effects may not display as intended, or the LEDs may not light up at all. In this case, connect the ARGB cable to a 5V ARGB header on your motherboard and sync the lighting through your motherboard’s software.

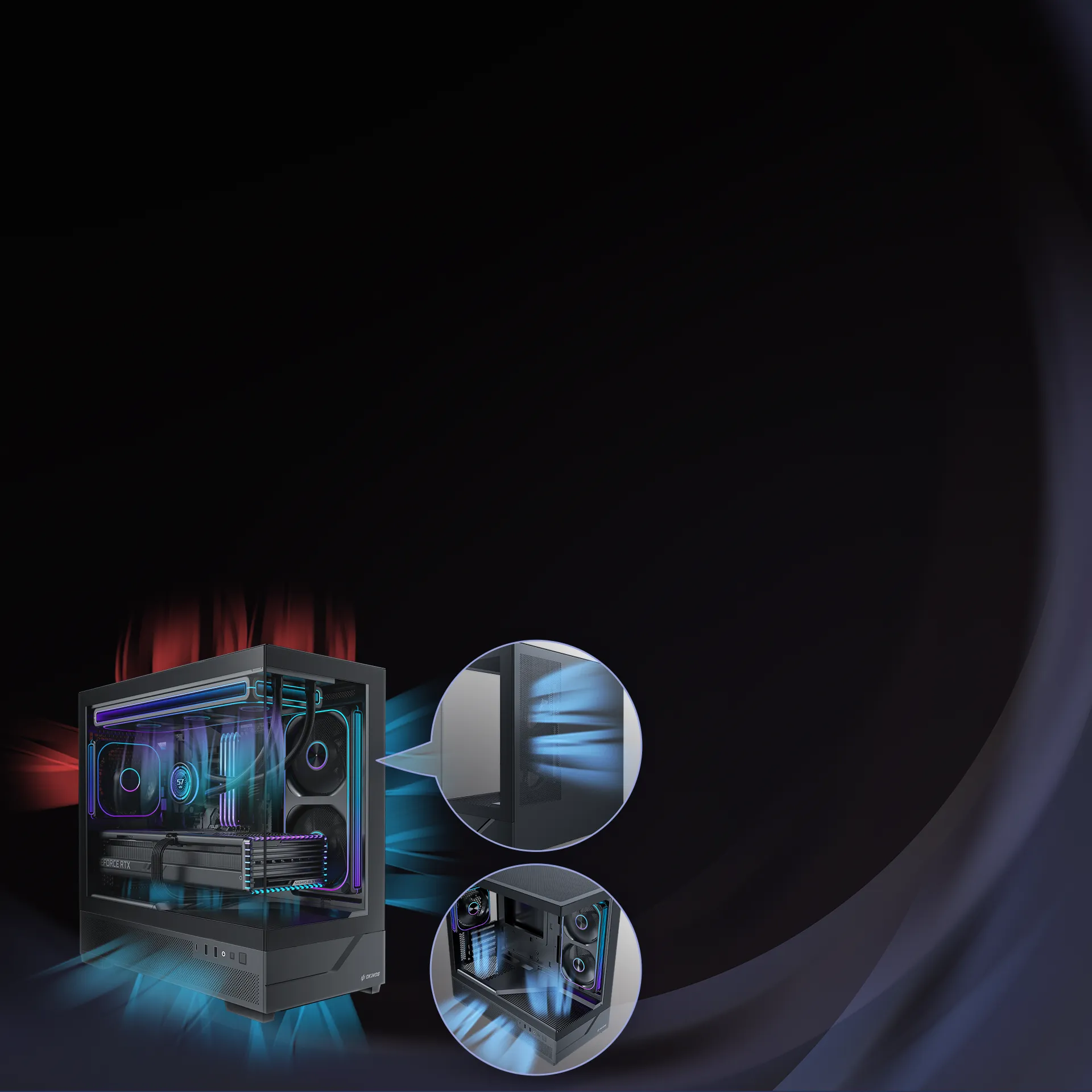

Optimized Airflow with Mesh Design

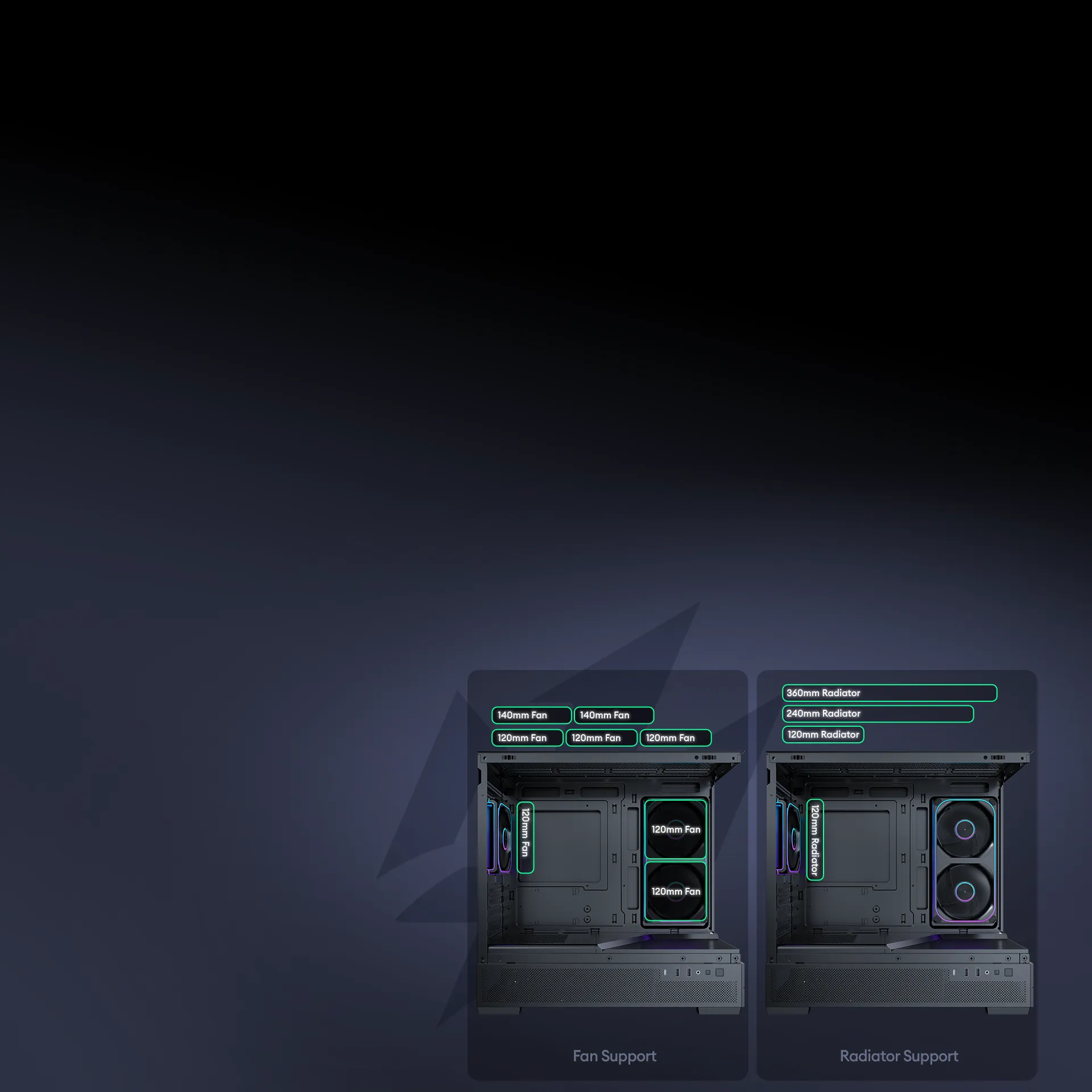

Accommodates up to 6 fans to deliver powerful airflow and maintain a stable system environment.
Multi-zone mesh vents maximize cooling efficiency and airflow performance.

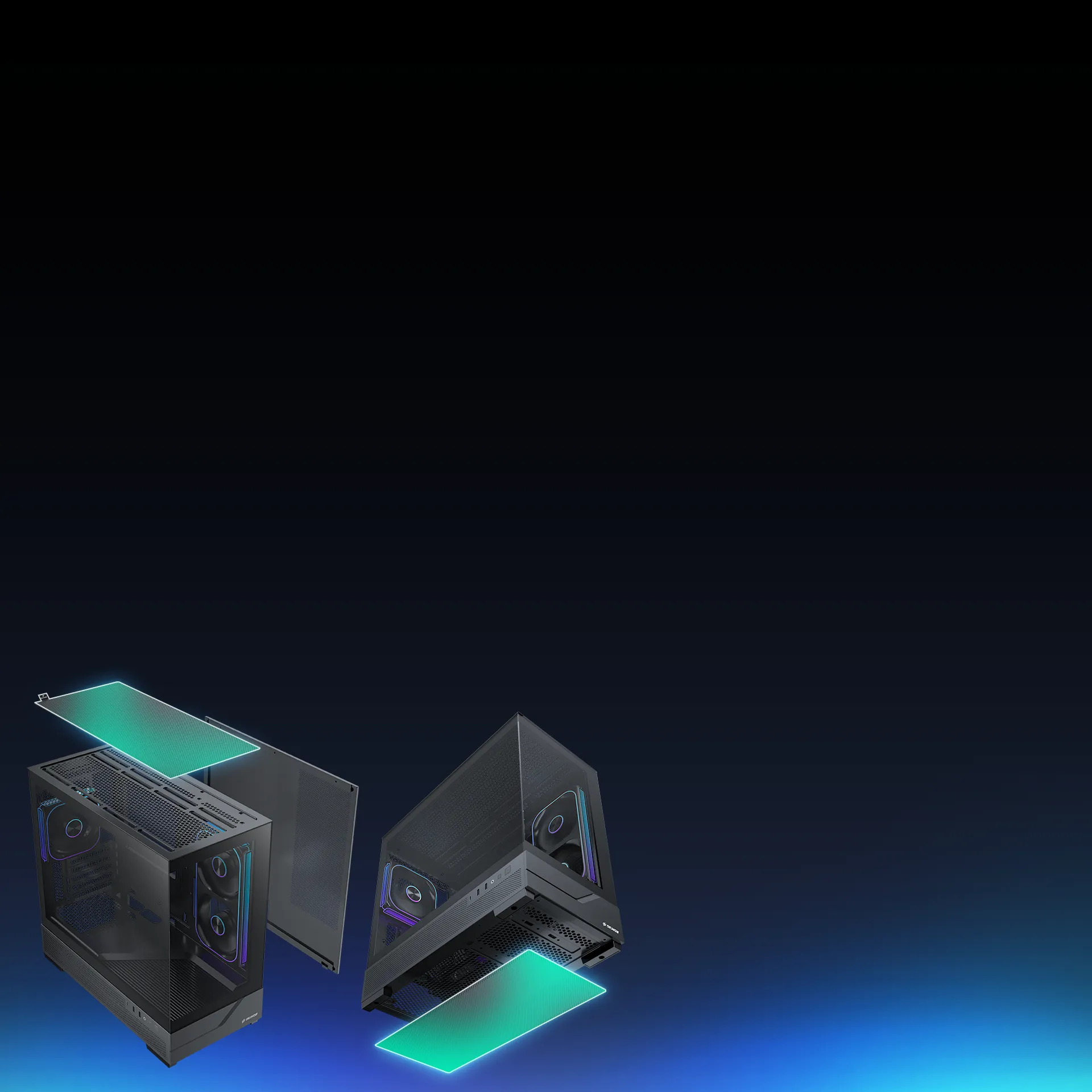

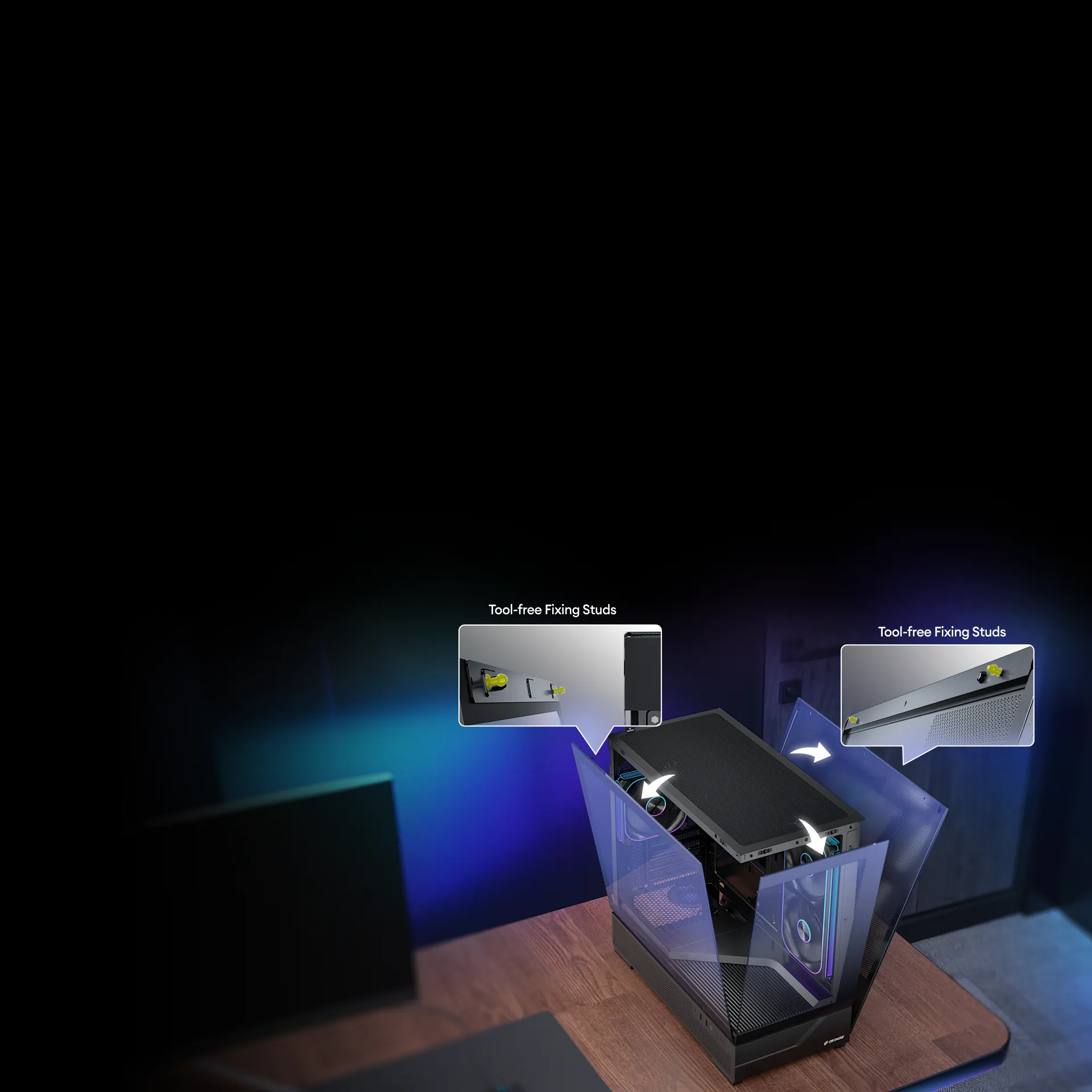

Tool-Free Panel
The front, left and right side panels use a stud-mount design that makes installation and removal easier while reducing the risk of glass damage.

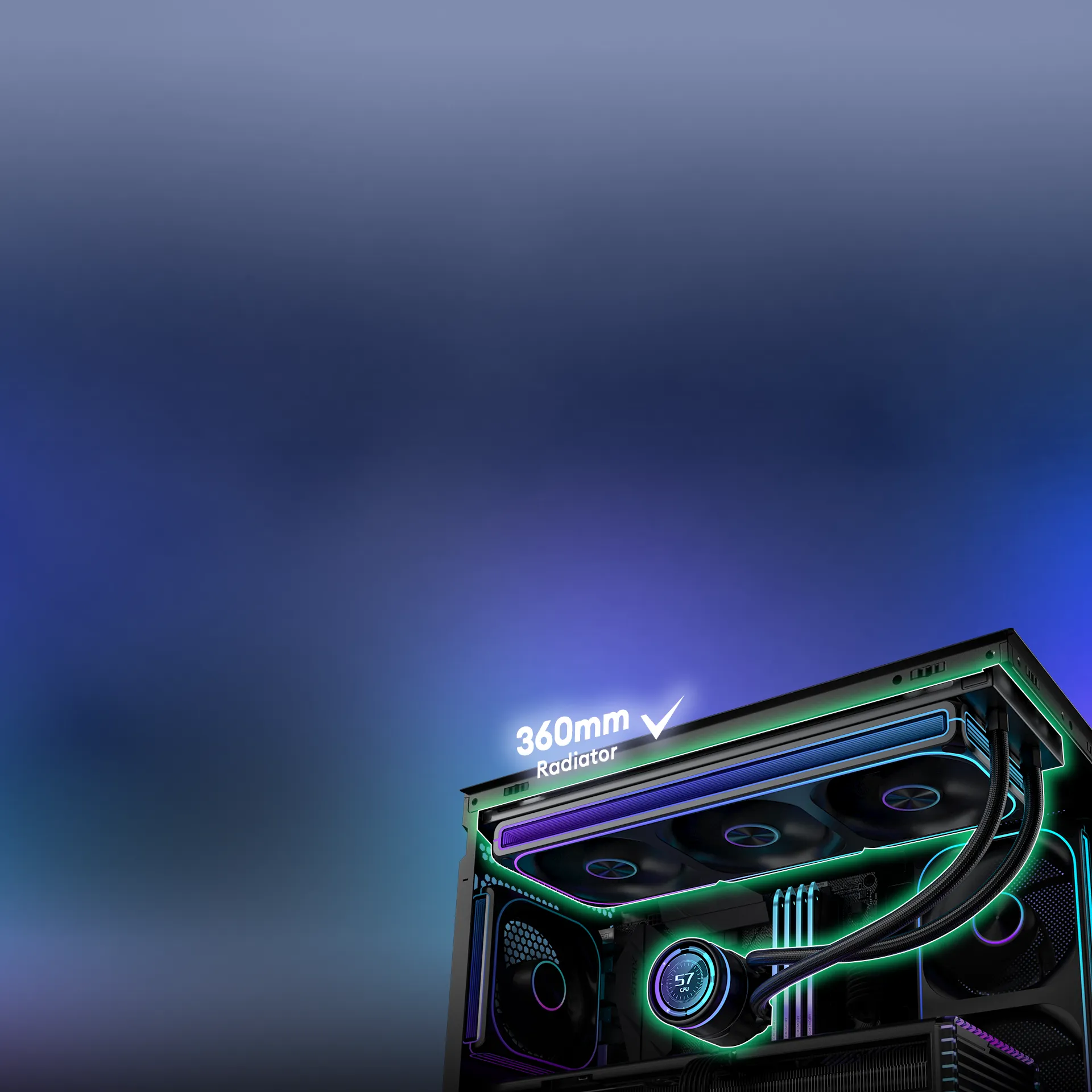

Compatible with 360mm Radiator on Top
Top Radiator | up to 360mm
Rear Radiator | up to 120mm

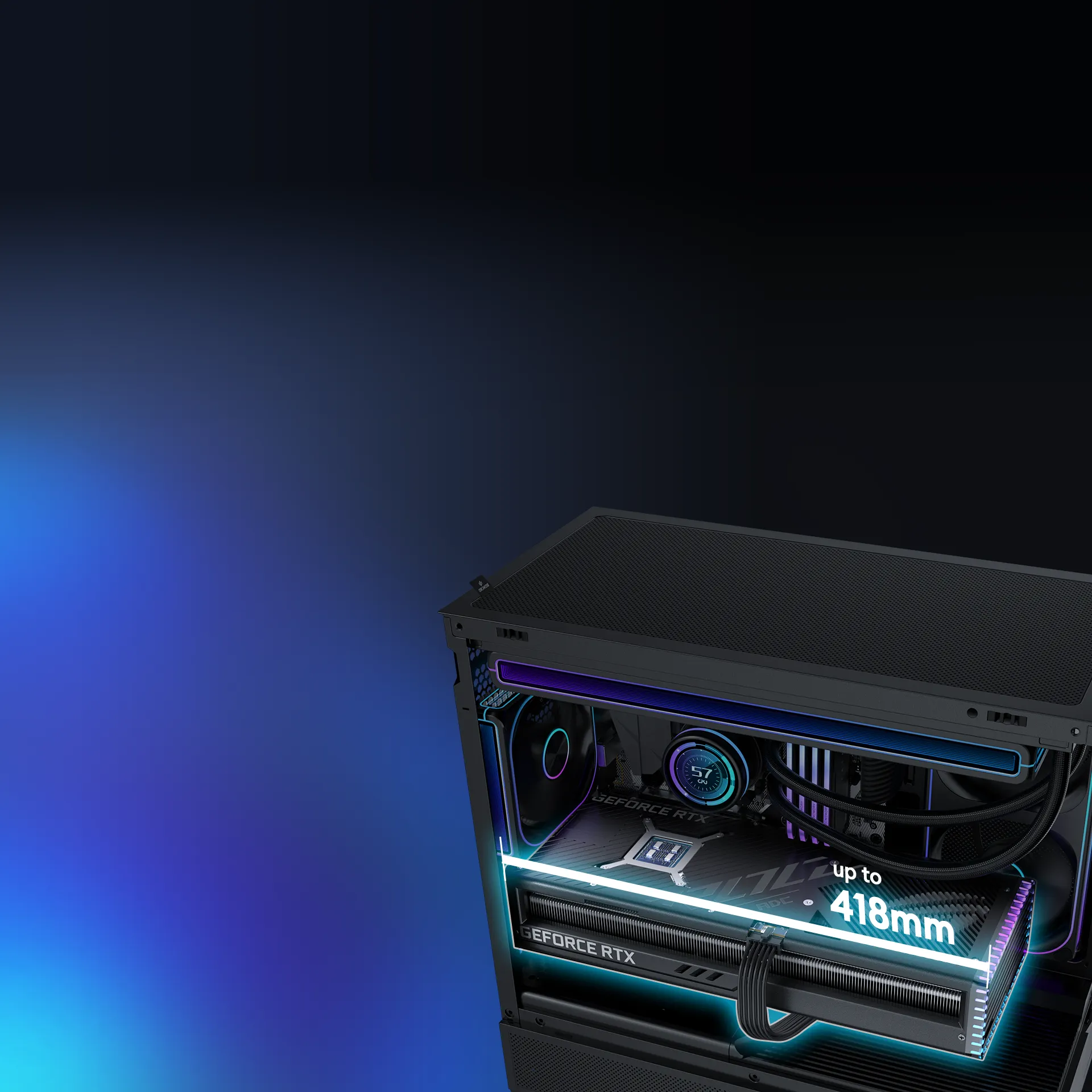

GPU Compatibility
Max. GPU Length ≤ 418mm
Mutli-Function Zone
Introducing Feature-Rich Multi-Functional Zone for Readily Accessable User-Computer Interaction.

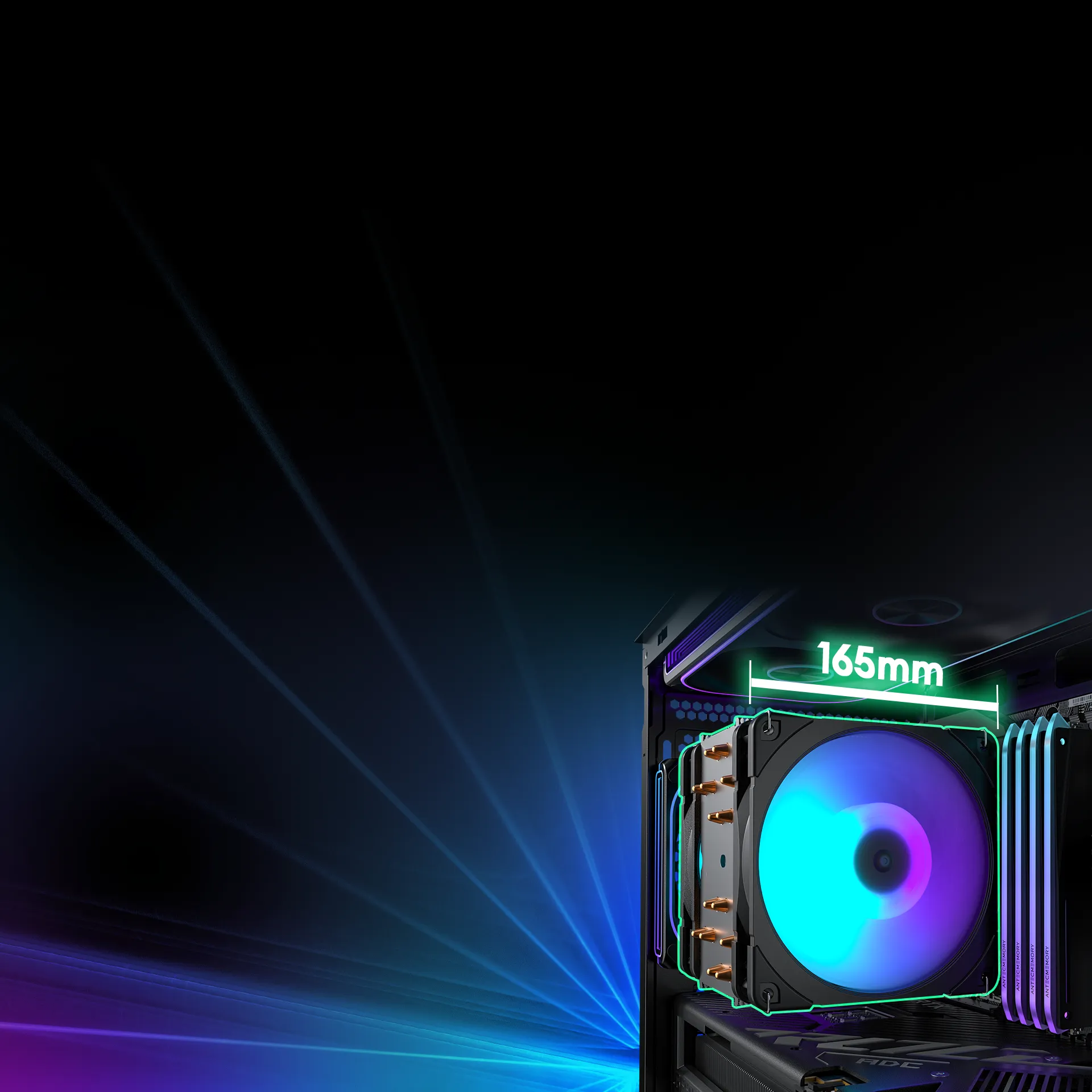

CPU Air Cooling Compatibility
Max. CPU Cooler Height ≤ 165mm

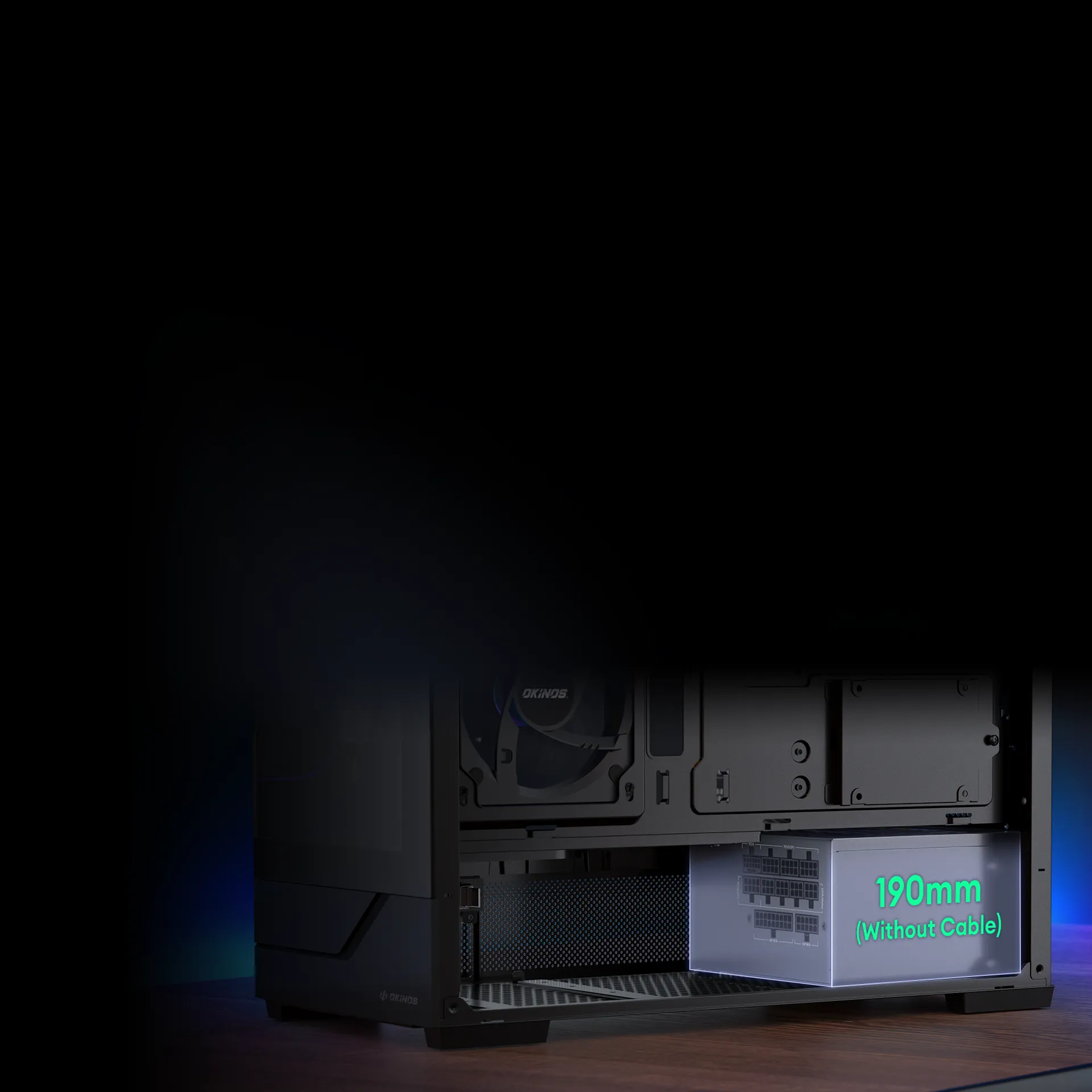

PSU Installation
Side-mounted PSU supports lengths (without cables) up to 190mm.
Full Dust Filter
A removable full-length filter maximizes airflow while keeping dust out, making maintenance easy and ensuring long-term protection.

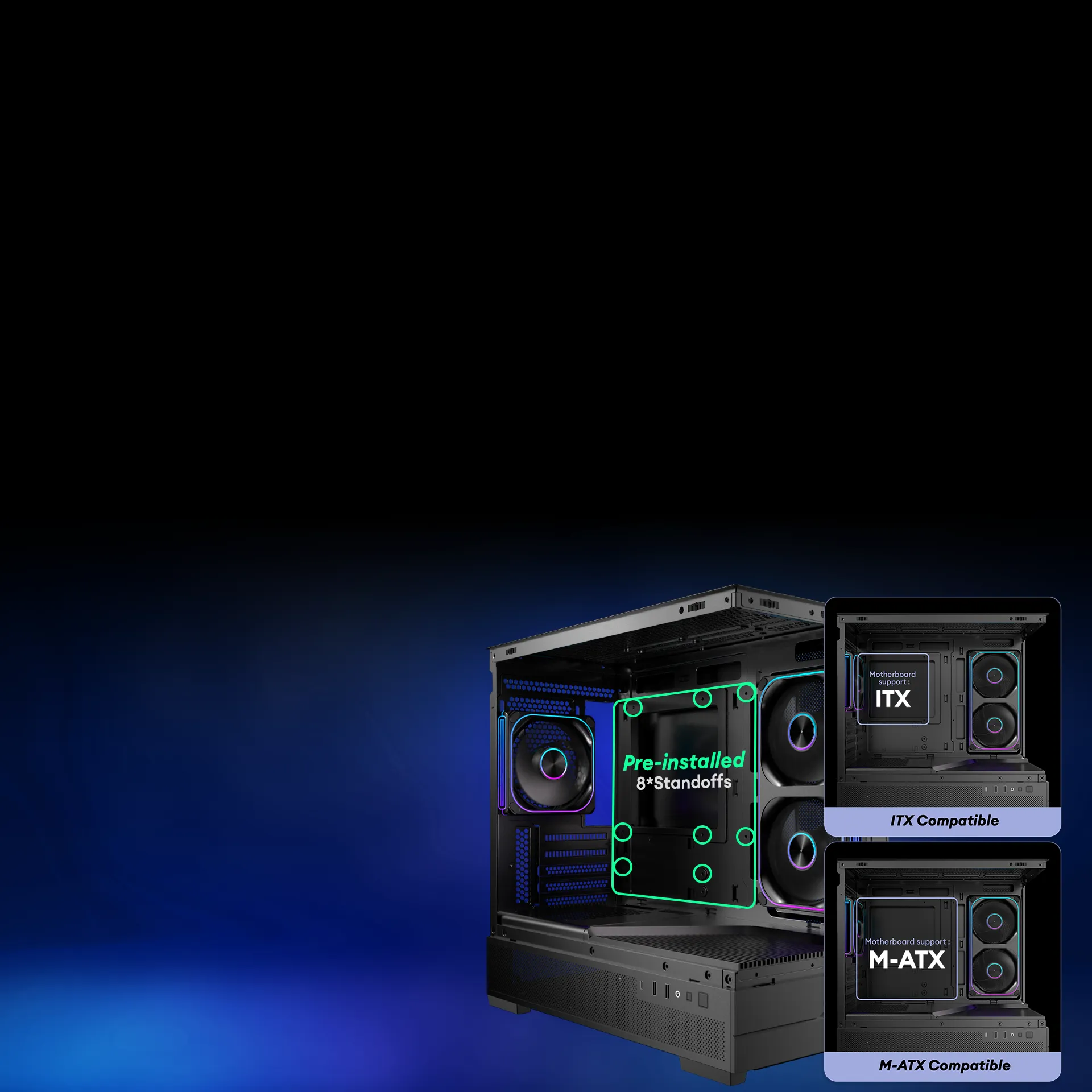

Standoffs & Motherboard Compatible
8 pre-installed standoffs in the case and 2 additional in the accessory box for easy motherboard installation.

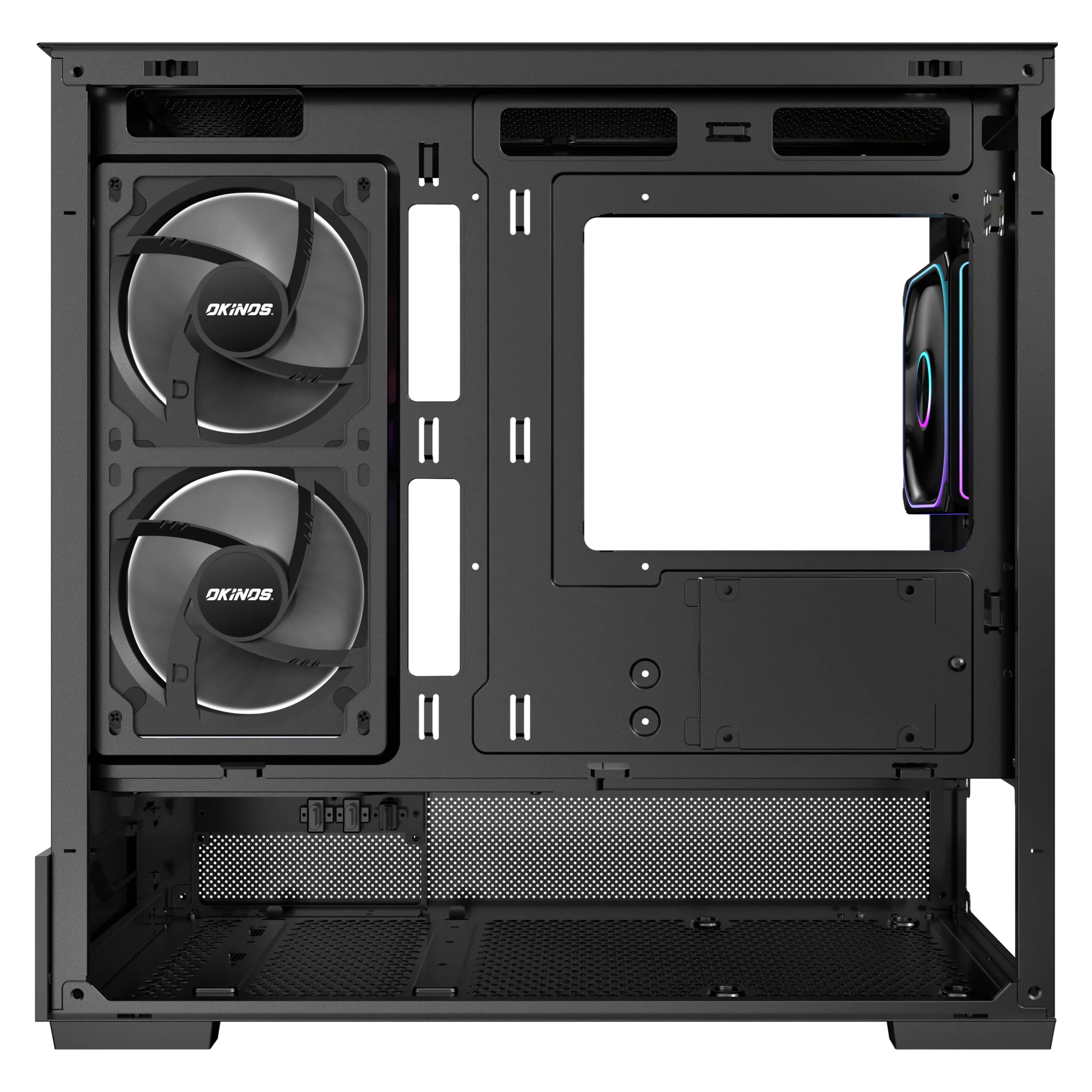

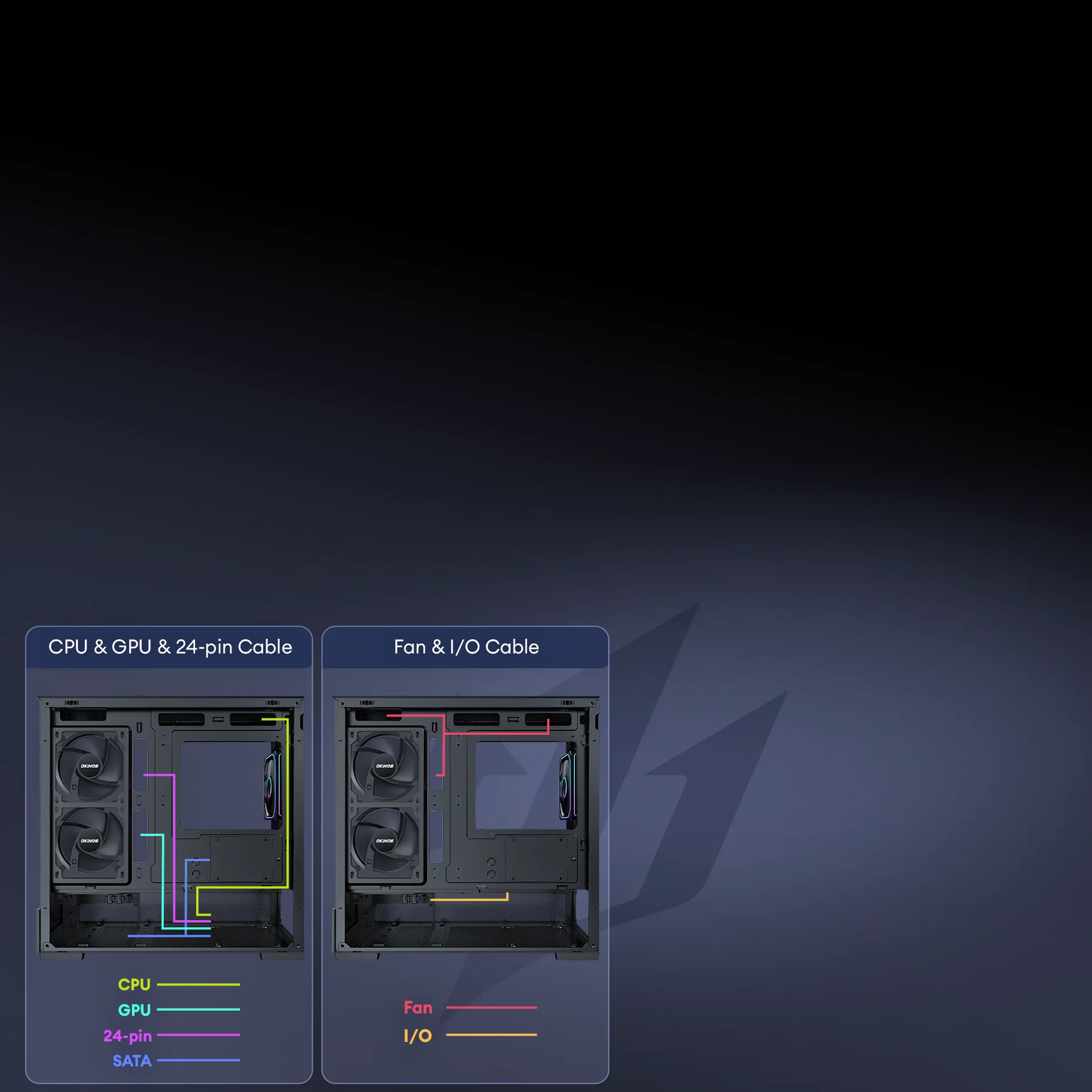

Cable Management Routing
There are 21mm depth on the right side for easy cable management.

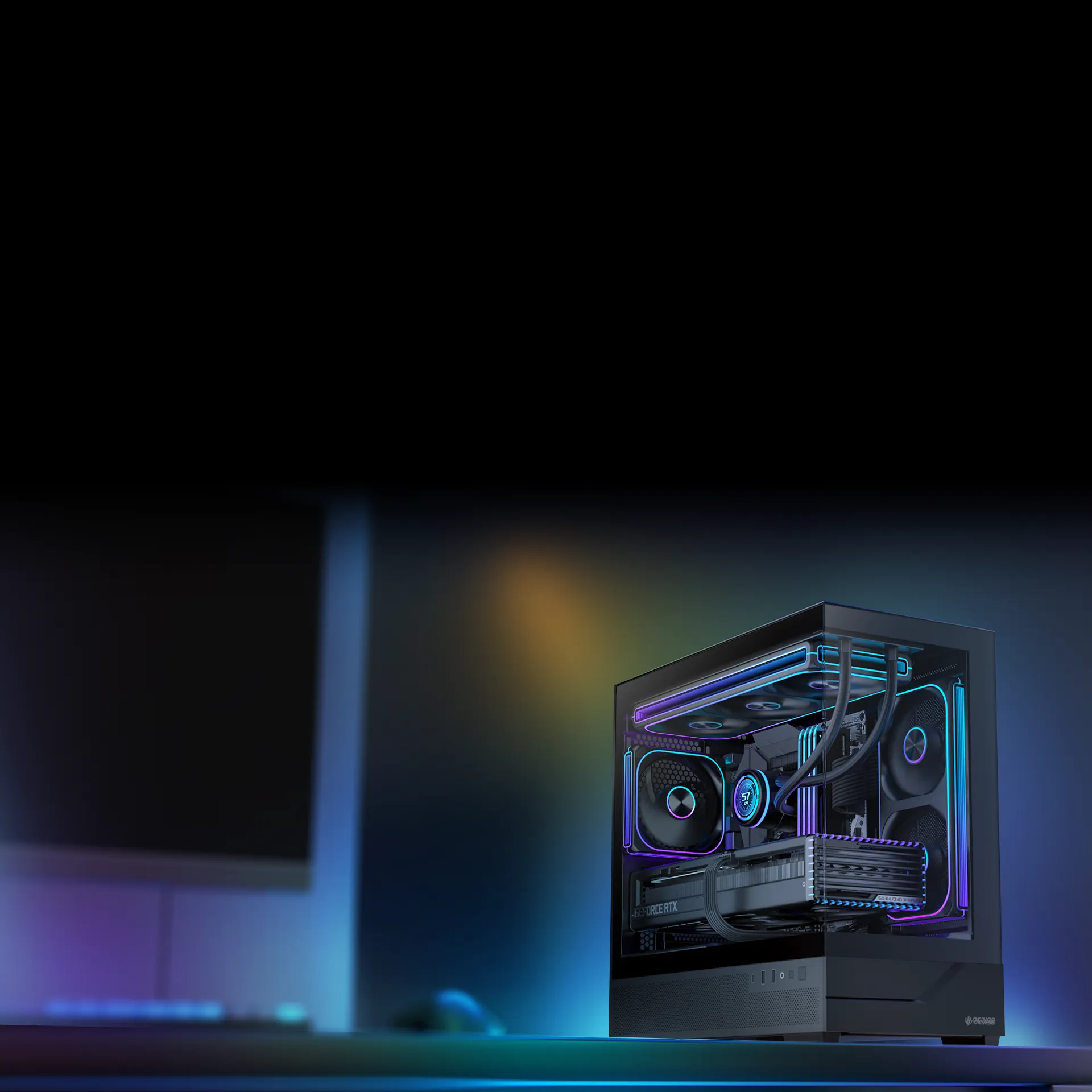

Experience Ultimate Cooling Solution

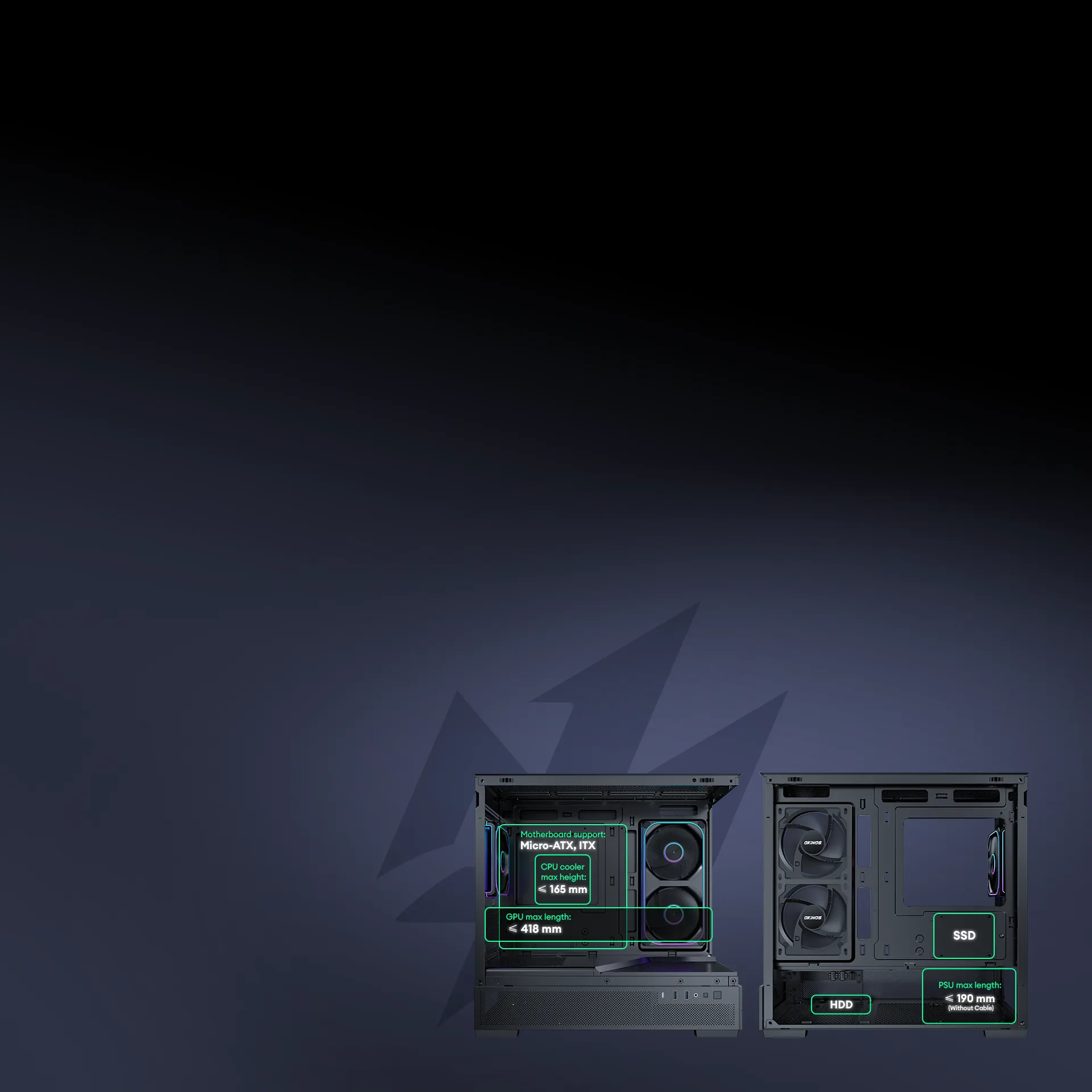

Compatibility
Specifications
Model Name
AQUA 5 VISTA
Model Number
OKICC-AQ5V-MATXB
EAN
4897121941567
Dimensions
423 x 210 x 417mm (DWH)
Form Factor
Mini Tower
Materials
Steel
Mainboard Support
Micro-ATX, ITX

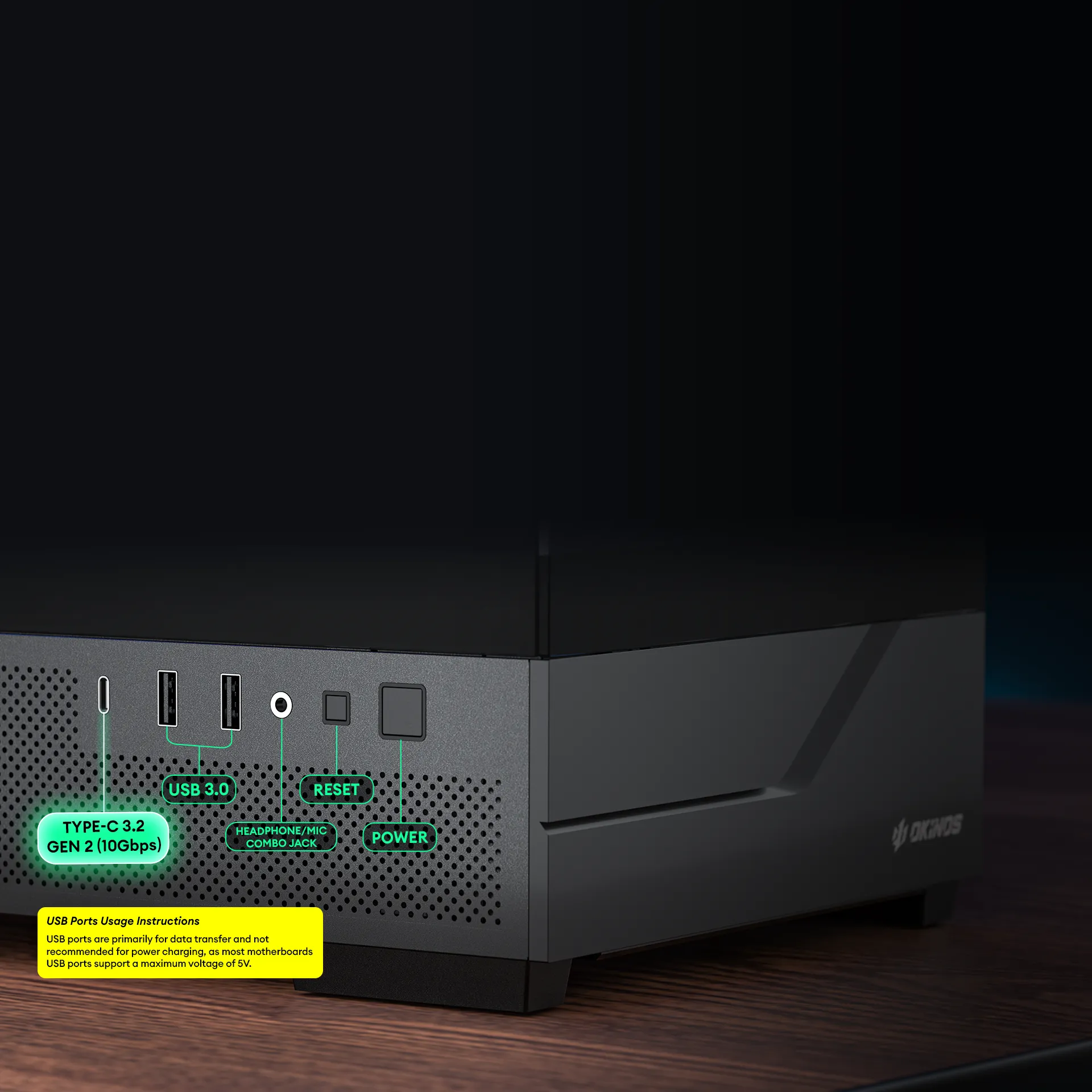

Front Access & Controls
Power, Reset, USB3.0 x 2,
Type-C 3.2 Gen 2 (10Gbps) x 1, Headphone/Mic Combo Jack
Side Panel
Tempered Glass
Drive Bays

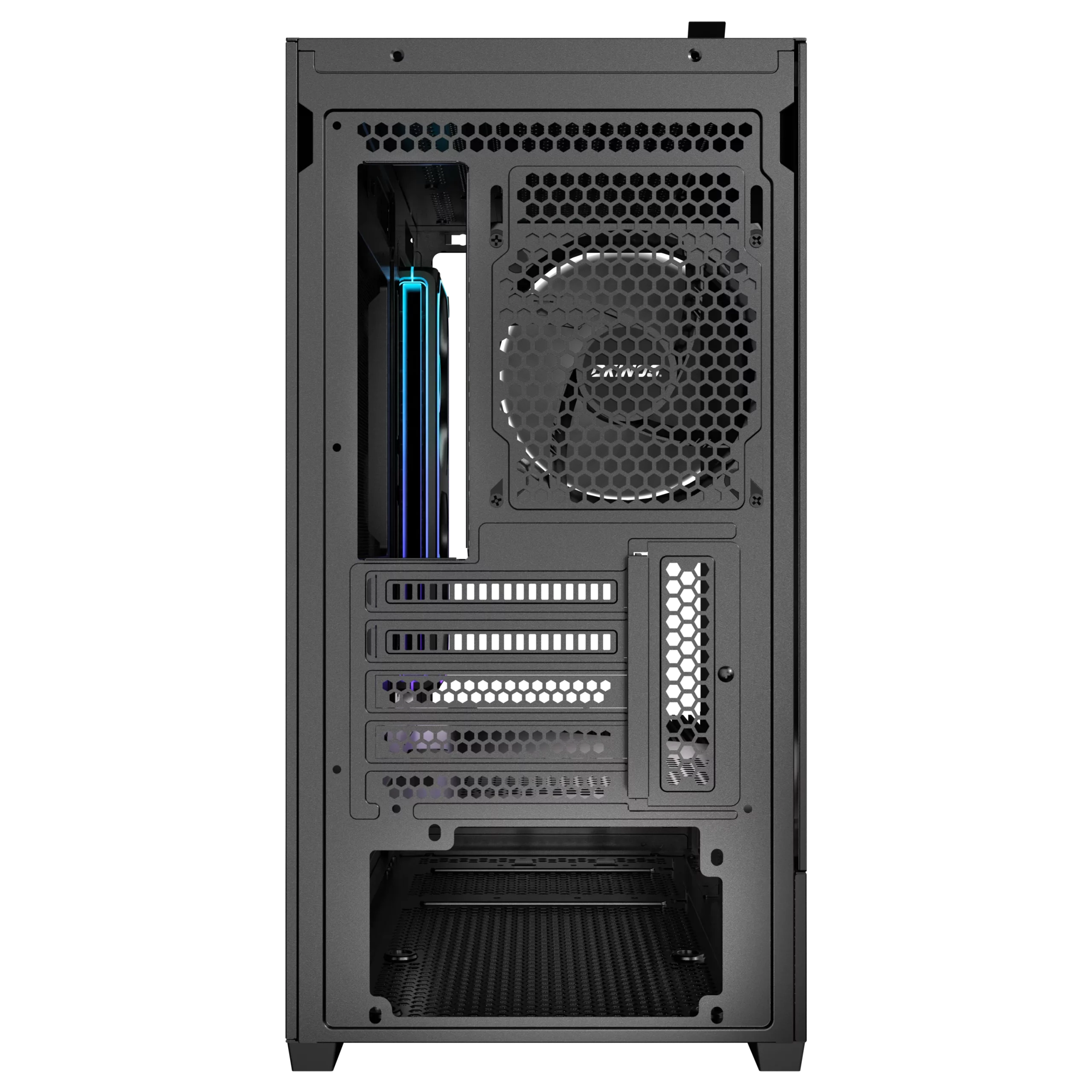

Expansion Slots
5
3.5″
1
2.5″
1
Fan Support
Top
3 x 120mm / 2 x 140mm
Right Hand Side
2 x 120mm
Rear
1 x 120mm
Included Fan(s)
1 x 240mm ARGB+PWM reverse fan on the right side+
1 x 120mm ARGB+PWM fan in rear
Radiator Support
Top
120/240/360mm
Rear
120mm
Clearance
Max GPU Length
≤ 418mm
Max CPU Cooler Height
≤ 165mm
Max PSU Length
≤ 190mm (Without Cable)
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
5.15 KG
Gross Weight
6.35 KG
Special Features

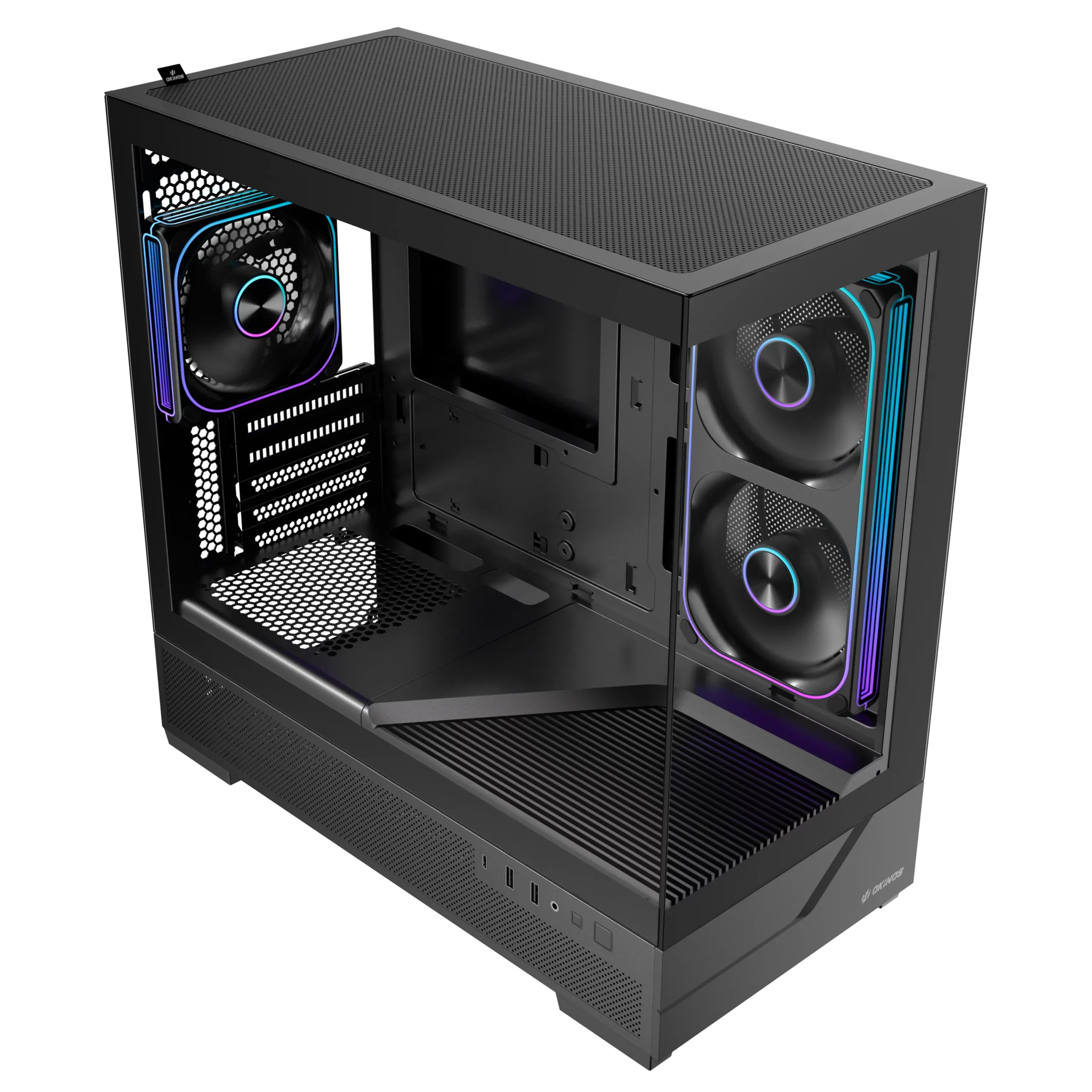

- Panoramic 270° view design with dual tempered glass panels for an unobstructed and immersive showcase.
- Front glass panel, left glass panel, and right side panel feature tool-free clip-on design for quick and convenient installation.
- 21mm of cable management space behind the motherboard for easier routing and a cleaner build.
- Pre-installed with 1* 120mm ARGB + PWM fan and 1* 240mm ARGB + PWM reverse fan for optimized airflow and cooling performance.
- Supports 360mm top radiator for high-efficiency liquid cooling setups.
- Equipped with 2* USB 3.0 ports and 1* Type-C port (10Gbps) for high-speed connectivity.
- Full-size magnetic filters are included on the top (with a convenient handle) and bottom, ensuring effortless cleaning and comprehensive dust protection.
- Includes 2 Velcro cable straps for easy and tidy cable management.
