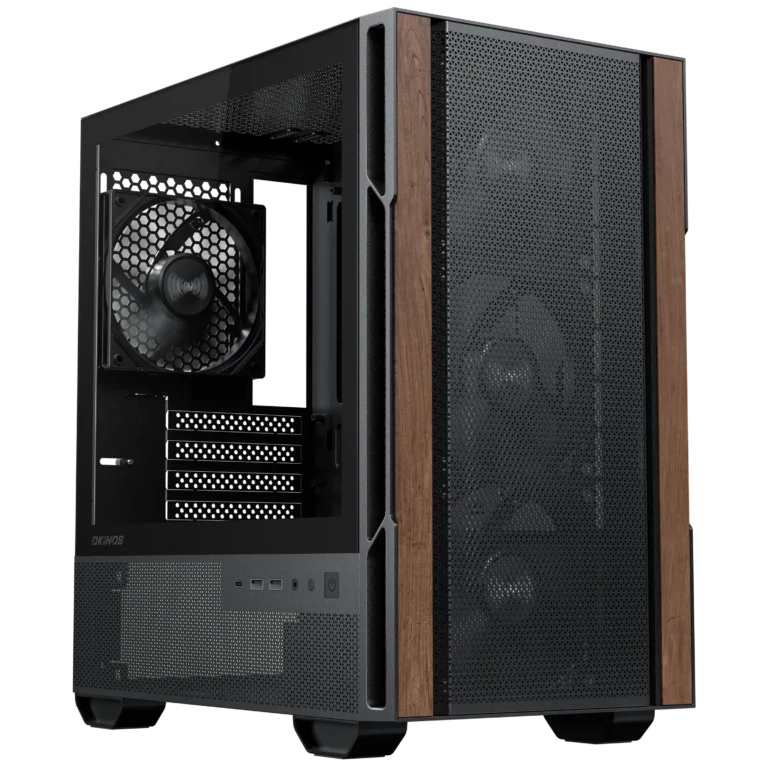

Cypress 3 Wood
Mini-Tower Gaming PC Case

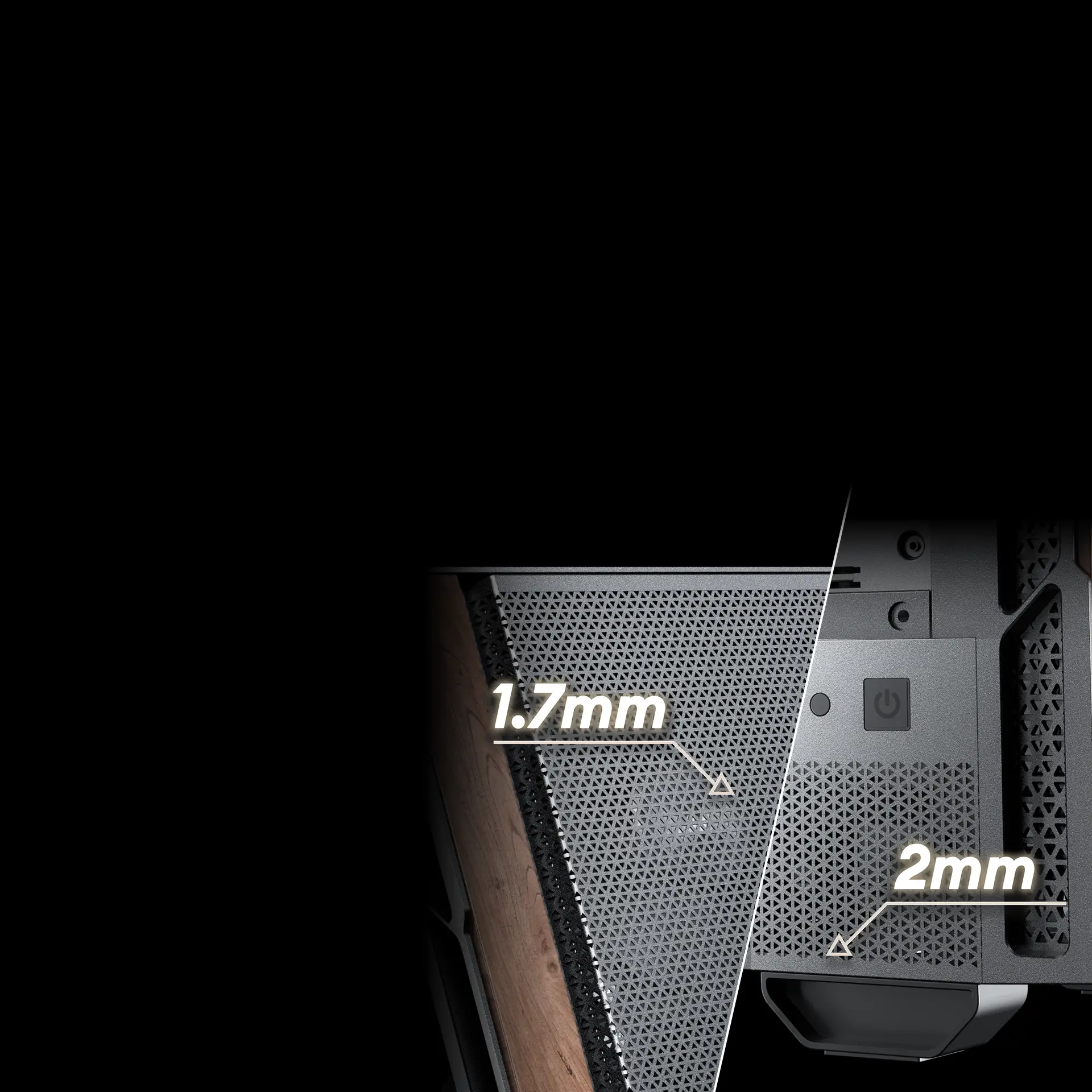

1.7mm + 2mm Triangular Mesh Design
The triangular mesh (1.7mm for the front panel, 2mm at the lower left side panel) ensure optimal airflow for efficient cooling and a stylish look.

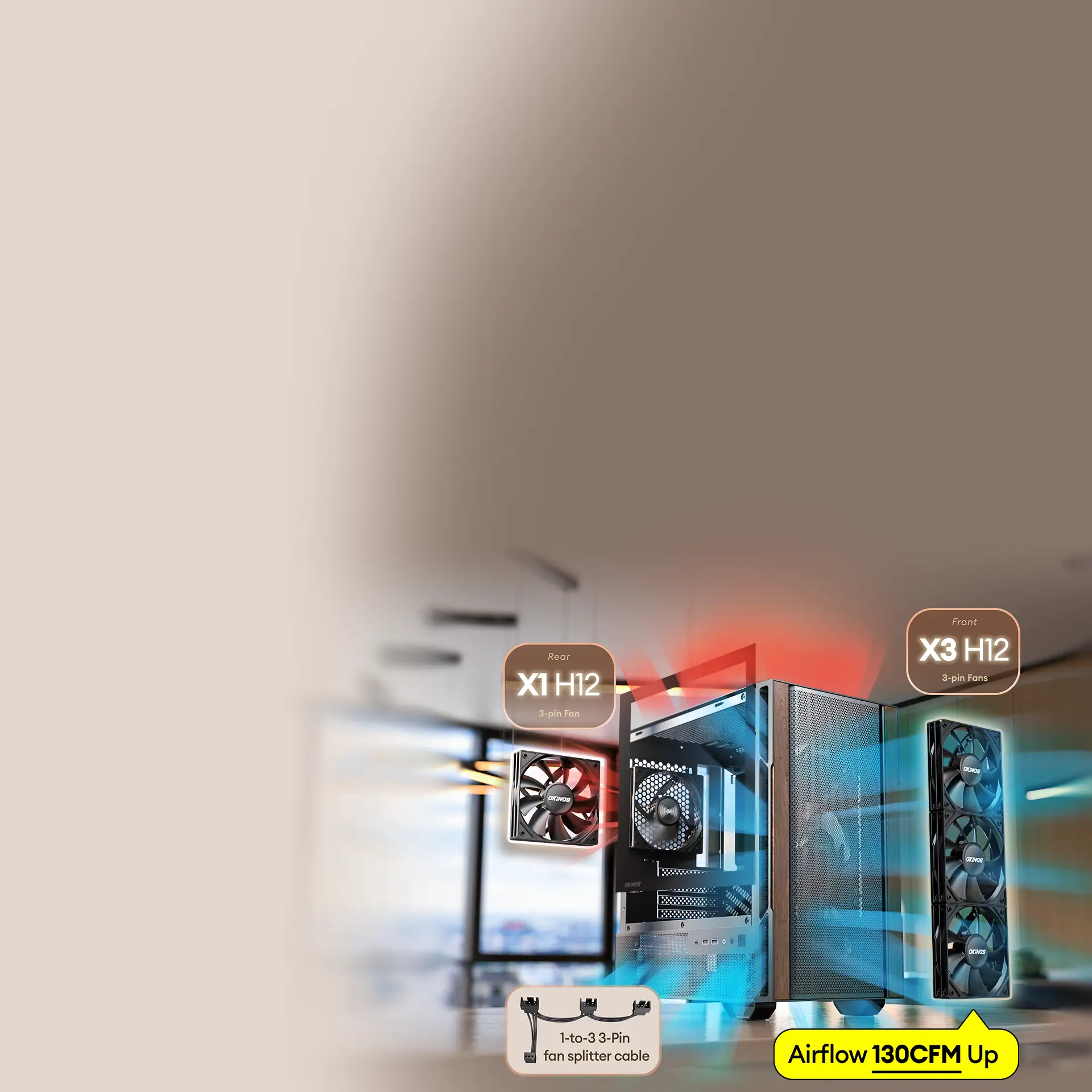

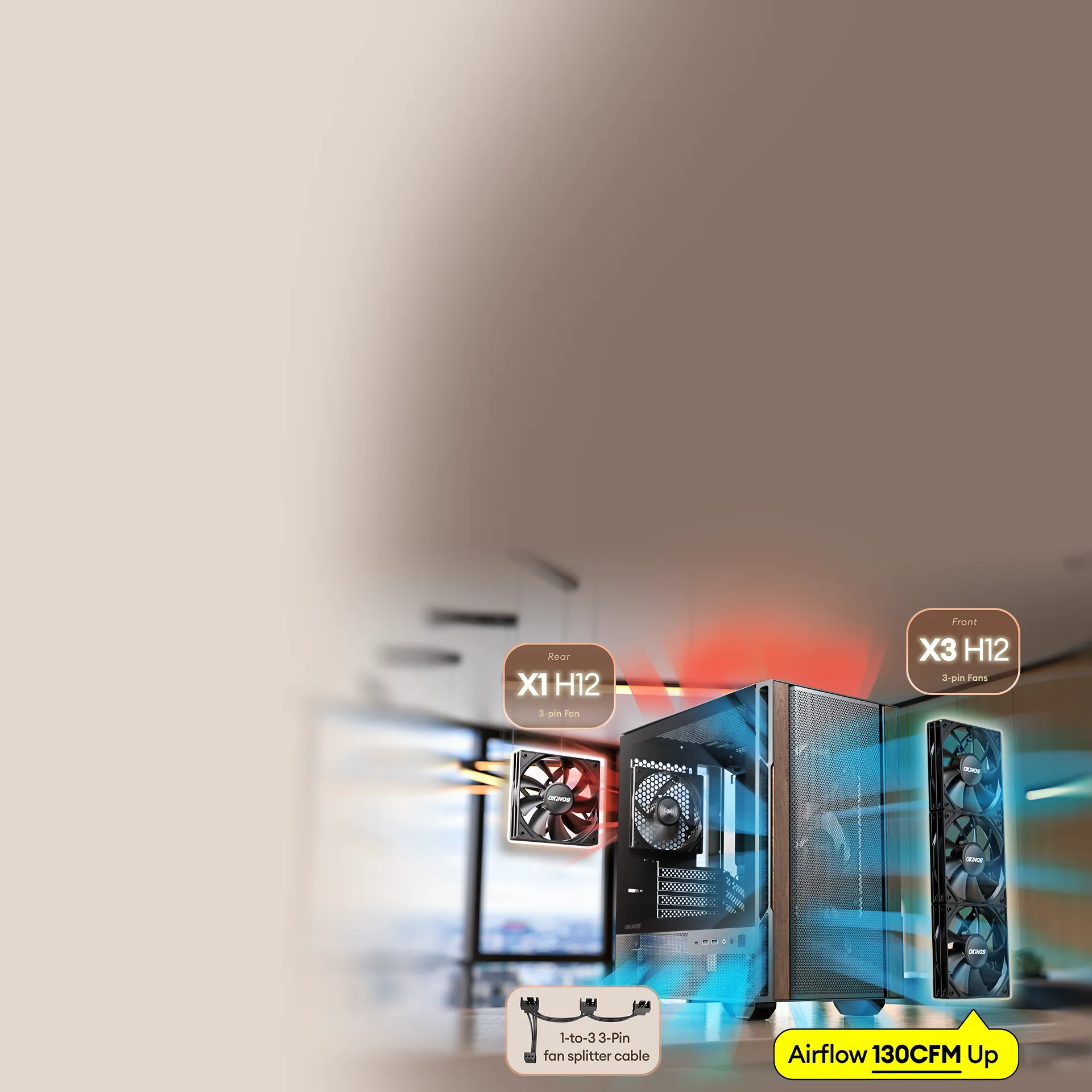

Enhanced Airflow with Pre-installed 4 x 120mm H12 3-Pin Fans

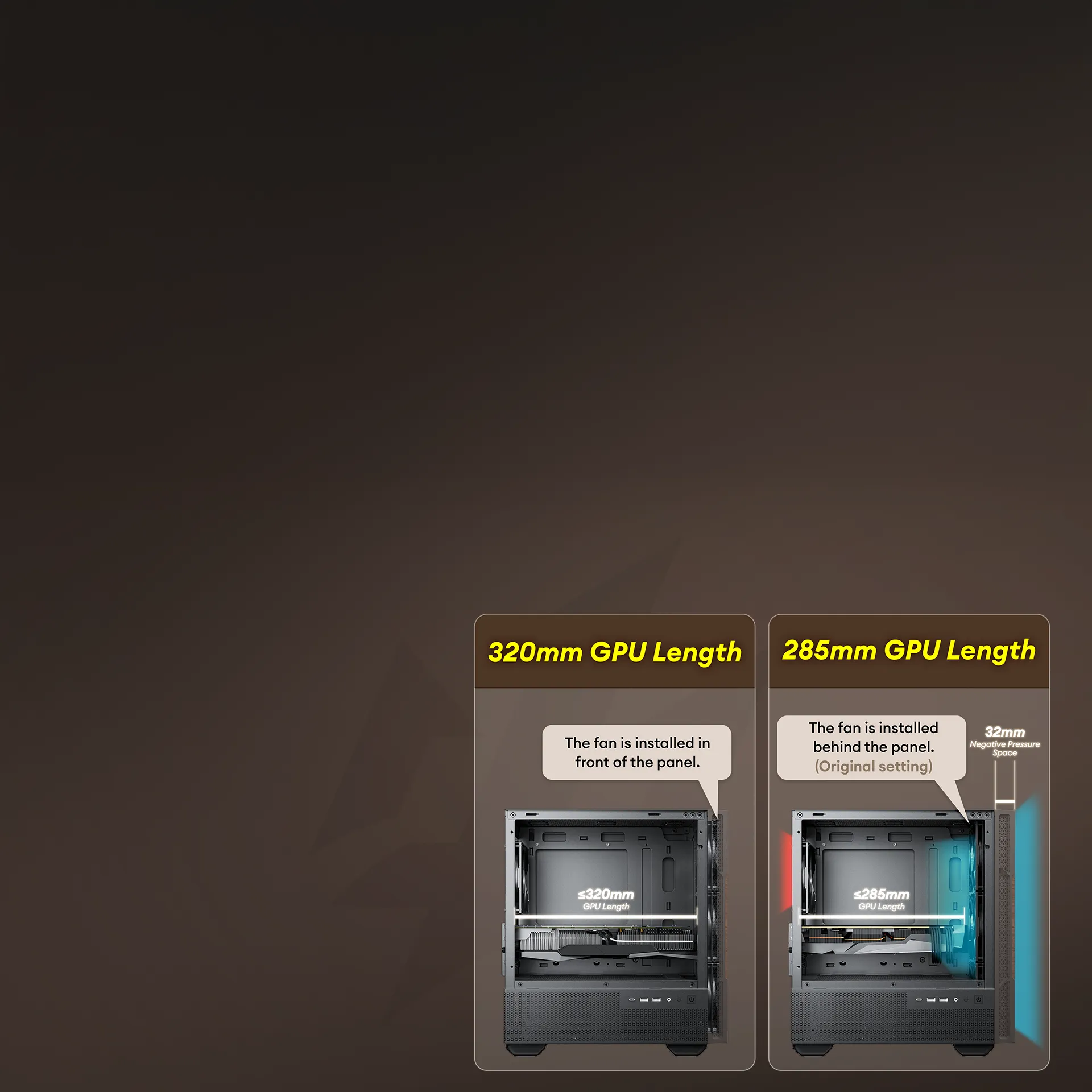

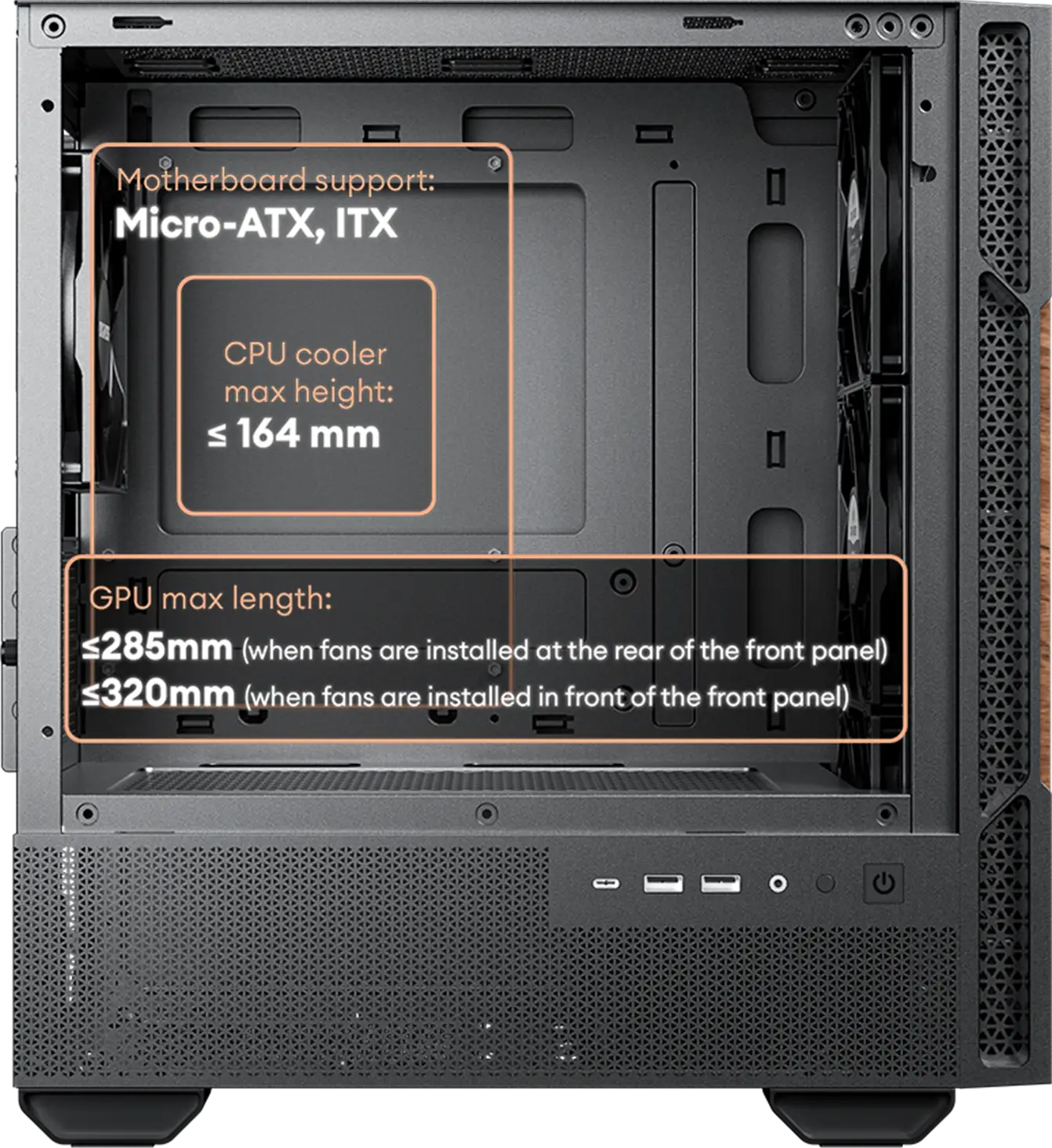

GPU Length Compatibility
≤ 285mm (when fans are installed at the rear of the front panel)
≤ 320mm (when fans are installed in front of the front panel)

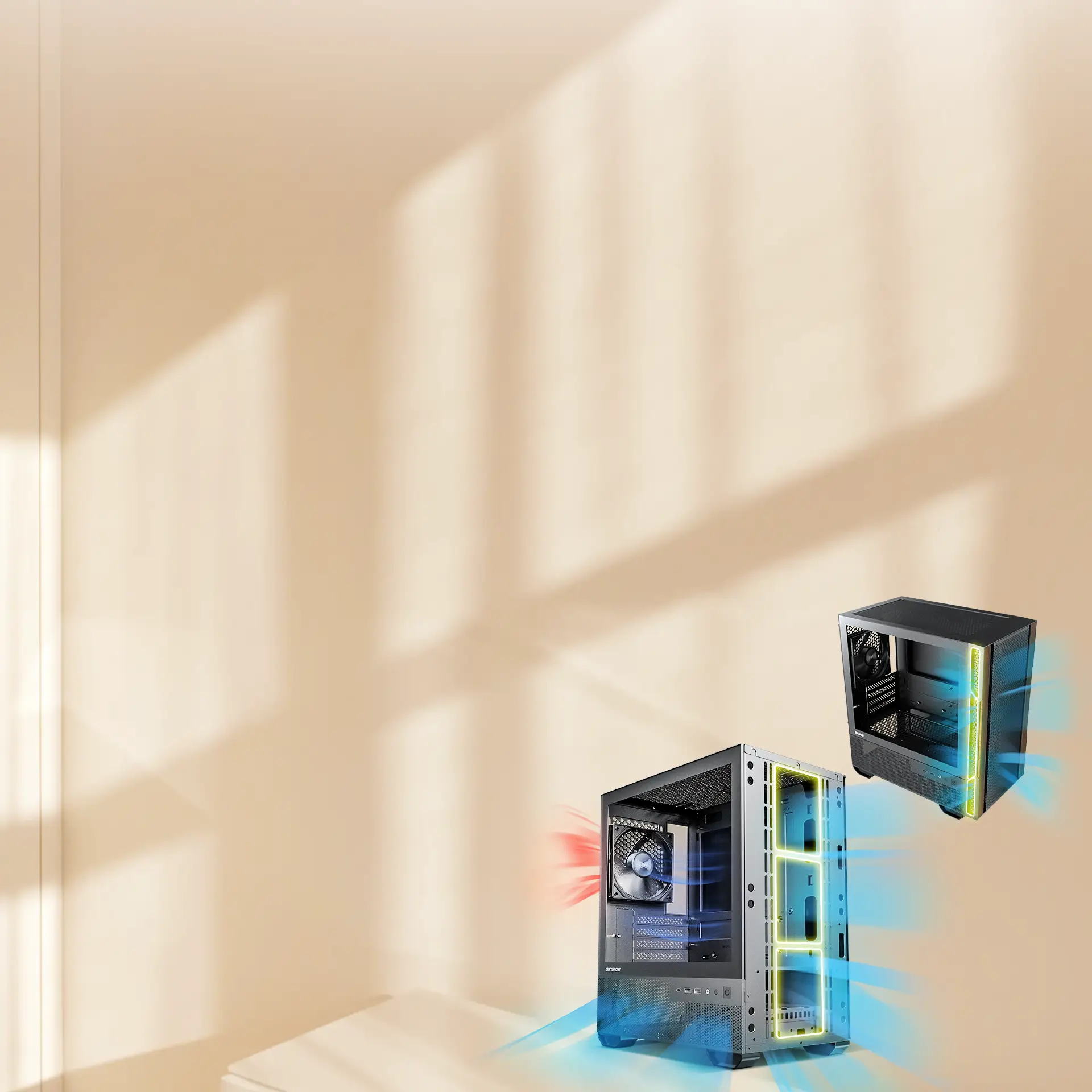

Maximized Airflow with Three-Sided Mesh Intake Design

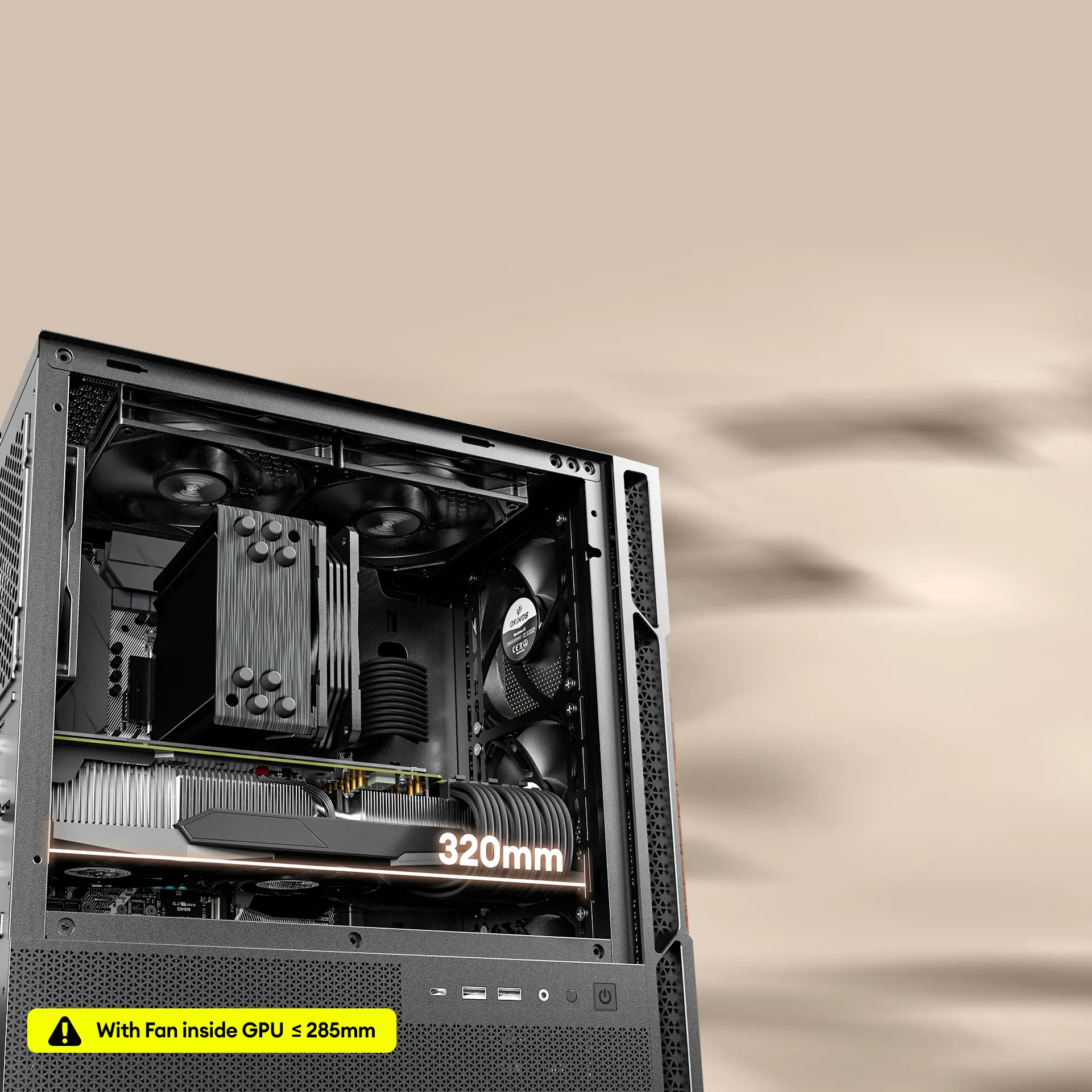

GPU Compatibility

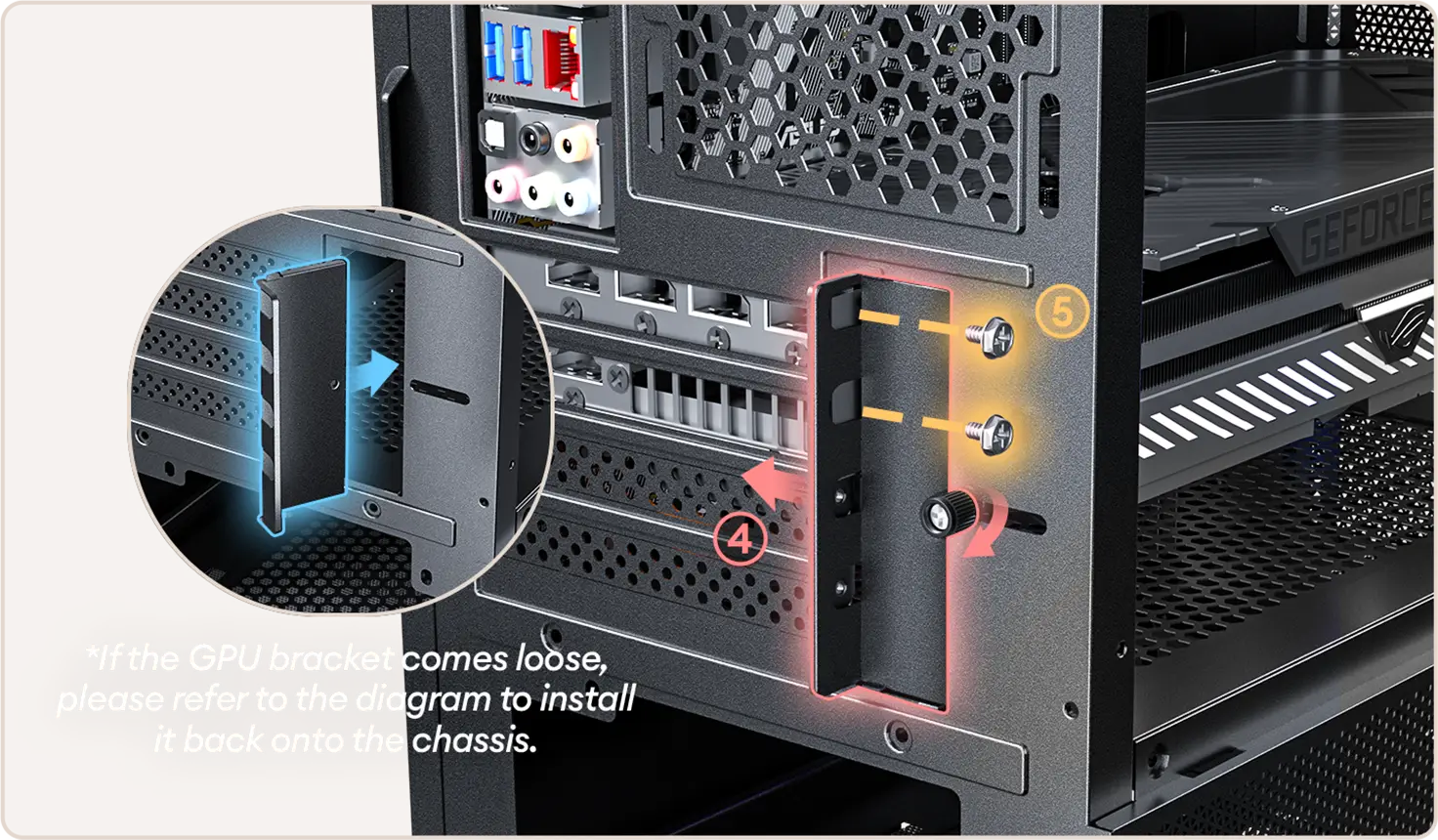

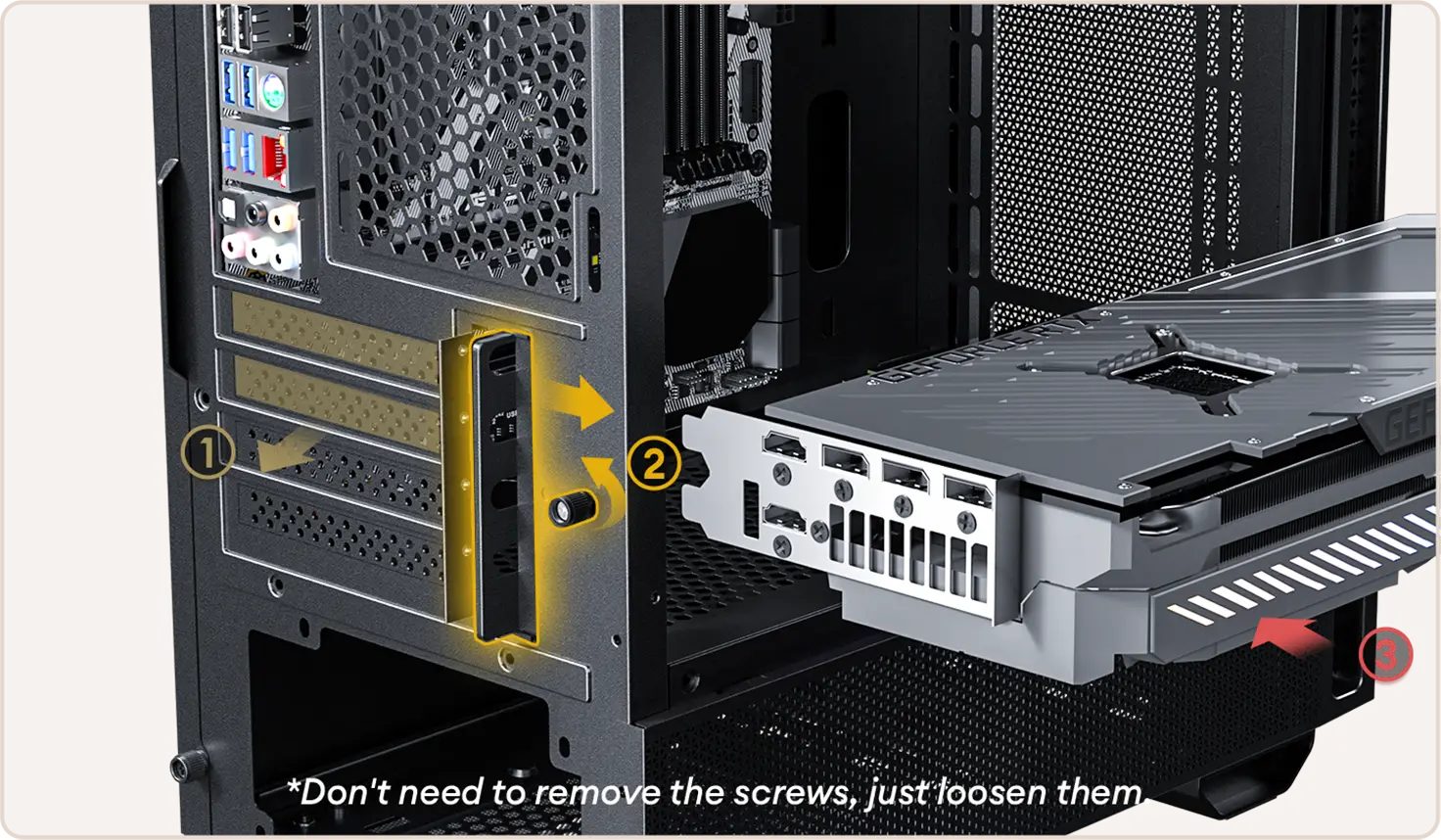

GPU Installation

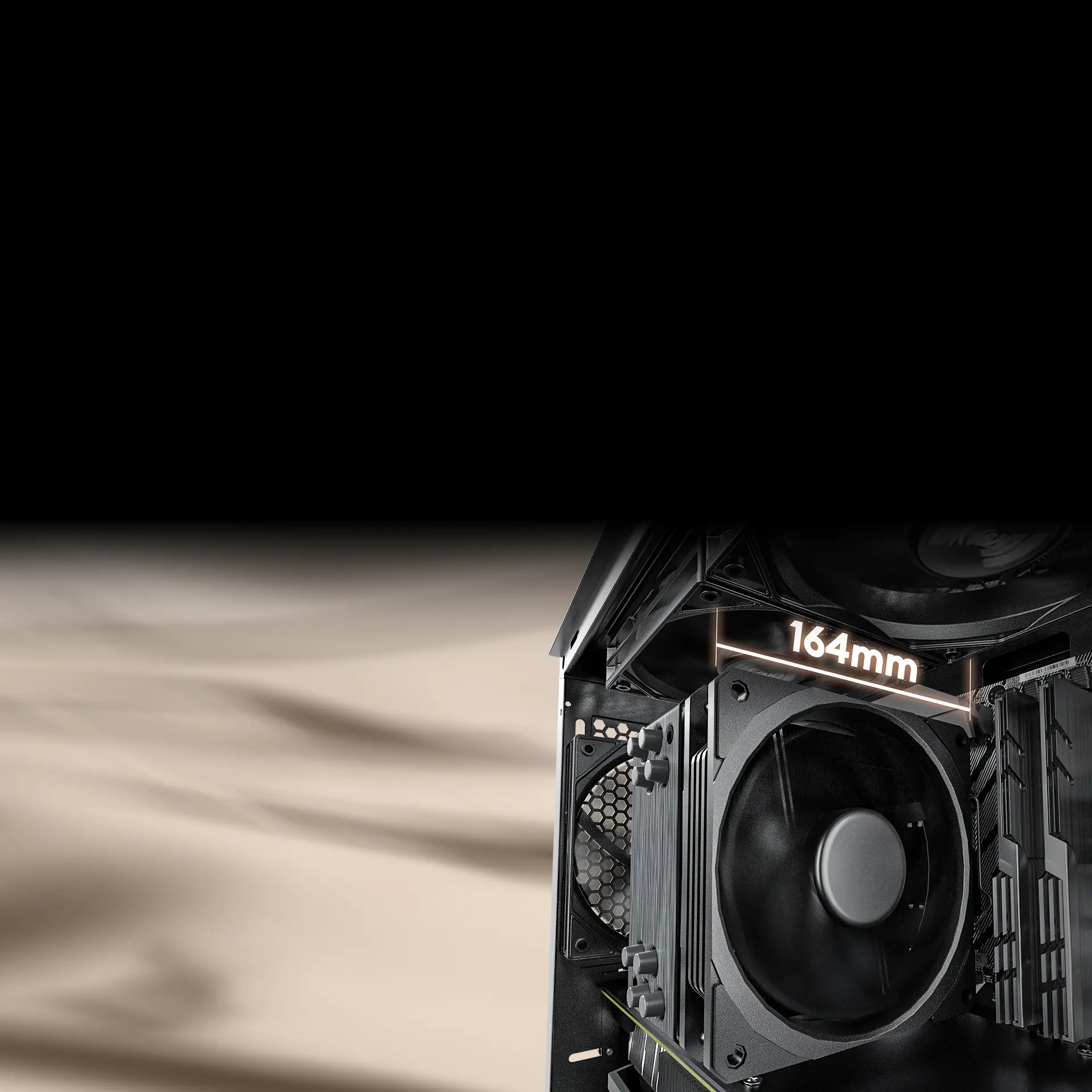

CPU Air Cooling Compatibility
Max. CPU Cooler Height ≤ 164mm

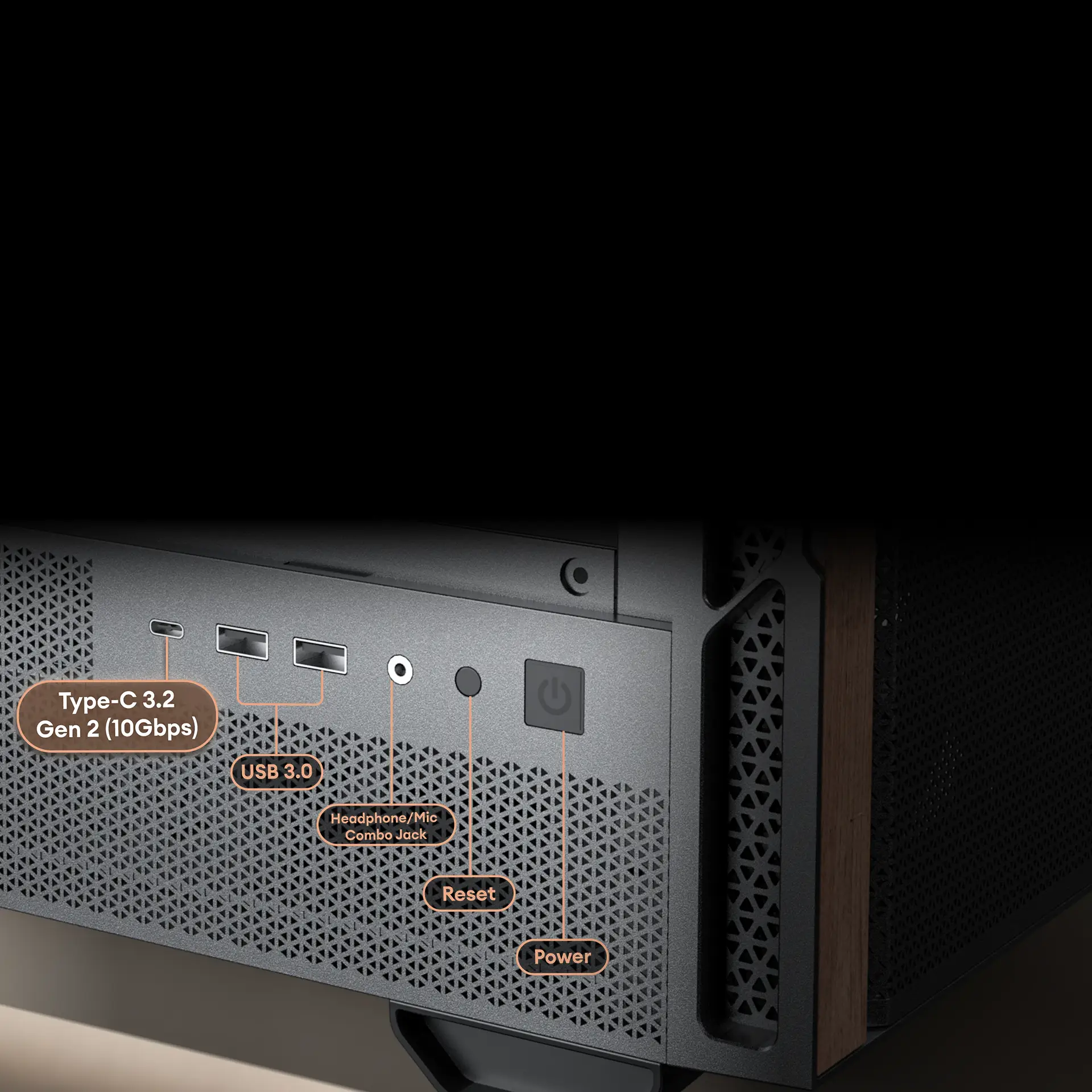

Mutli-Function Zone
USB ports are primarily for data transfer and not recommended for power charging, as most motherboards USB ports support a maximum voltage of 5V.

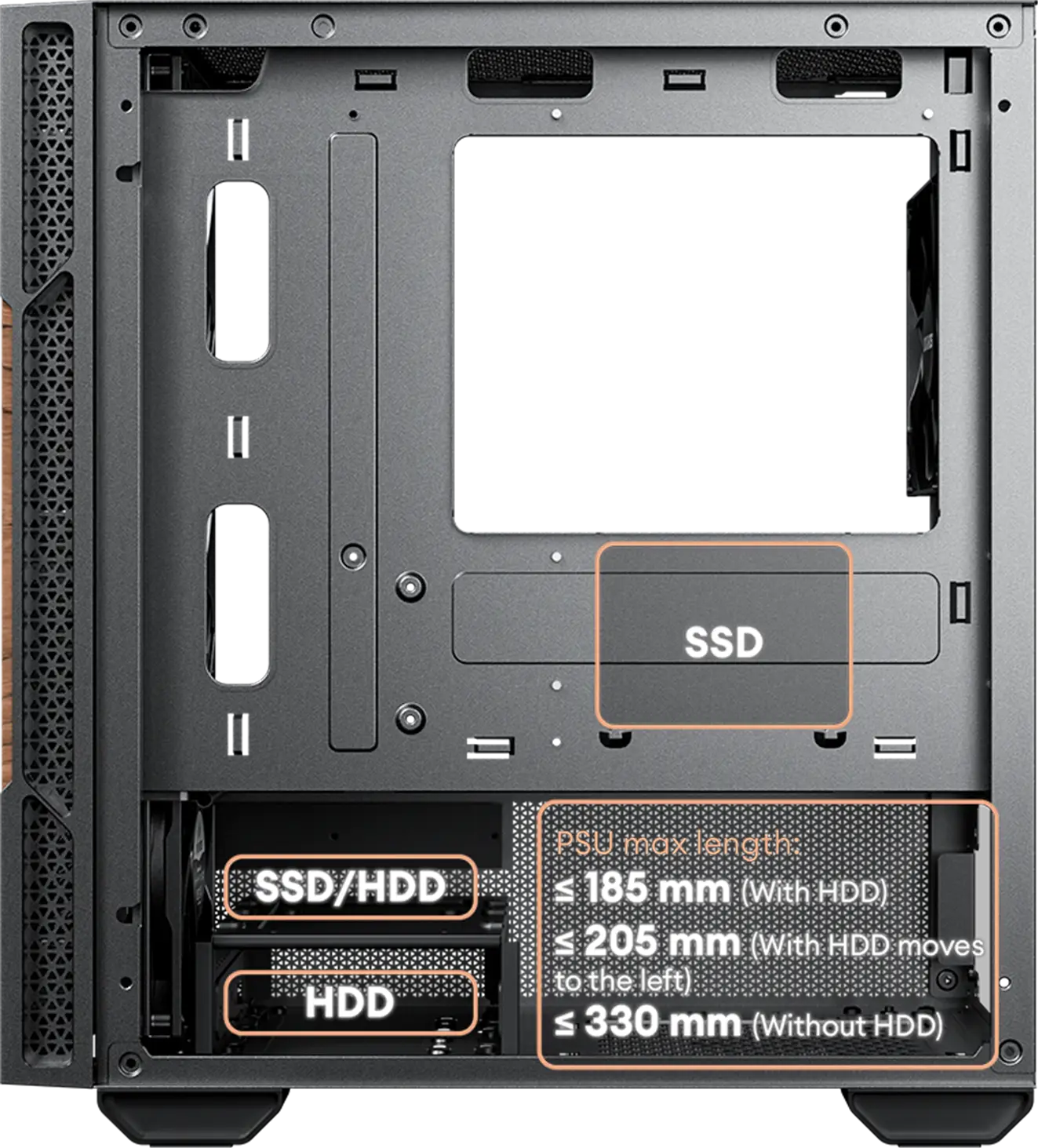

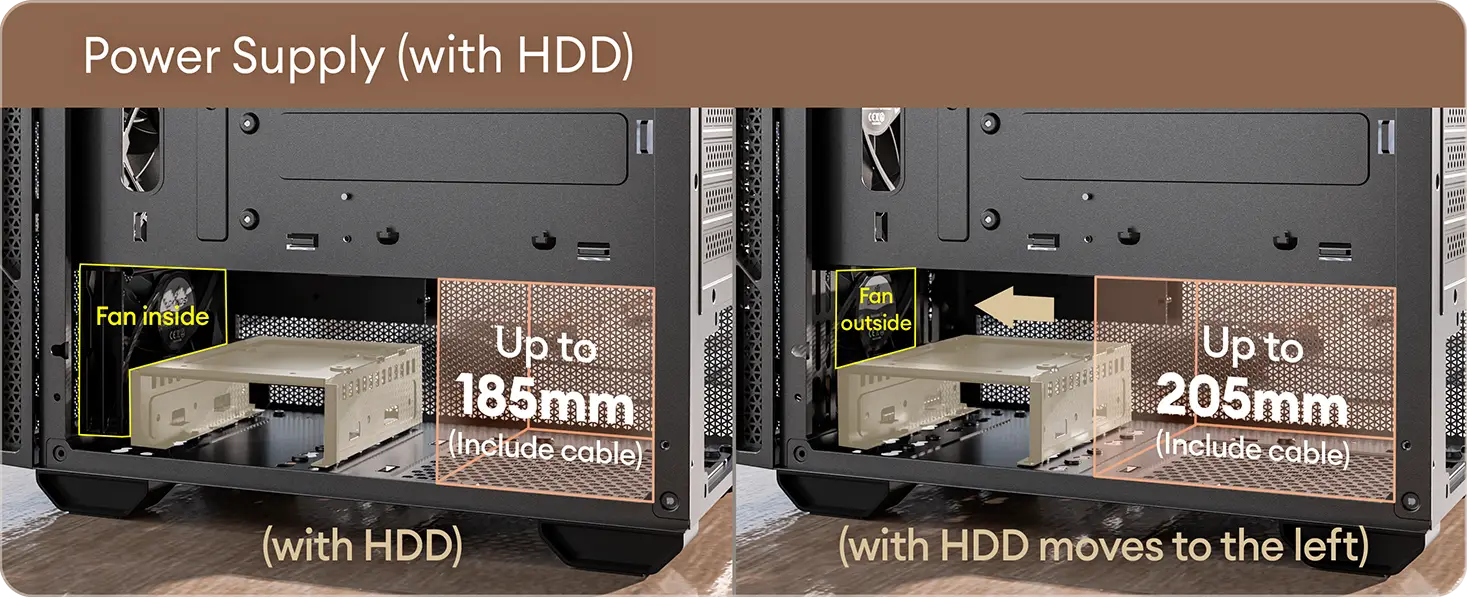

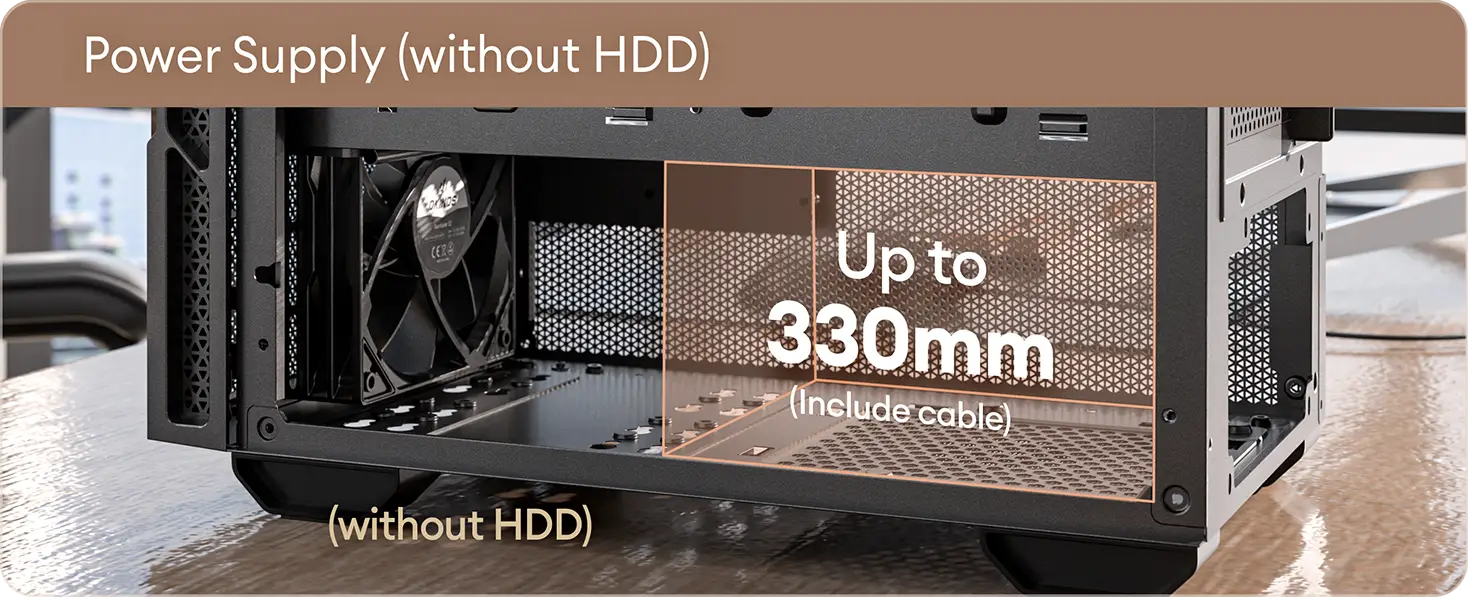

Removable HDD Cage and Power Supply Compatibility

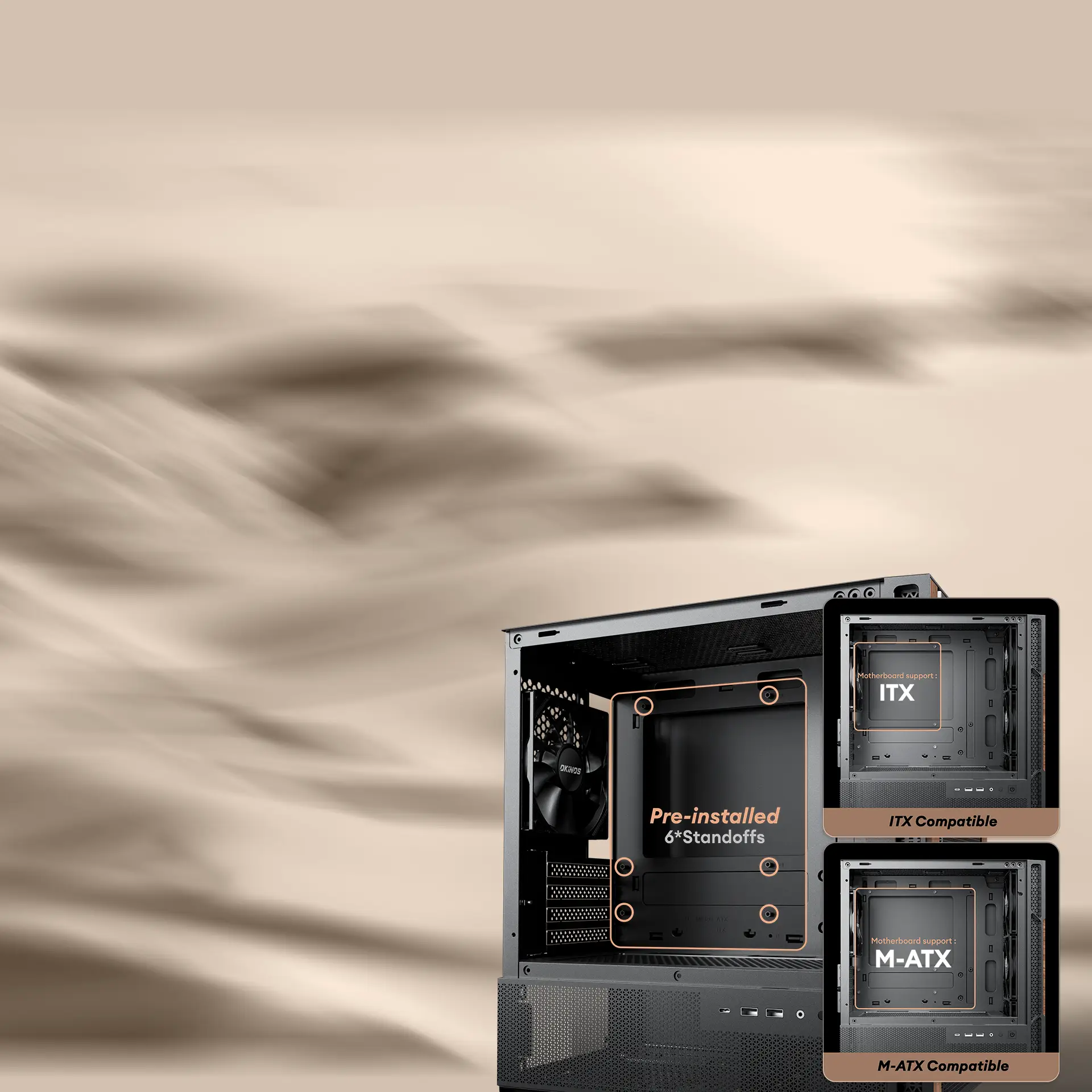

Standoffs & Motherboard Compatible
6 pre-installed standoffs in the case and 3 additional in the accessory box for easy motherboard installation.

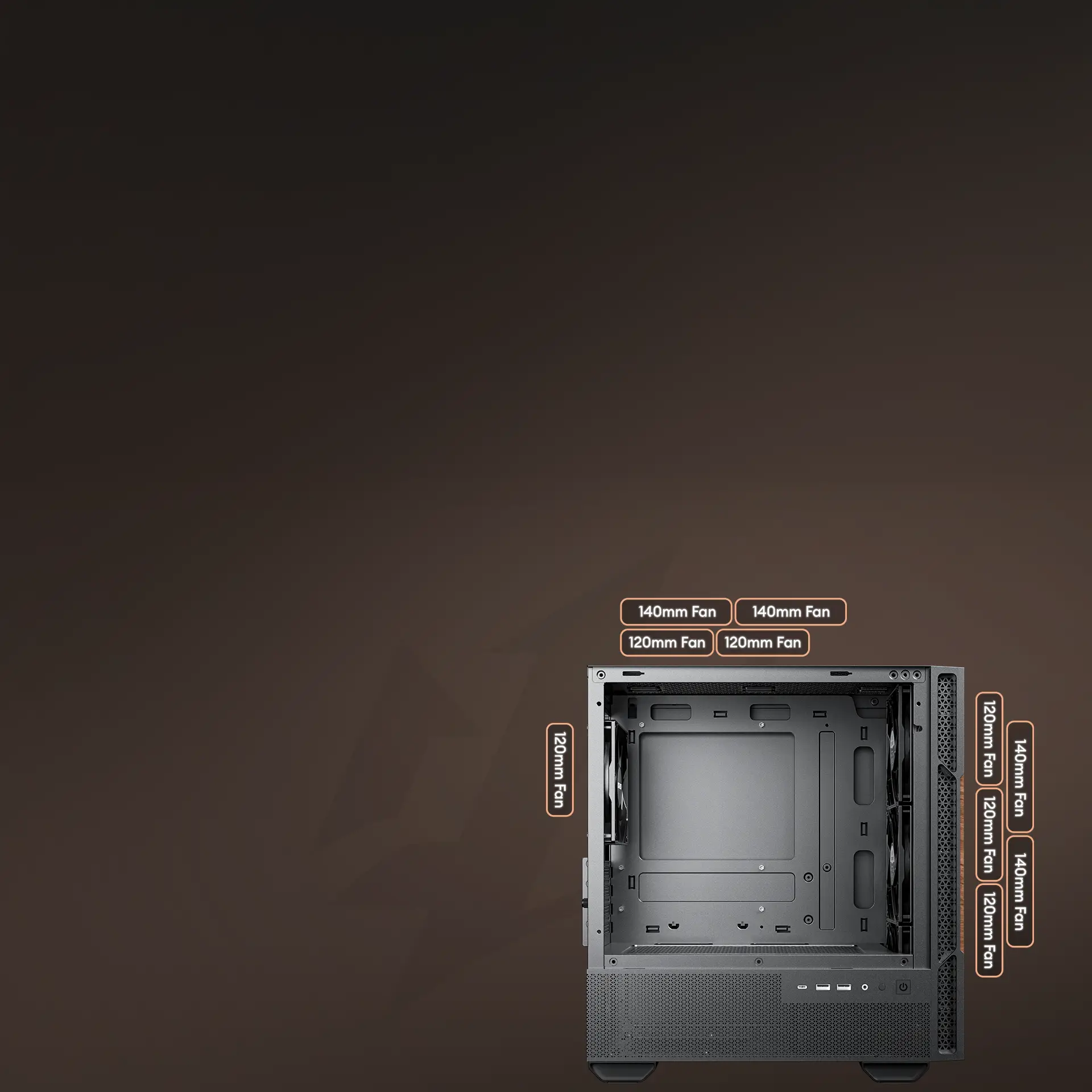

Up to 6 x 120mm Fans Simultaneously
Compatibility

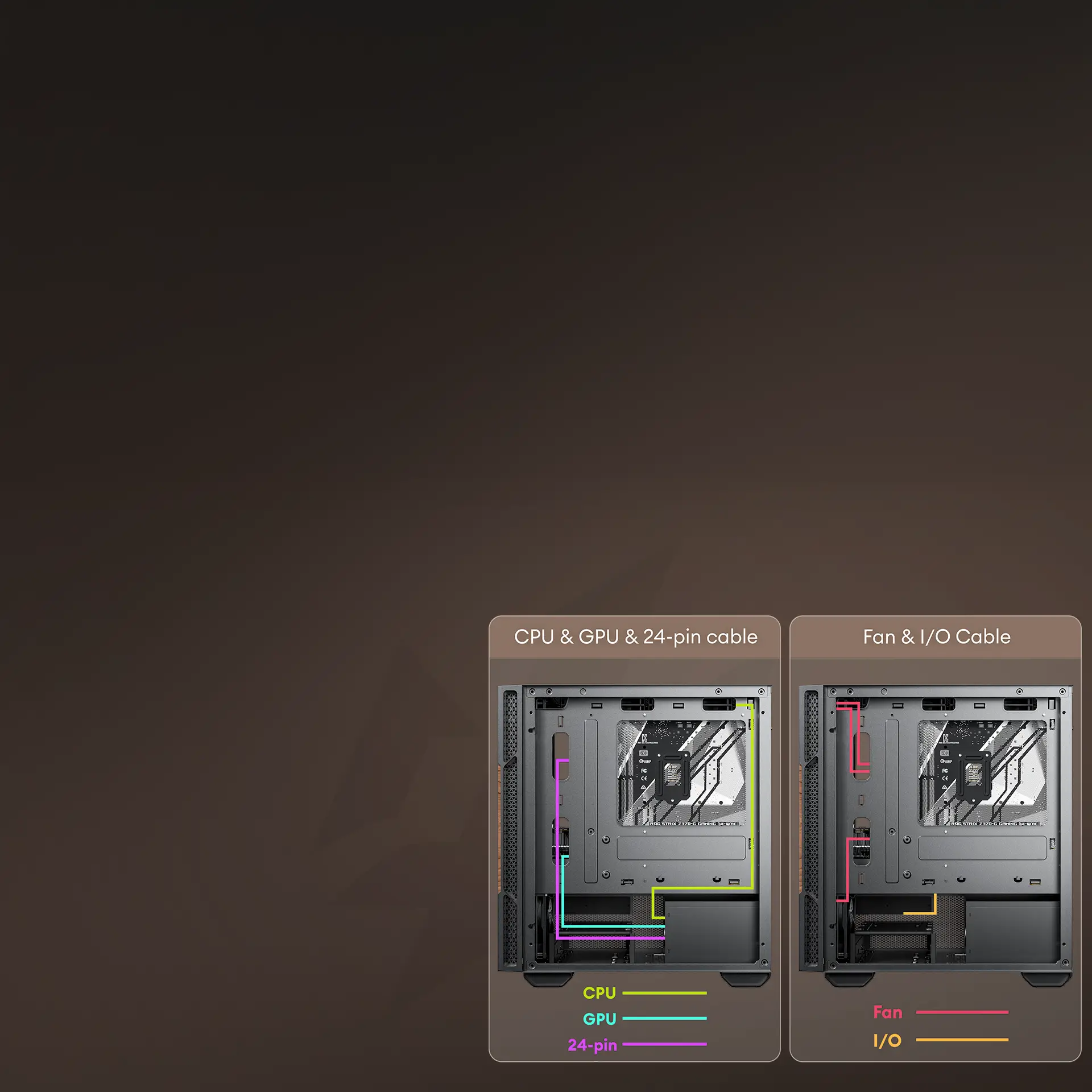

Spacious Cable Management
23mm cable management space for easier and cleaner wiring.
Specifications
Model Name
Cypress 3 Wood
Model No
UPC # / EAN #
Dimensions
372 x 210 x 402mm (DWH)
Form Factor
Mini Tower
Materials
Steel + Wood
Mainboard Support
Micro-ATX , ITX
Front Access & Controls
Power, LED Control Button, USB3.0x2, Type-C 3.2 Gen 2 (10Gbps)x 1, Headphone/Mic Combo Jack
Side Panel
Tempered Glass
Drive Bays
Expansion Slots
4
3.5″ /2.5″
2/1
2.5″
1
Fan
Front
3 x 120mm / 2 x 140mm
Top
2 x 120mm / 2 x 140mm
Power Supply Shroud
2 x 120mm
Rear
1 x 120mm
Included Fan(s)
3 x 120mm fans in front + 1 x 120mm fan in rear
Clearance
Max GPU Length
≤320mm
Max CPU Cooler Height
≤164mm
Max PSU Length
(Include cable)≤185mm(With HDD)
(Include cable)≤205mm(With HDD moves to the left)
(Include cable)≤330mm(Without HDD)
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
4.30 Kg
Gross Weight
5.45 Kg
