PCI-E 4.0 Riser Cable

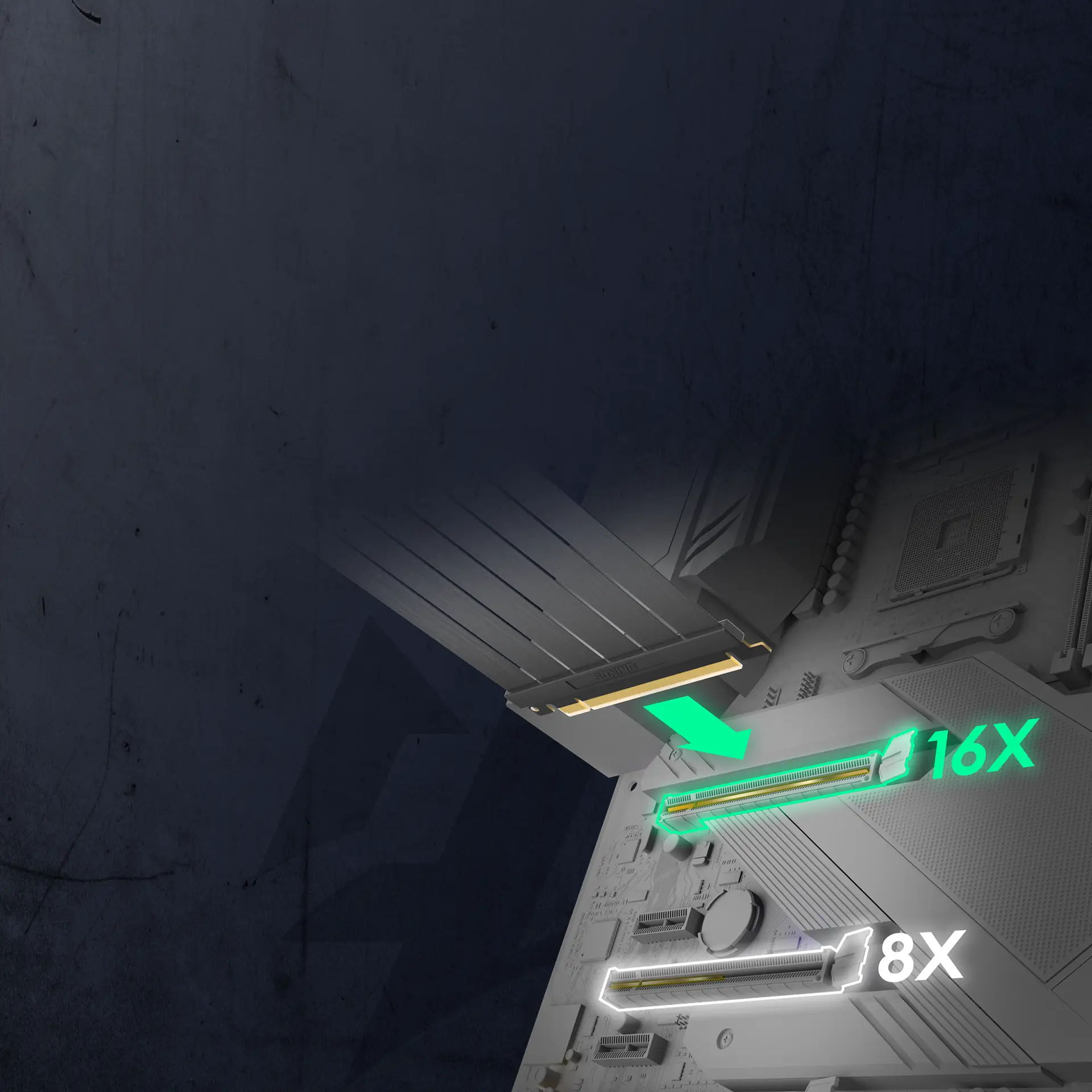

Attention to the MOBO PCIe slot

Plugging the cable into the 16x slot ensures full transmission speed, whereas connecting it to the 8x slot results in only half-speed transmission.

Hot swapping NOT supported

PCIe riser cables require power-off and cooling of the graphics card before removal to prevent short circuits and ensure safe handling.

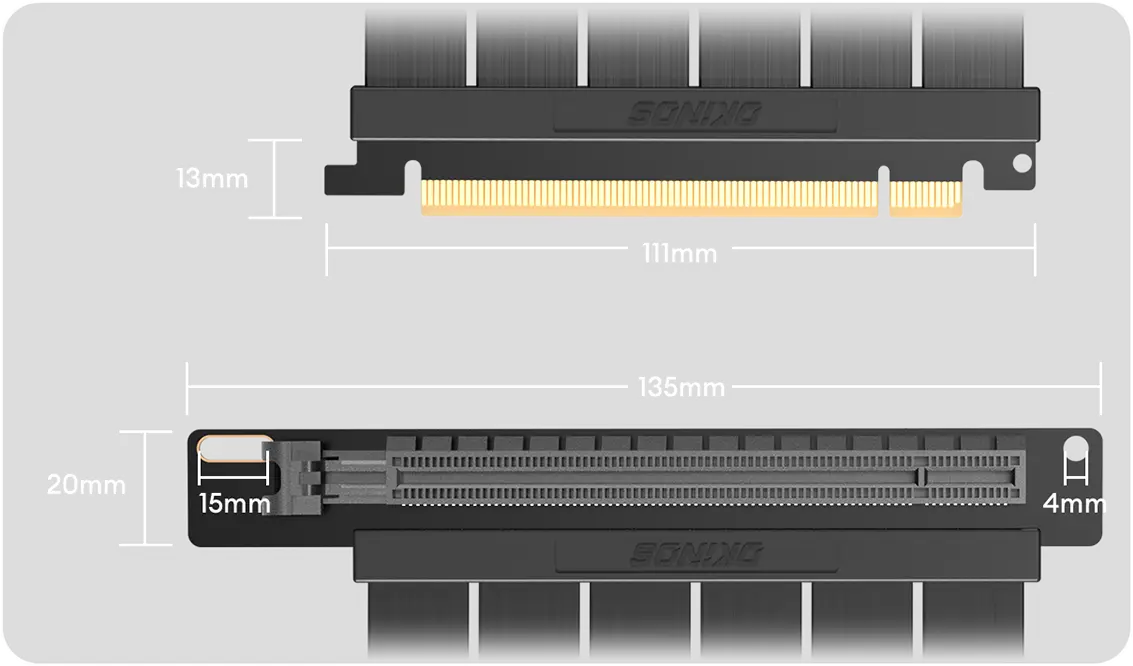

Dimensions

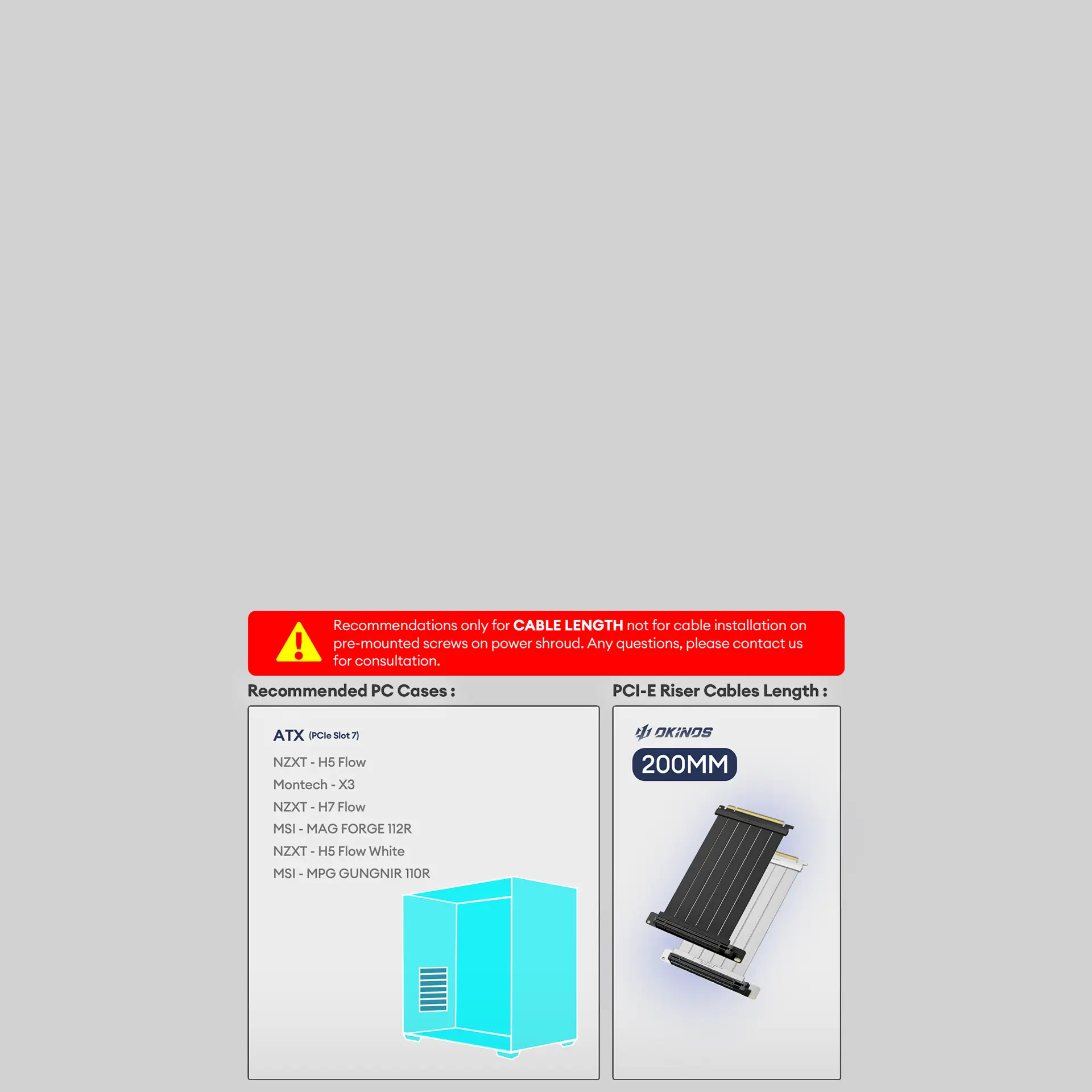

Please confirm the compatibility of your existing PC Case or Vertical Bracket

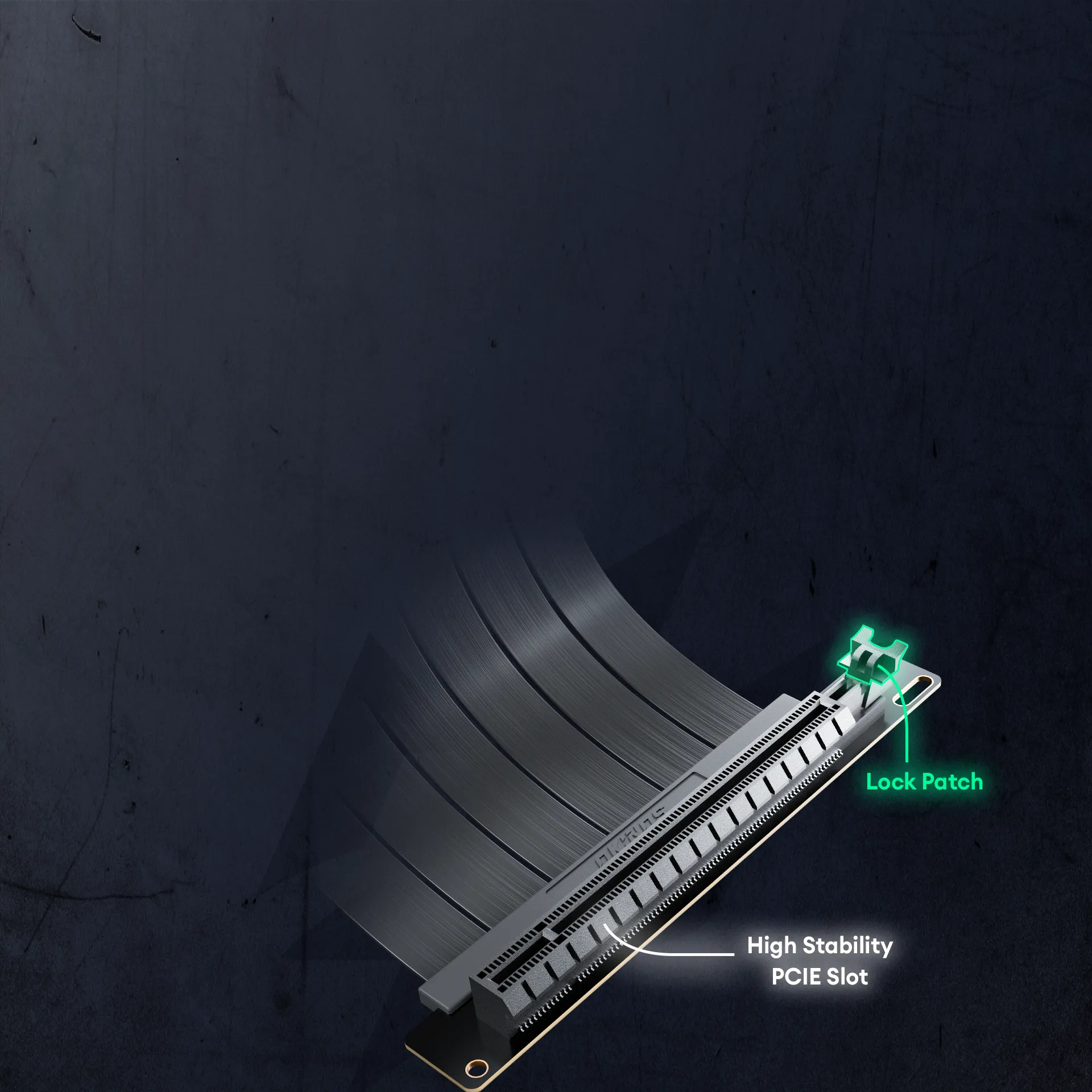

Prevent Blue Screen

The connector with lock catch provides stronger PCIE retention, plug and pay, prevent blue screen.

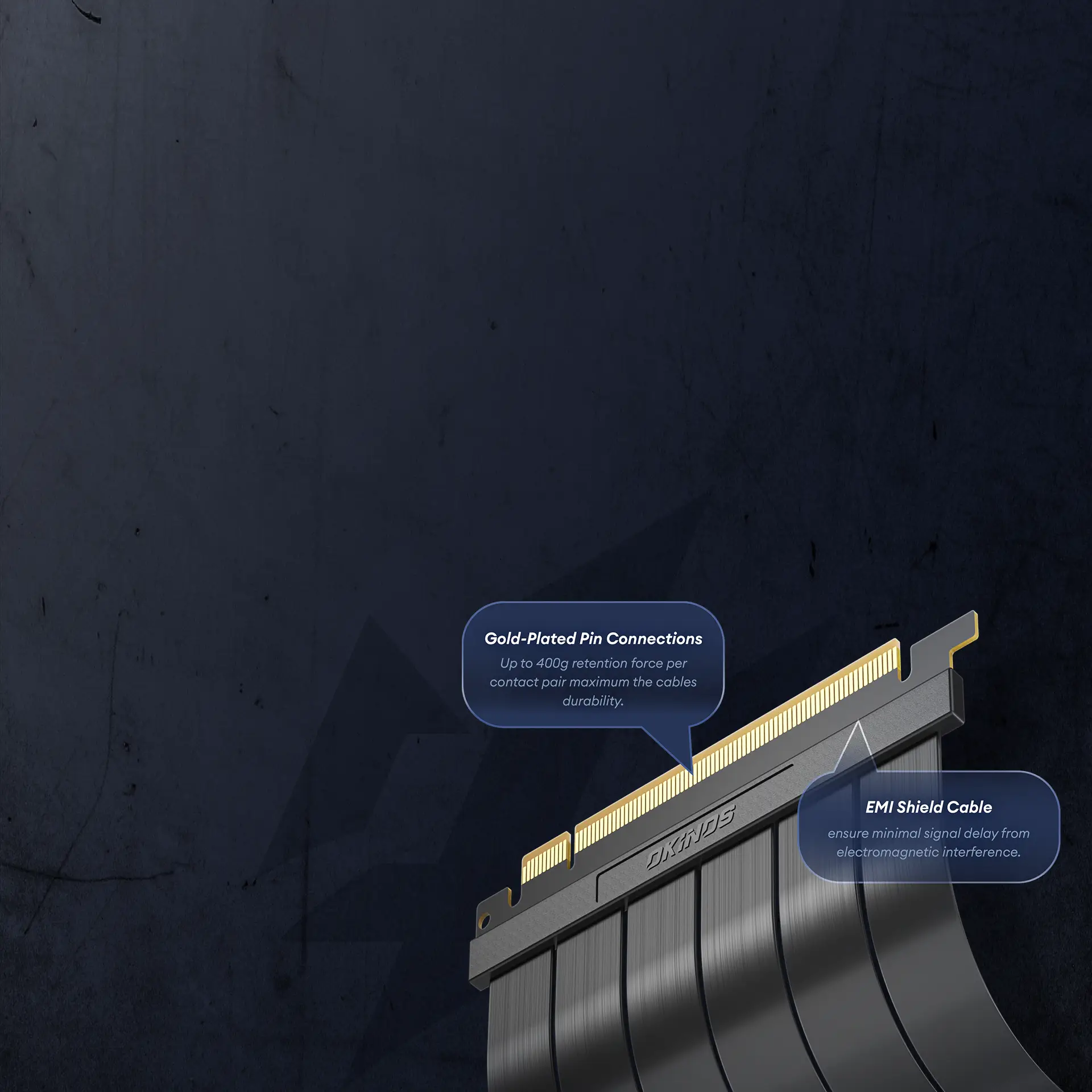

Extended Service Life

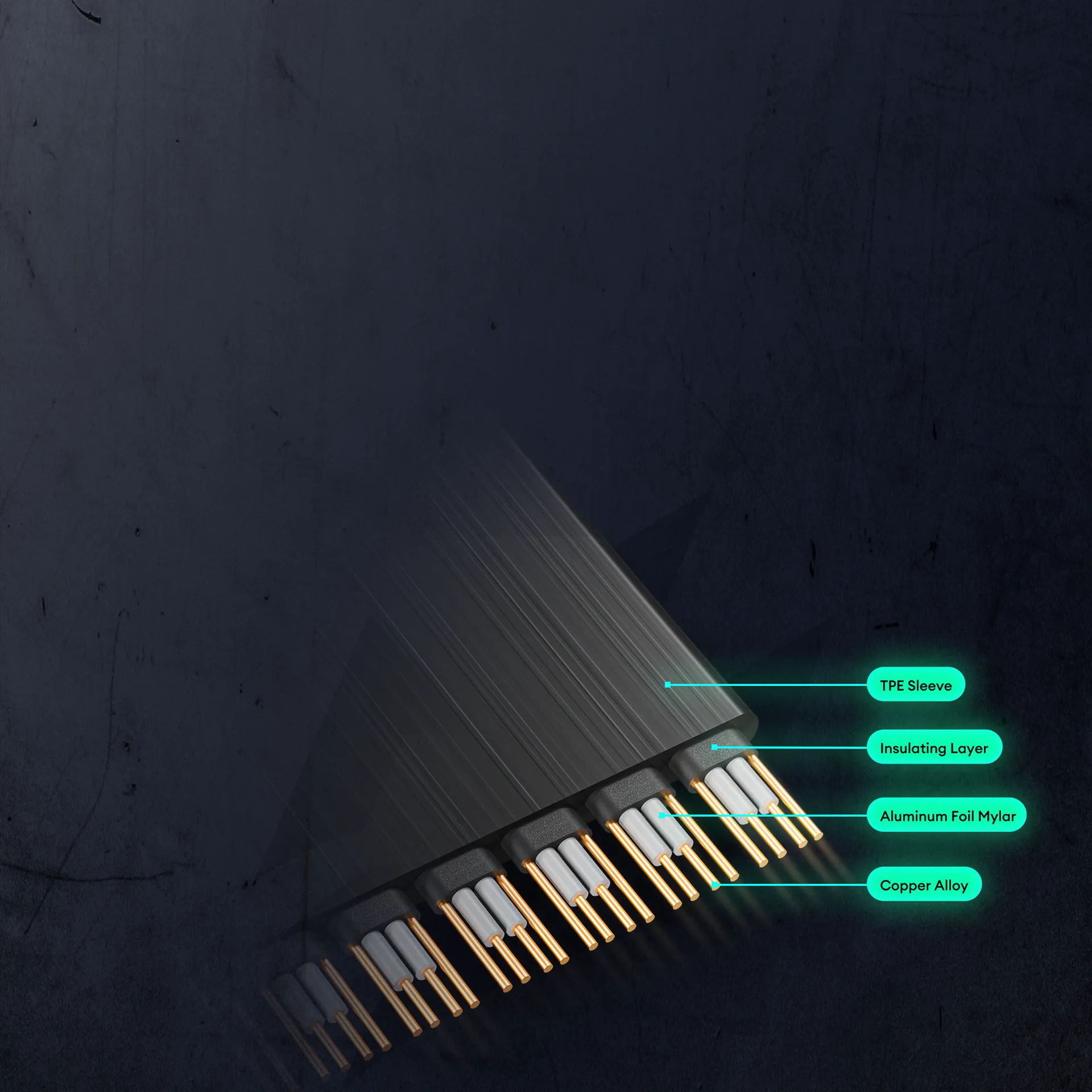

32 Copper Alloy each Cable

Providing full-speed, stable signal transmission.

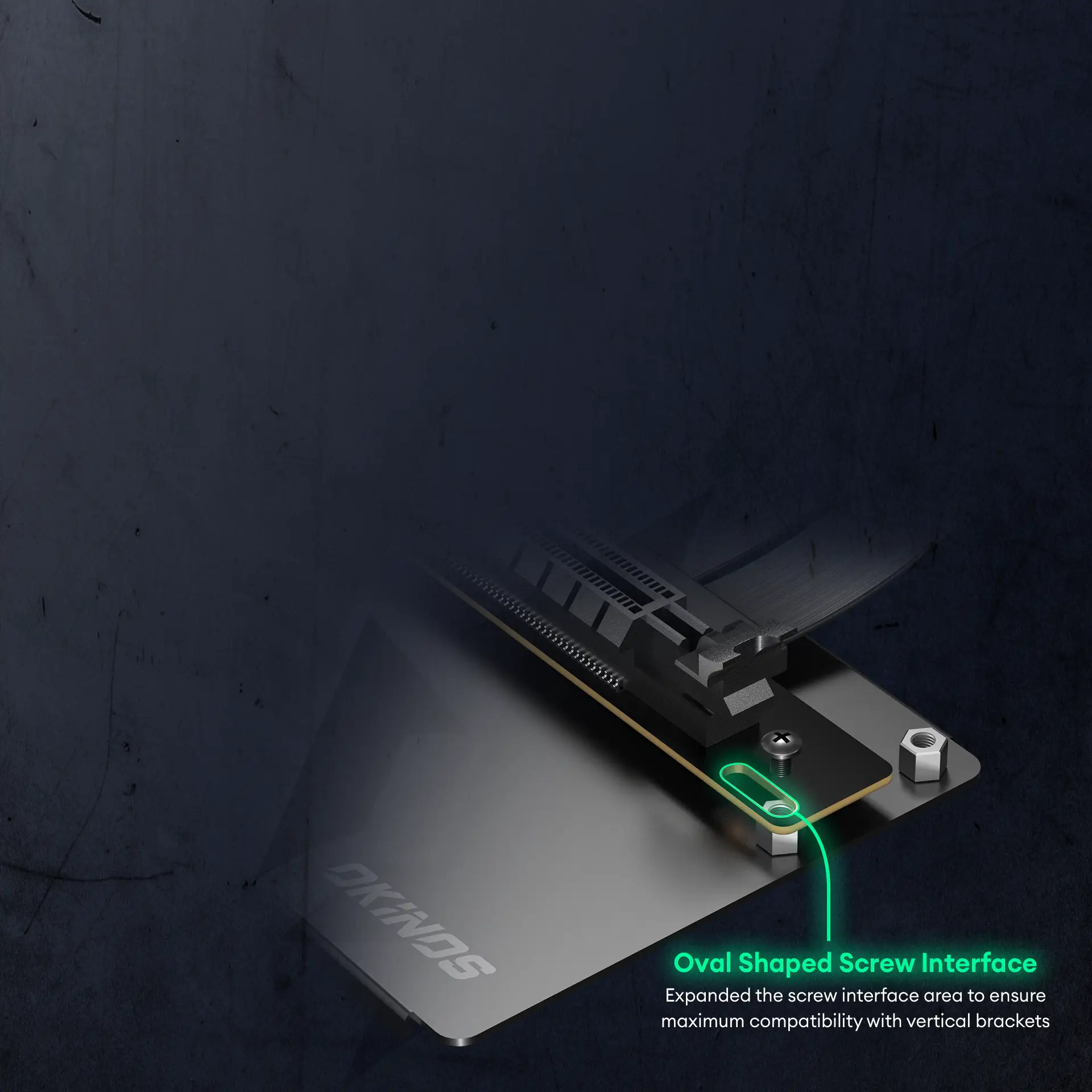

Oval Shaped Screw Interface

Expanded the screw interface area to ensure maximum compatibility with vertical brackets.

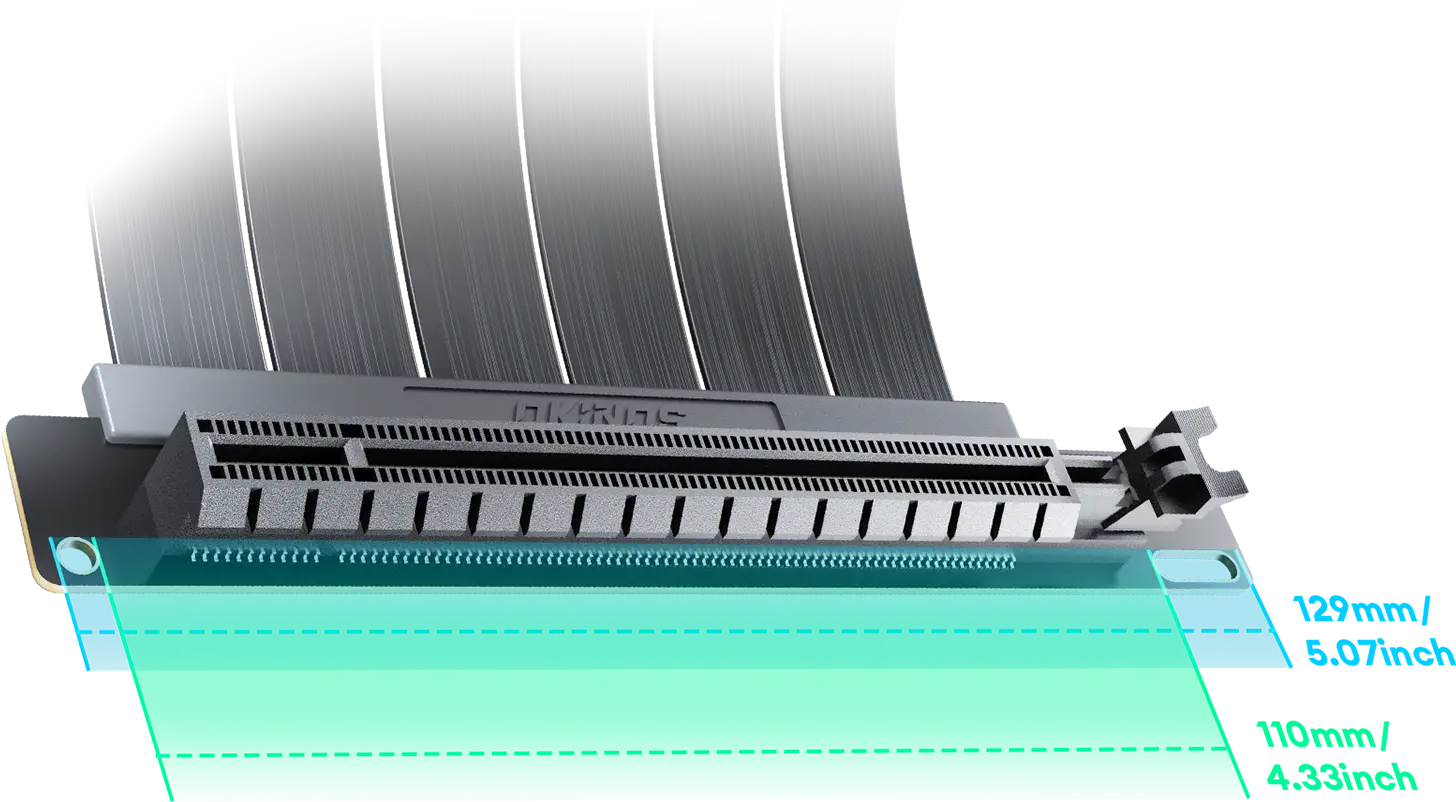

Stability signal, refuse to drop frame

Specifications

Model Name

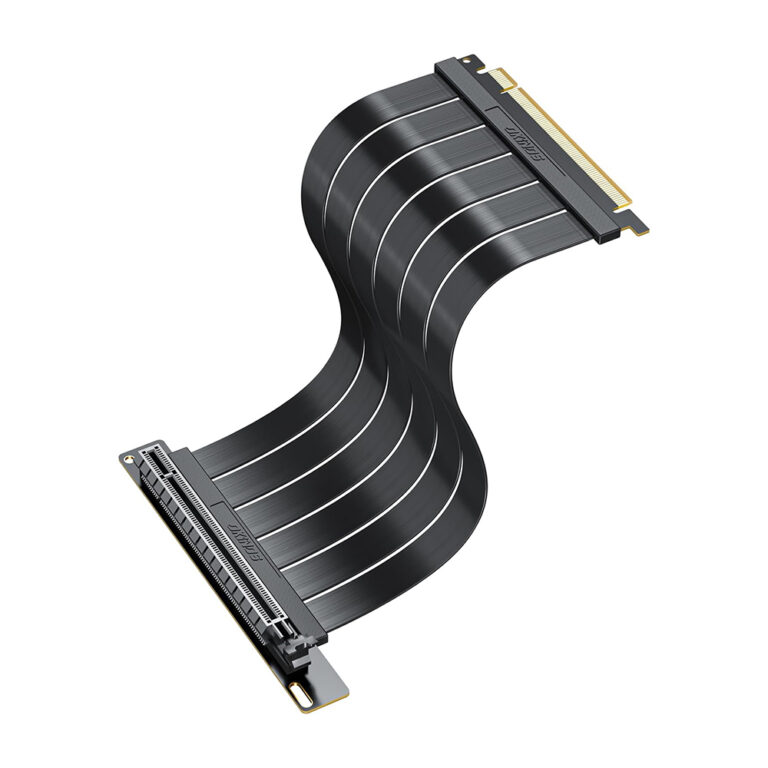

Pcie 4.0 Riser Cable Black (200mm / 300mm)

PCI Express Version

4.0

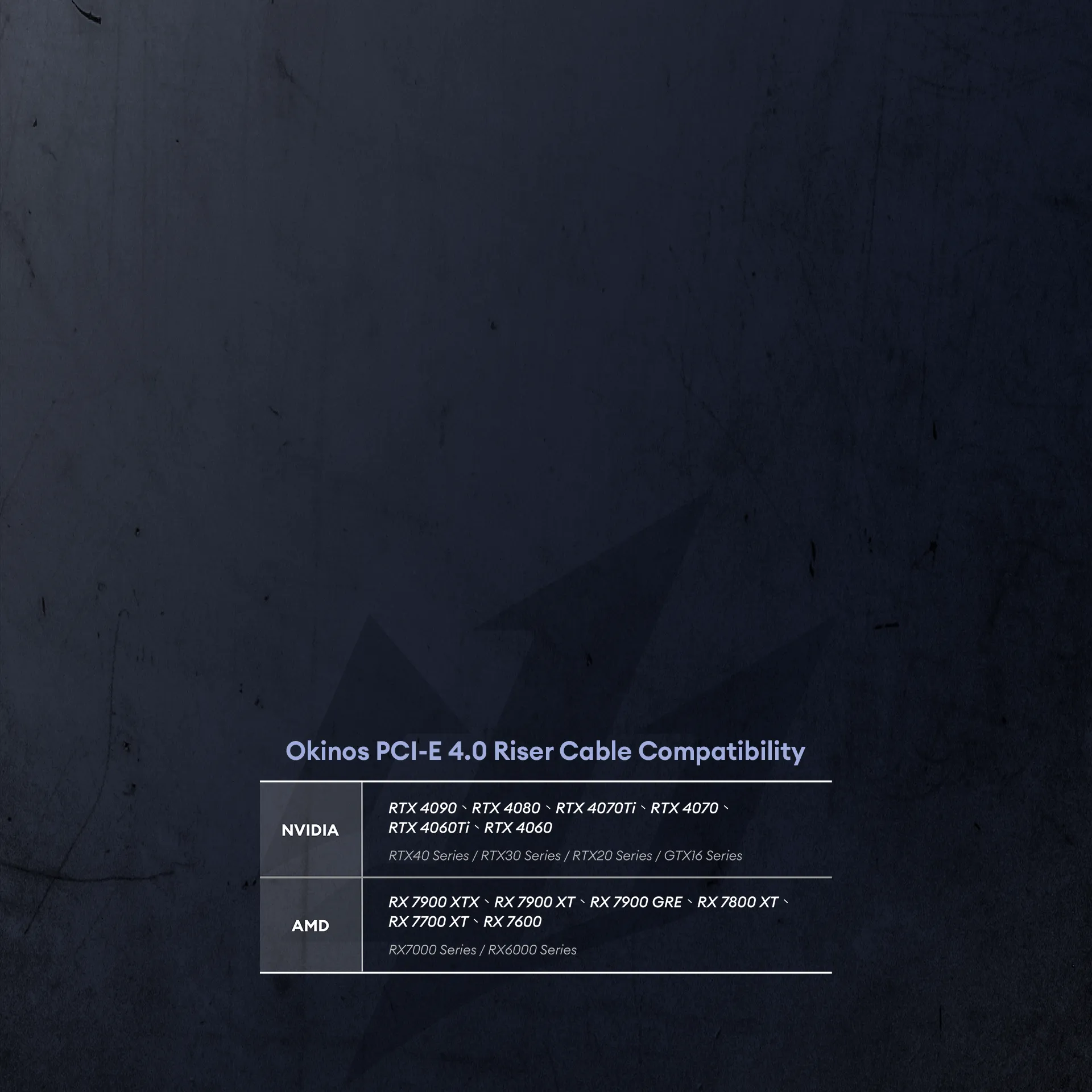

NVIDIA GPU

RTX 4090 & backward compatible

AMD GPU

RX 7900 & backward compatible

Transmission Rate

16~26 G

Bandwidth

31.51 GB/s

Maximum Power Wattage

66 W

Material of Connector Slot

Plastic

Number of Copper Wire

24 Pin /each cable

Gold-Plated PCI Pins

√

End-to-End Cable Length

242mm ± 3mm

Connector Tip-to-Tip Length

235mm ± 3mm
