PWM Fan Settings:
Quiet on Low, Powerful on High
Quiet on Low, Powerful on High

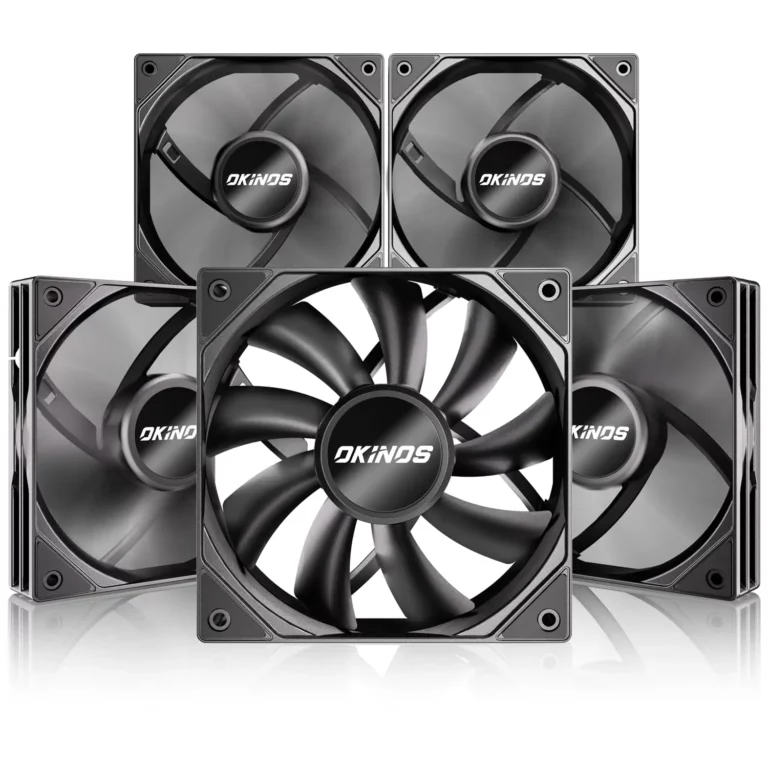

Hurricane 12
Case Fan Series

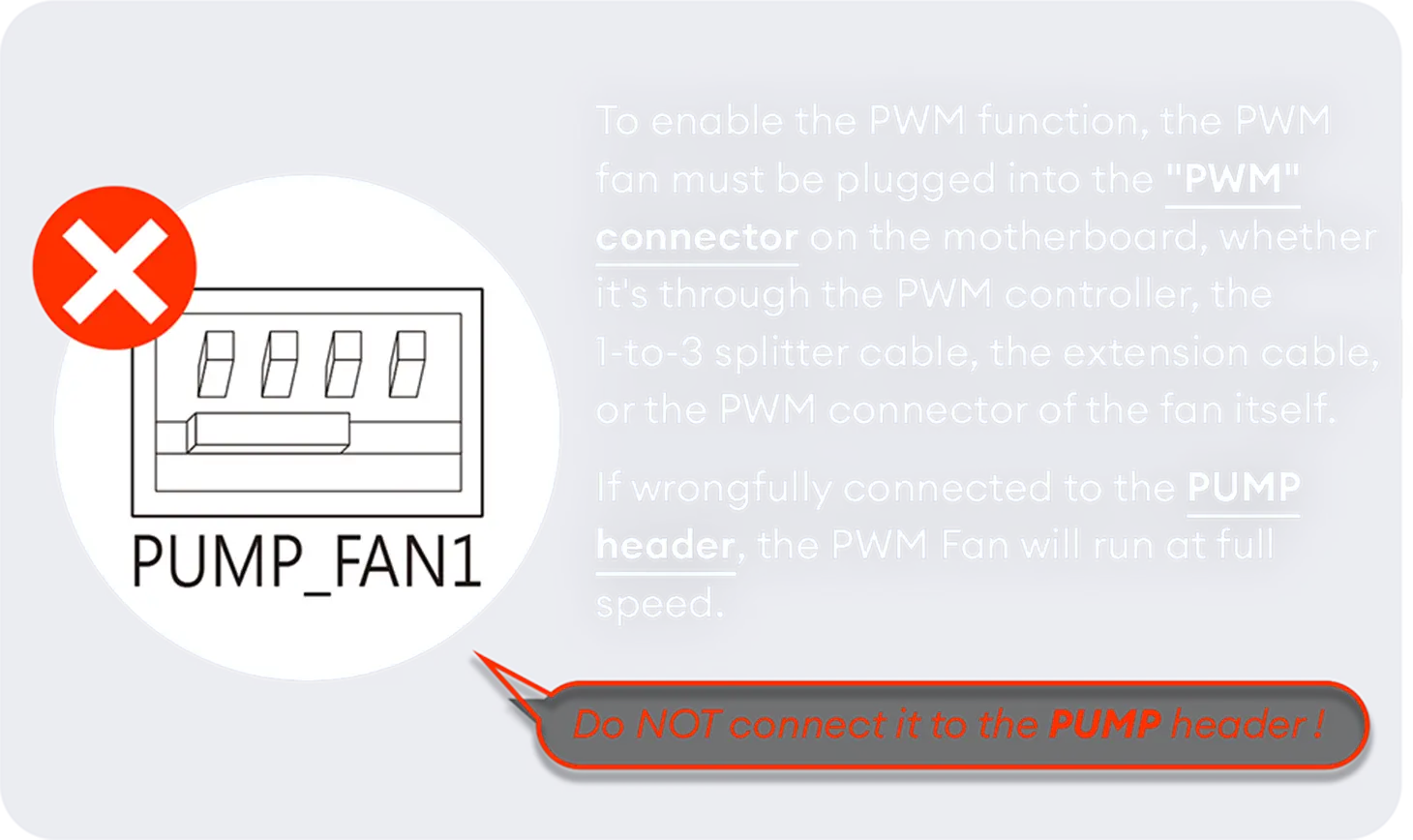

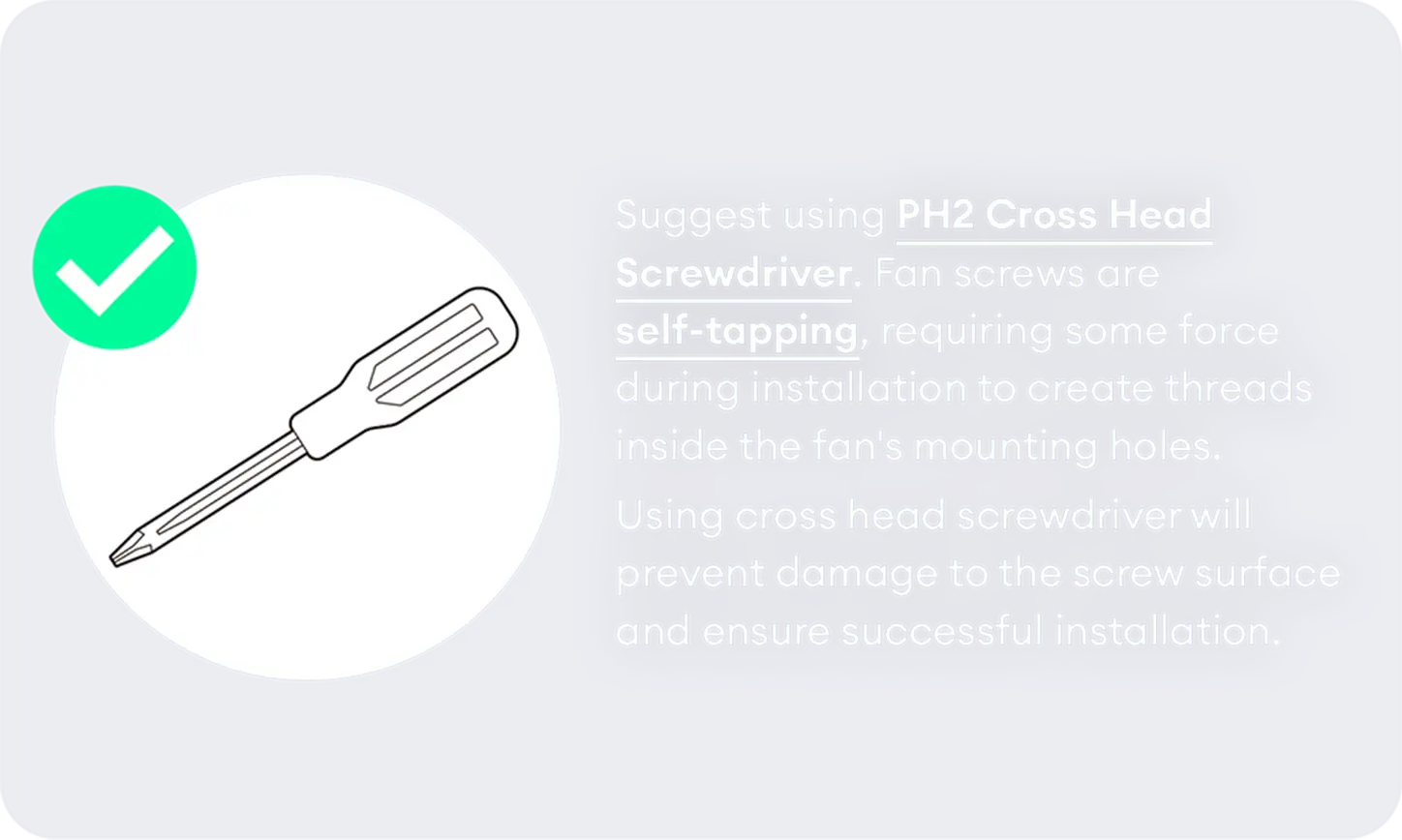

Modding Tips

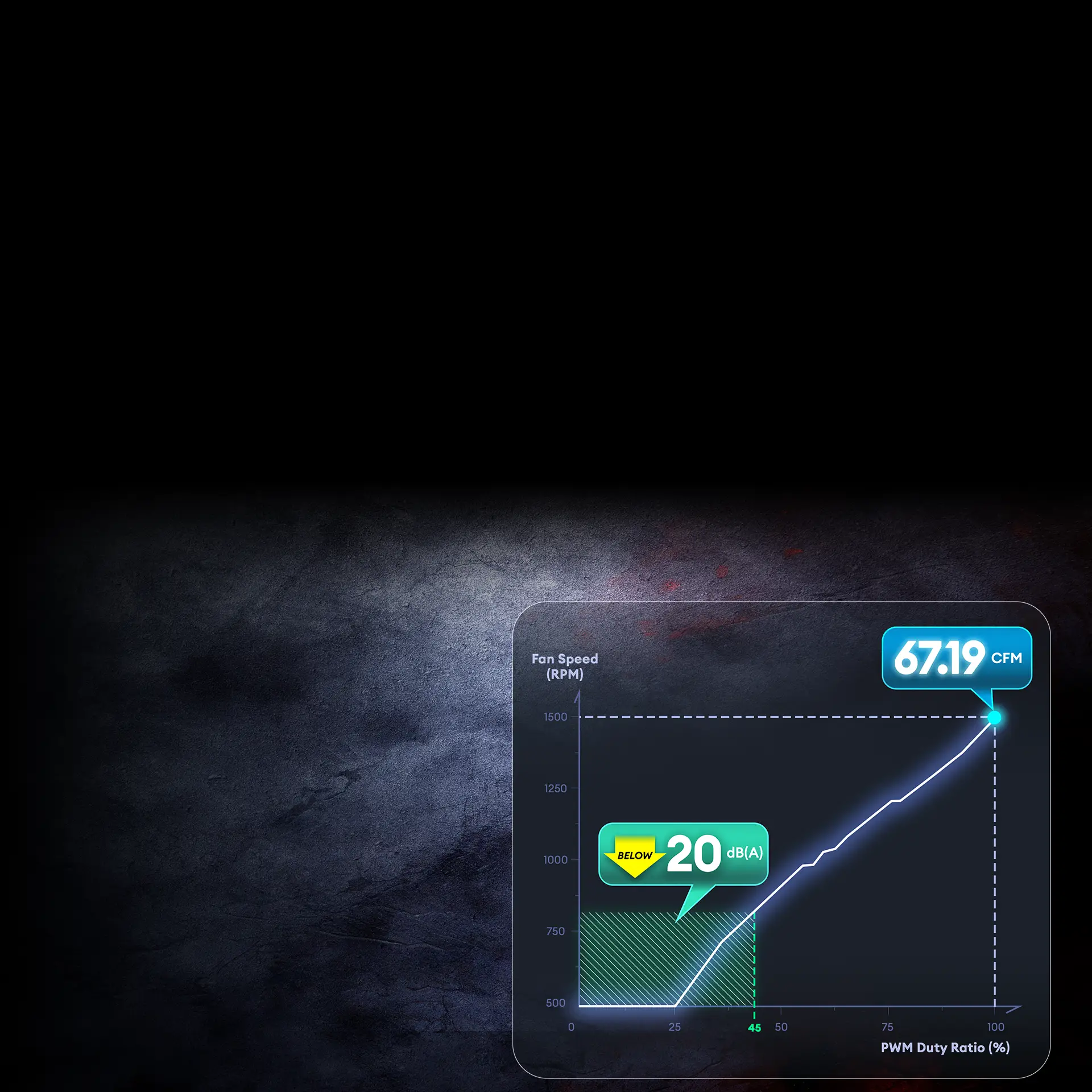

The Curve of Fan Speed vs PWM Duty Cycle

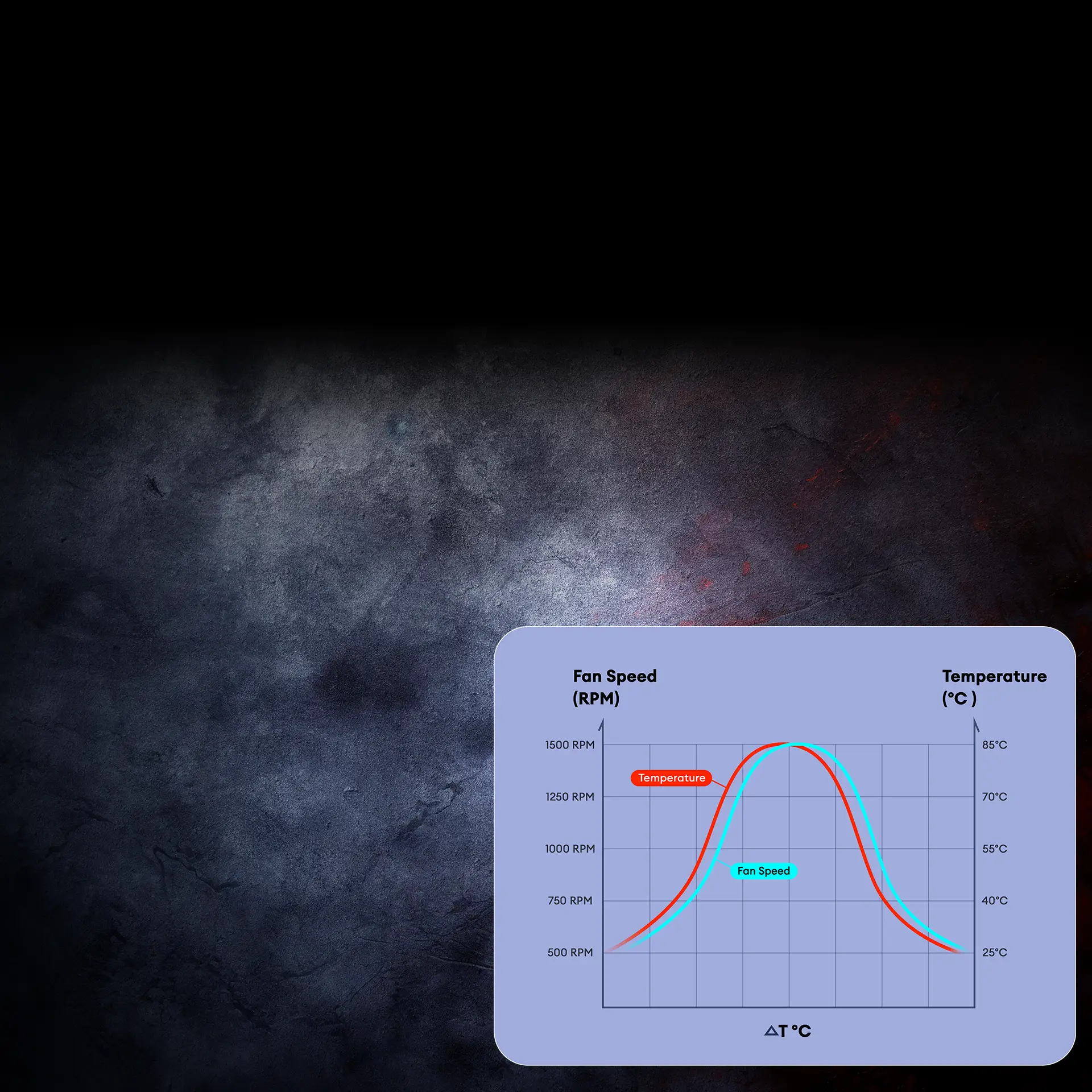

The Curve of Fan Speed vs Temperature

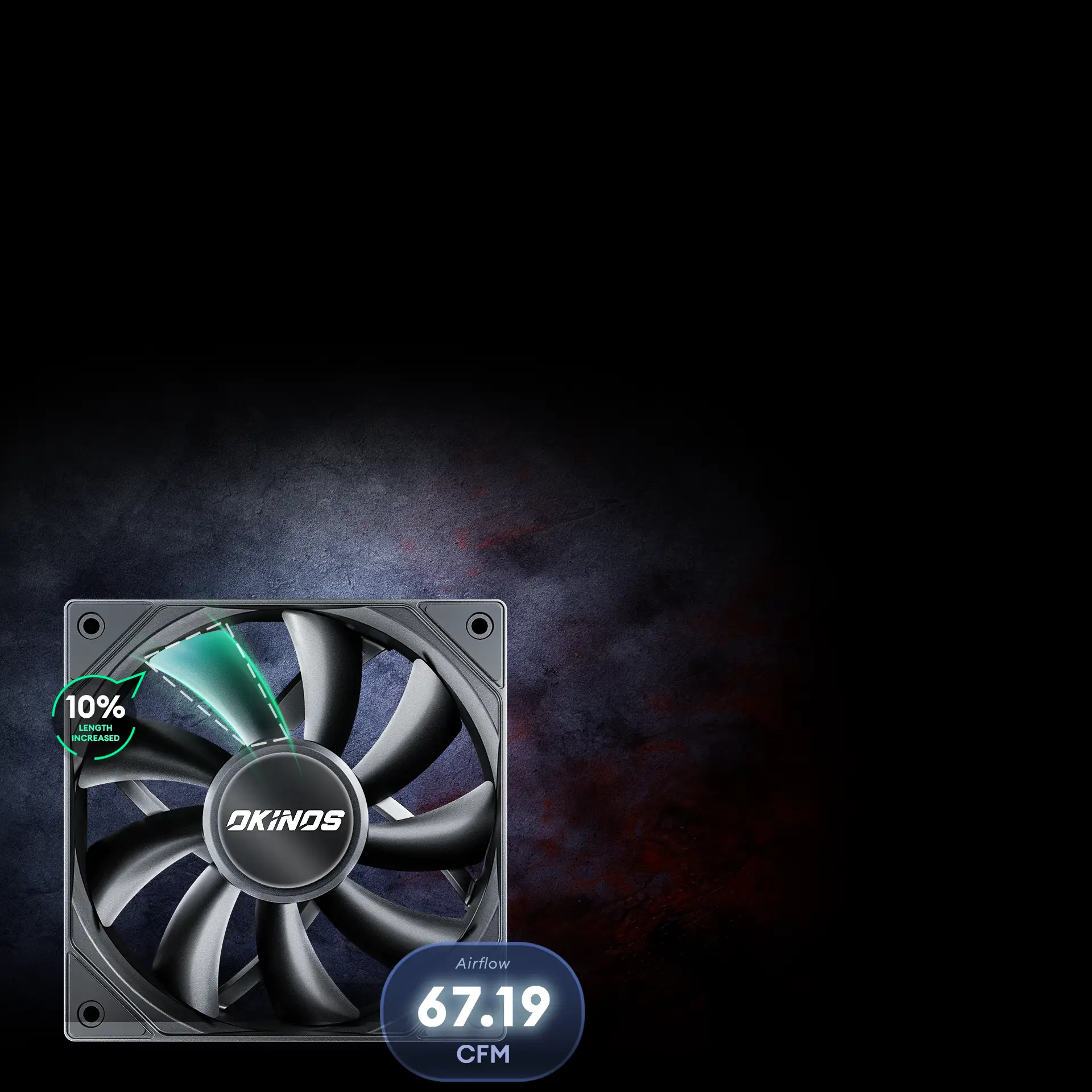

9 Extended Arc Blades
By adding 10% length of the fan arc through precise calculation, thus generated greater airflow.

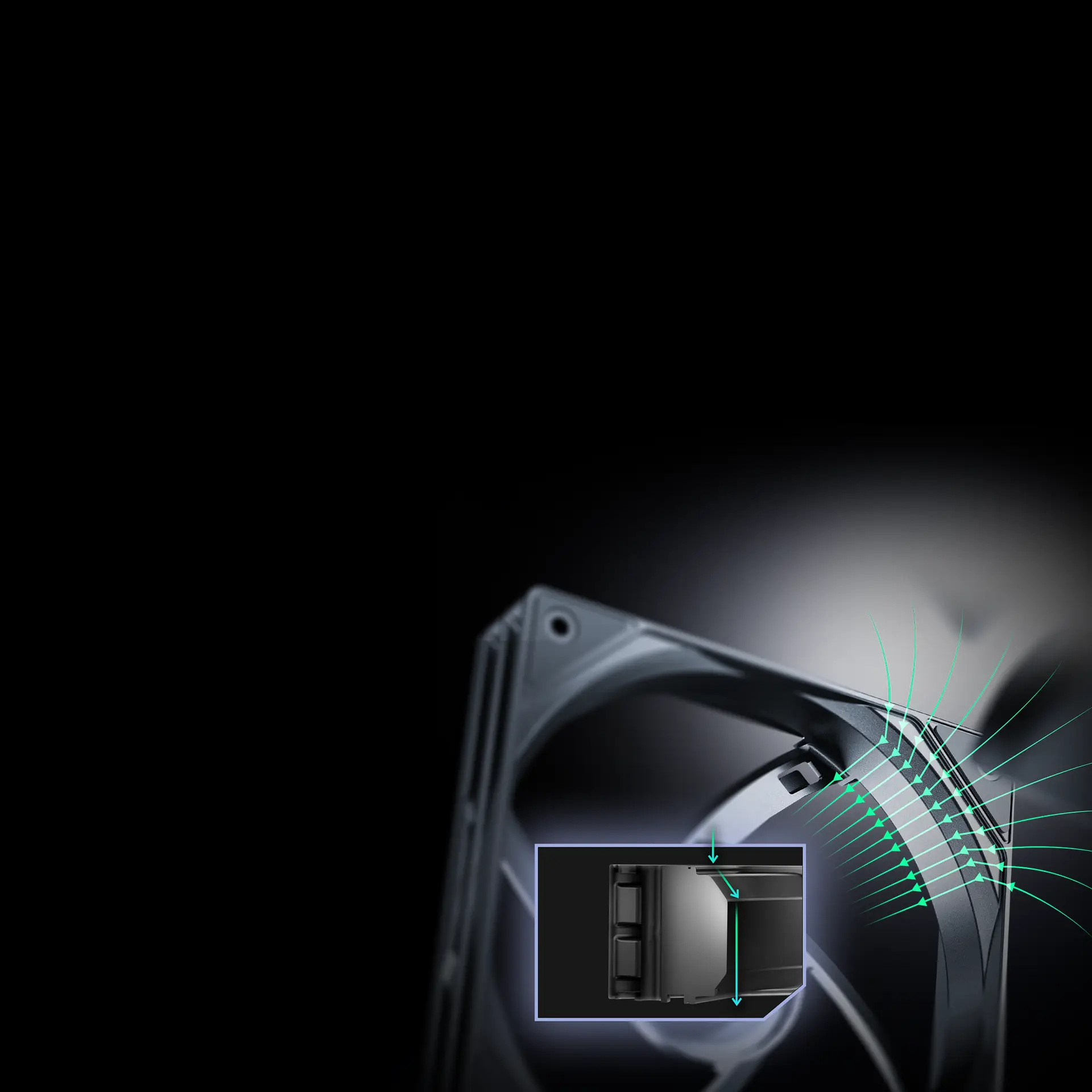

Trio-Segmented Frame Design
8 inner corners of the frame adopted Trio Segmented Frame, which expanded the intake/exhaust area.
Advance Pillar Frame
4 Pillar provide resistance that can reduce the impact when fan running.

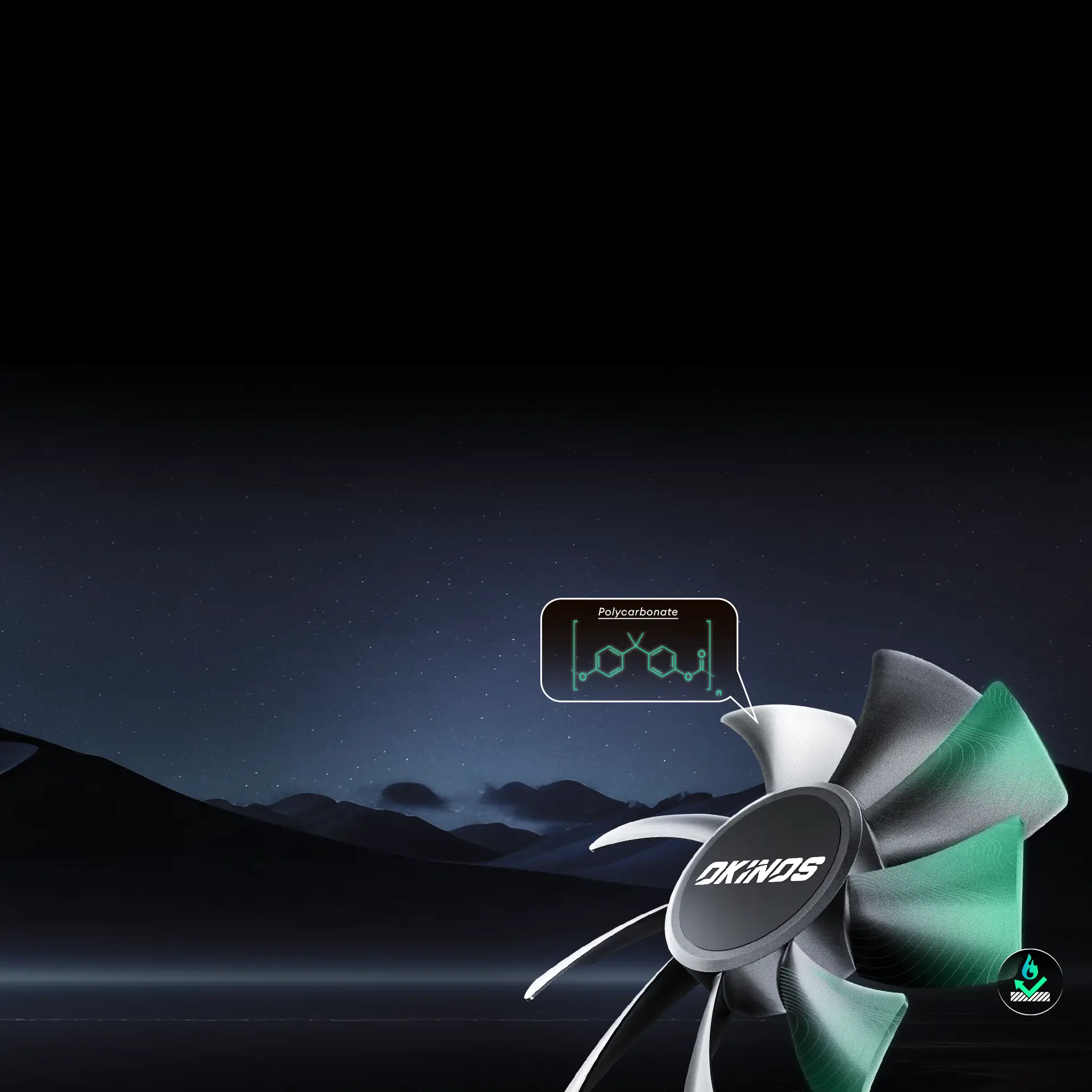

Polycarbonate Fan Blade
PC material are more durable than PBT.

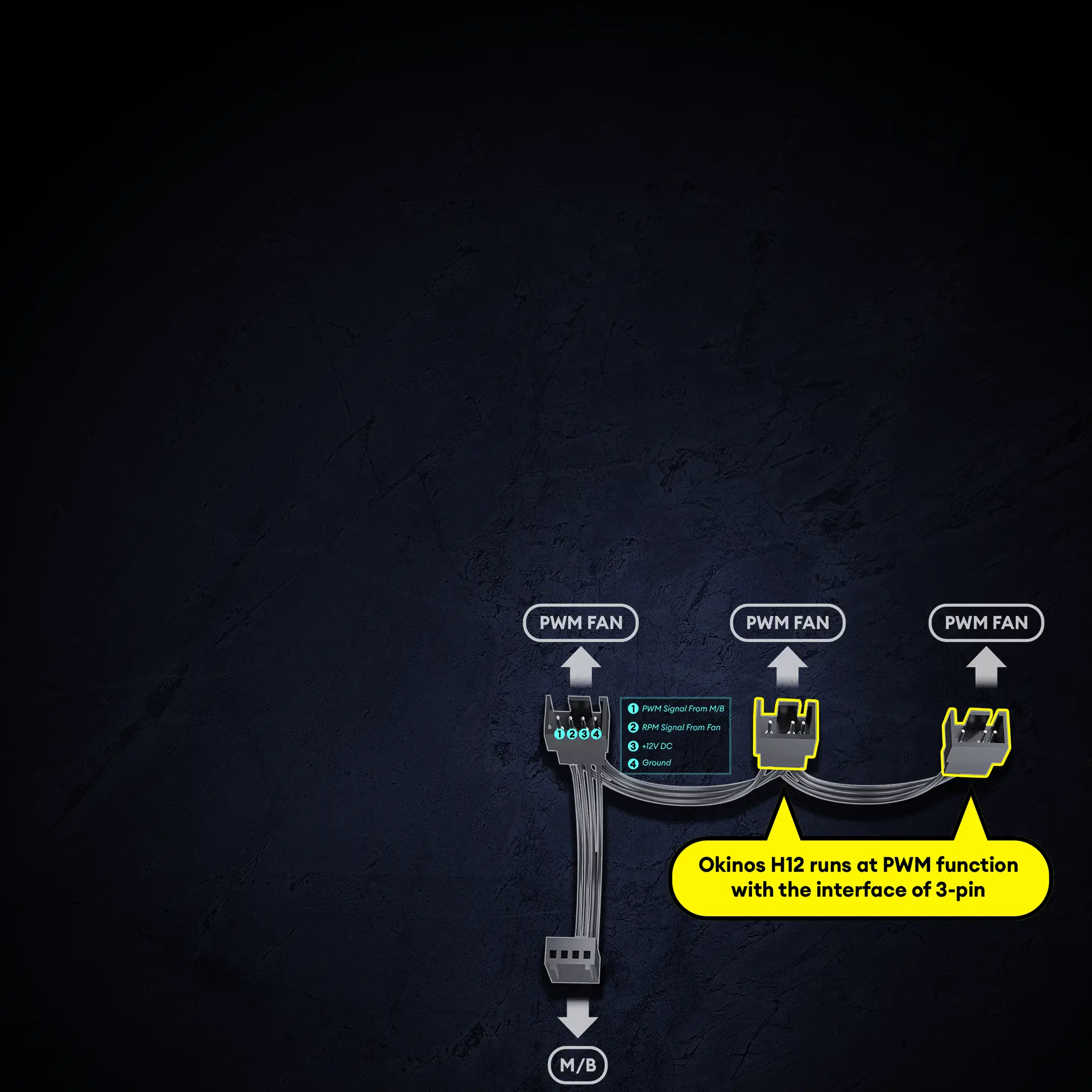

1 to 3 Splitter Included
Each Fan Splitter includes 1* 4-pin interface for speed signal transmission between PWM Fans and MOBO, the other 2 interfaces only with 3-pin to prevent simultaneous signal transmissions, which may cause the fans to operate abnormally.
Specifications
Model Name
Hurricane 120 PWM
Model No
UPC # / EAN #
Fan Type
PWM FAN
Dimensions
120*120*25 mm
Bearing Type
Hydro Bearing
LED Type
none
Fan Speed
500~1500 RPM
Airflow
67.19 CFM
Air Pressure
1.63 mmH₂O

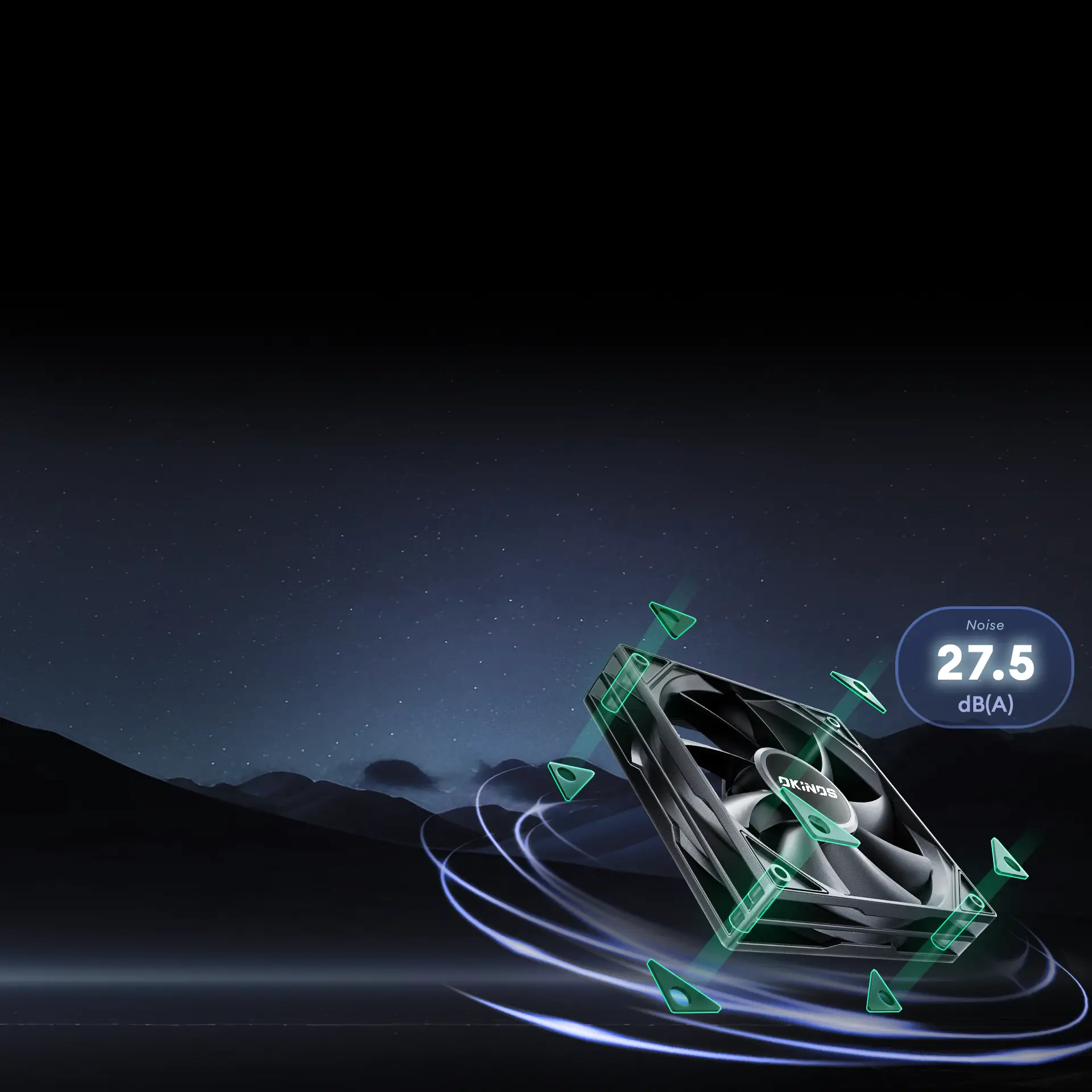

Fan Noise Level
27.5 dB(A)
Power Connector Type
4-Pin PWM
Rated Voltage
DC 12V
Rated Current
0.27A
