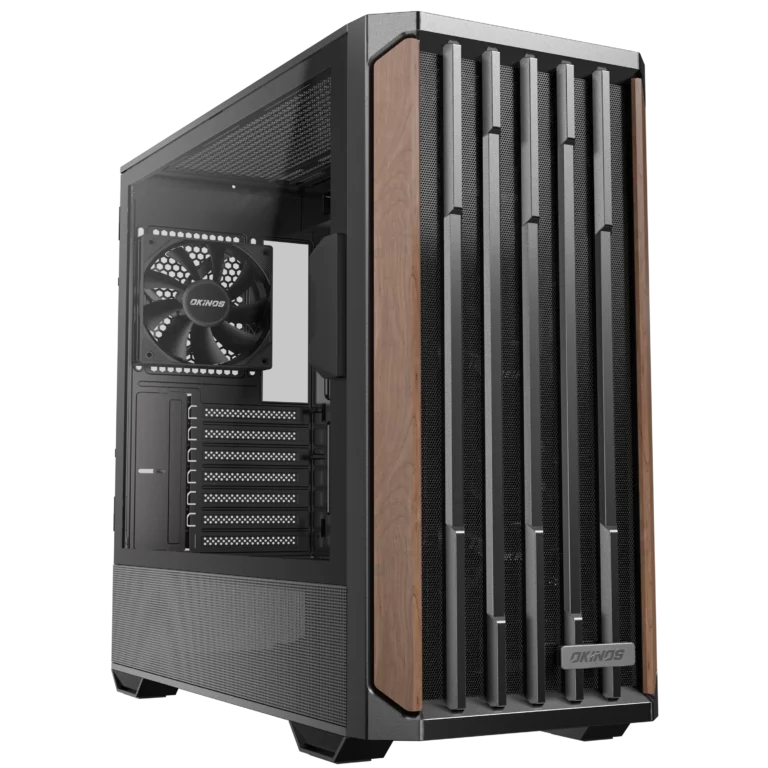

Cypress 7 Wood
Mid-Tower Gaming PC Case

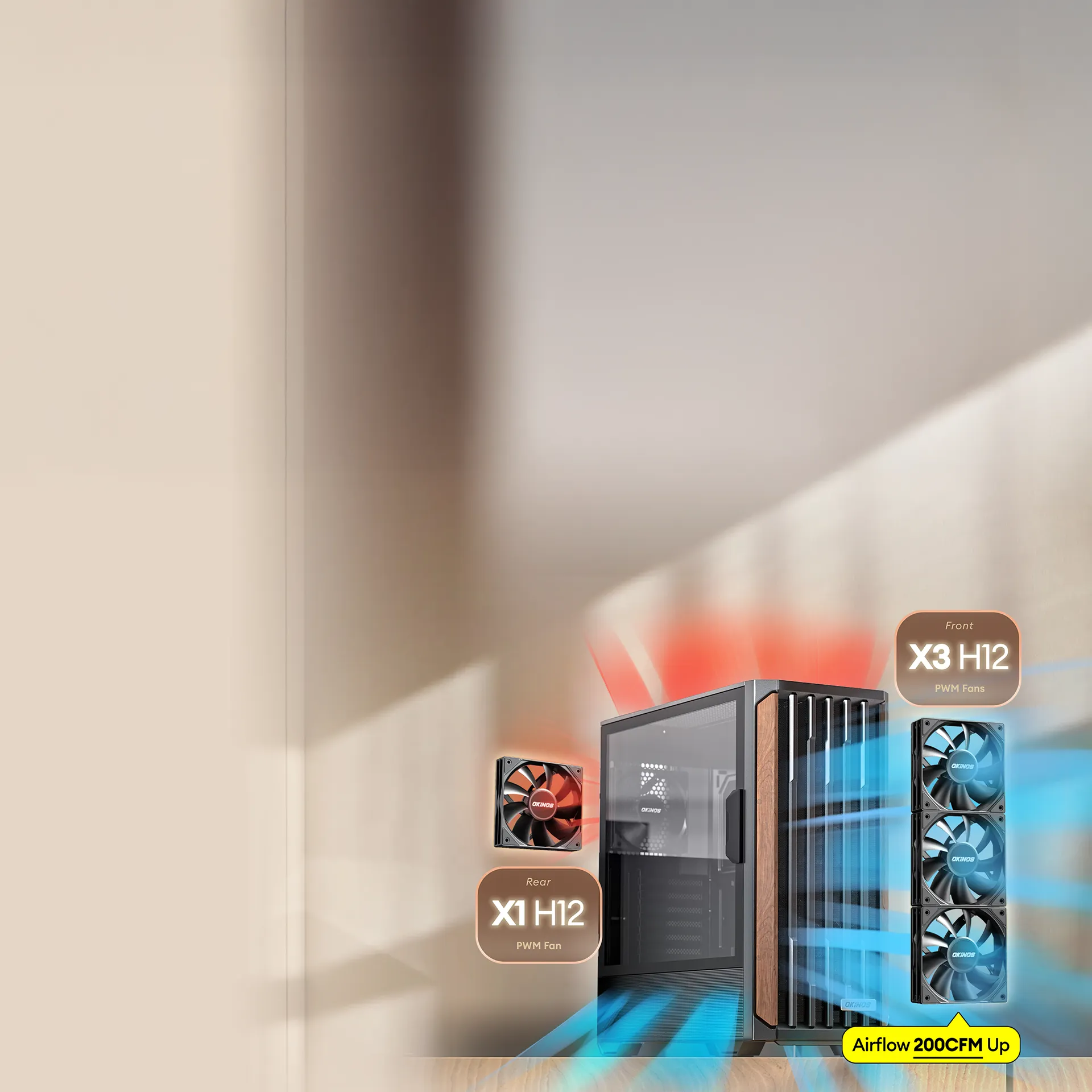

Efficient Cooling Configuration,
Airflow Reaching 200 CFM
Airflow Reaching 200 CFM

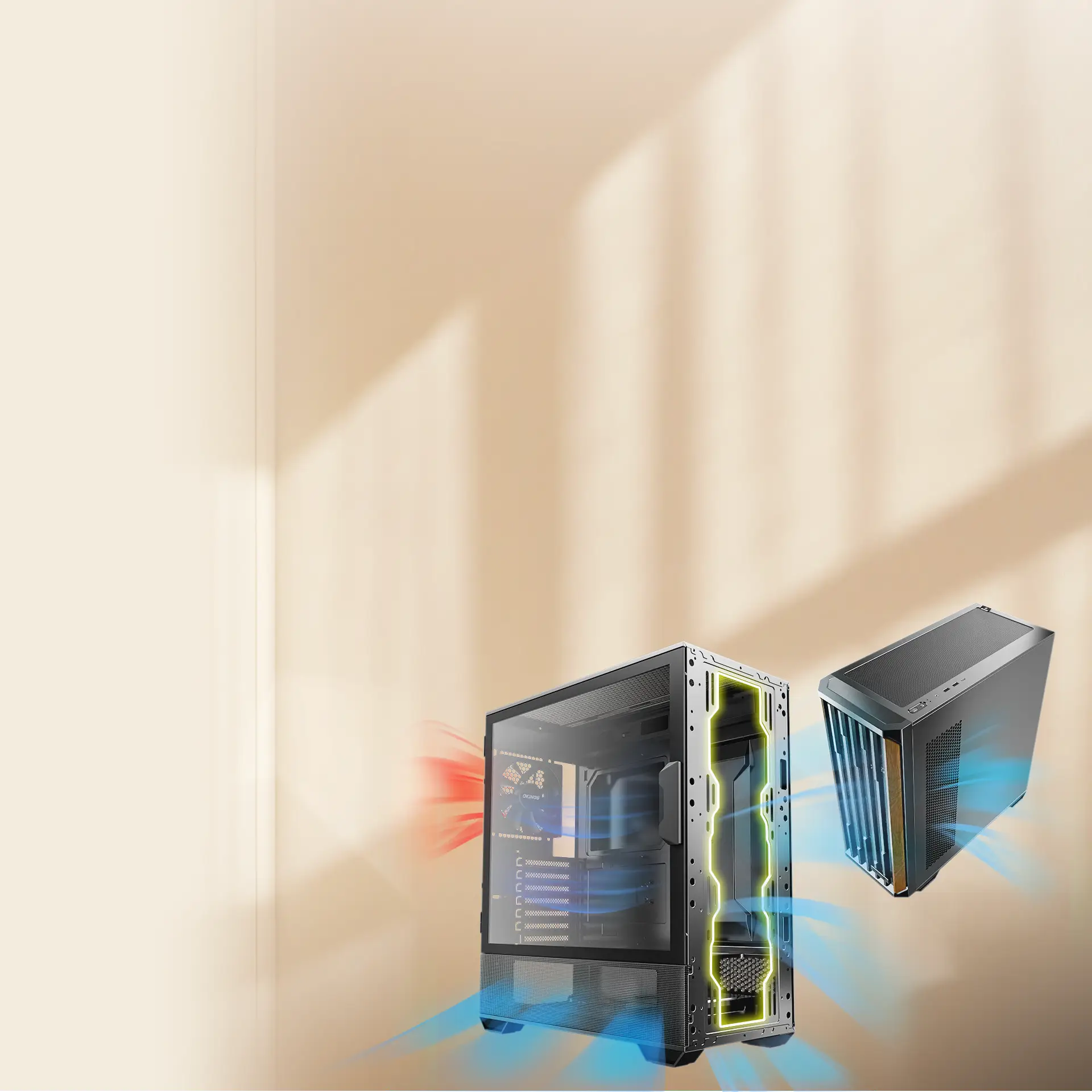

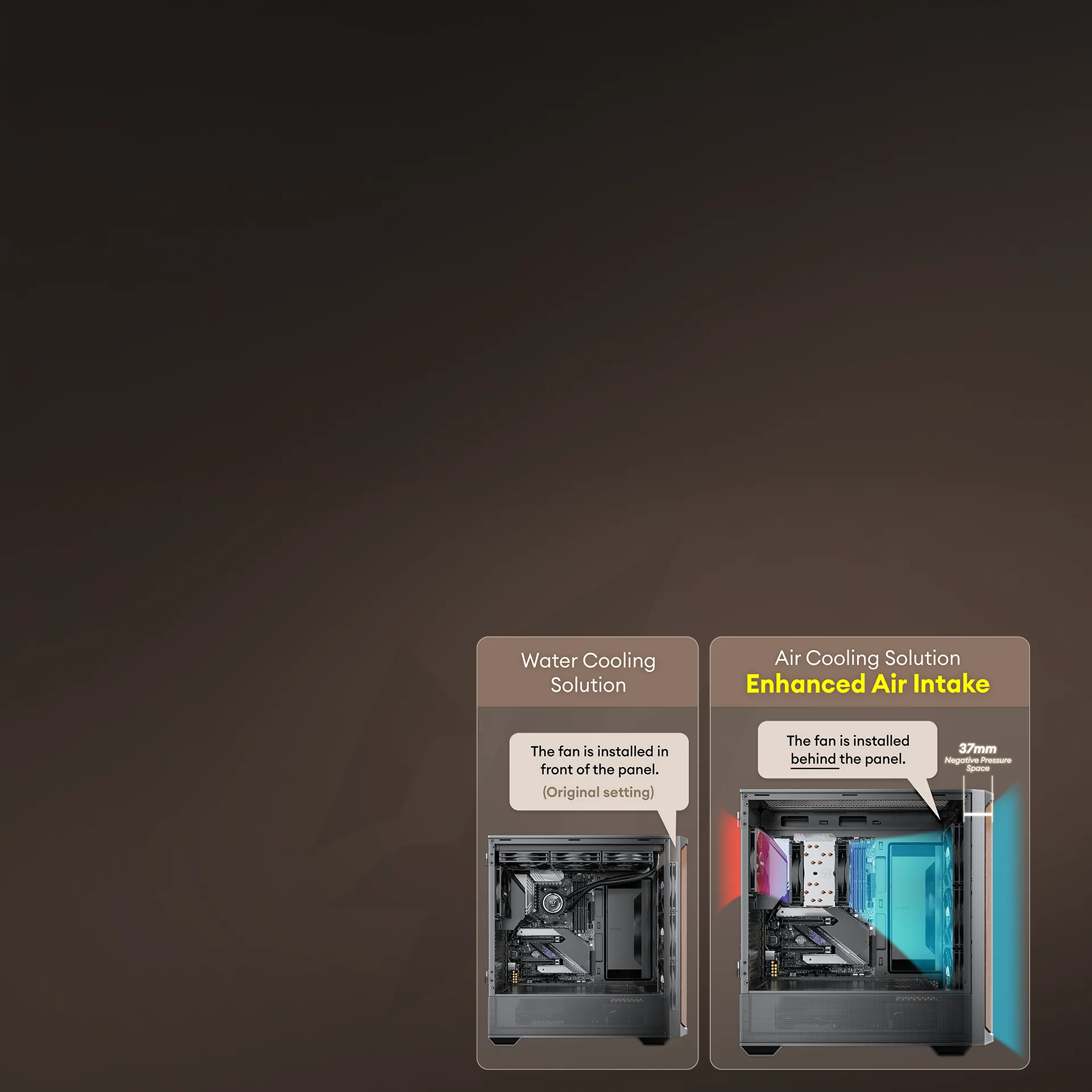

Extra Cooling Effect through
Innovative Design
Innovative Design
Increased horizontal air intake through front and right side panel openings.
Multiple CPU Cooling Options

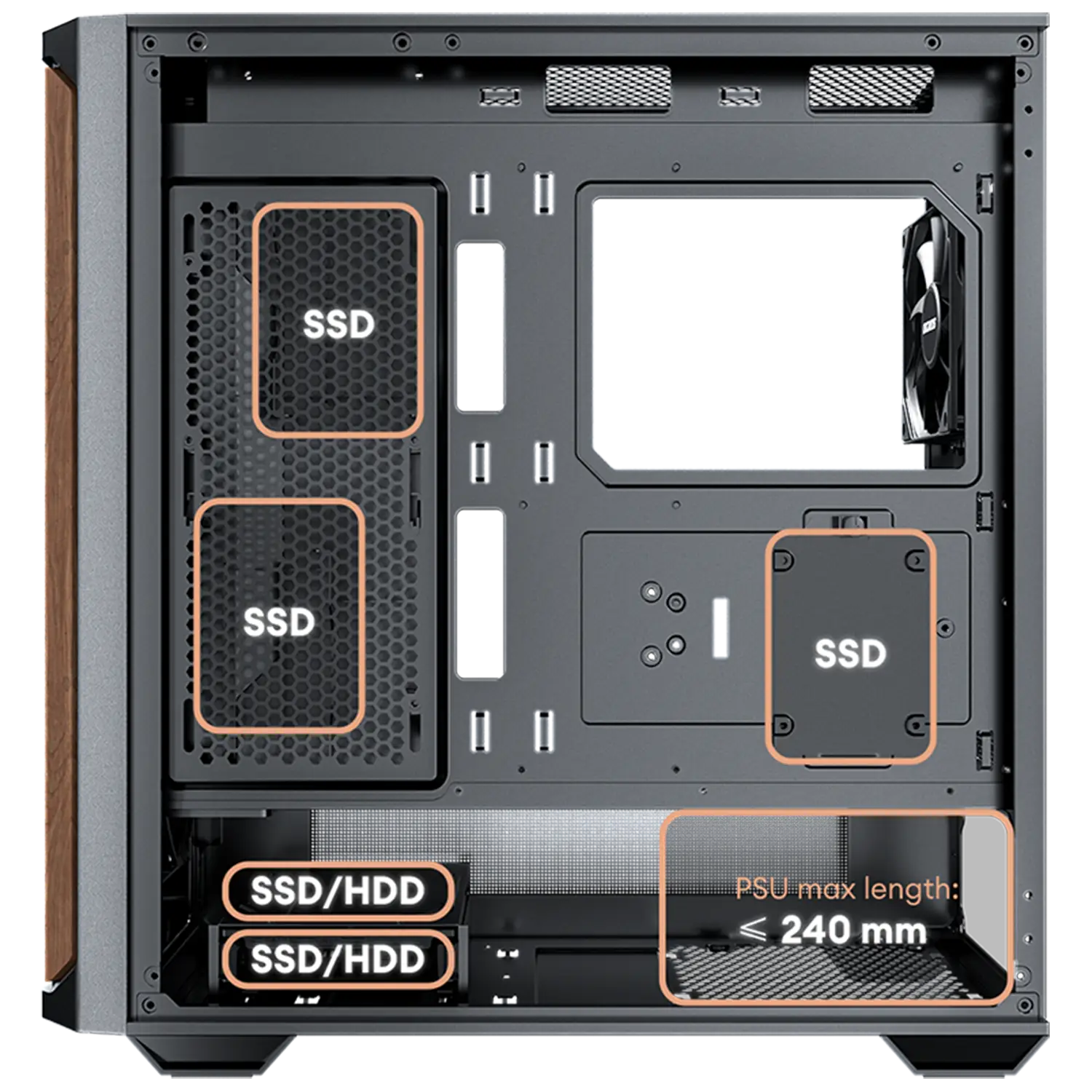

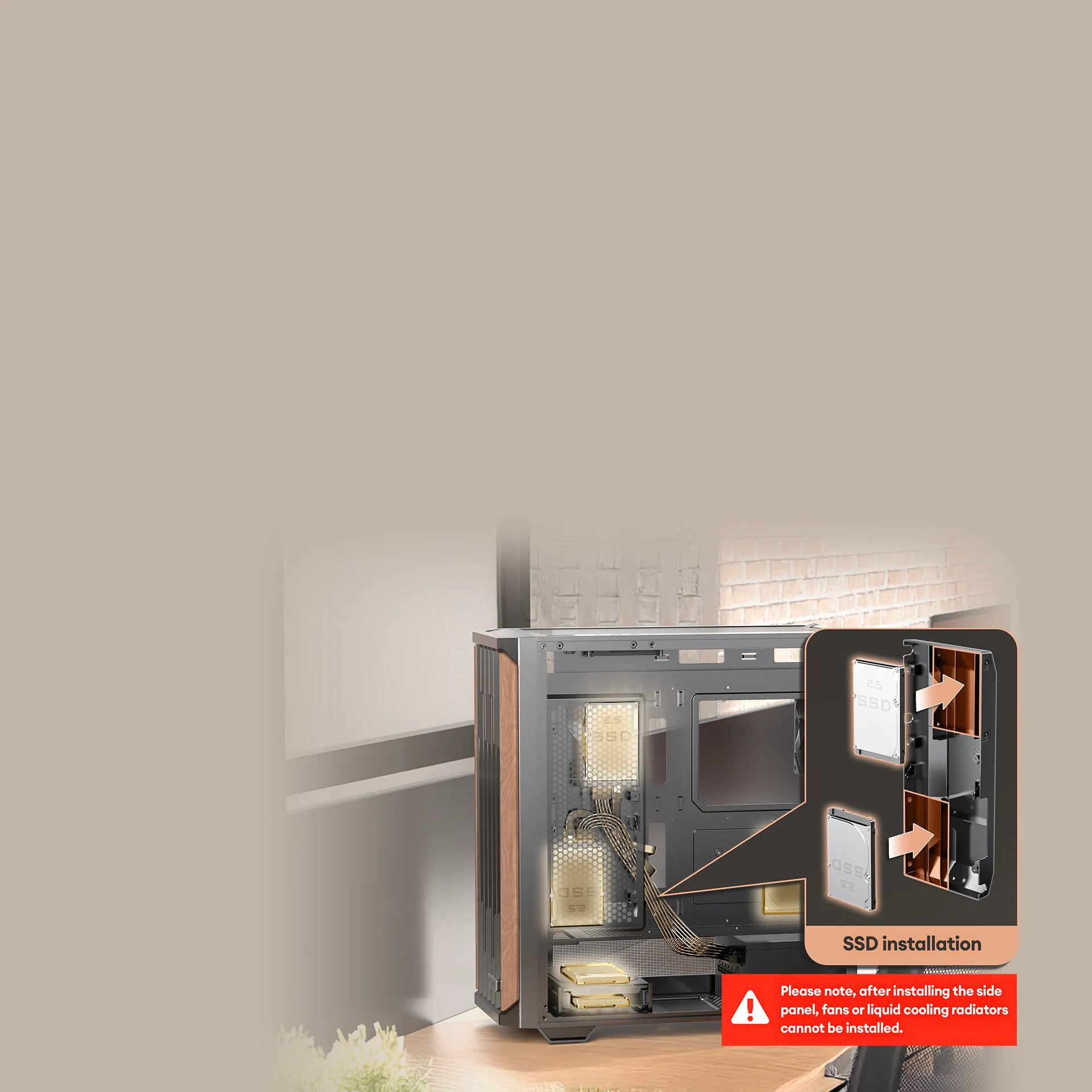

Maximum Storage
Up to 5 SSDs
Up to 5 SSDs

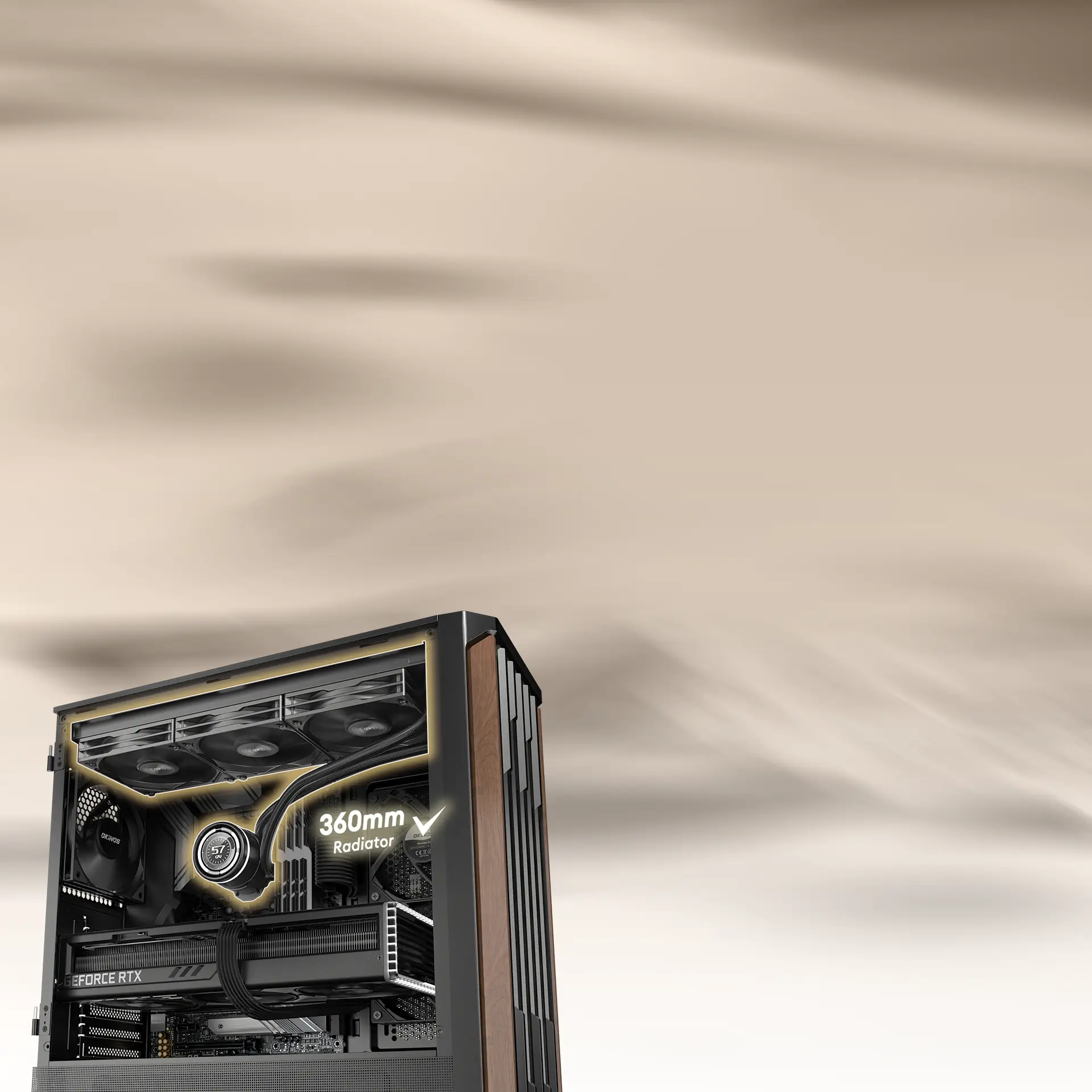

Compatible with
360mm Radiator on Top
360mm Radiator on Top
Top Radiator | up to 360mm
Front Radiator | up to 360mm
Side Radiator | up to 240mm
Rear Radiator | up to 120mm

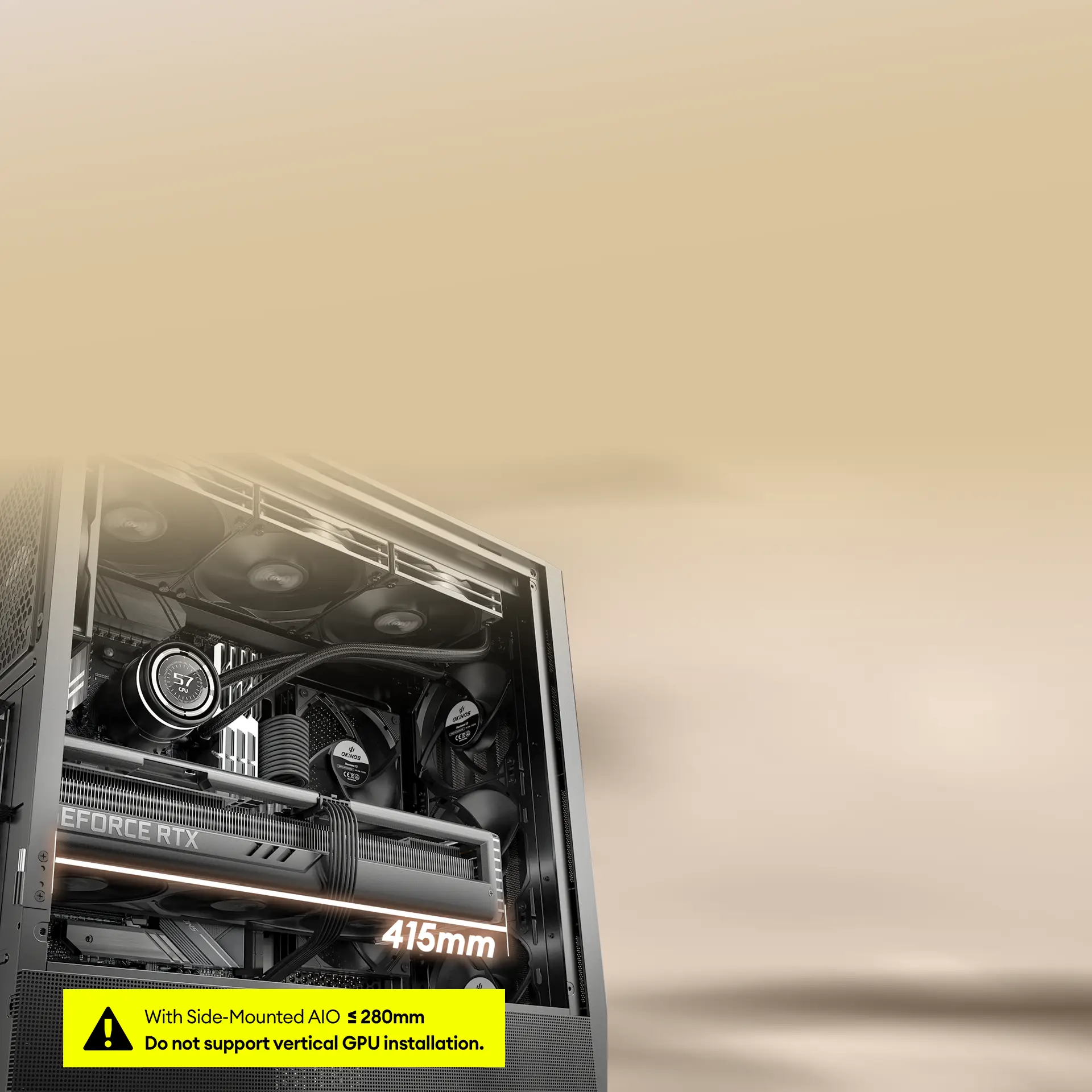

GPU Compatibility Specifications
When fans are installed at the rear of the front panel ≤ 390mm
When fans are installed in front of the front panel ≤ 415mm

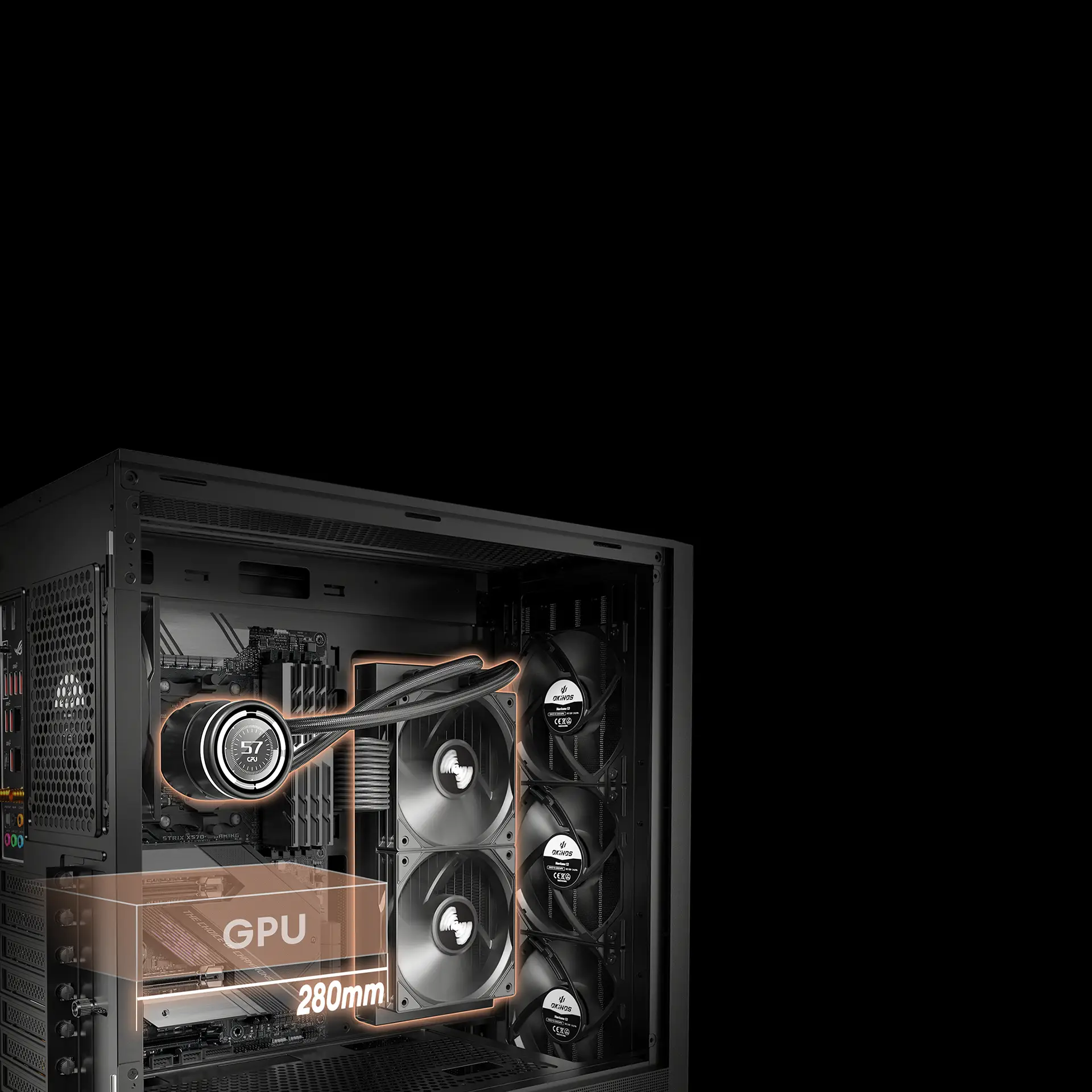

Hardware Compatibility Tips
Installing a 240mm water cooler on the right side of the chassis will interfere with will interfere with Graphic cards which width > 280mm.

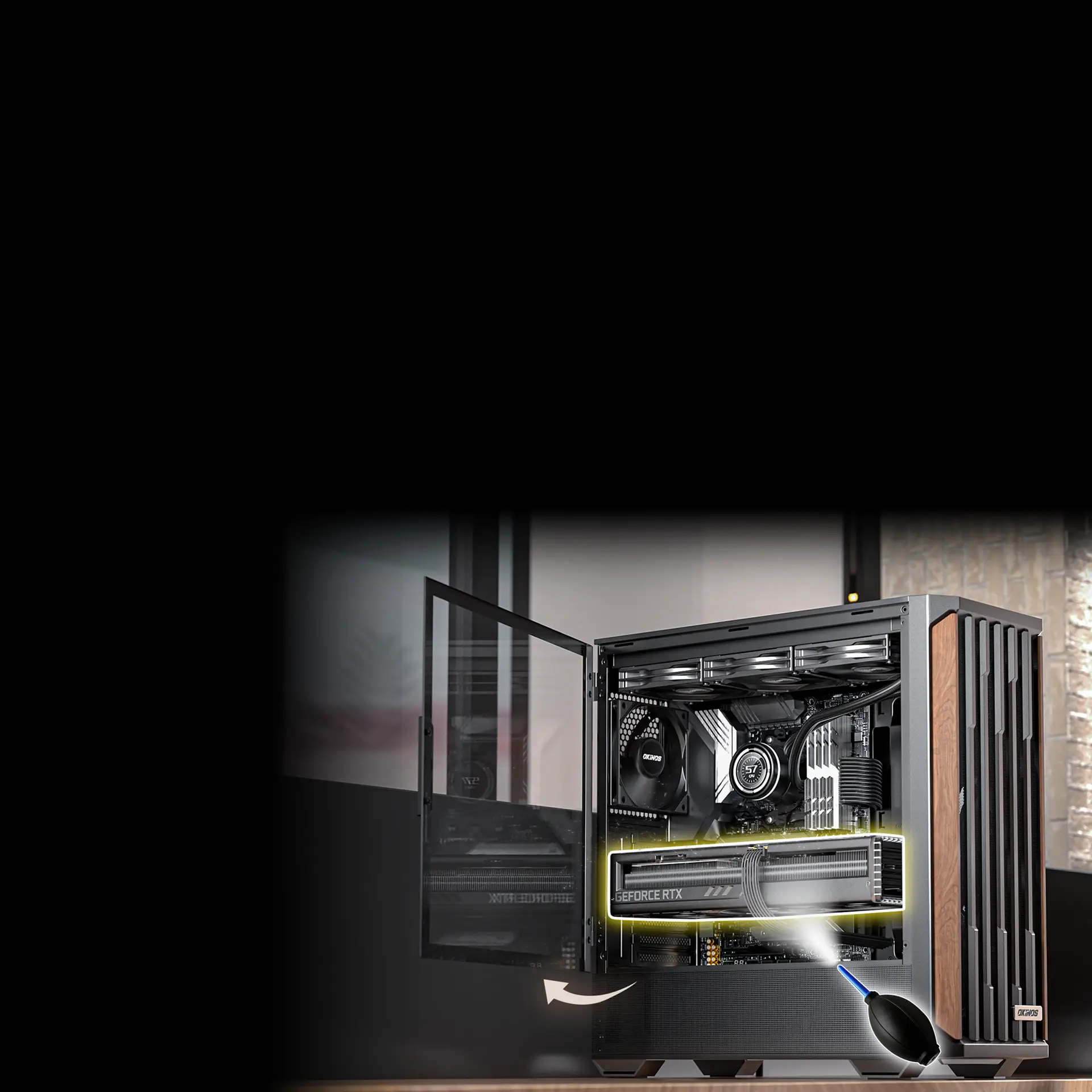

Quick Access to
Interior Components
Interior Components
Delivered Higher performance through simplified maintenance tasks.

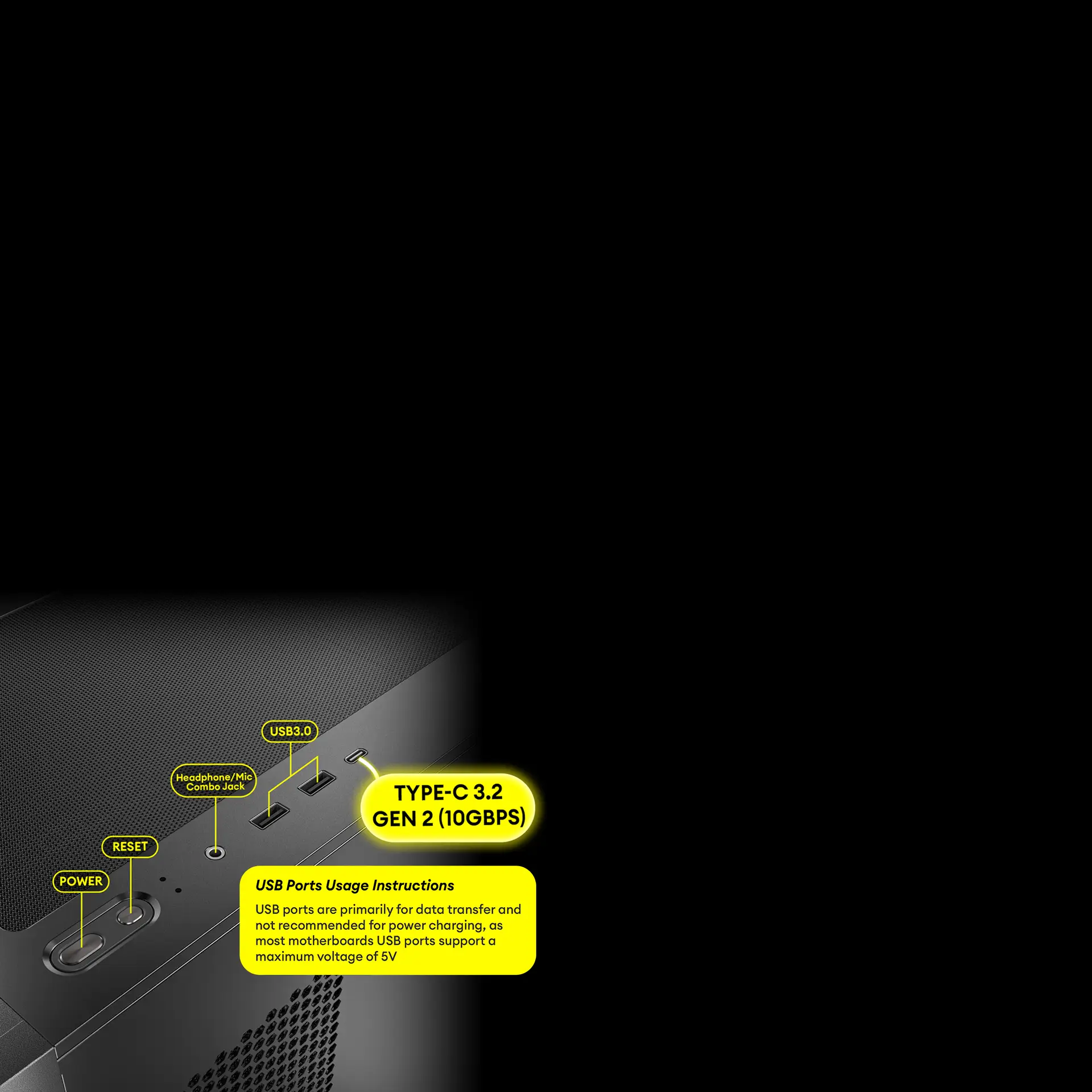

Multi- Functional Zone
Introducing Feature-Rich Multi-Functional Zone for Readily Accessable User-Computer Interaction.

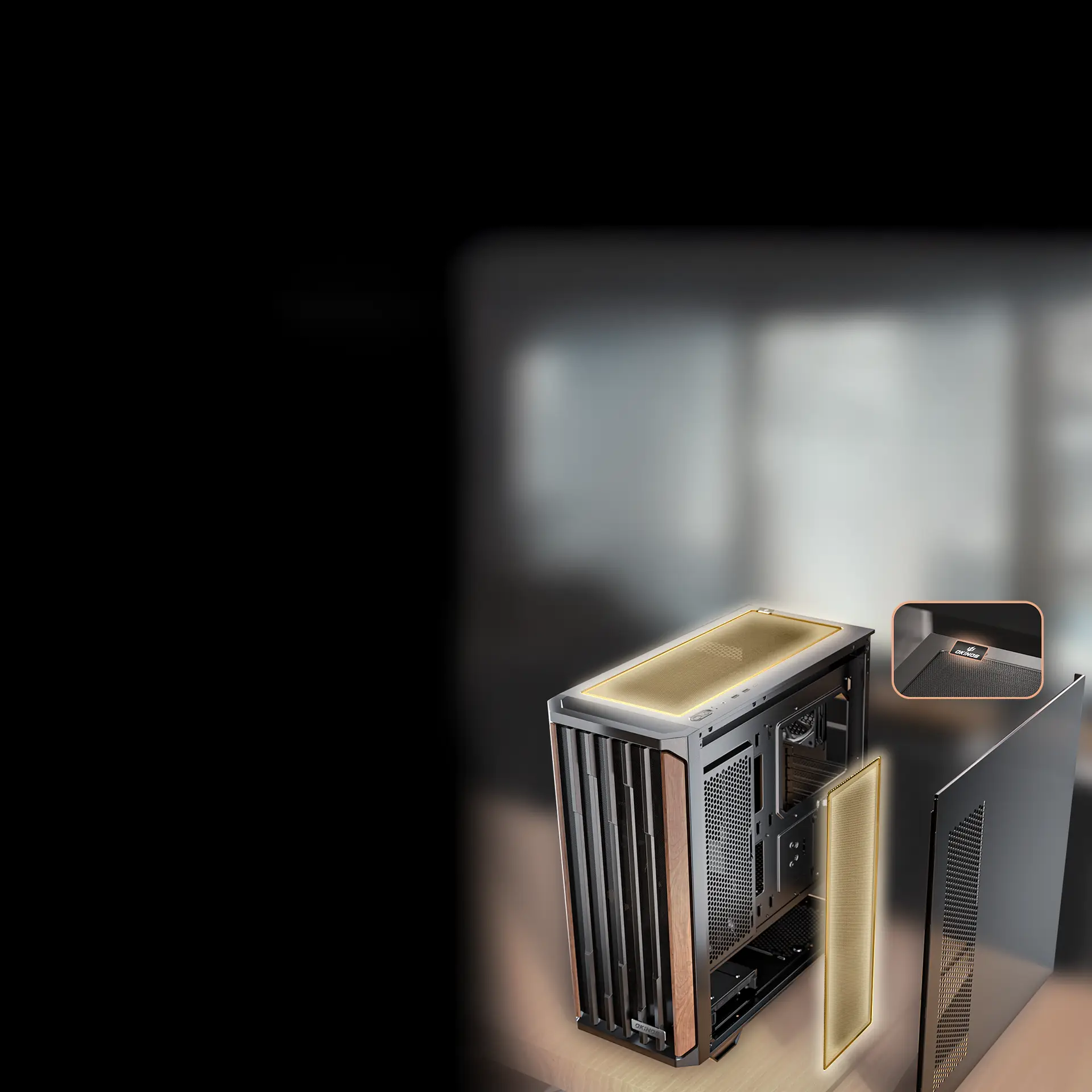

Superior Dust Protection
Magnetic dust filters on the top and side help block dust and are easy to clean, while maintaining excellent ventilation.

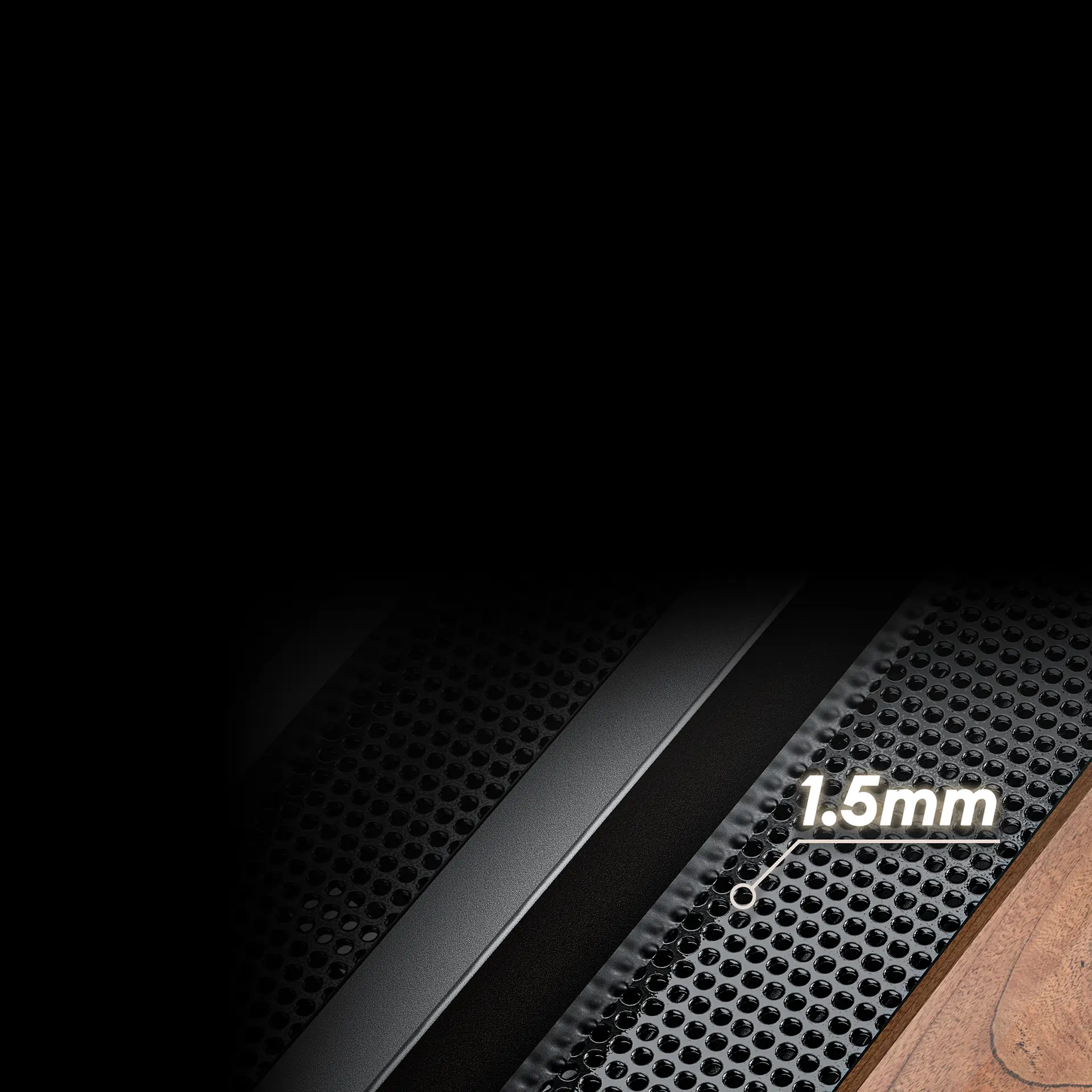

1.5mm Mesh Design
Case front panel incorporates a 1.5mm mesh design to enhance air intake and cooling efficiency.
Experience Ultimate Cooling Solution
Compatibility
Specifications
Model Name
Cypress 7 Wood
Model No
UPC # / EAN #
Dimensions
476 x 220 x 486mm (DWH)
Form Factor
Mid Tower
Materials
Steel + Plastic + Wood
Mainboard Support
ATX, M-ATX, ITX
Front Access & Controls
Power, Reset, USB 3.0 x 2 , Type-C 10Gbps x 1 , Headphone/Mic Combo Jack
Side Panel
Tempered Glass Side Panel
Drive Bays
Expansion Slots
7
3.5″ /2.5″
2/1
2.5″
3

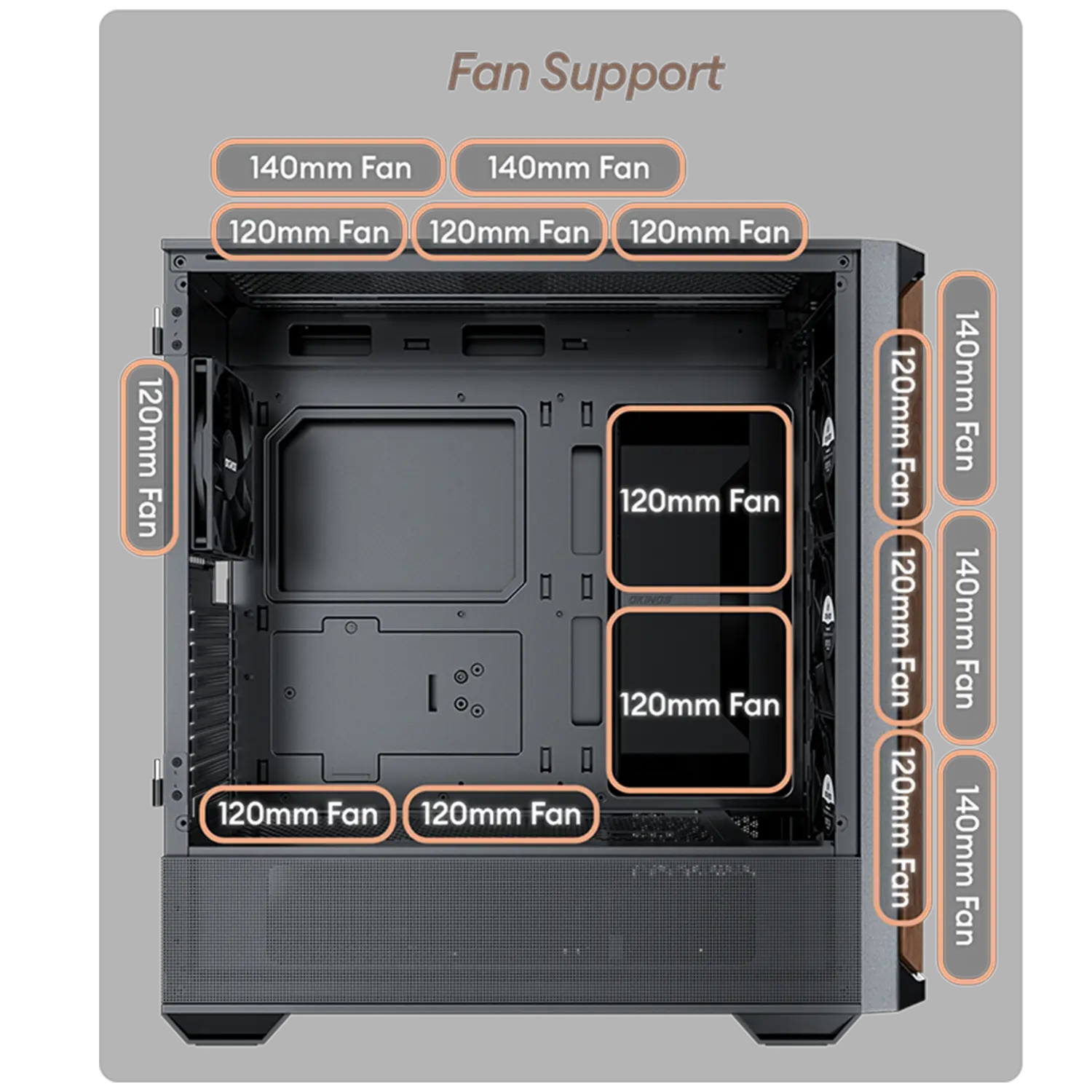

Fan
Front
3 x 120mm/3 x 140mm
Top
3 x 120mm/2 x 140mm
Power Supply Shroud
2 x120mm
Right Hand Side
2 x120mm
Rear
1 x 120mm
Included Fan(s)
3 x 120mm PWM fans in front + 1 x 120mm PWM fan in rear

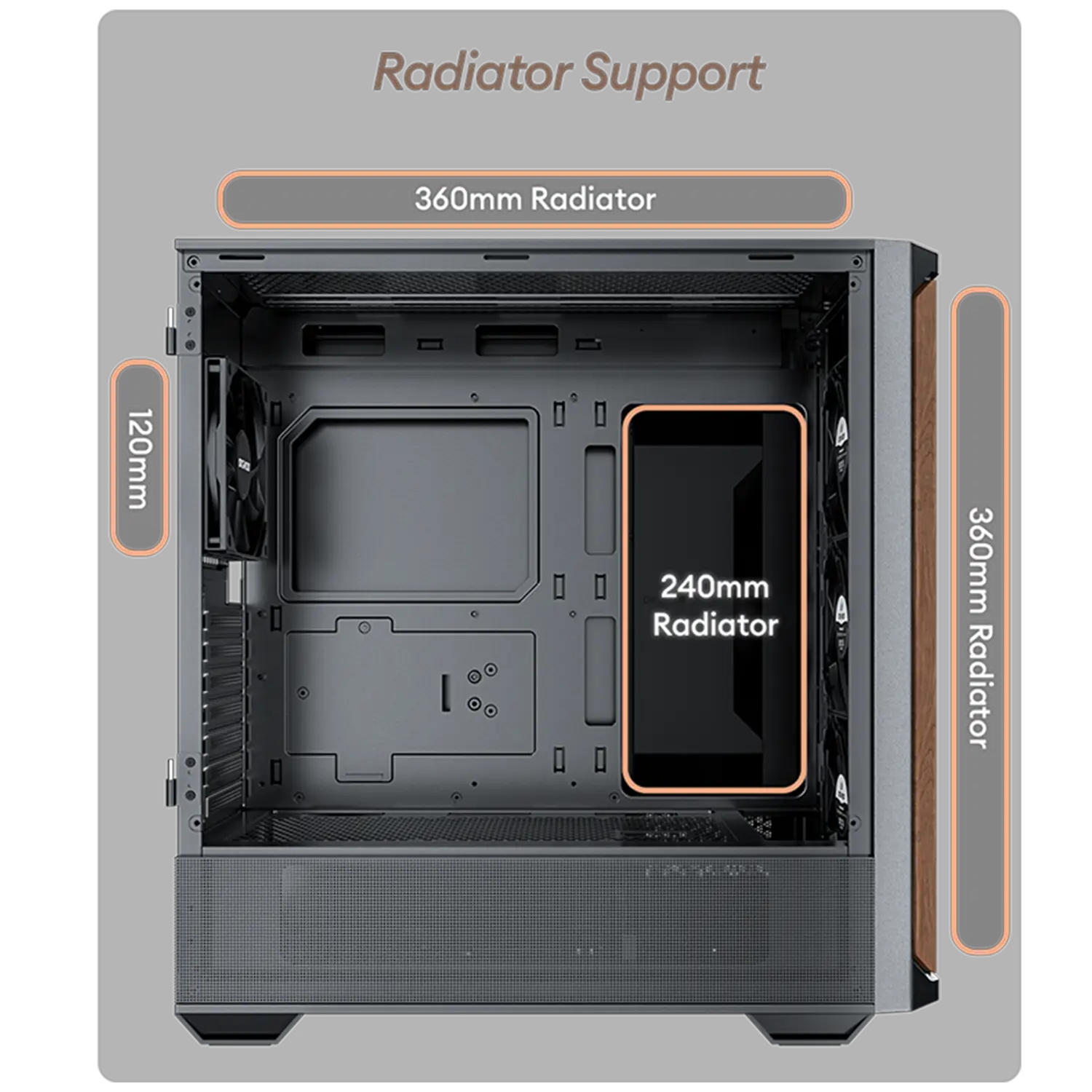

Radiator Support
Front
120/140/240/280/360mm
Top
120/140/240/280/360mm
Right Hand Side
120/240mm
Rear
120mm

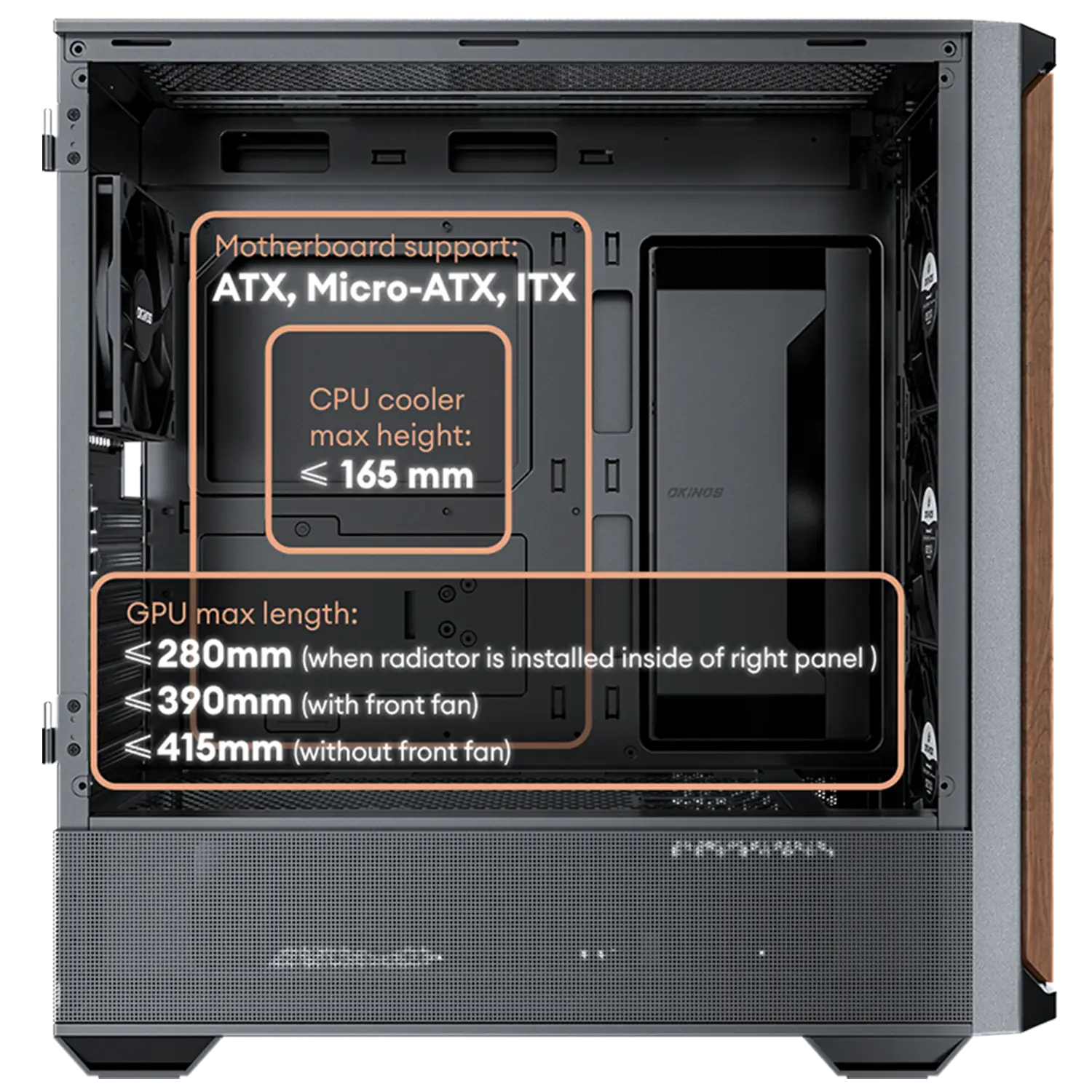

Clearance
Max GPU Length
≤280mm(when radiator is installed inside of right panel )
≤390mm(with front fan)
≤415mm(without front fan)
Max CPU Cooler Height
≤165mm
Max PSU Length
(Include cable)≤240mm
Miscellaneous
Dust Filter
Top / Bottom / Right Side
Net Weight
6.45 Kg
Gross Weight
7.83 Kg
