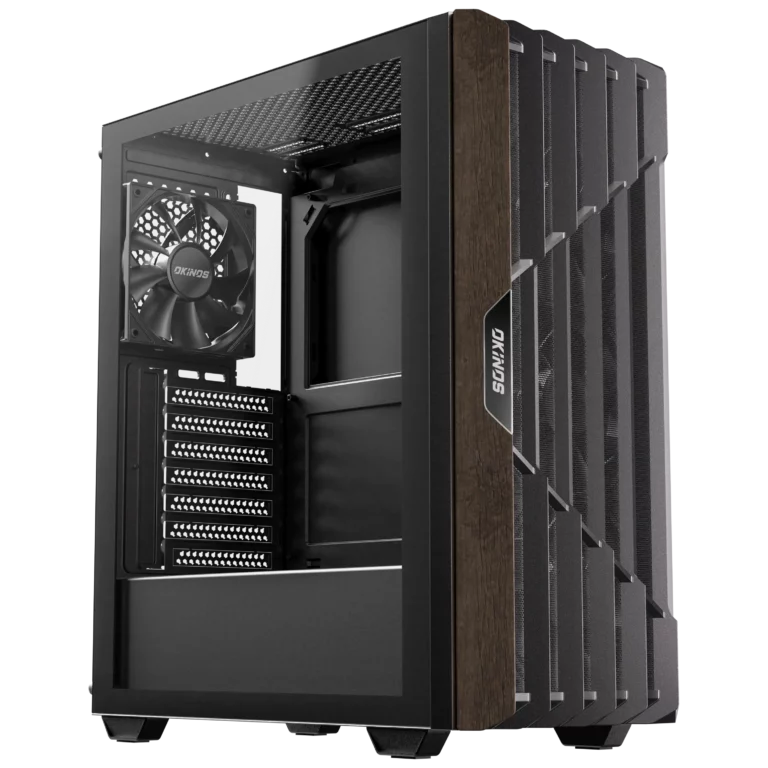

Cypress 5 Air
Mid-Tower Gaming PC Case

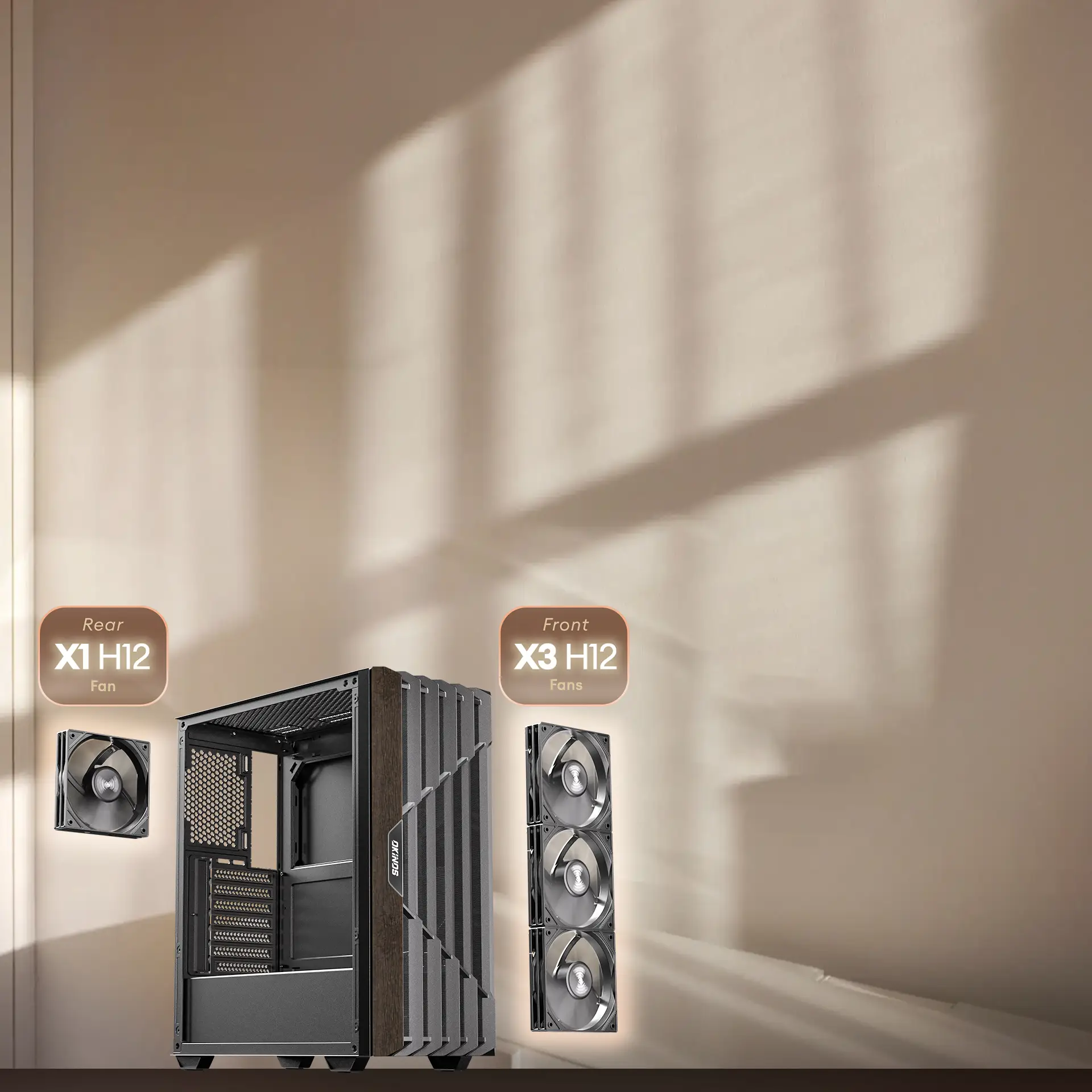

Pre-Installed 4 x 120mm 3pin Fans
3pin H12 case fans (fans speed : 1000RPM).

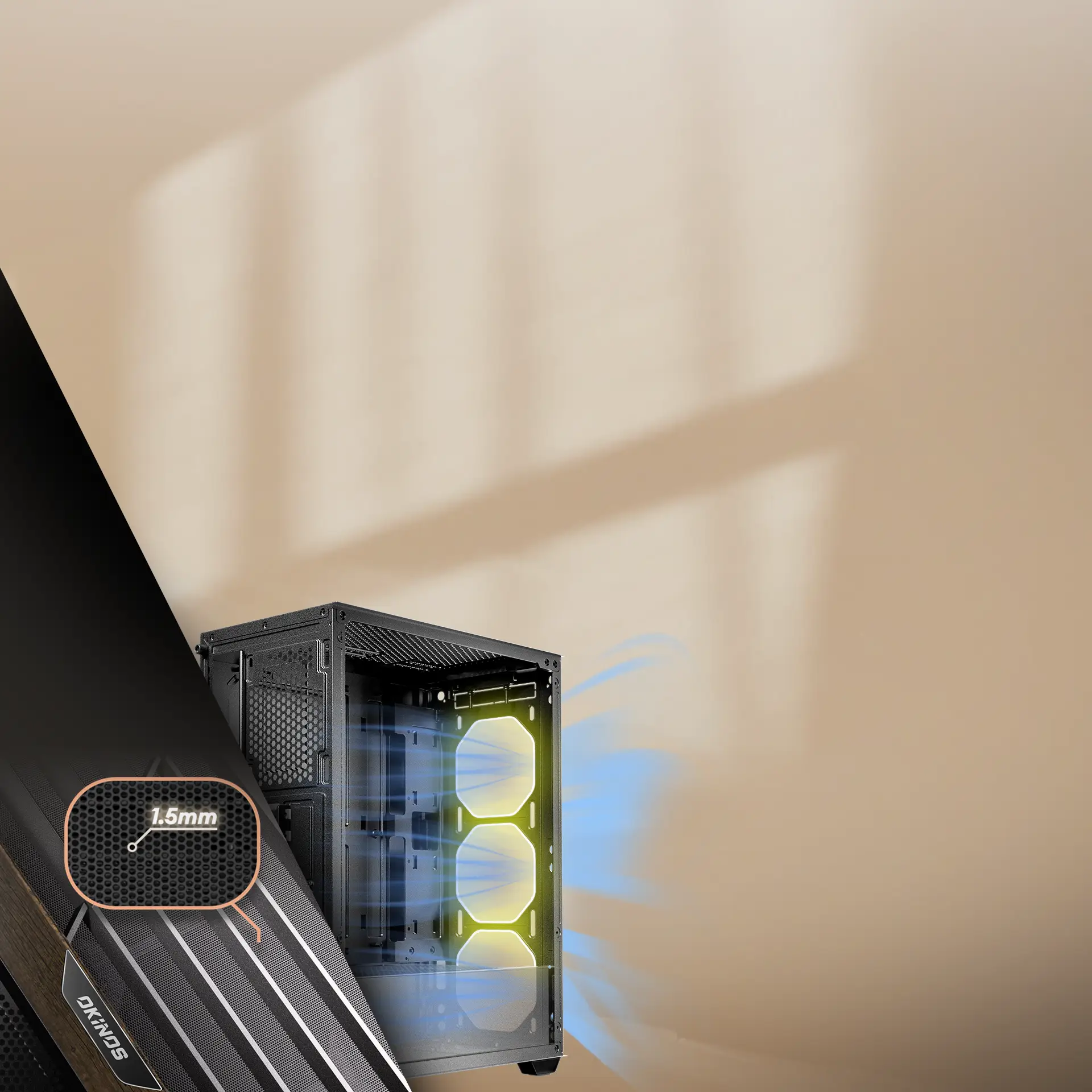

Optimized Chassis And 1.5 mm Mesh Design
1. Front opening promotes better airflow and reduces wind noise.
2. Case front panel incorporates a 1.5mm mesh design to enhance air intake and cooling efficiency.

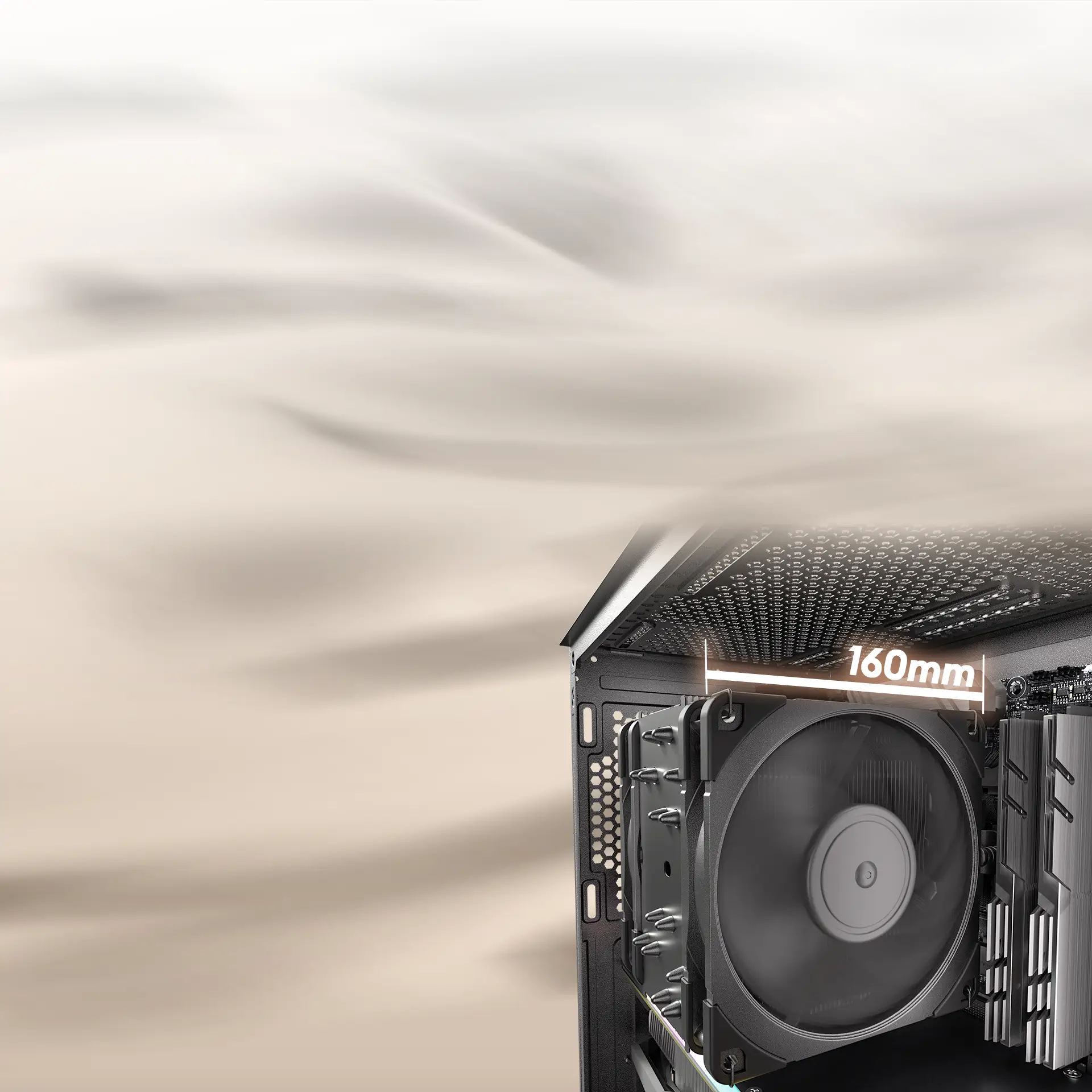

CPU Air Cooling Compatibility
Max. CPU Cooler Height ≤ 160mm

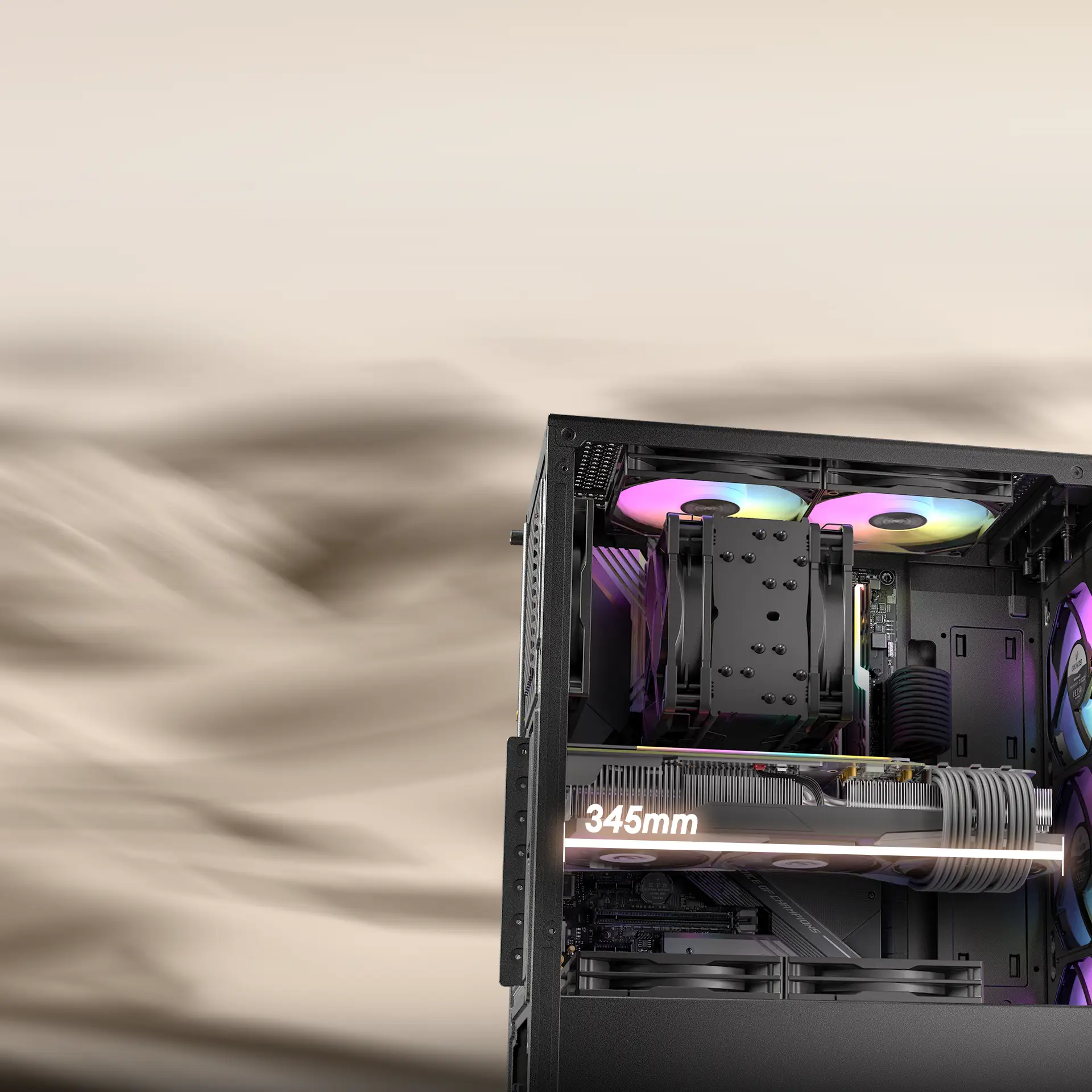

GPU Compatibility
Max. GPU Length:
≤ 345mm (When the fan is installed in the front)
≤ 320mm (When the fan is installed at the rear)
≤ 290mm (When a 360mm radiator is installed in the front)

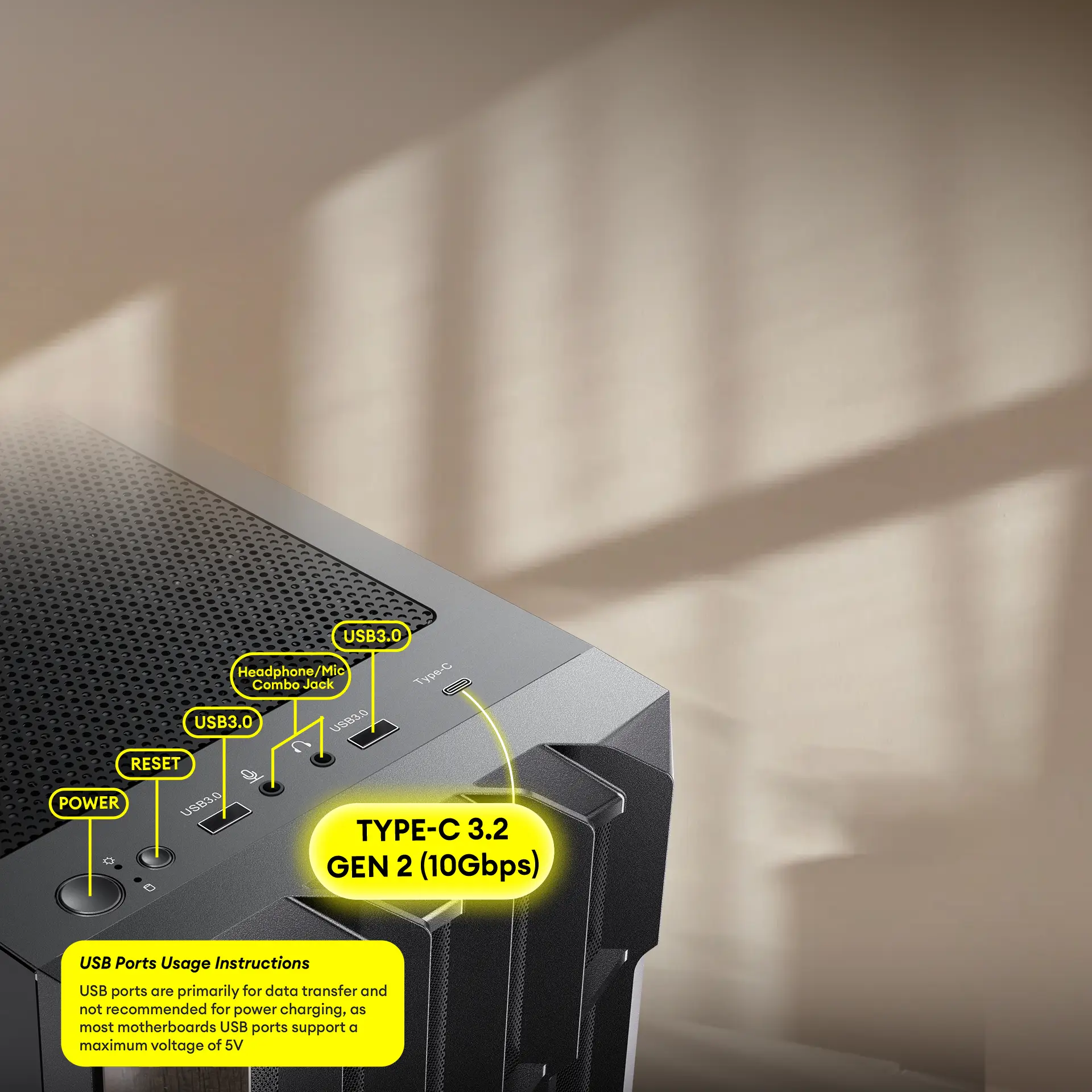

I/O Panel

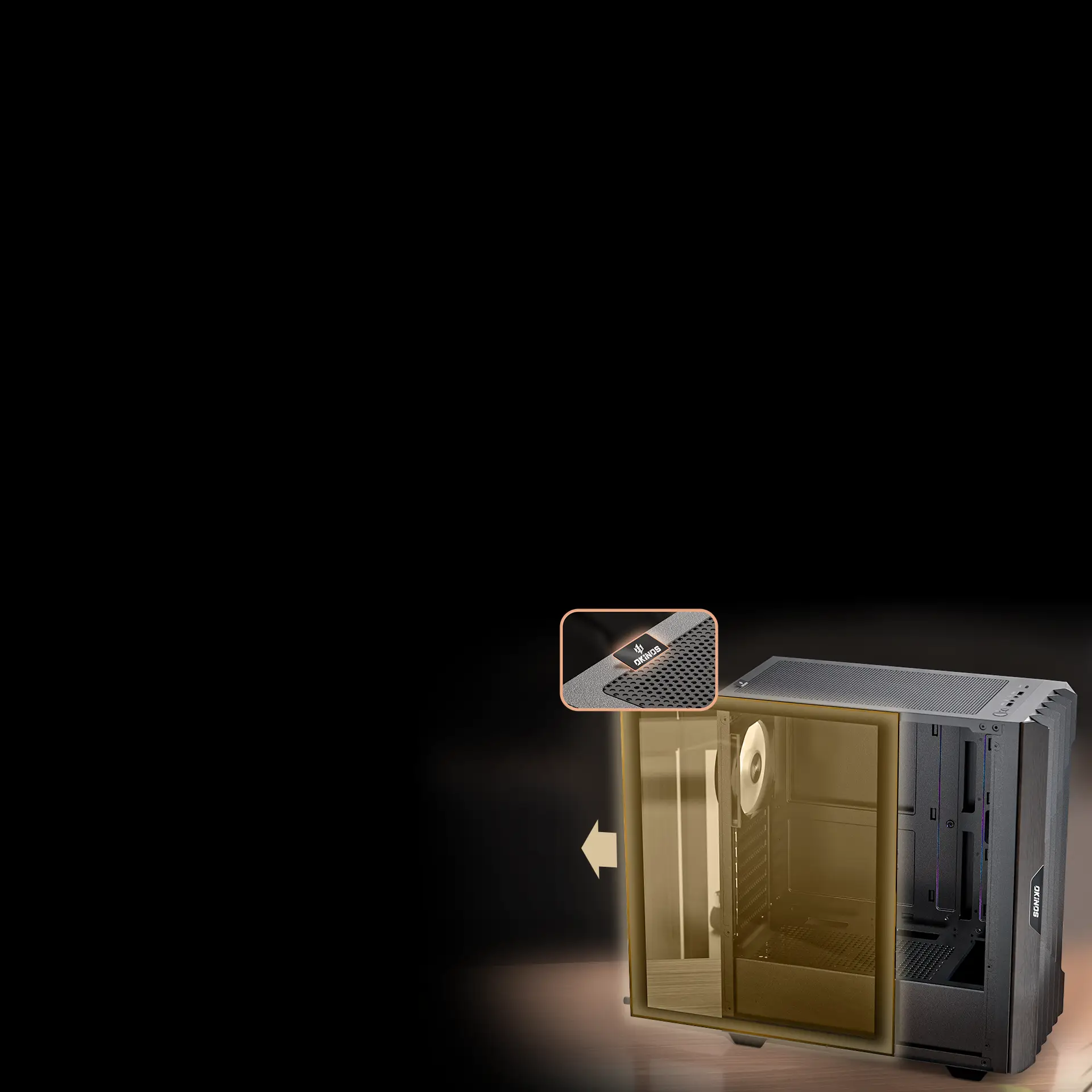

4MM Tempered Glass Side Panel

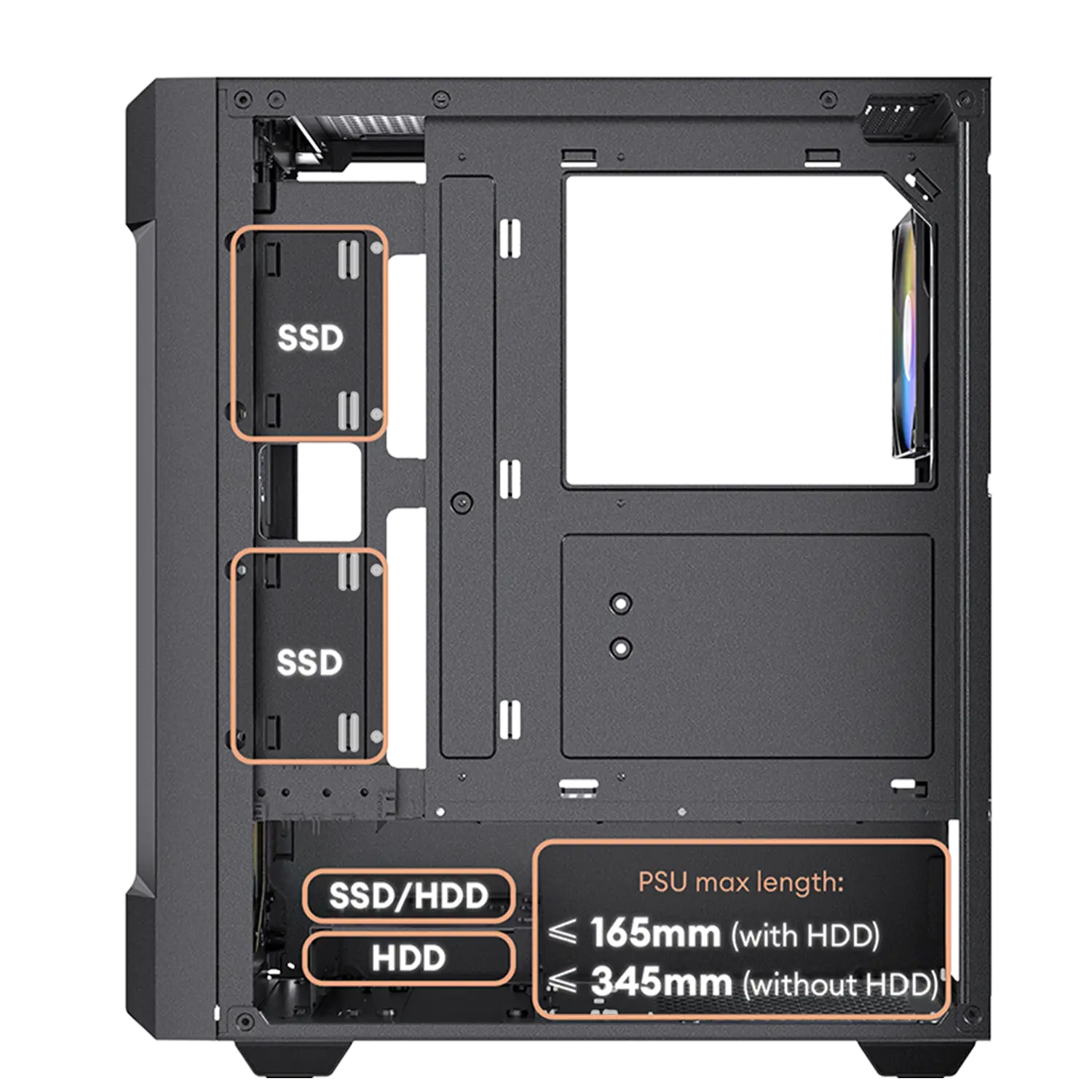

Maximum Storage Up to 3 SSDs

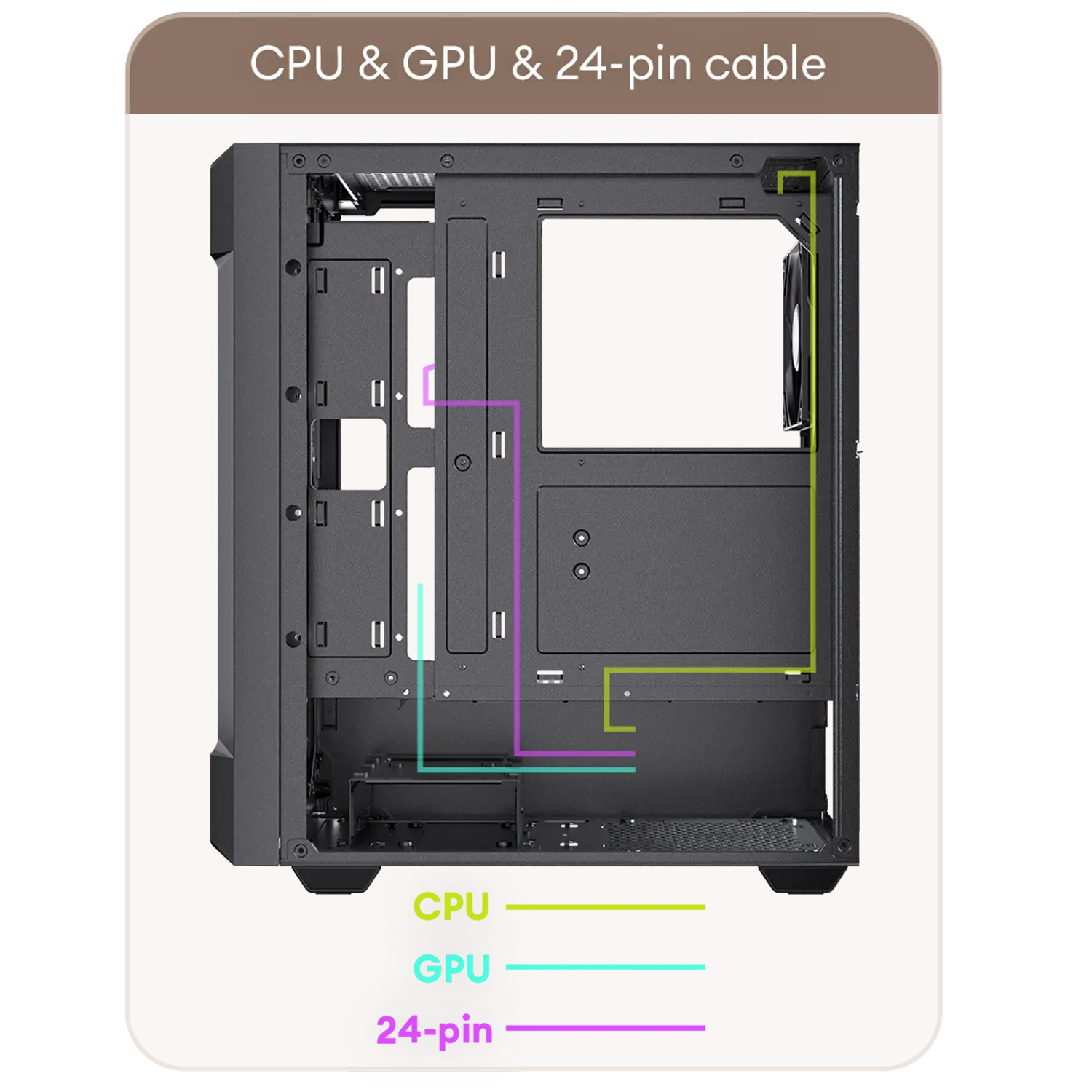

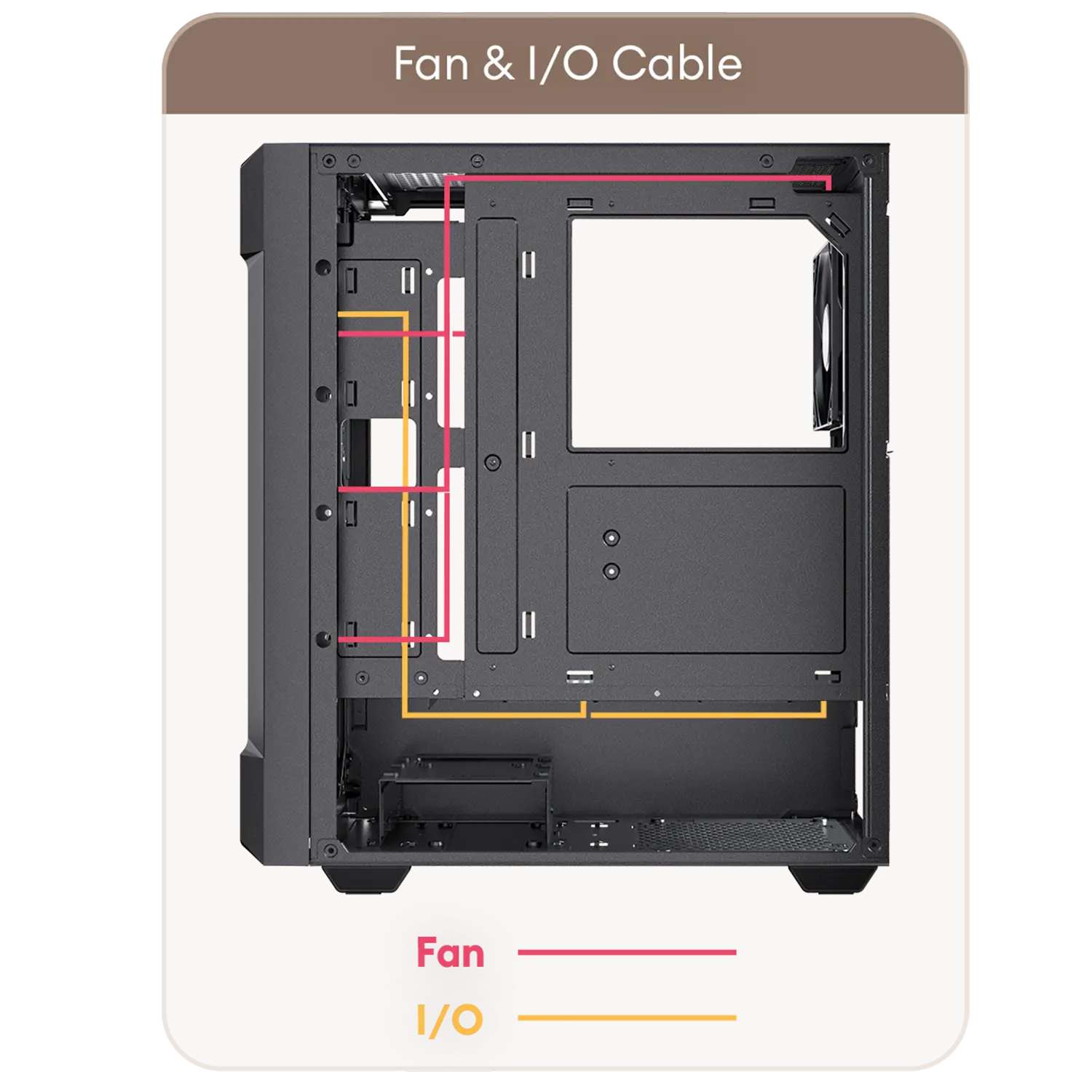

Suggestion Of Cable Management
Sufficient space for Cable Management
Sufficient space for Cable Management
There are 24mm depth on the left side and 13mm on the right side for easy cable management.
Removable HDD Cage and Power Supply Compatibility
Up to 8 x 120mm Fans Simultaneously

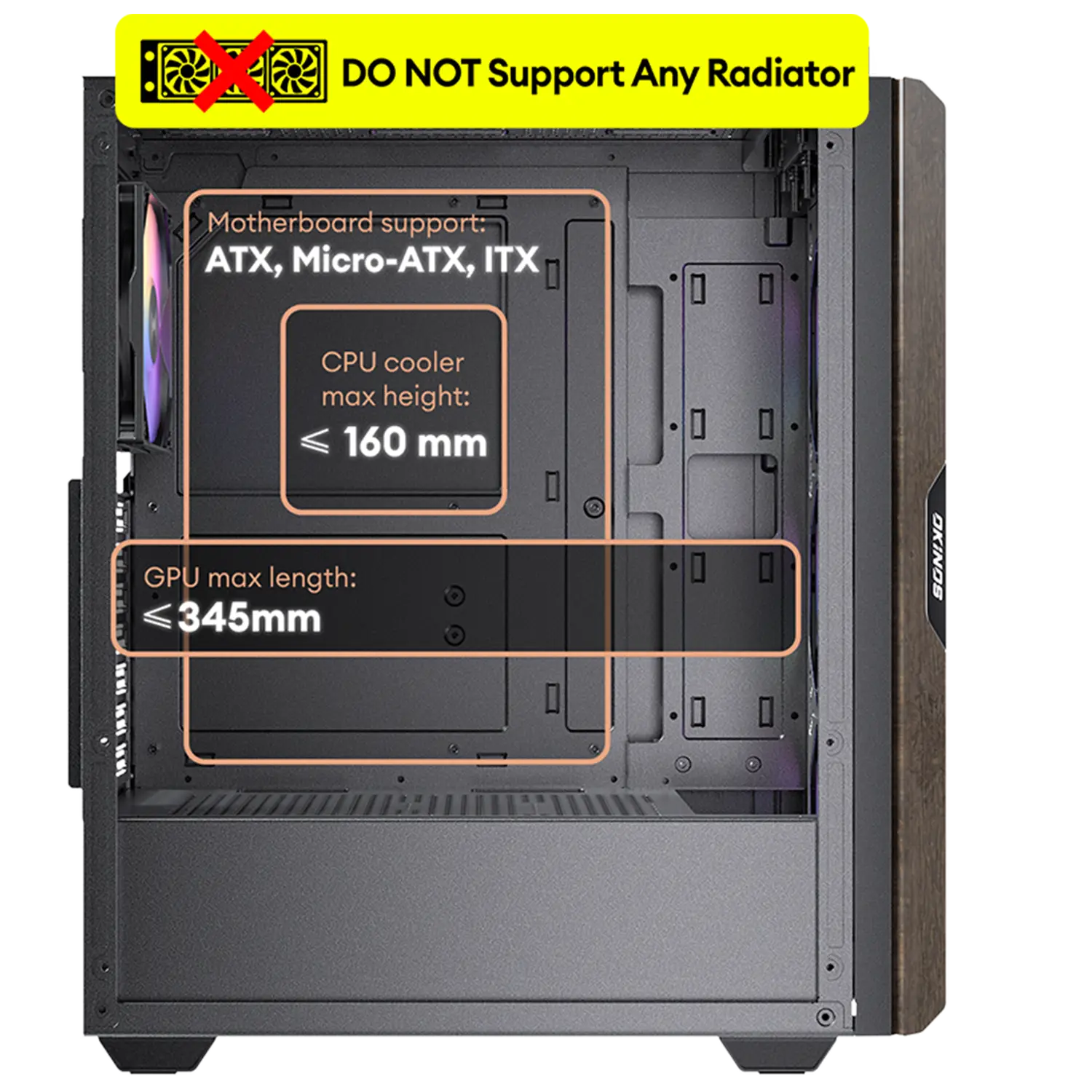

Compatibility
Specifications
Model Name
Cypress 5 AIR
Model No
UPC # / EAN #
Dimensions
405 x 195 x 449mm (DWH)
Form Factor
Mid Tower
Materials
Steel + Plastic + Wood
Mainboard Support
ATX, M-ATX, ITX
Front Access & Controls
Power, Reset, USB 3.0 x 2 , Type-C 10Gbps x 1 , MIC x 1, HD-AUDIO x 1
Side Panel
4MM Tempered glass
Drive Bays
Expansion Slots
7
3.5″ /2.5″
2/1
2.5″
2
Fan
Front
3 x 120mm
Top
2 x 120mm
Power Supply Shroud
2 x 120mm
Rear
1 x 120mm
Included Fan(s)
3 x 120mm fans in front + 1 x 120mm fan in rear
Radiator Support
Front
120/240/360mm
Clearance
Max GPU Length
≤ 345mm (When the fan is installed in the front)
≤ 320mm (When the fan is installed at the rear)
≤ 290mm (when a 360mm radiator is installed in the front)
Max CPU Cooler Height
≤160mm
Max PSU Length
(Include cable)≤ 165mm (with HDD)
(Include cable)≤ 205mm (with HDD moves to the left)
(Include cable)≤ 345mm (without HDD)
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
4.89 Kg
Gross Weight
5.78 Kg
