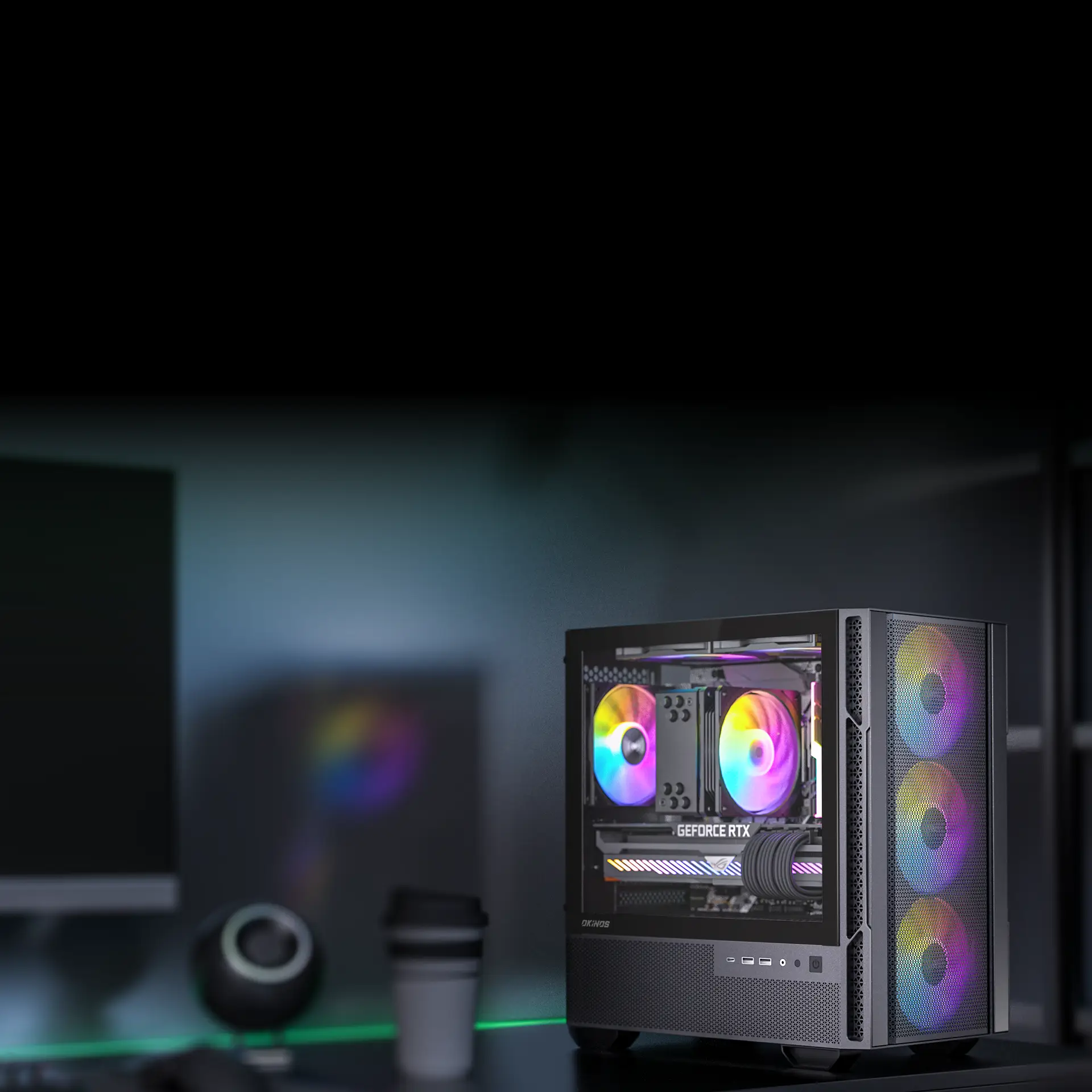

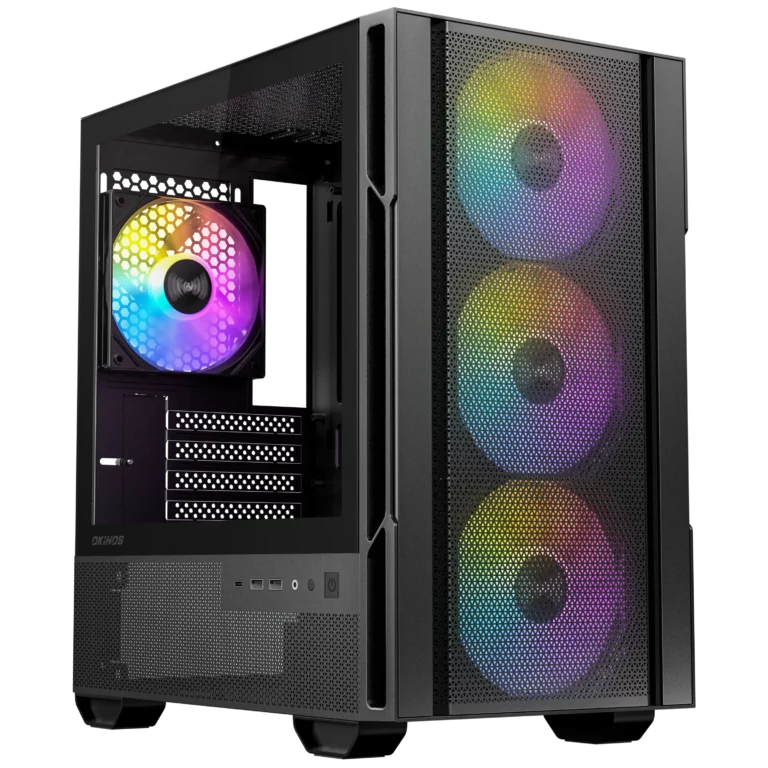

Cypress 3 ARGB
Mini-Tower Gaming PC Case
The mesh design amplifies airflow for exceptional cooling, ensuring your system stays chill under pressure. This design is crafted for gamers who refuse to compromise on performance or style.

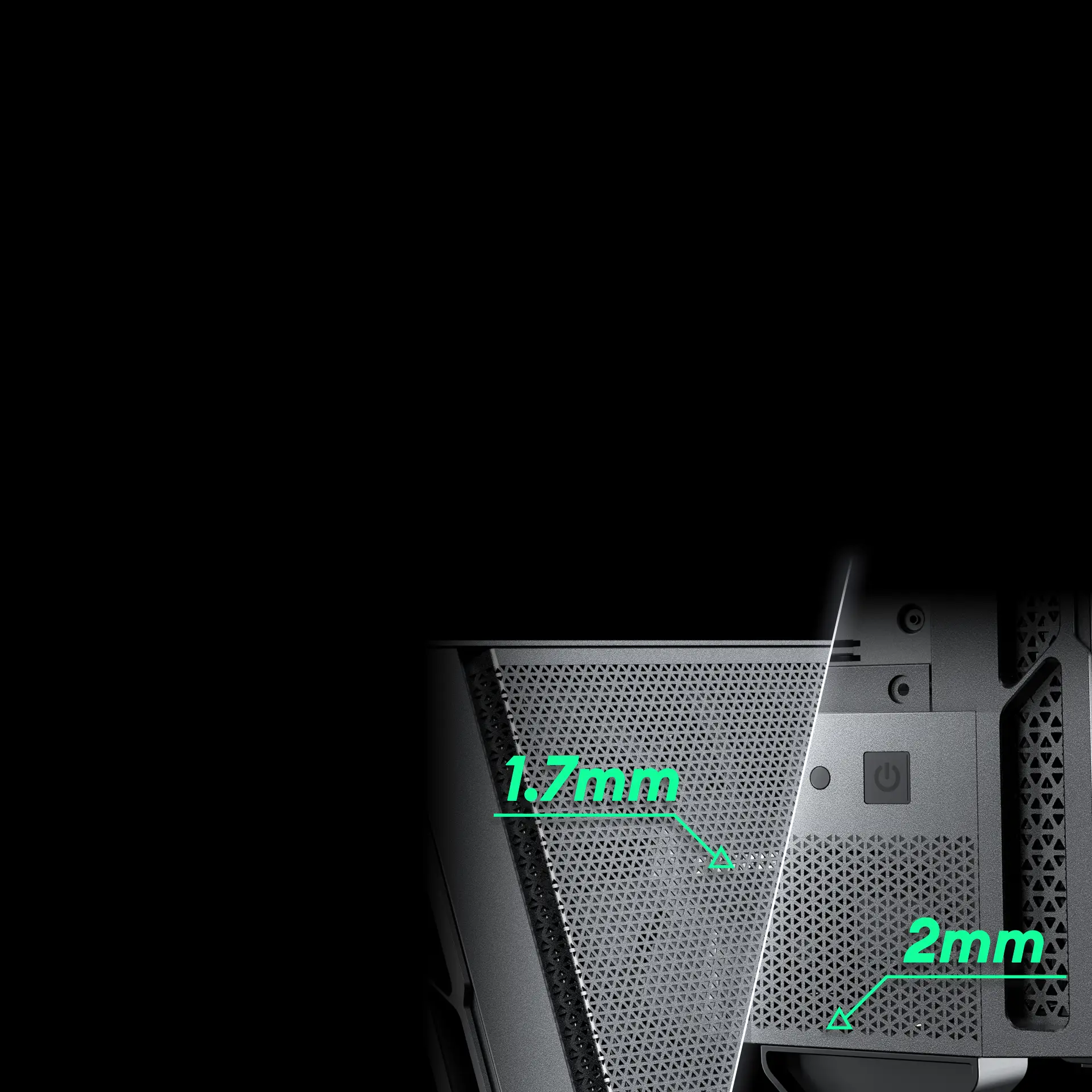

The triangular mesh (1.7mm for the front panel, 2mm at the lower left side panel) ensure optimal airflow for efficient cooling and a stylish look.

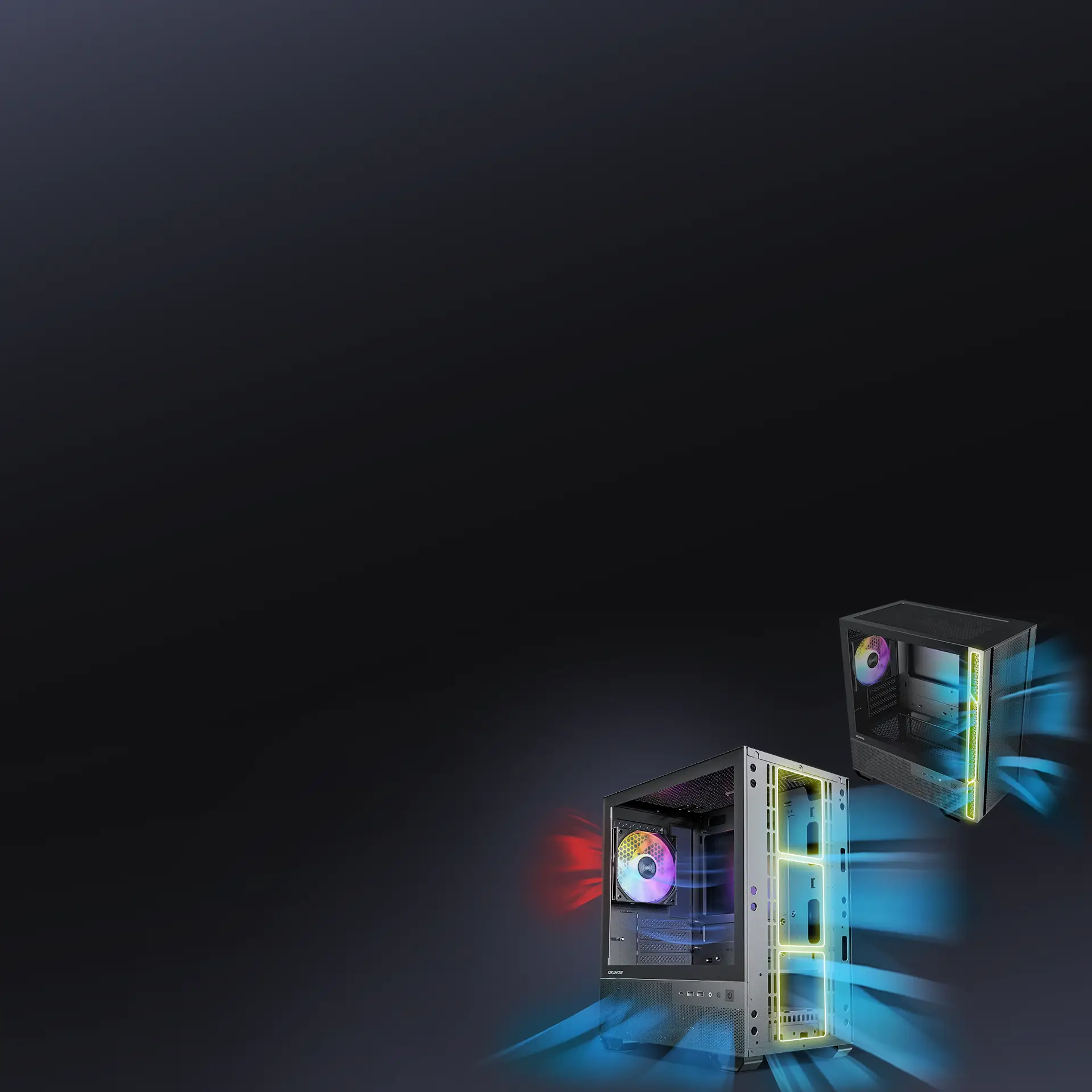

The three-sided mesh design with large openings maximizes airflow, improving cooling efficiency.

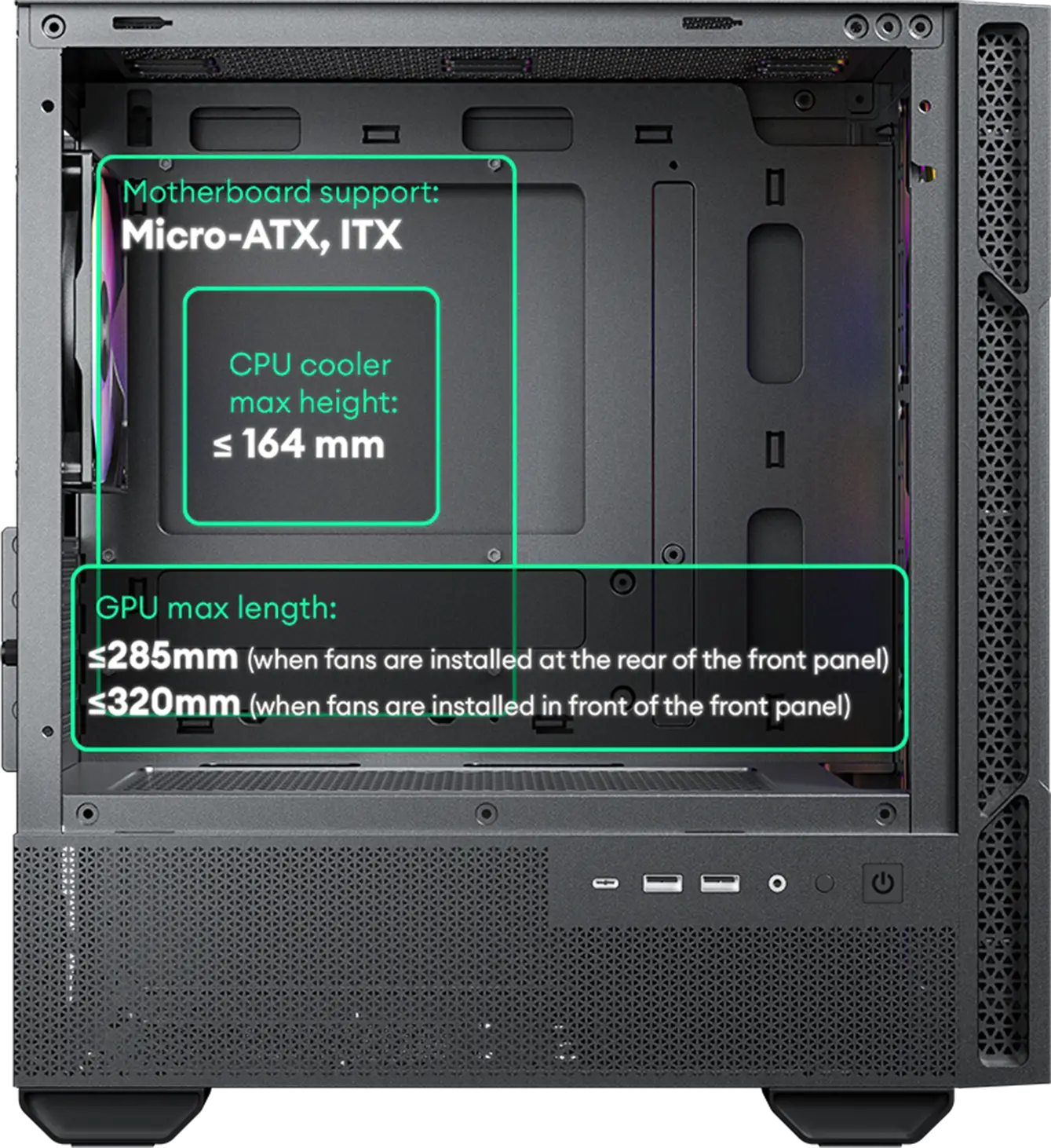

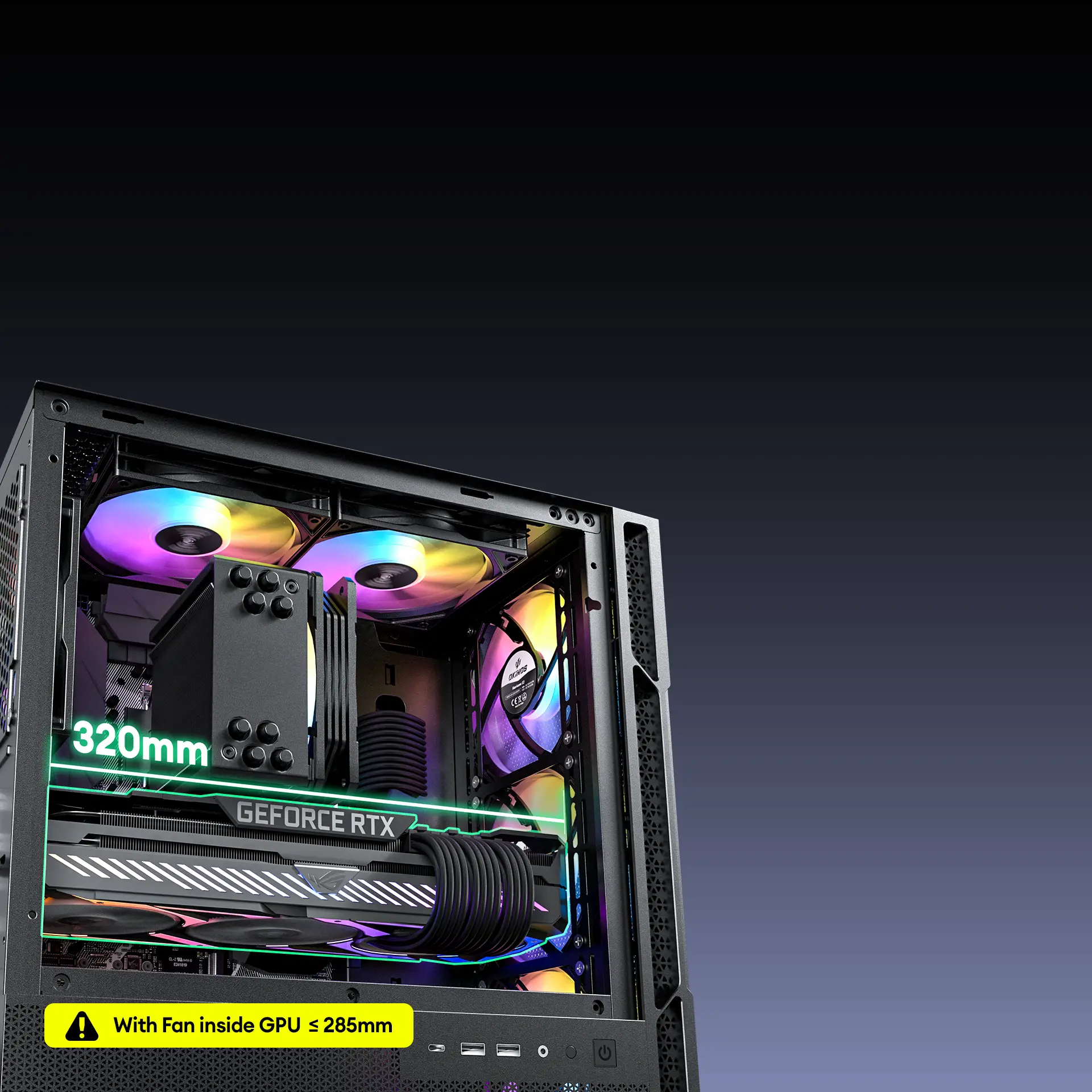

≤ 285mm (when fans are installed at the rear of the front panel)
≤ 320mm (when fans are installed in front of the front panel)

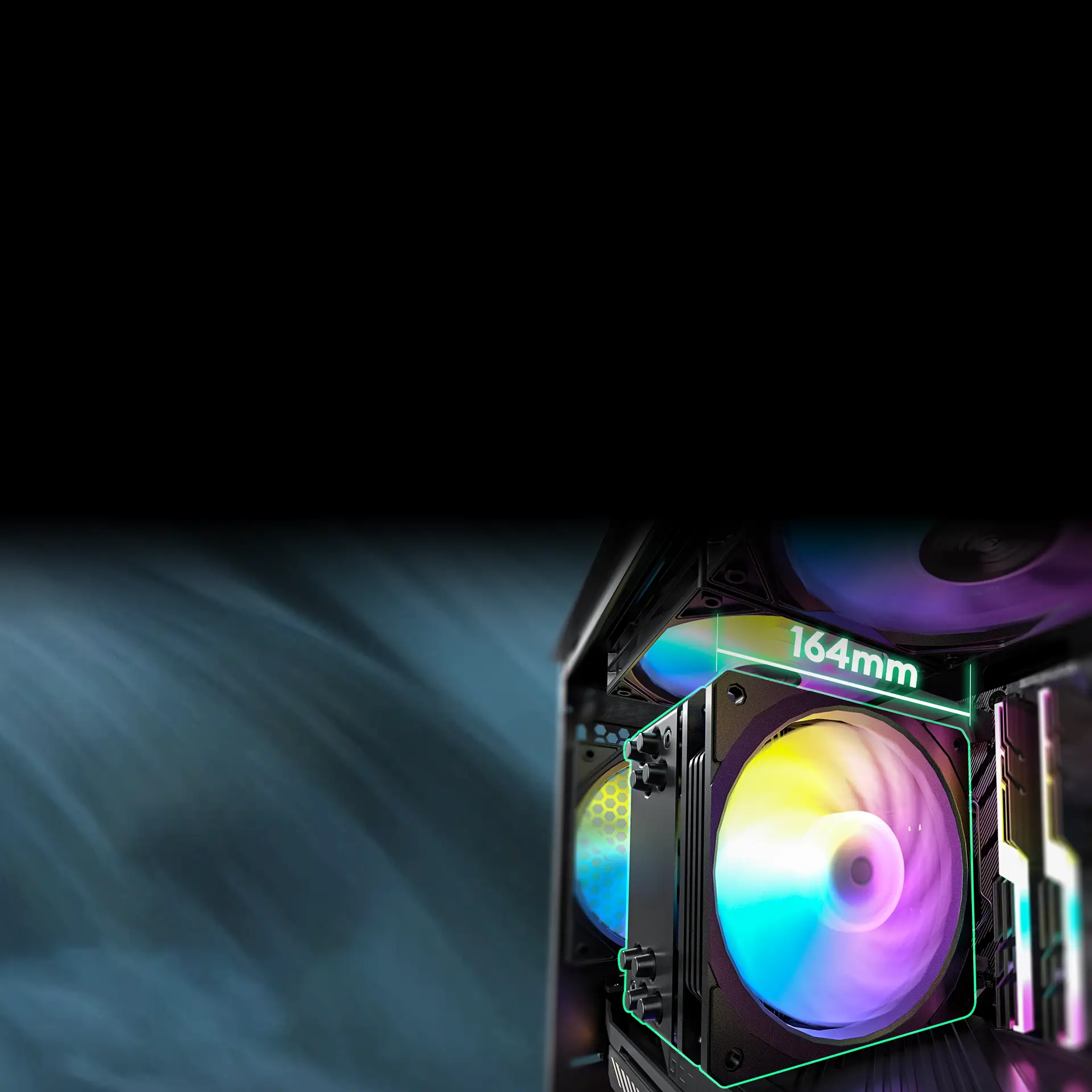

Max. CPU Cooler Height ≤ 164mm
USB ports are primarily for data transfer and not recommended for power charging, as most motherboards USB ports support a maximum voltage of 5V.

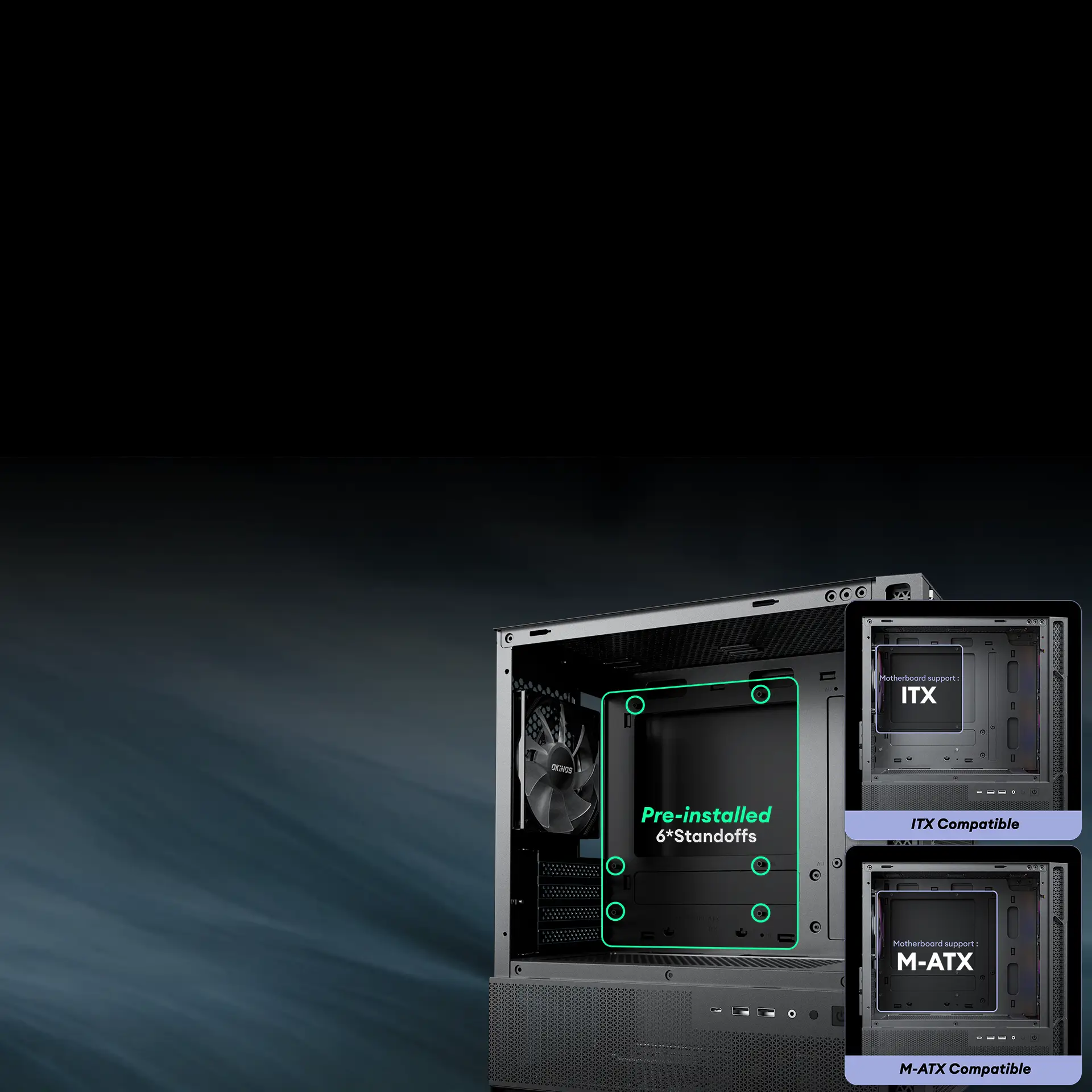

6 pre-installed standoffs in the case and 3 additional in the accessory box for easy motherboard installation.

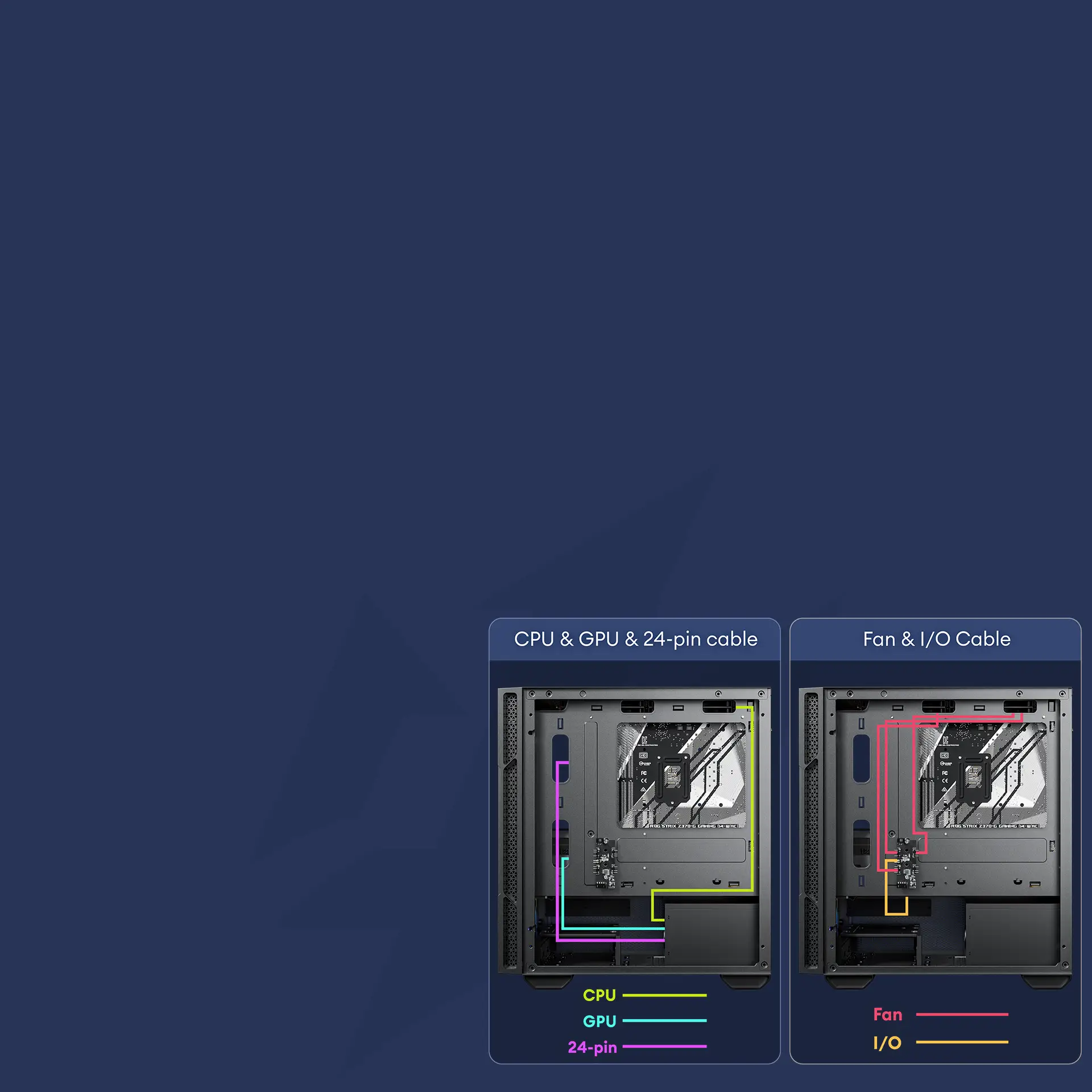

23mm cable management space for easier and cleaner wiring.
Model Name
Cypress 3 ARGB
Model No
UPC # / EAN #
Dimensions
372 x 210 x 402mm (DWH)
Form Factor
Mini Tower
Materials
Steel
Mainboard Support
Micro-ATX , ITX
Front Access & Controls
Power, LED Control Button, USB3.0x2, Type-C 3.2 Gen 2 (10Gbps)x 1, Headphone/Mic Combo Jack
Side Panel
Tempered Glass
Drive Bays
Expansion Slots
4
3.5″ /2.5″
2/1
2.5″
1

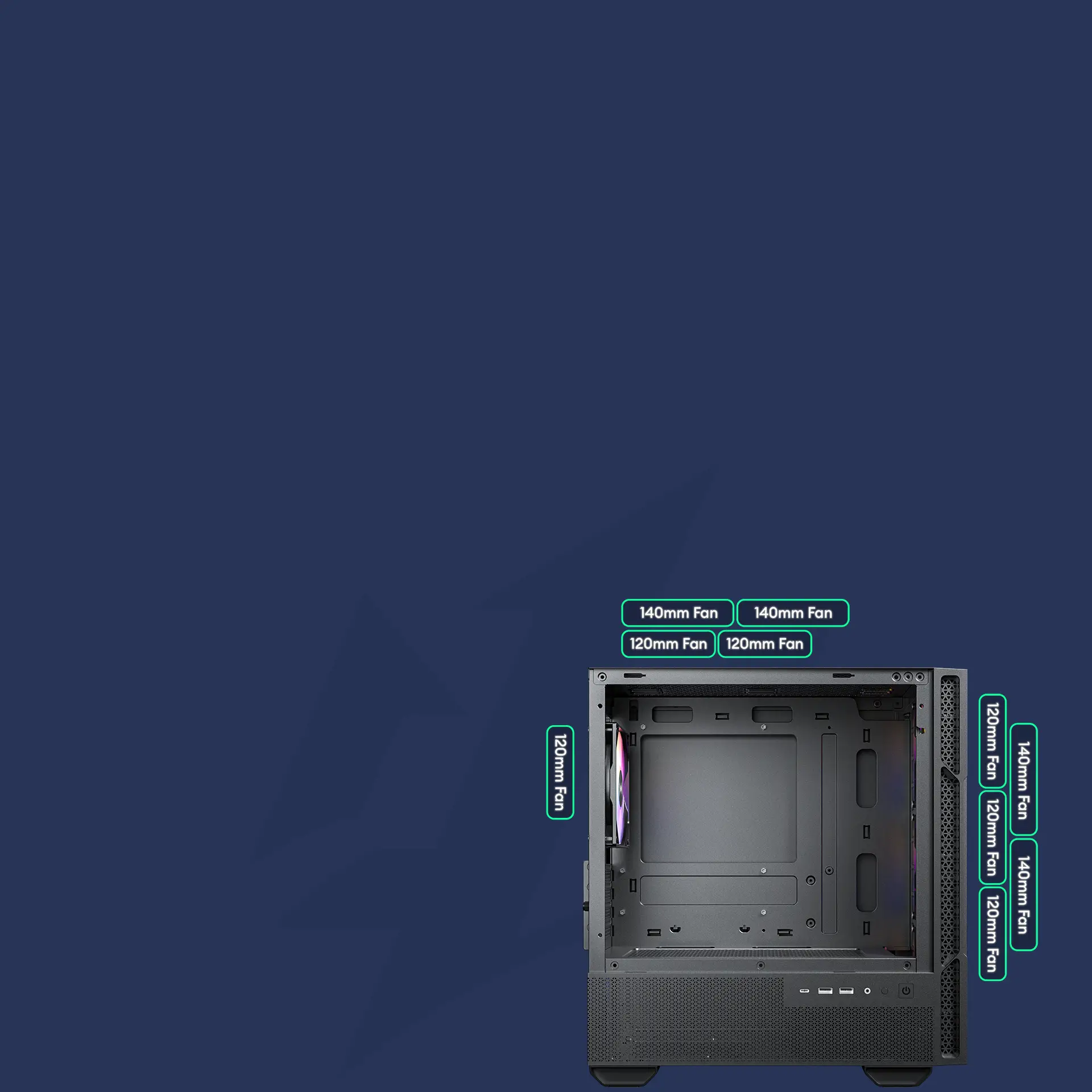

Fan
Front
3 x 120mm / 2 x 140mm
Top
2 x 120mm / 2 x 140mm
Power Supply Shroud
2 x 120mm
Rear
1 x 120mm
Included Fan(s)

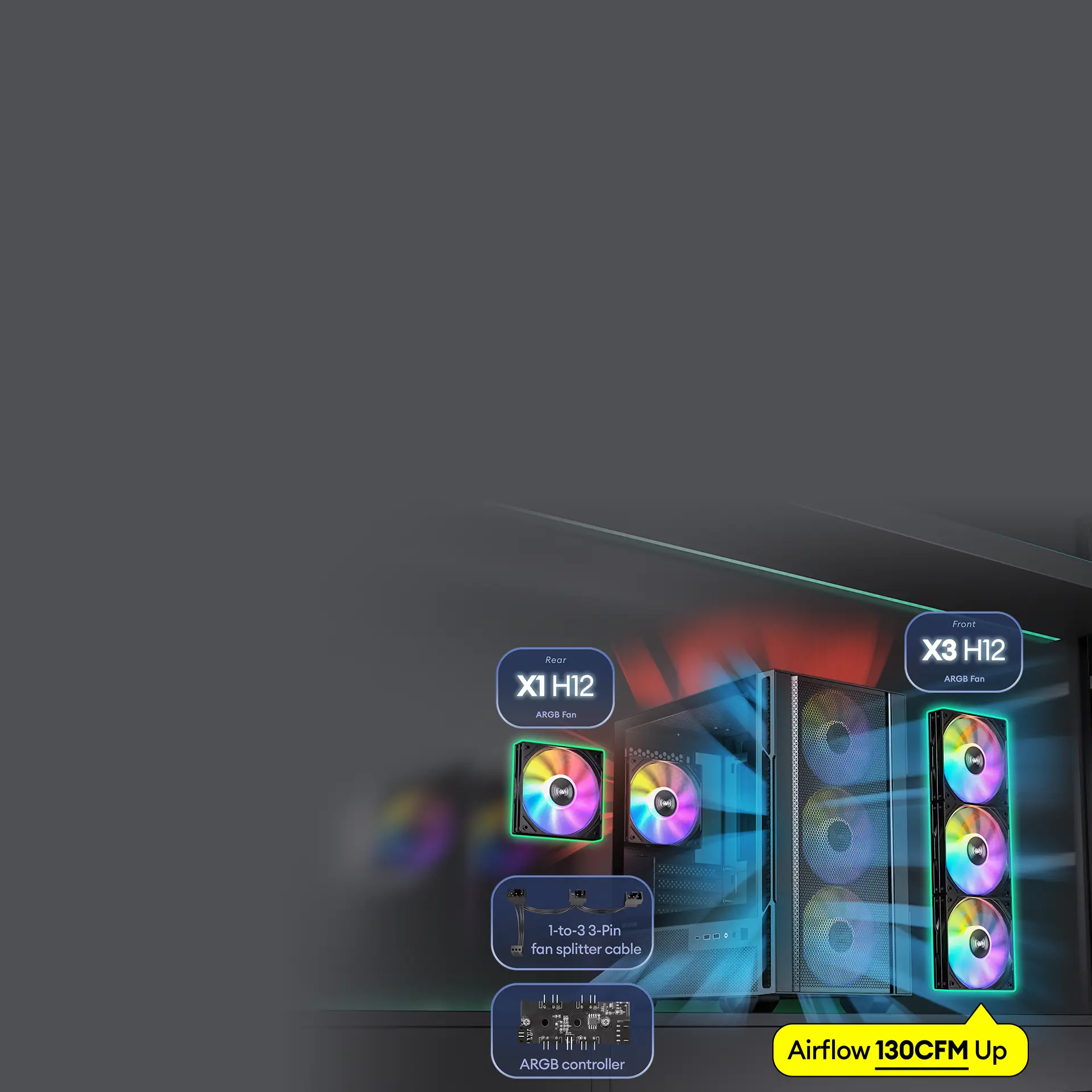

3 x 120mm ARGB fans in front + 1 x 120mm ARGB fan in rear + 4-port ARGB fan controller
Clearance
Max GPU Length
≤320mm
Max CPU Cooler Height
≤164mm

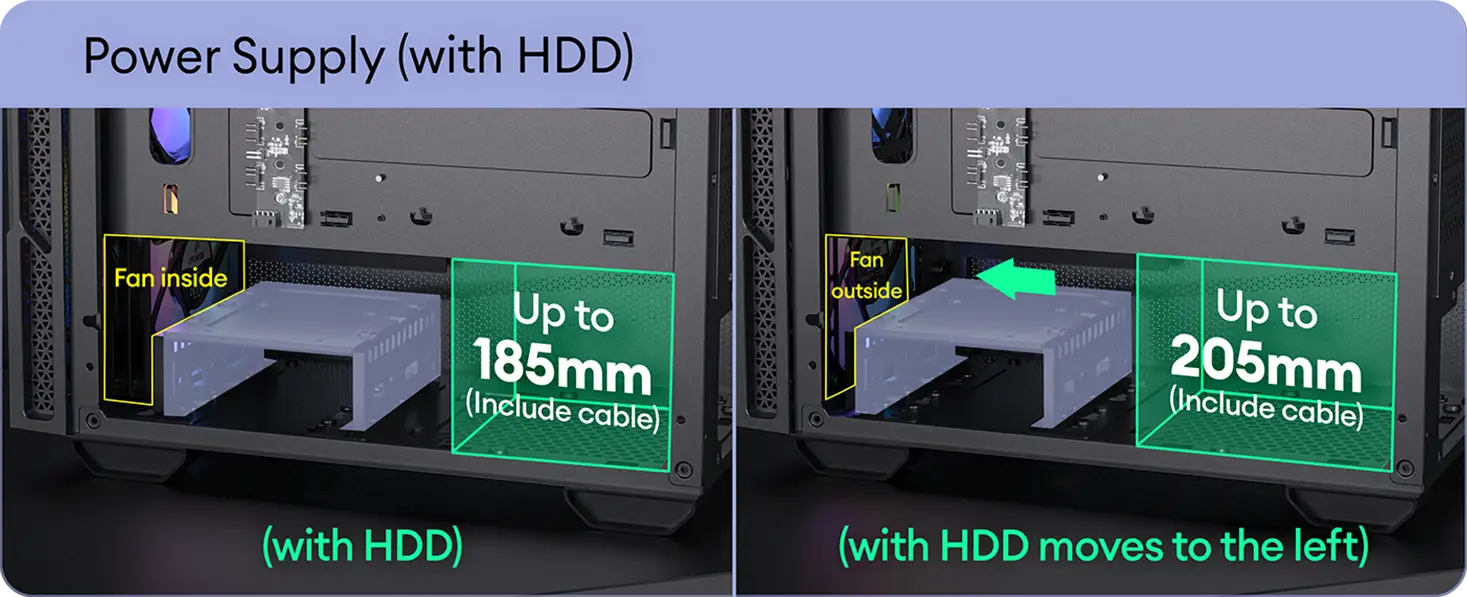

Max PSU Length
(Include cable)≤185mm(With HDD)
(Include cable)≤205mm(With HDD moves to the left)

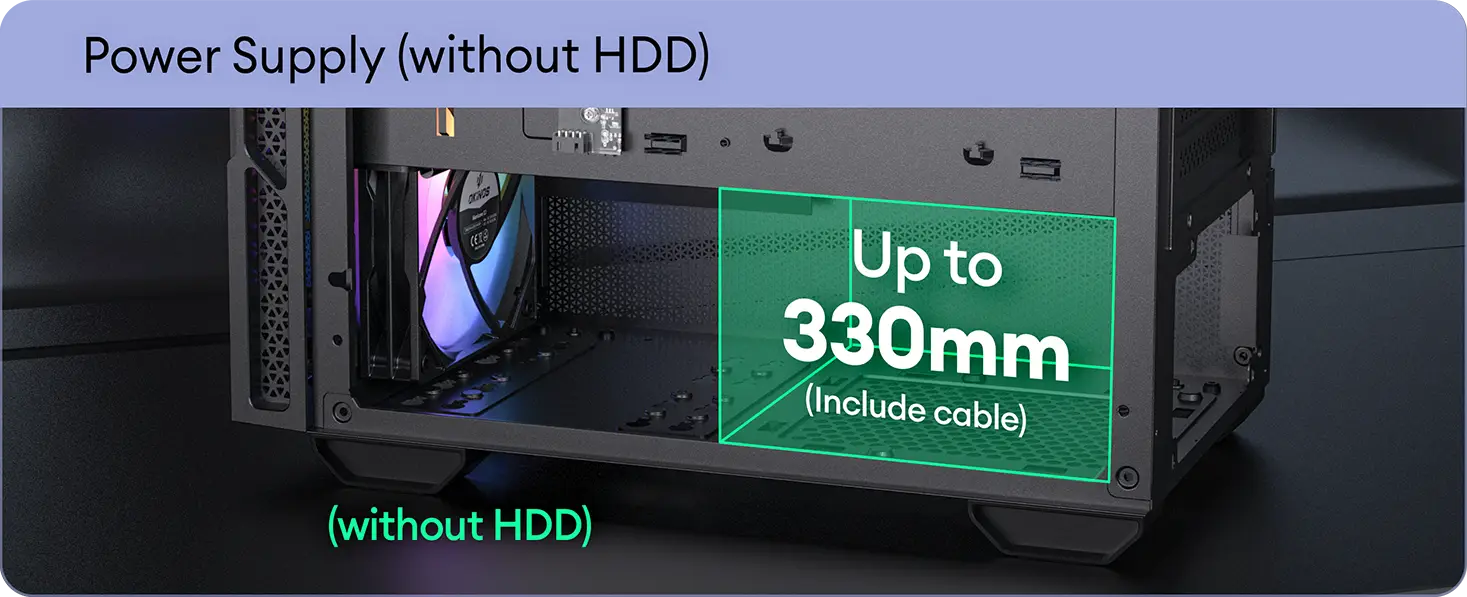

(Include cable)≤330mm(Without HDD)
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
4.36 Kg
Gross Weight
5.50 Kg
