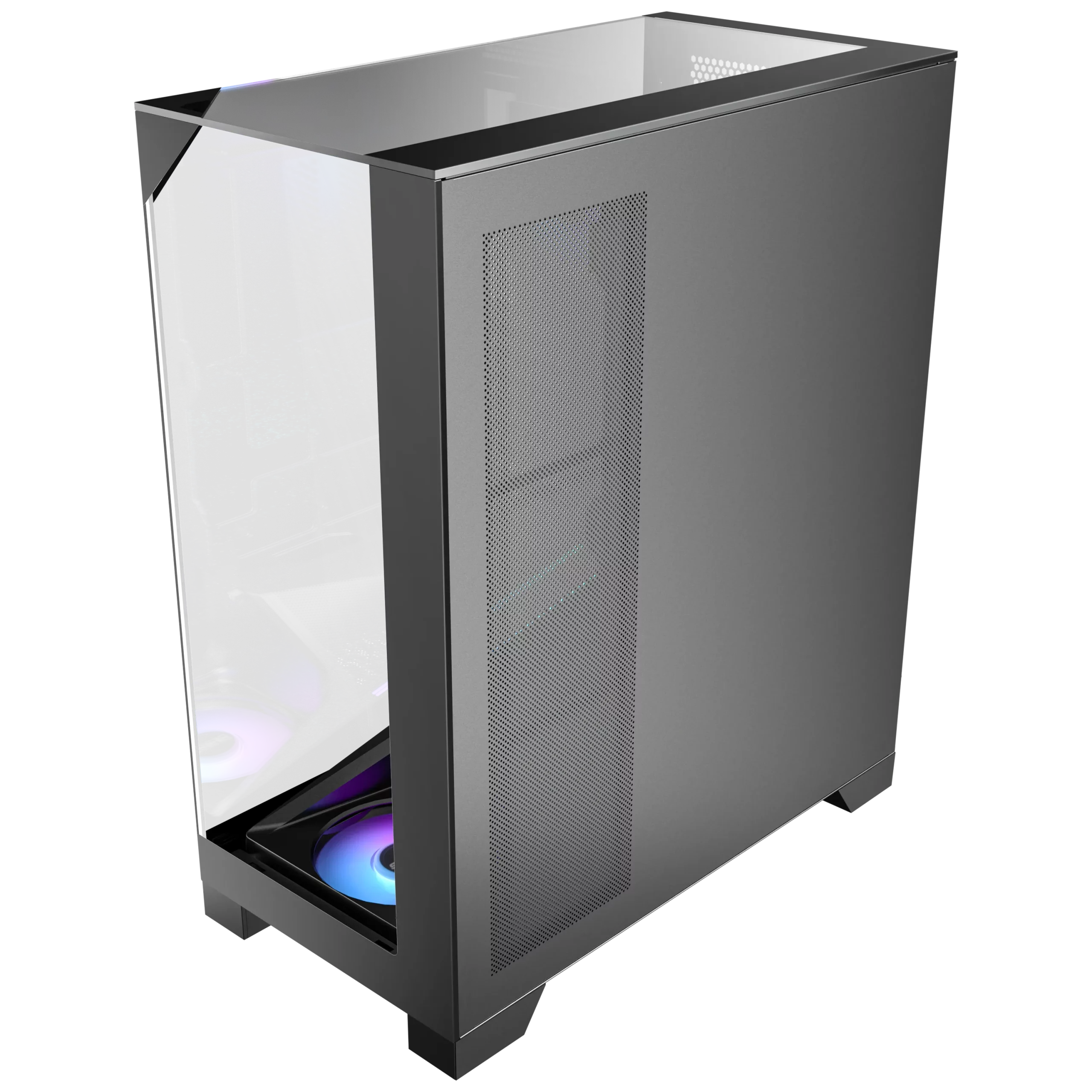

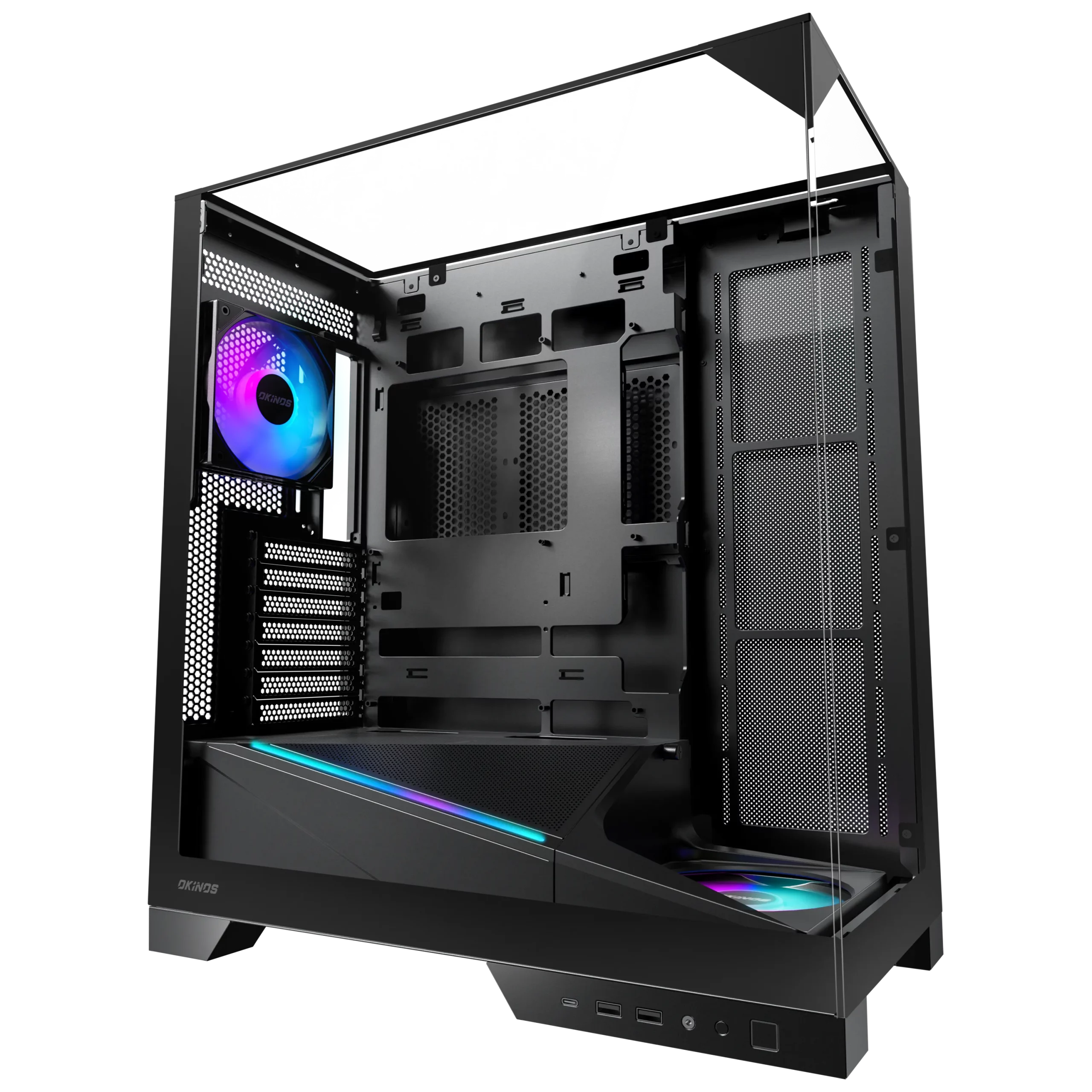

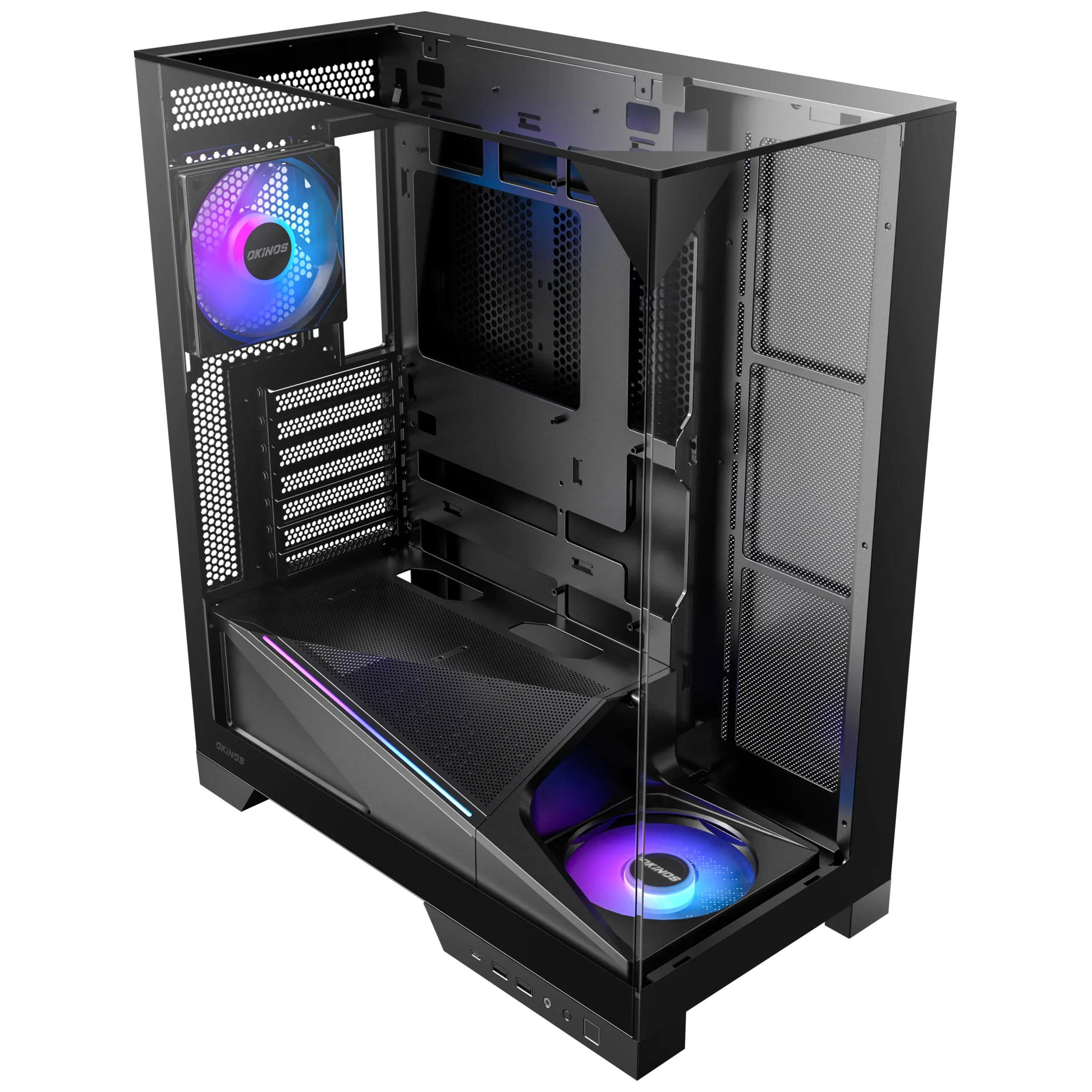

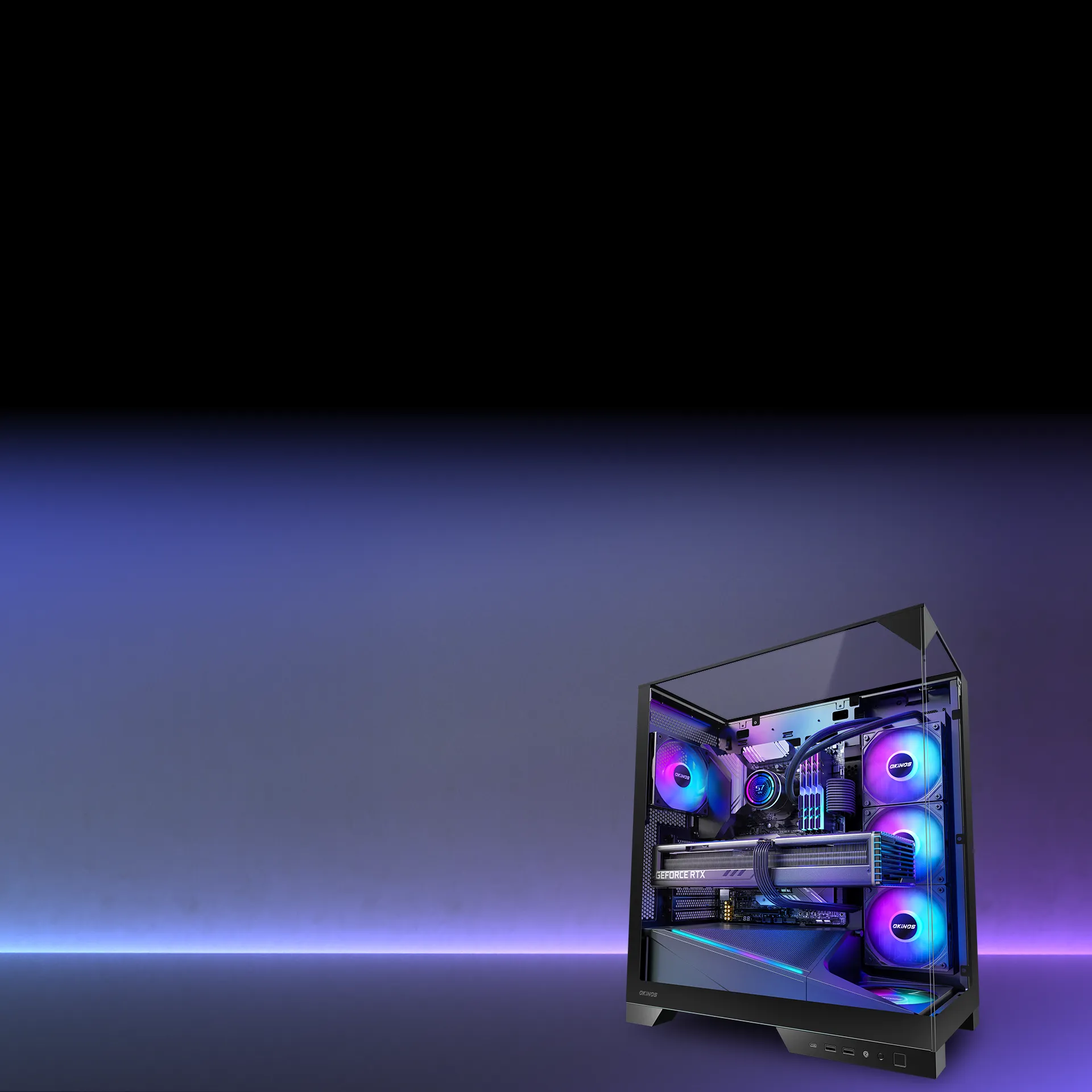

Showcase Your Hardware
Panoramic three-sided tempered glass with a unique power supply shroud for a dynamic gaming setup.
AQUA 93
Mid-Tower Gaming PC Case

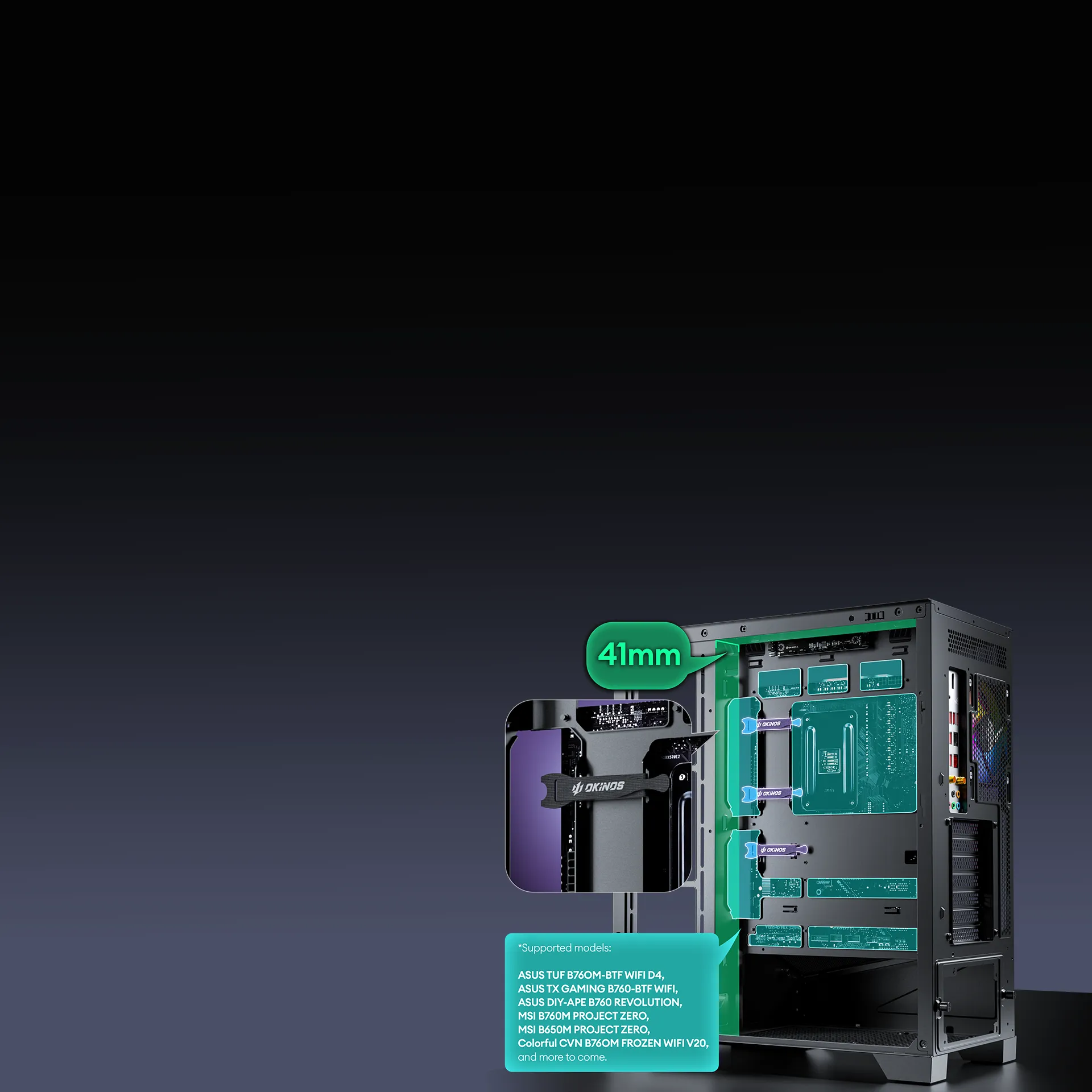

Ultra-Spacious Cable Management with Back-Connect motherboard Support

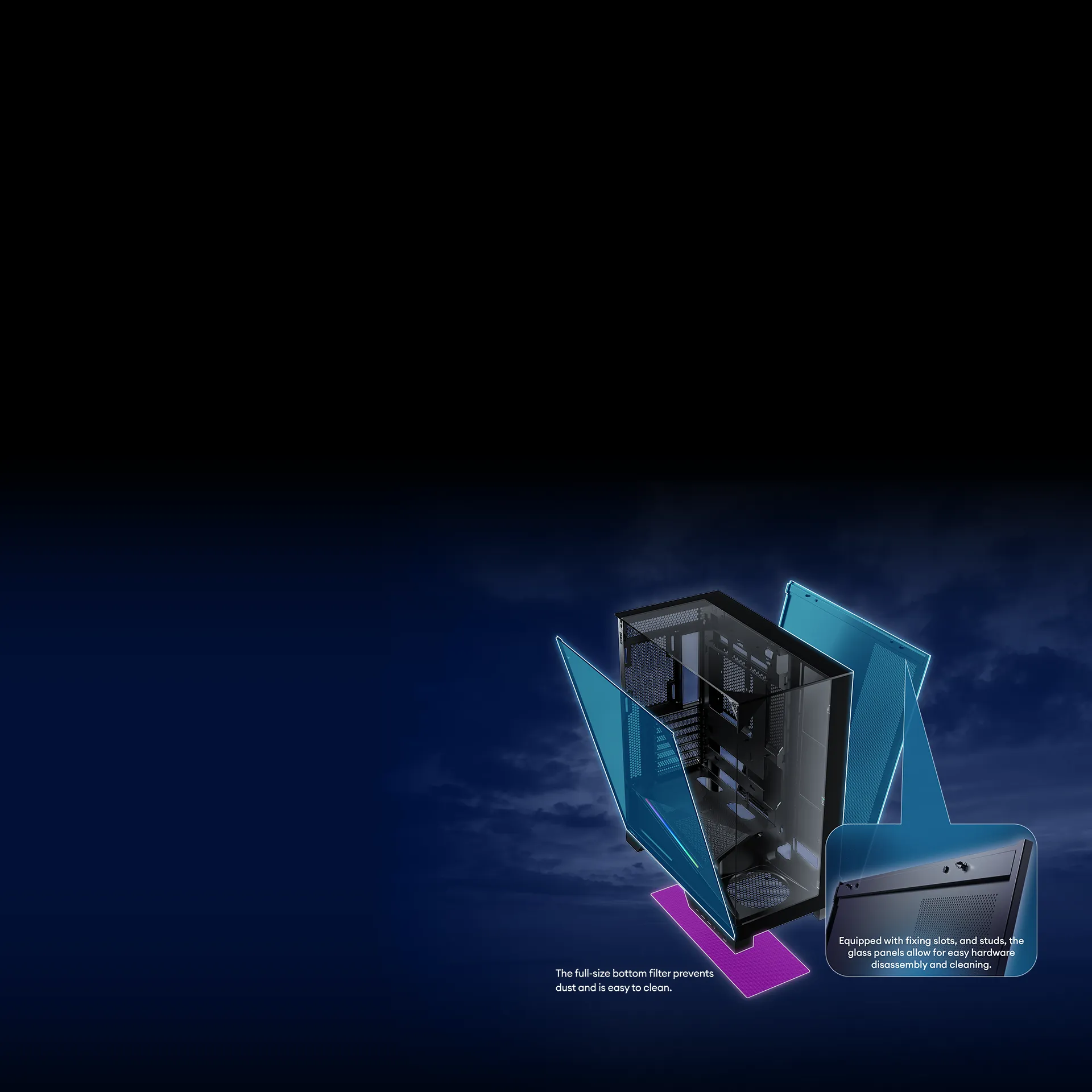

Effortless Disassembly and Dust Prevention
Perfect Fit:
Easy Installation Without Interference
Easy Installation Without Interference

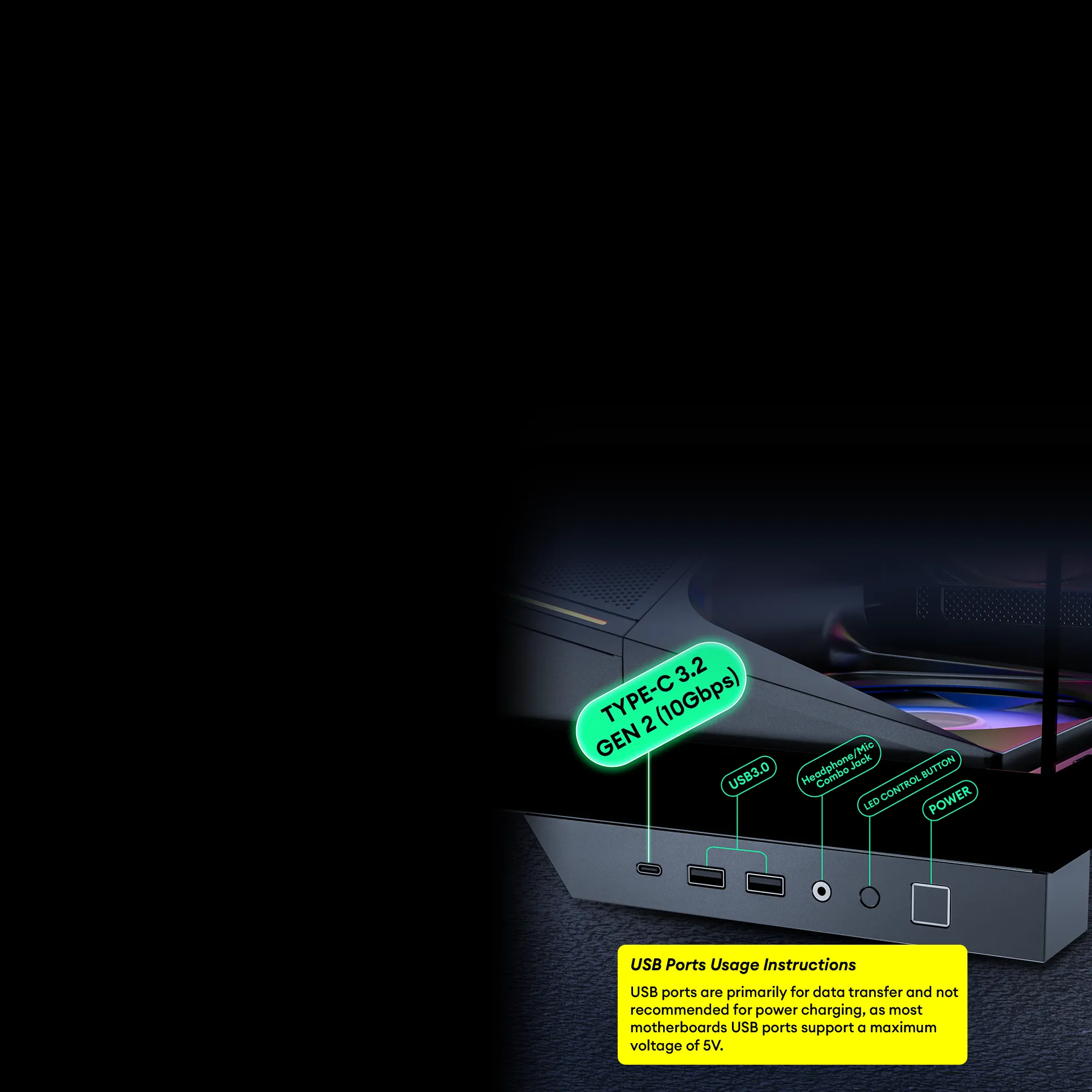

Mutli-Function Zone
Introducing Feature-Rich Multi-Functional Zone for Readily Accessable User-Computer Interaction.
Unique Design
The inclined power supply shroud with ARGB lighting adds elegance and enhances airflow.
In-Take Fan Cover Removal Instructions
To remove the air duct cover, simply follow the diagram and unscrew the two screws to detach it.
Back-Mounted PSU Bracket
For easier PSU installation and safer operation.
(EVA Cushion Pads * 4)
PCIE Rotated 90° For Vertical GPU Mounting
GPU Compatibility
Supports the up-to-date 40 Series GPUs and high-end PC components.
CPU Air Cooling Compatibility

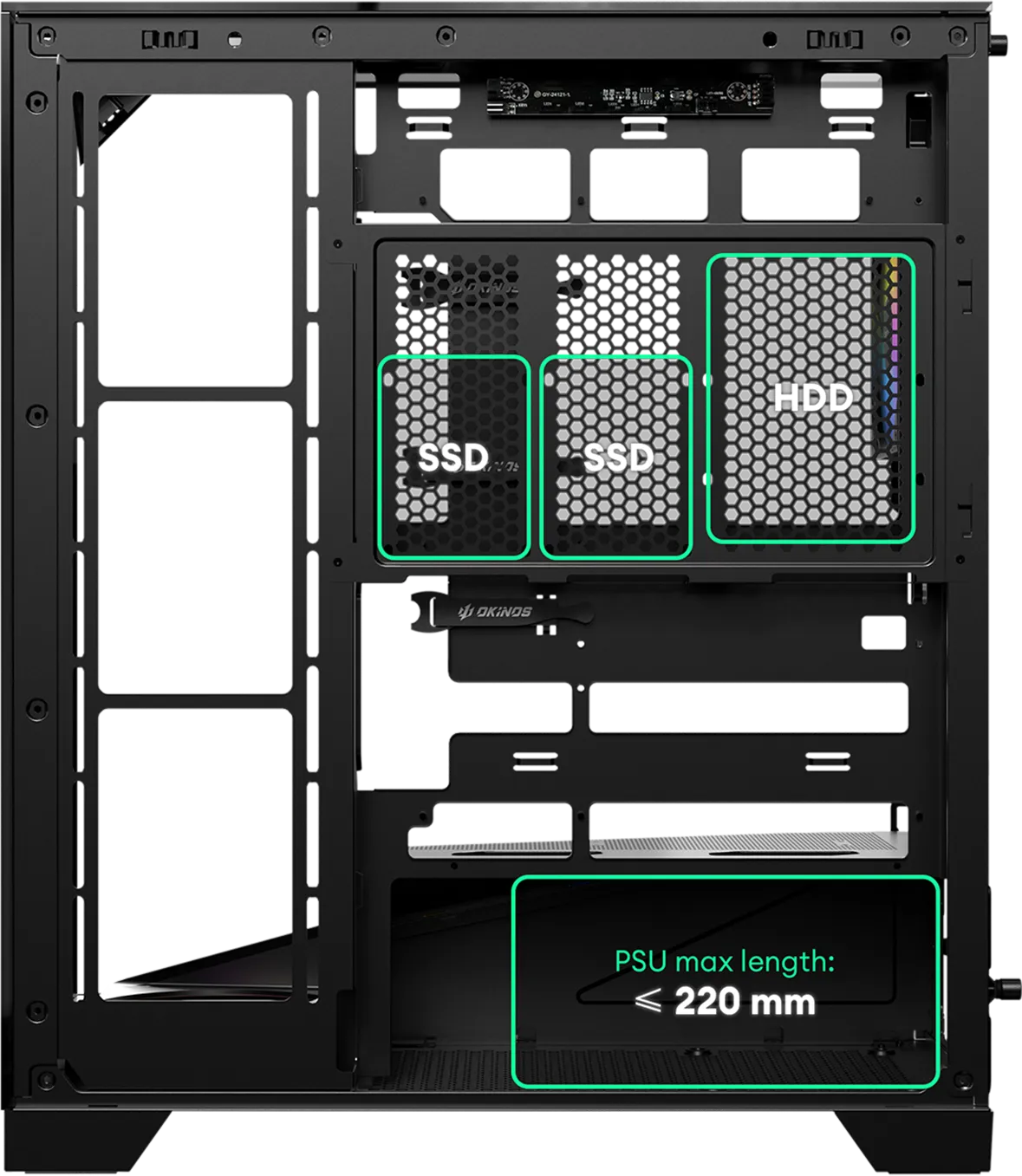

Storage Installation Guide
Before installing the SSD or HDD inside the bracket, first remove the 4 screws on the bracket. After installation, reattach the 4 screws to secure the storage.

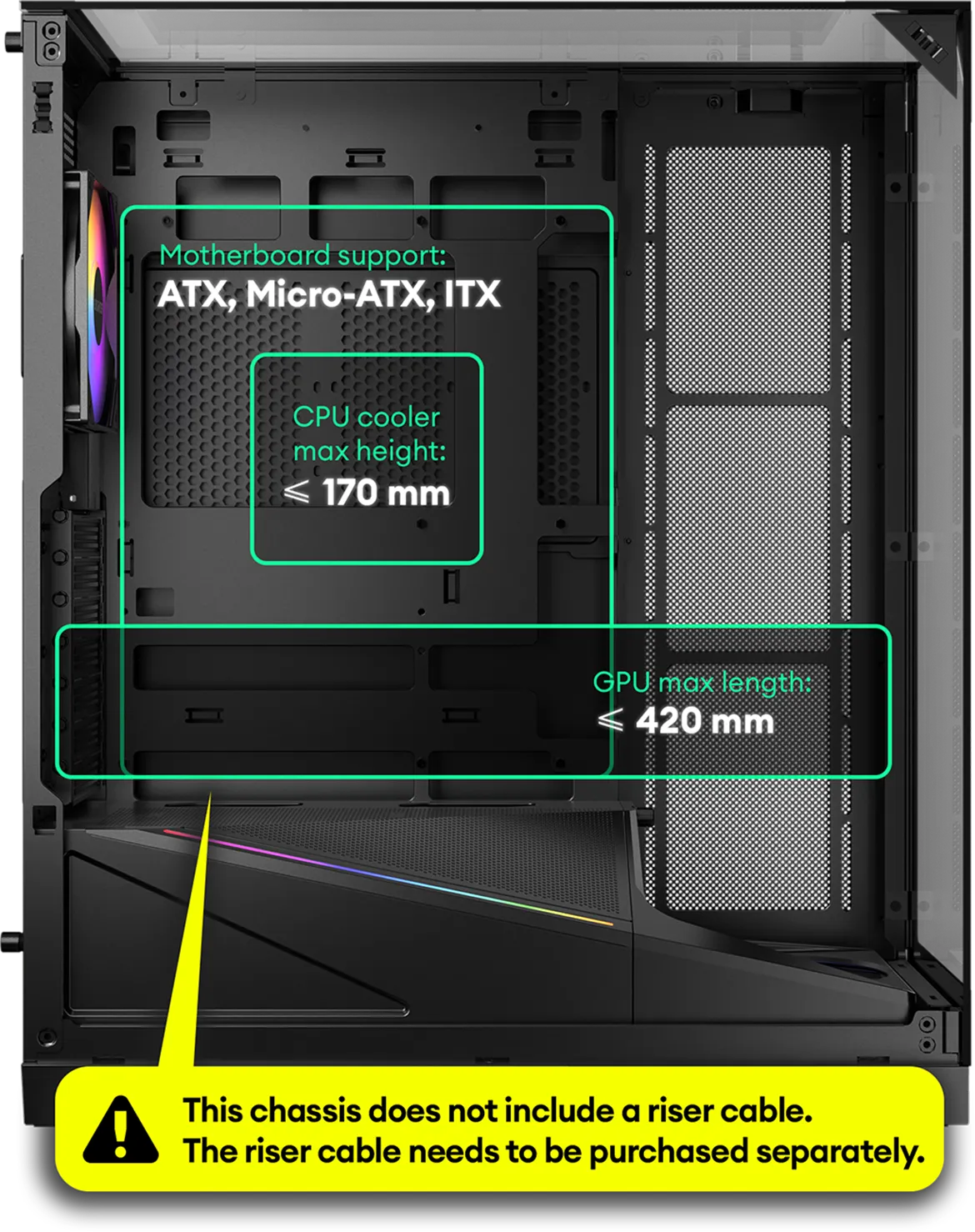

Hardware Compatibility

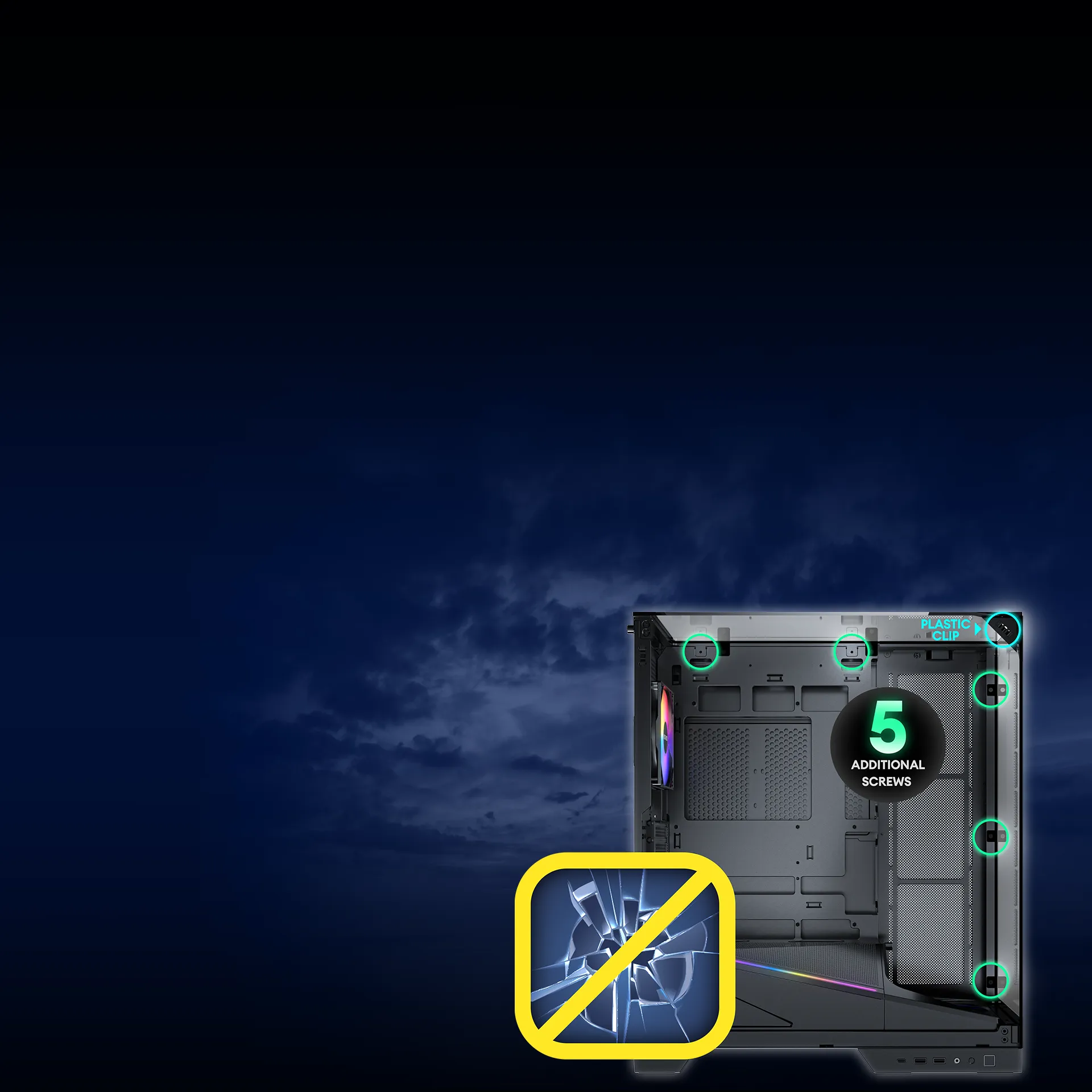

Reinforced for Safe Transport

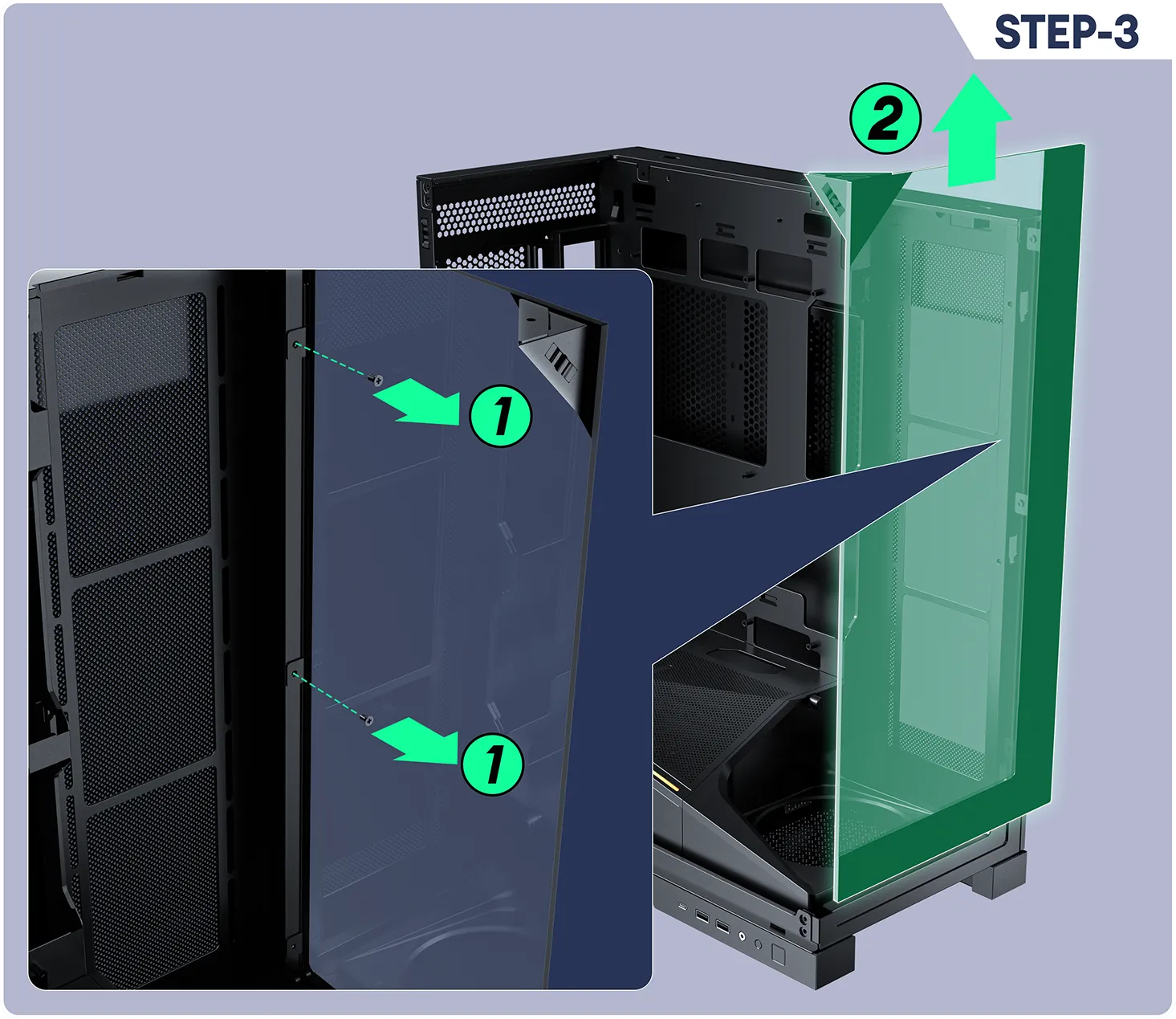

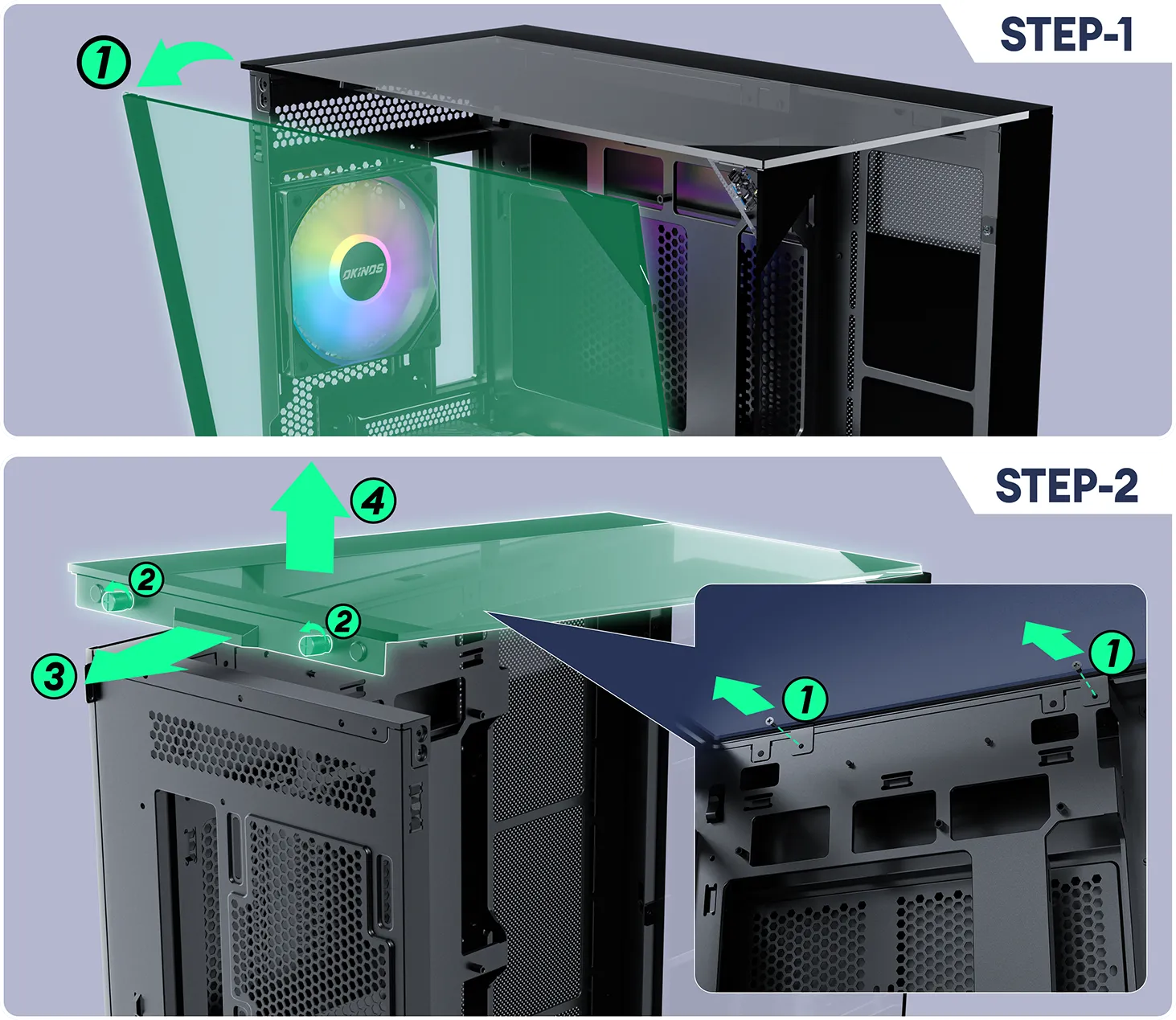

Step-by-Step Guide for Top Glass Removal
Please follow the steps in the diagram carefully to remove the top glass. Be sure not to pull forcefully to avoid the risk of breaking the glass.

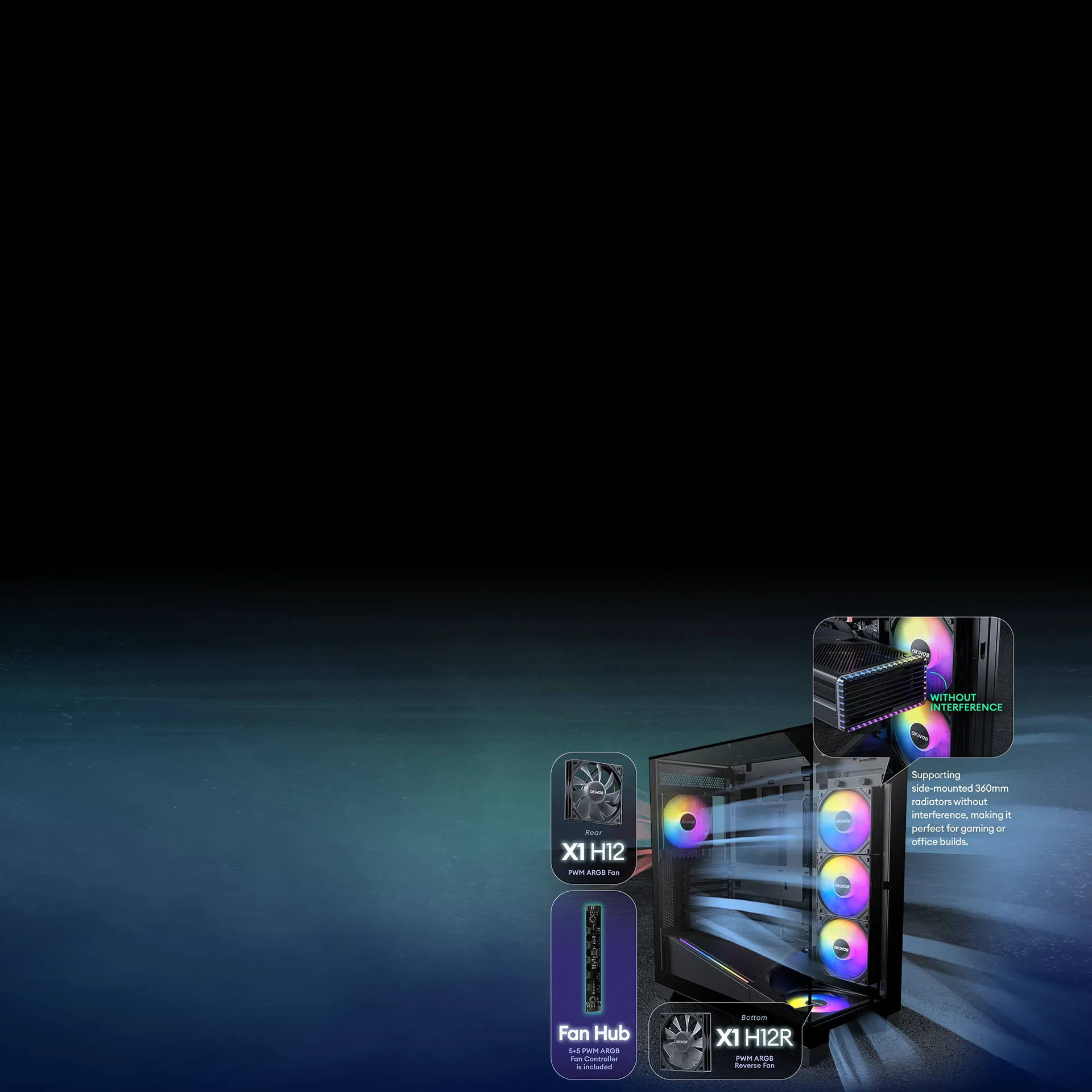

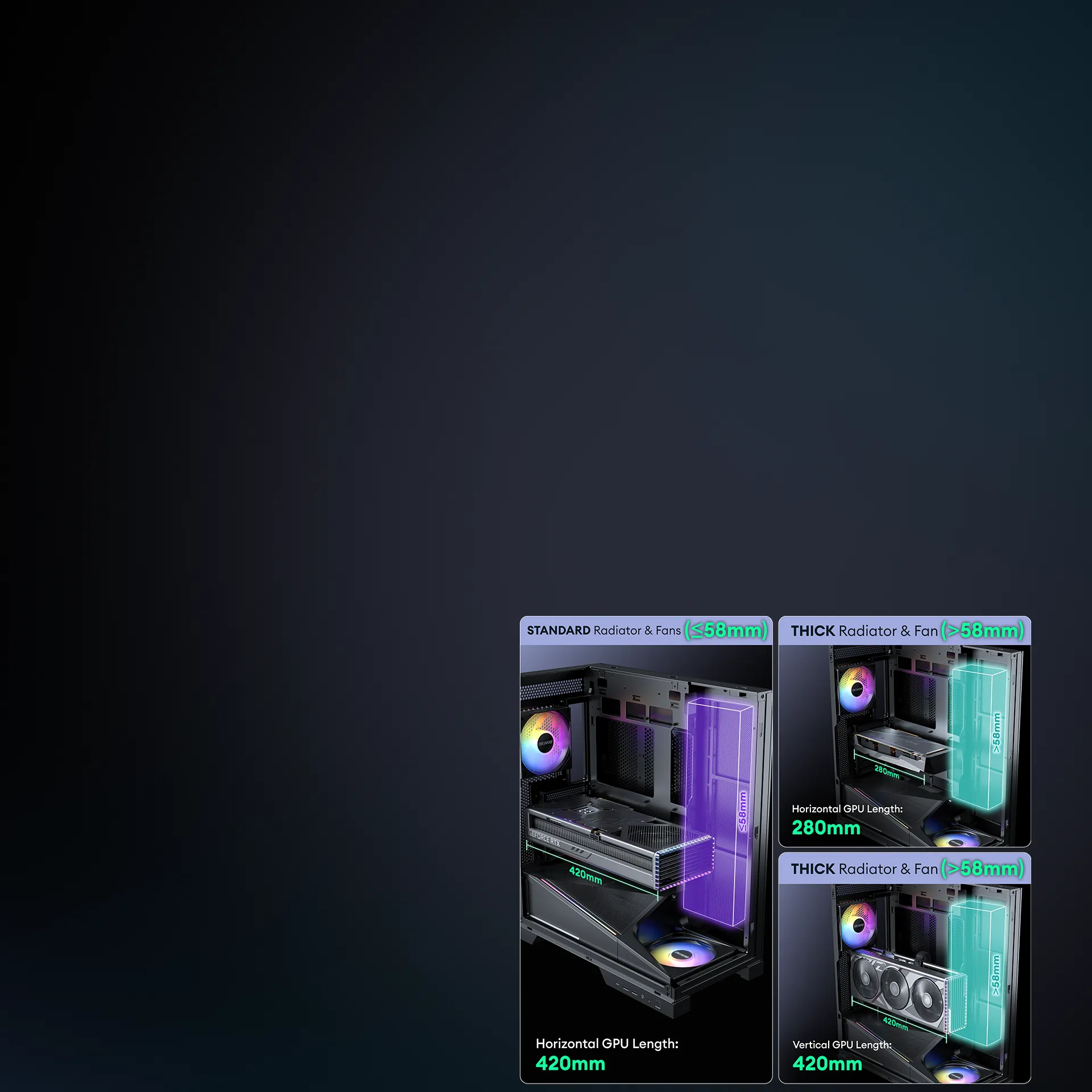

Experience Ultimate Cooling Solution
Compatibility

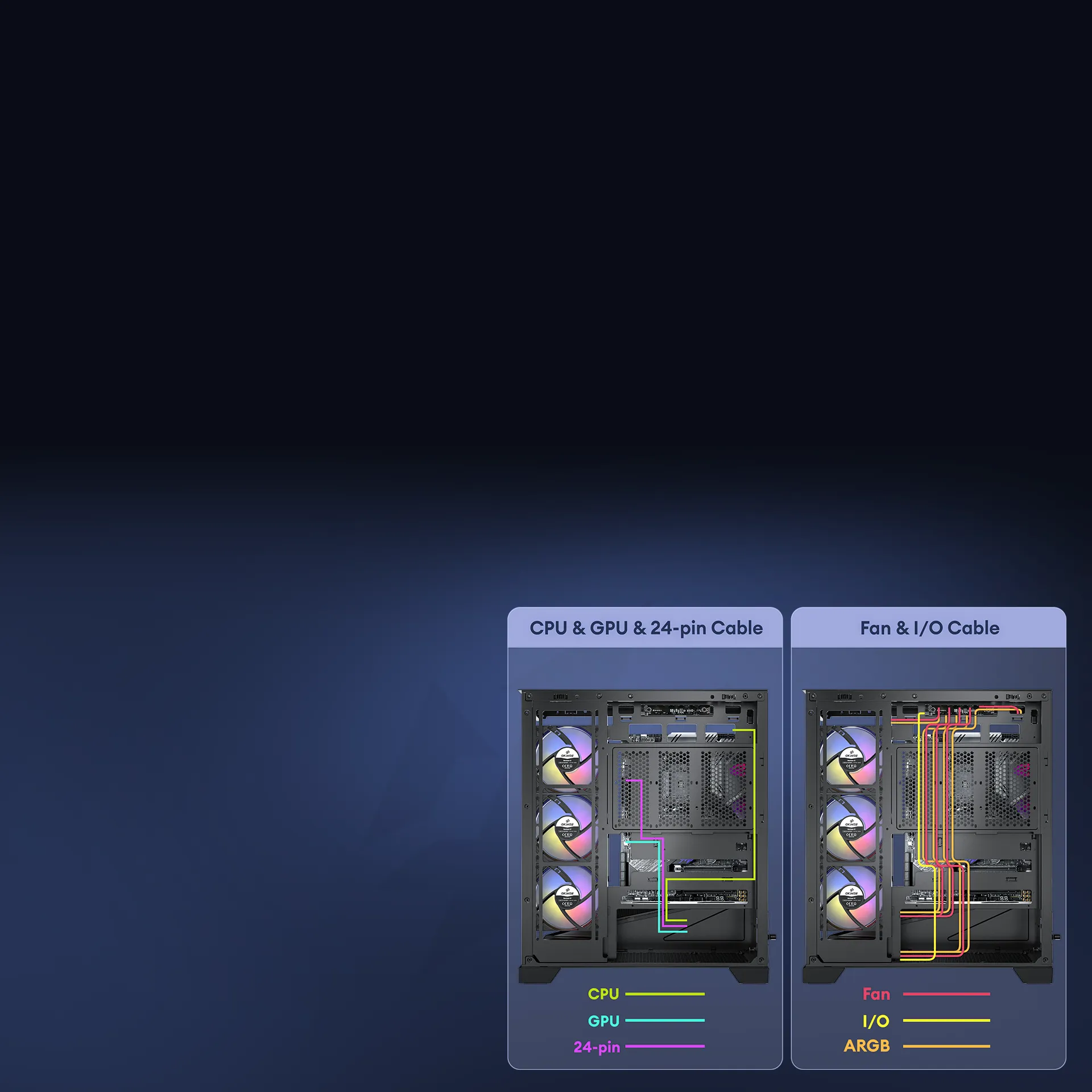

Cable Management Diagram 41mm of cable management space
Bridge Design
For the rear IO cable routing.
Specifications
Model Name
Aqua 93 Black ARGB
Model Number
OKICC-AQ93-ATXB
EAN
4897121941321
Dimensions
453 x 232 x 518mm (DWH)
Form Factor
Mid Tower
Materials
Glass+ Steel + Plastic
Mainboard Support
ATX, Micro-ATX, ITX
Front Access & Controls
Power, LED Control Button, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps)x 1, Headphone/Mic Combo Jack
Side Panel
4mm Tempered glass
Drive Bays
Expansion Slots
7
3.5″ /2.5″
1
2.5″
2

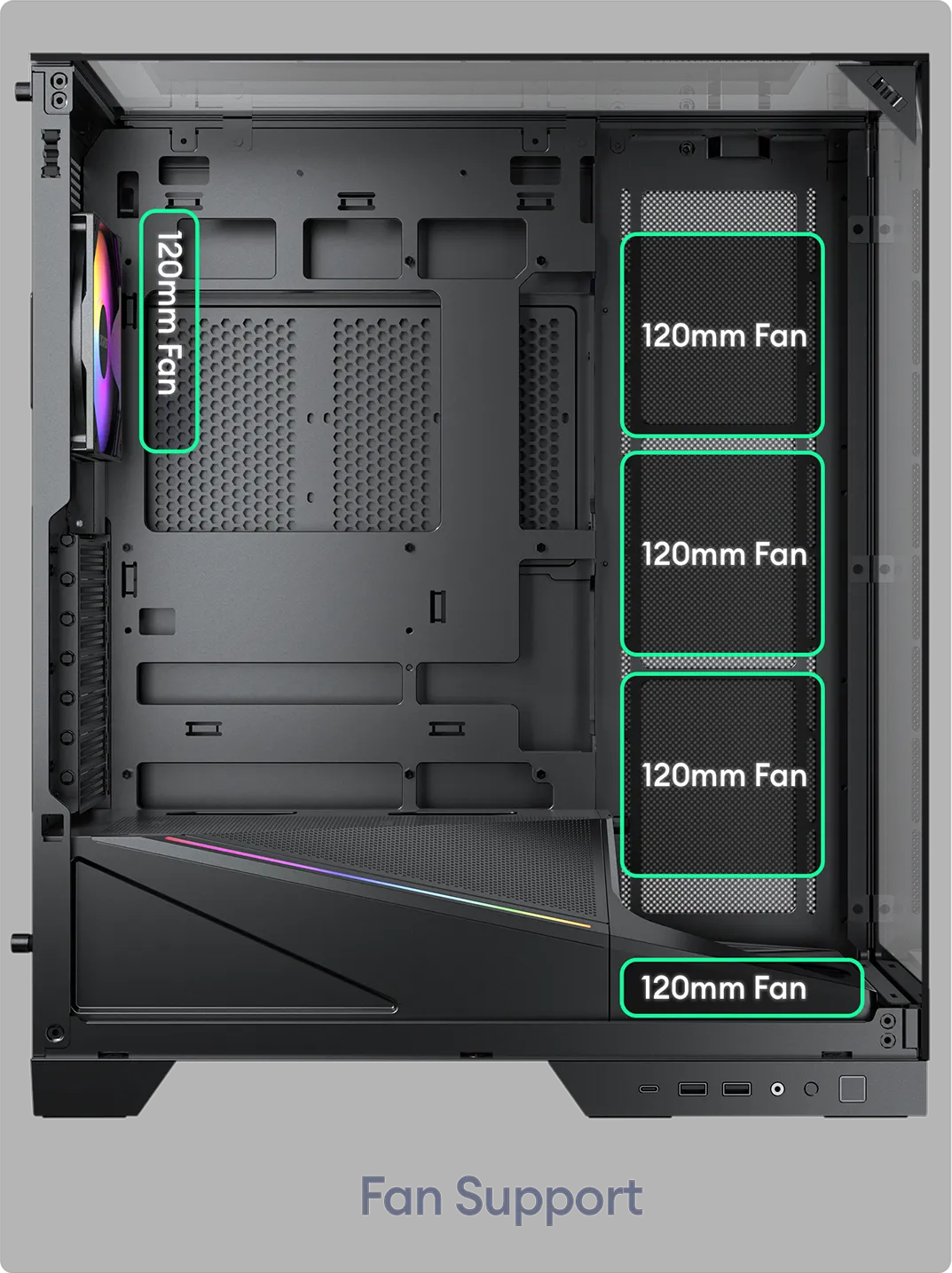

Fan
Right Hand Side
3 x 120mm
Bottom
1 x 120mm
Rear
1 x 120mm
Included Fan(s)
1 x 120mm ARGB PWM reverse fan on bottom + 1 x 120mm ARGB PWM fan in rear + 5-port ARGB PWM fan controller

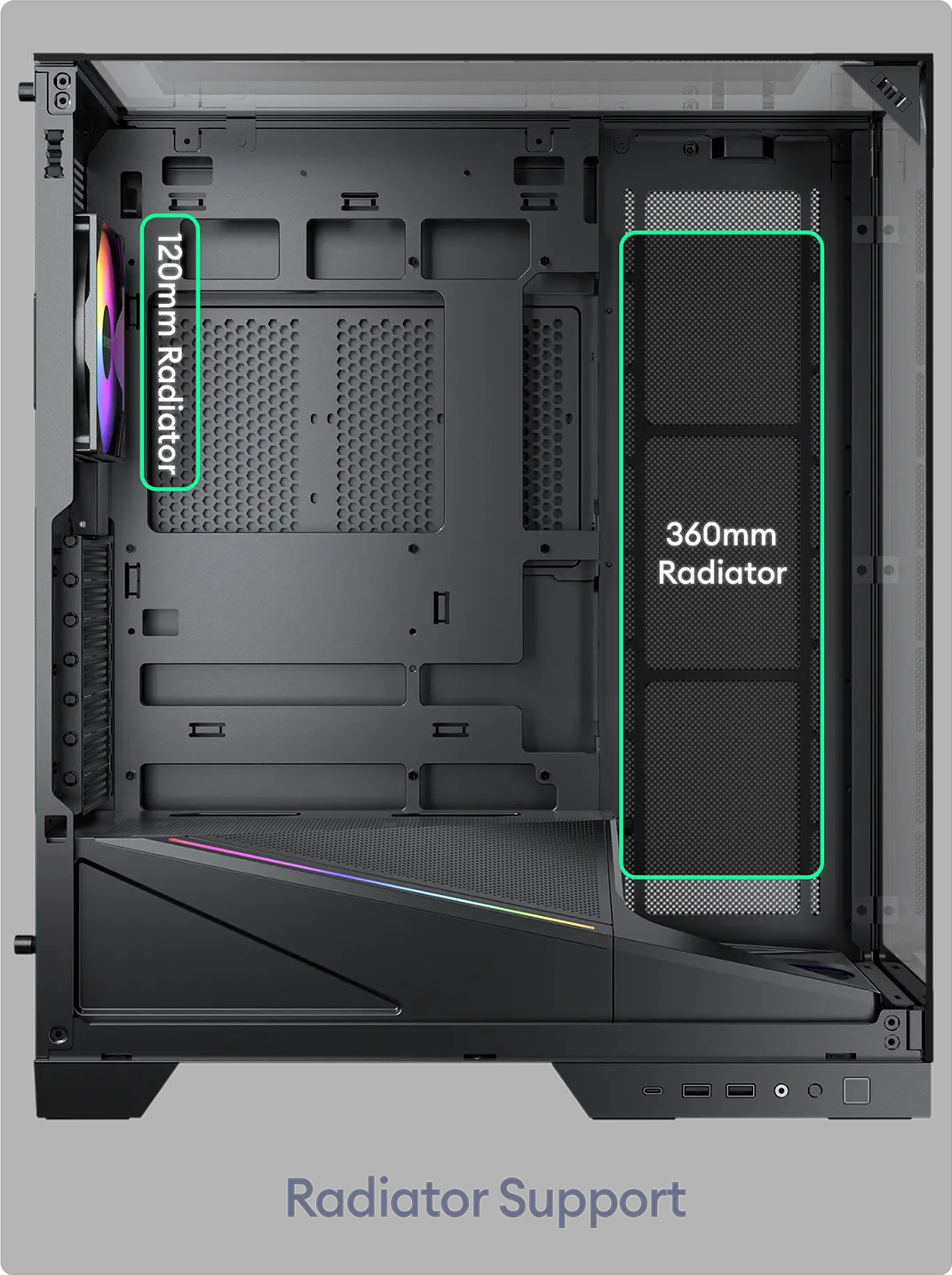

Radiator Support
Right Hand Side
360/240/120mm
Rear
120mm
Clearance
Max GPU Length
≤420mm
Max CPU Cooler Height
≤170mm
Max PSU Length
≤ 220mm
Miscellaneous
Dust Filter
Bottom
Net Weight
9.43 Kg
Gross Weight
11.66 Kg
