AQUA 9
Mid-Tower Gaming PC Case

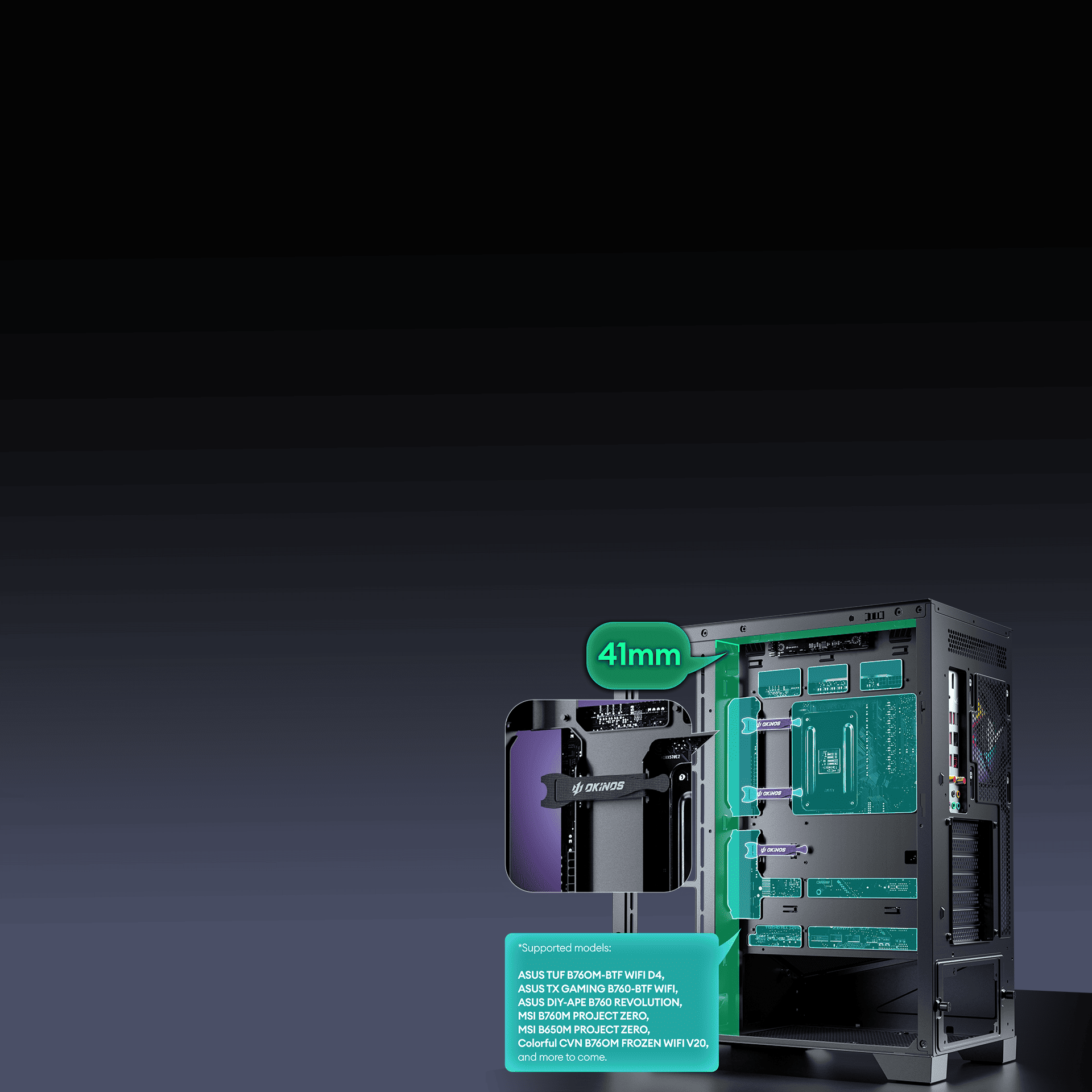

Ultra-Spacious Cable Management with Back-Connect motherboard Support

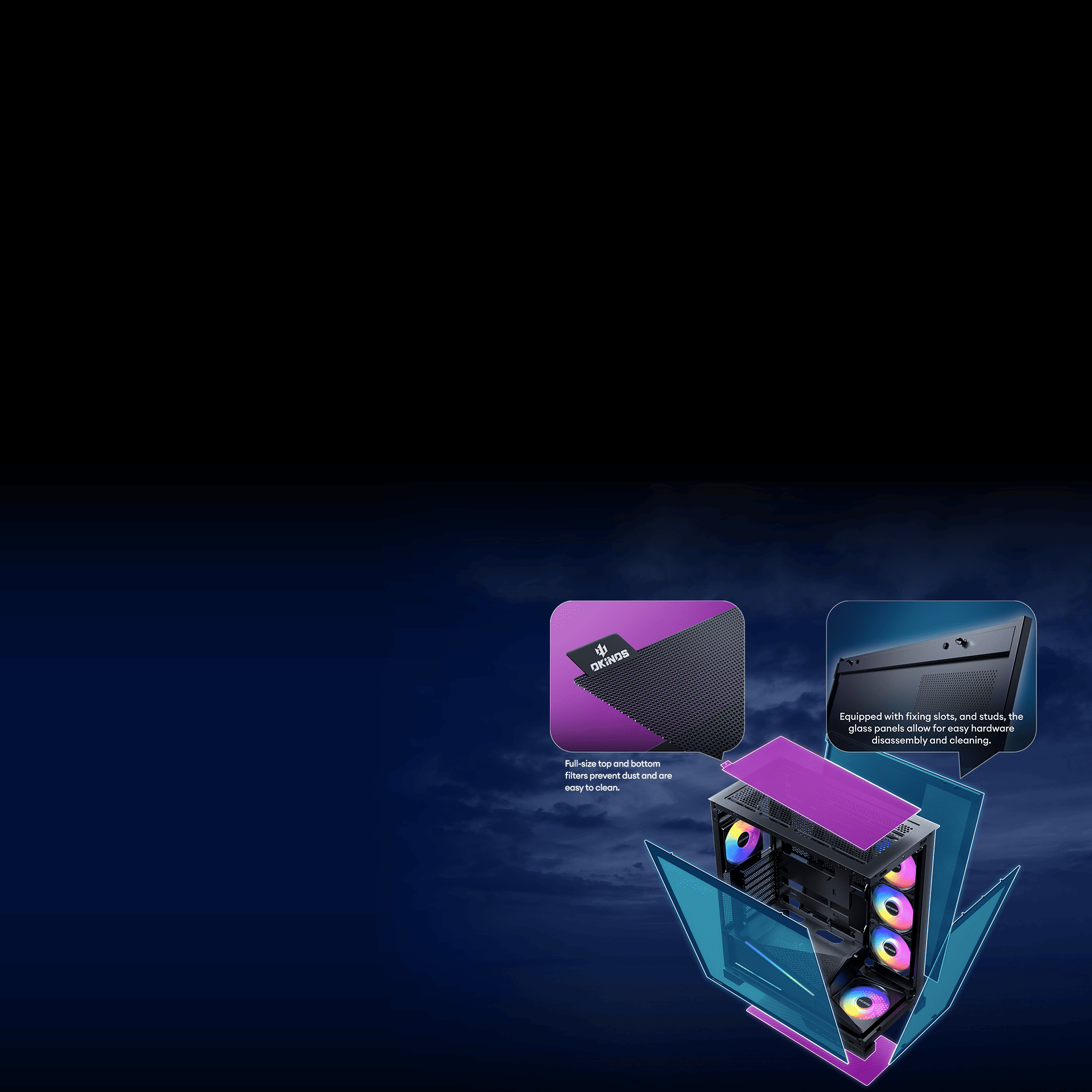

Effortless Disassembly and Dust Prevention
Maximized Airflow for Superior Cooling

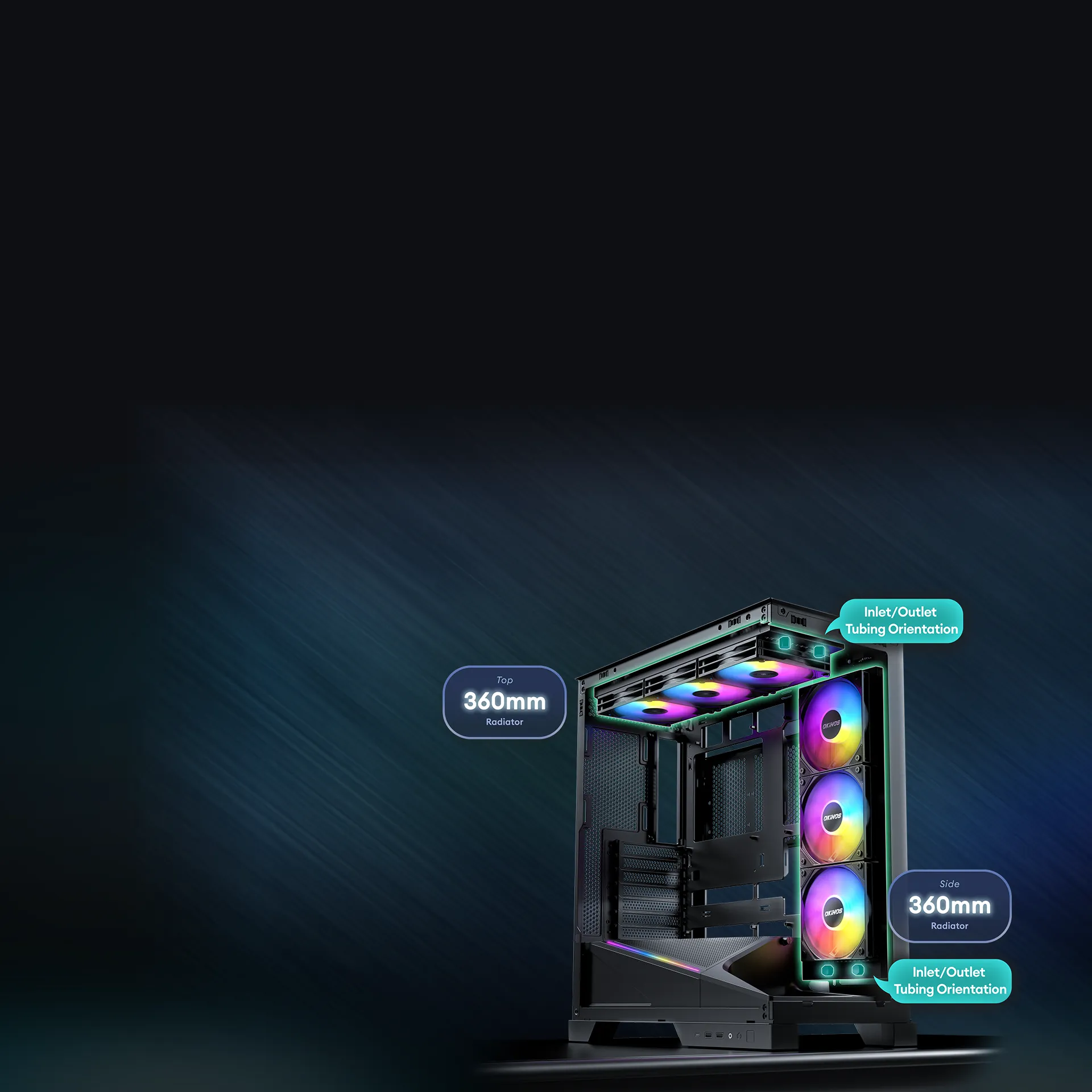

Supports Dual 360mm Radiator Installation
If installing simultaneously, the water cooling tubes on the right side must be installed facing down.

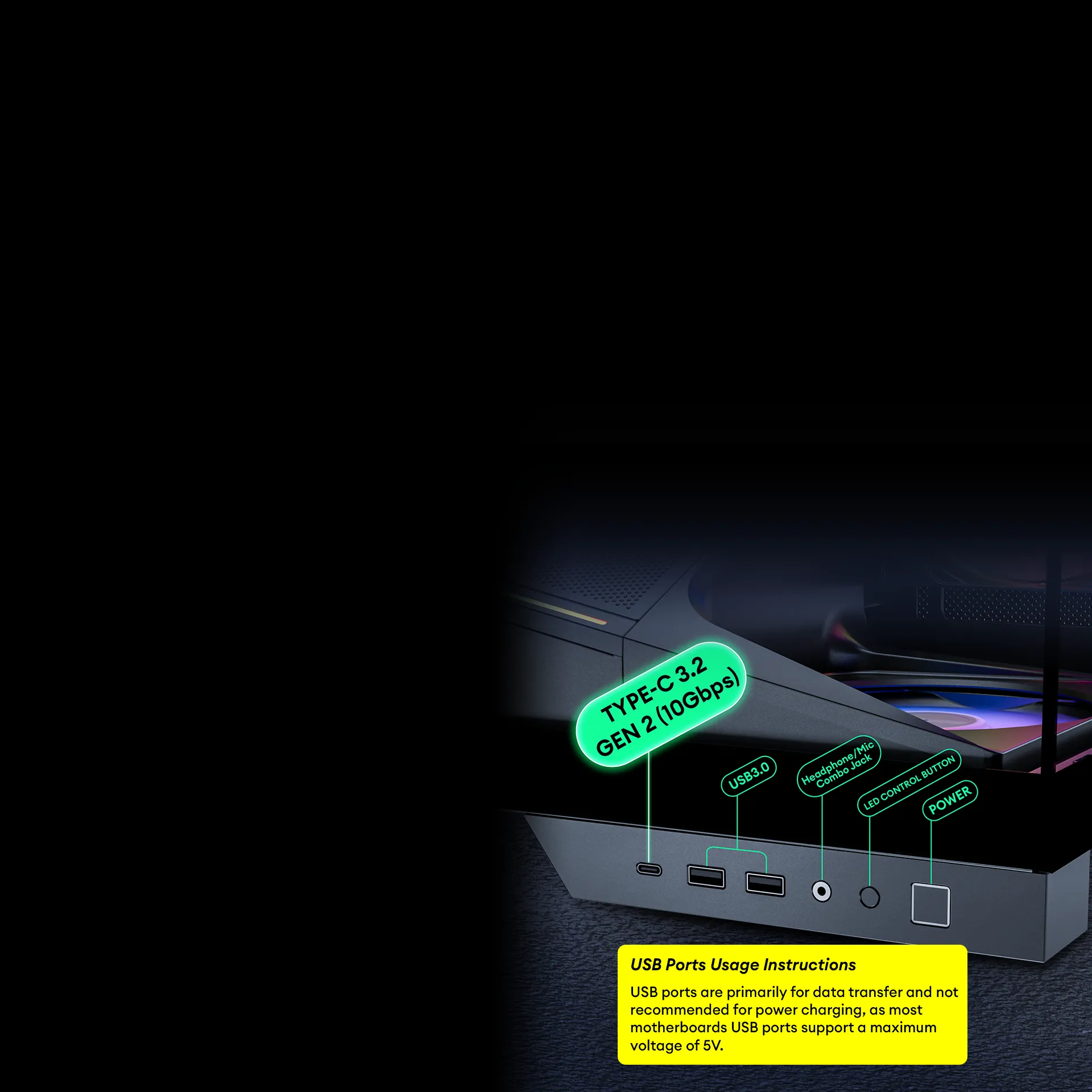

Mutli-Function Zone
Introducing Feature-Rich Multi-Functional Zone for Readily Accessable User-Computer Interaction.
Unique Design

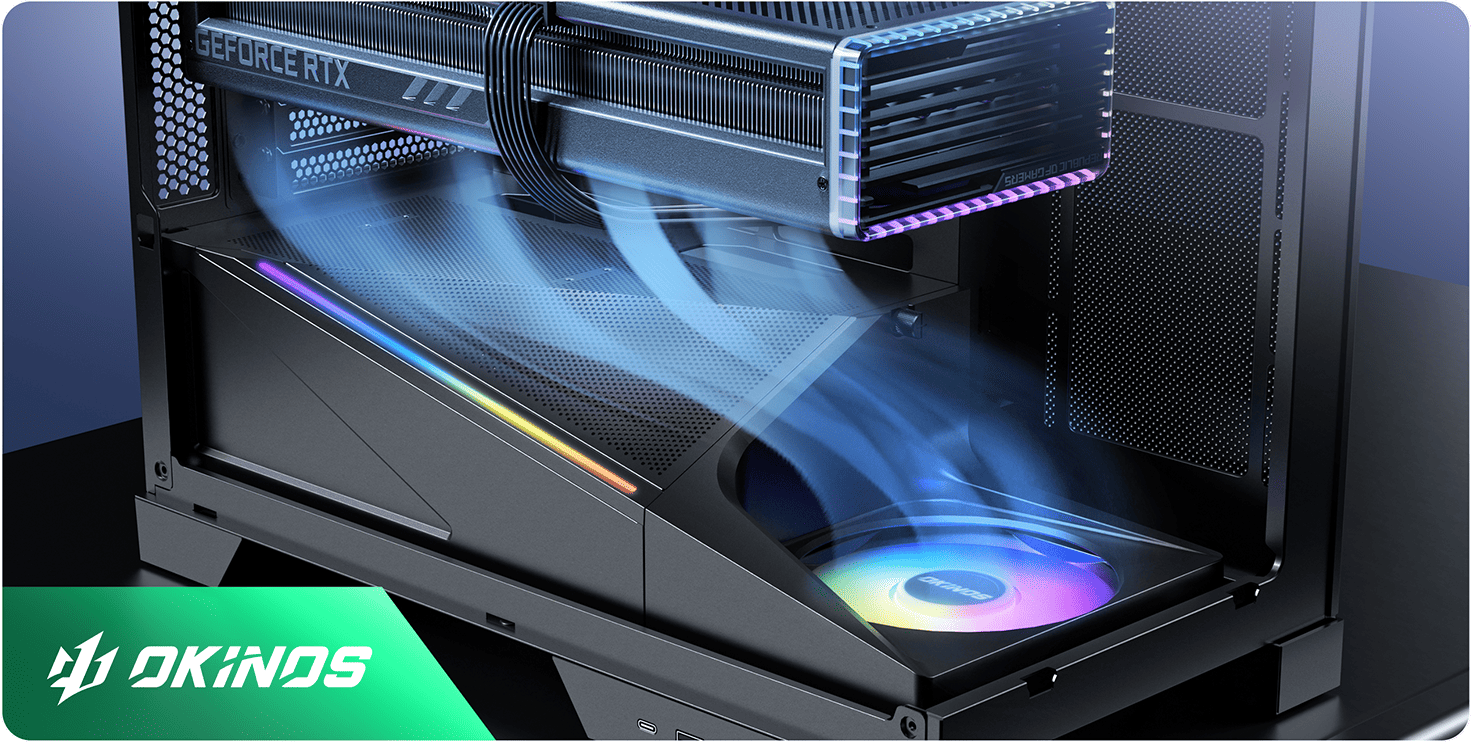

The inclined power supply shroud with ARGB lighting adds elegance and enhances airflow.

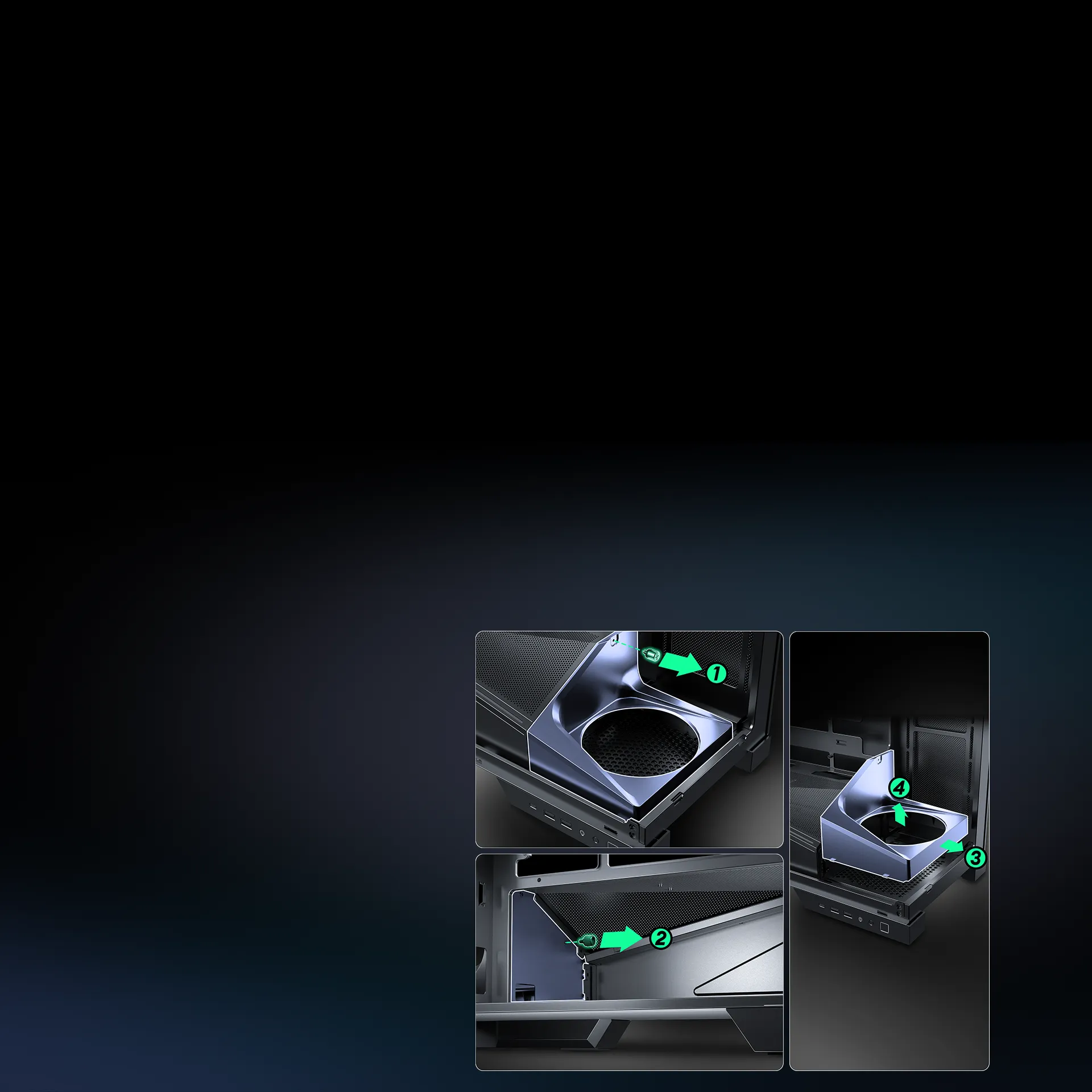

In-Take Fan Cover Removal Instructions
To remove the air duct cover, simply follow the diagram and unscrew the two screws to detach it.

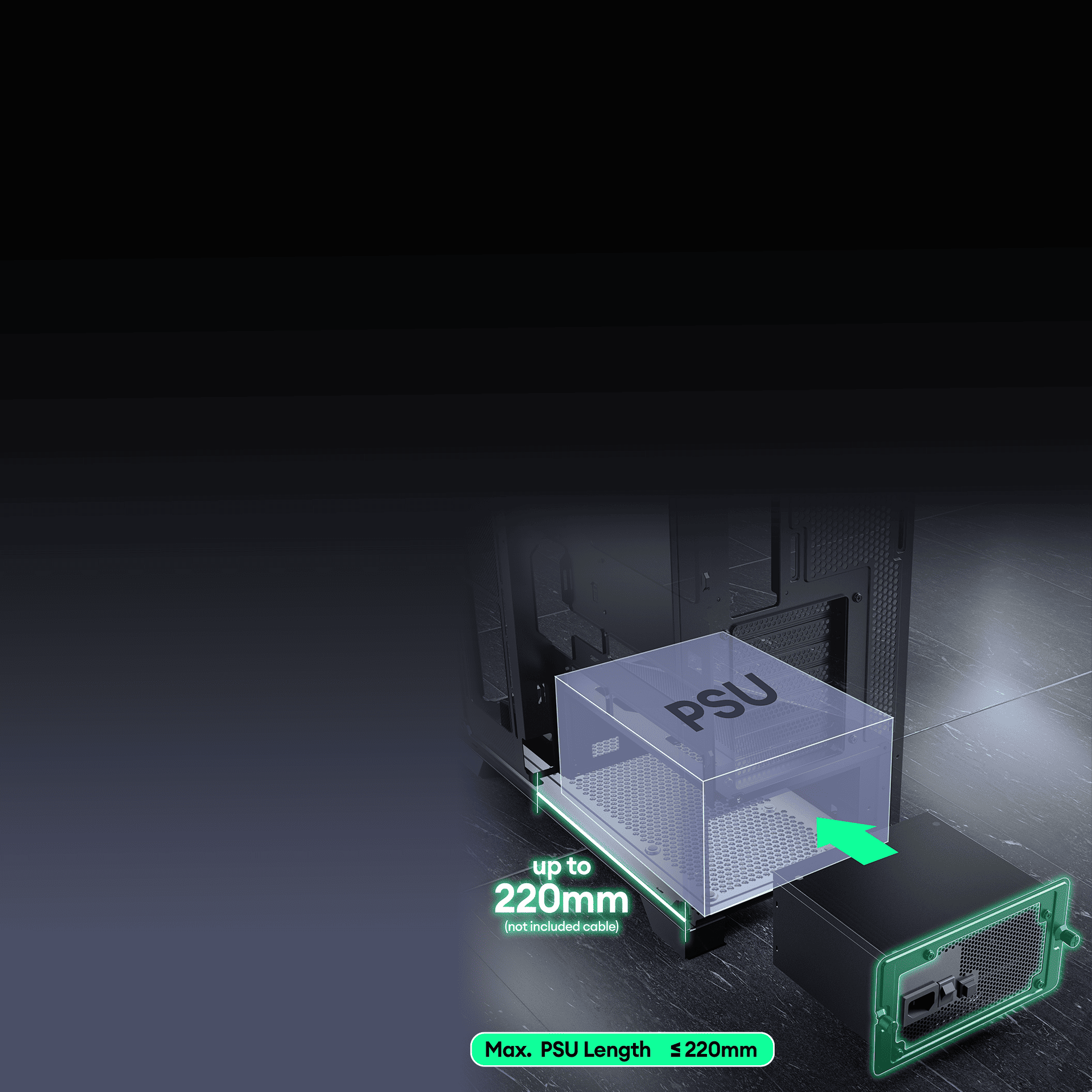

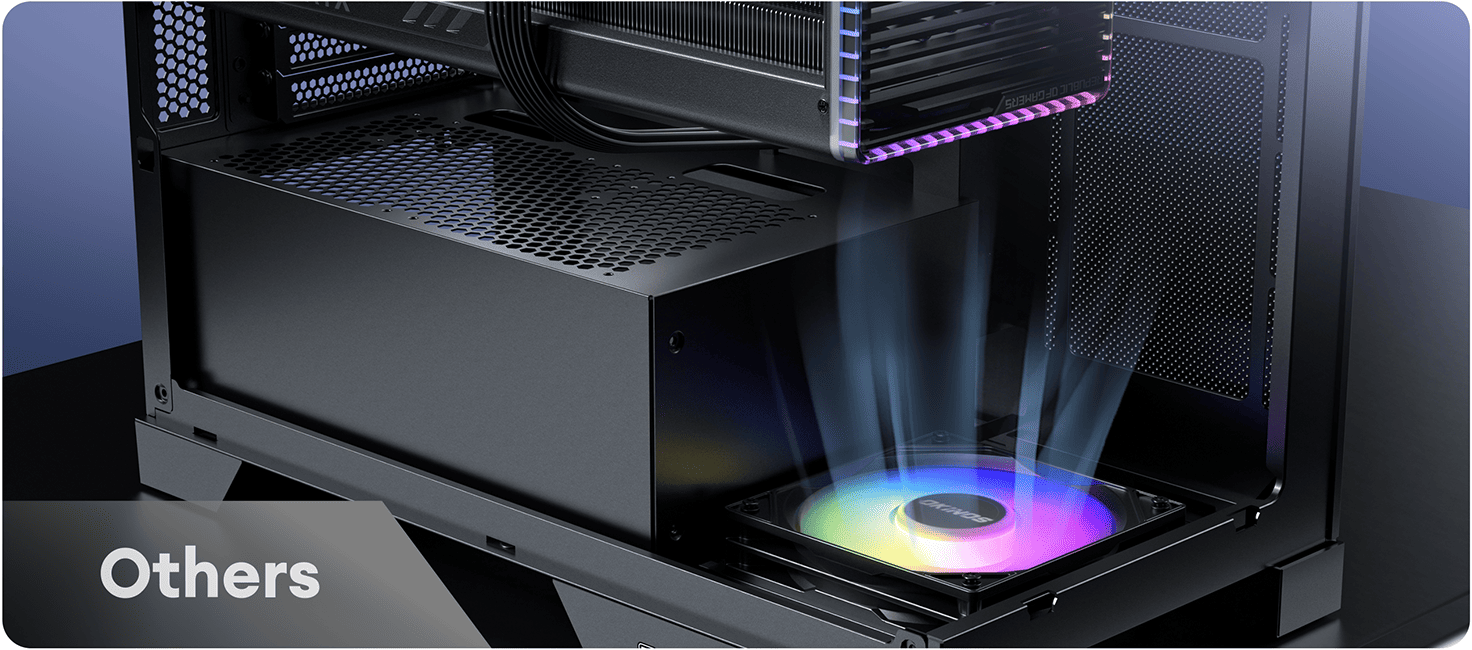

Back-Mounted PSU Bracket
For easier PSU installation and safer operation.
(EVA Cushion Pads * 4)

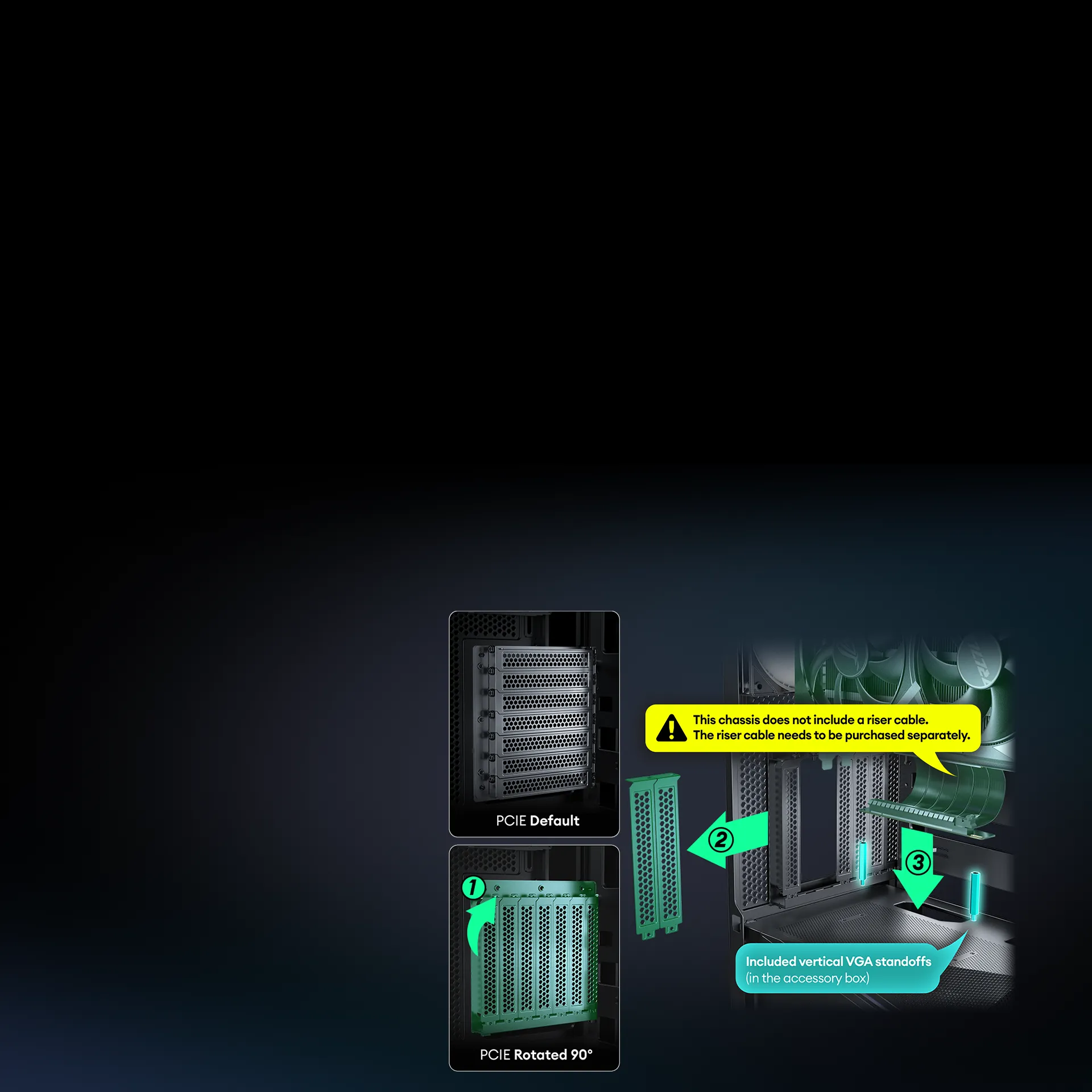

PCIE Rotated 90° For Vertical GPU Mounting

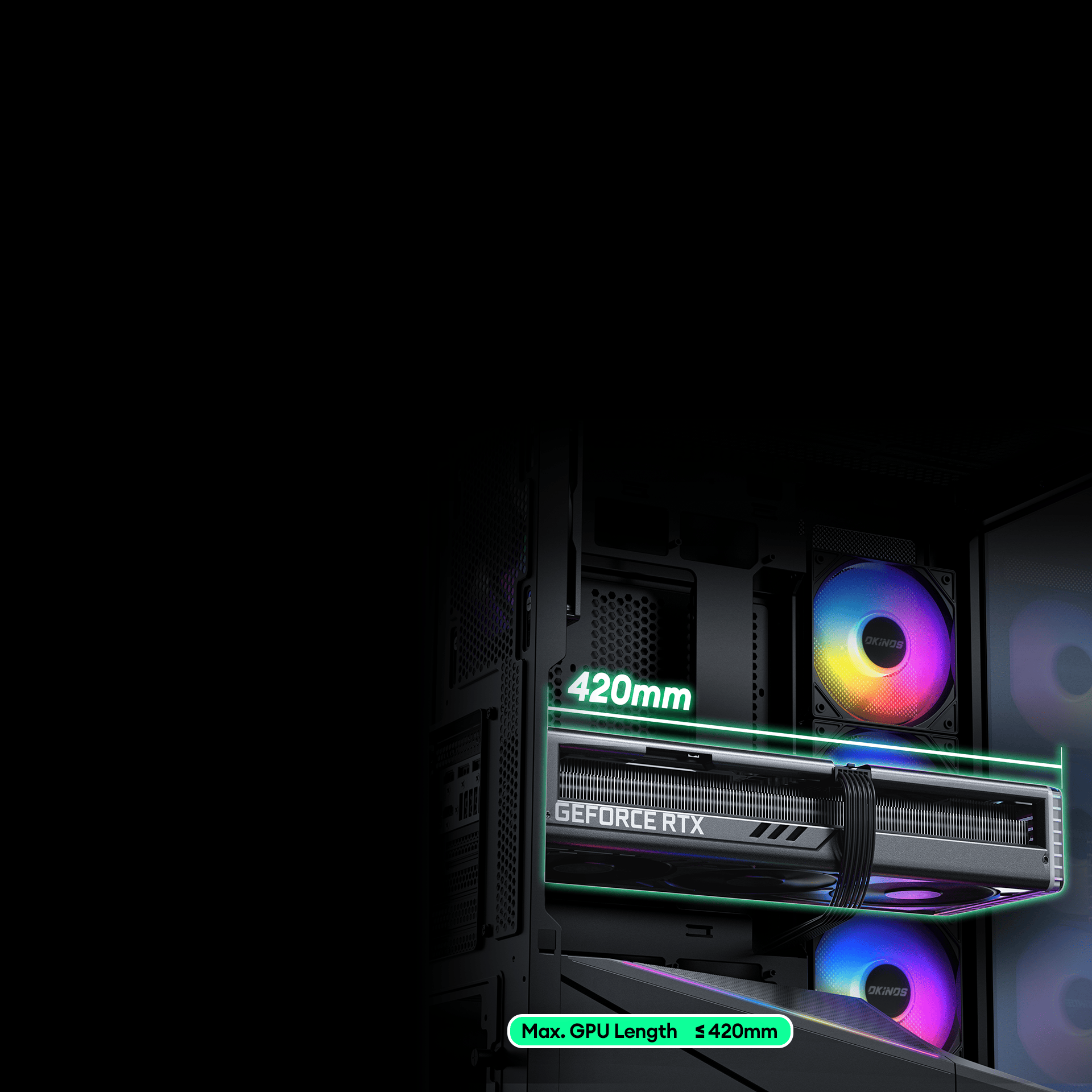

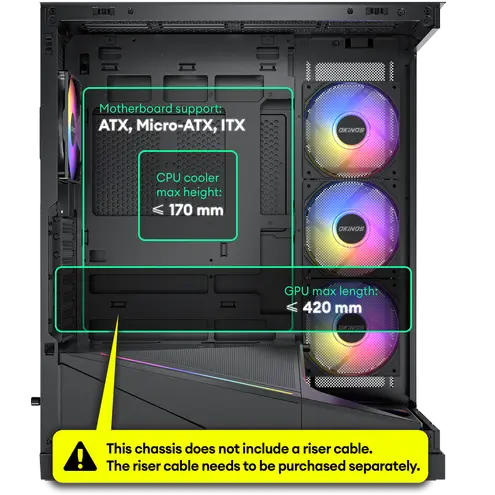

GPU Compatibility
Supports the up-to-date 40 Series GPUs and high-end PC components.
CPU Air Cooling Compatibility
Support most of the high-end air coolers.

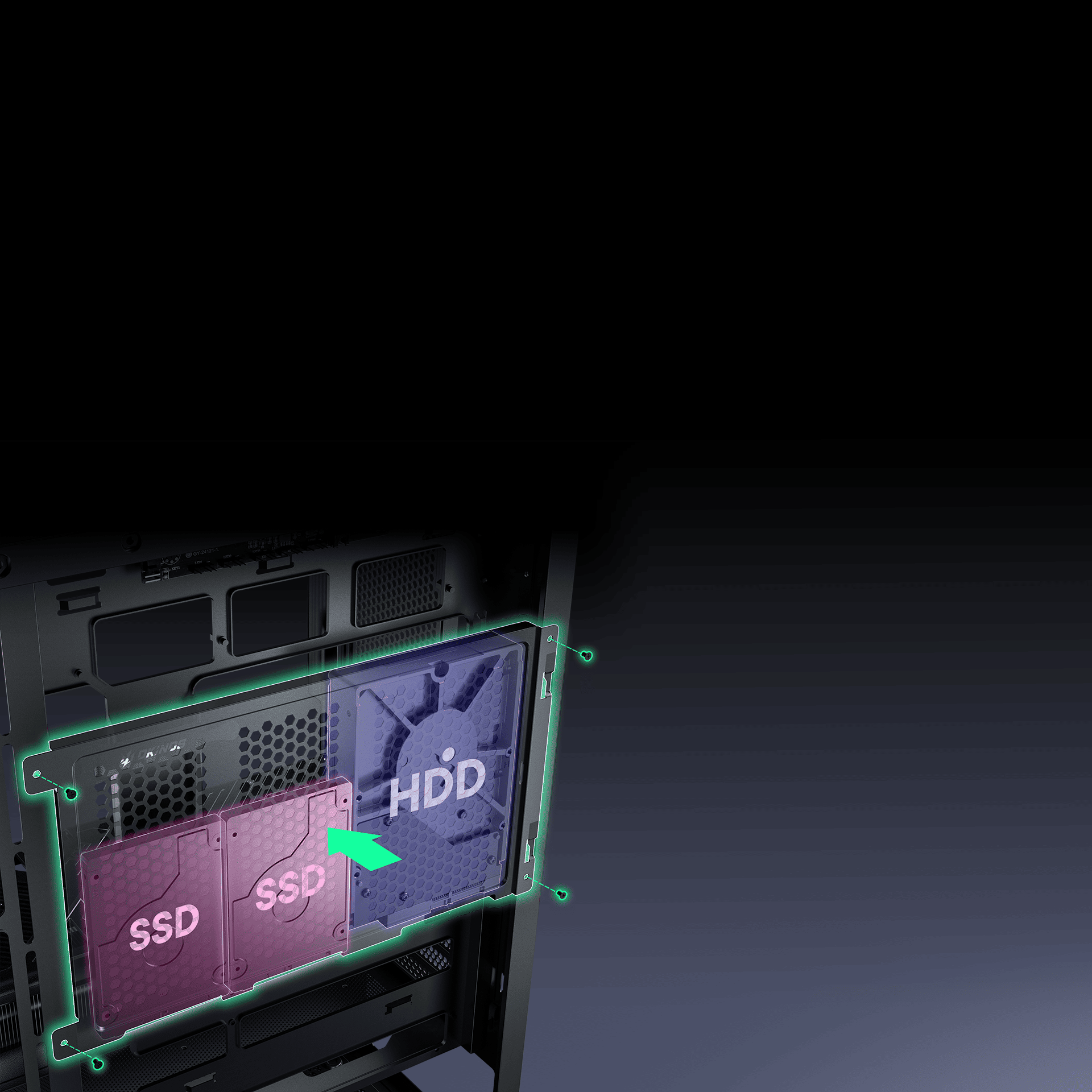

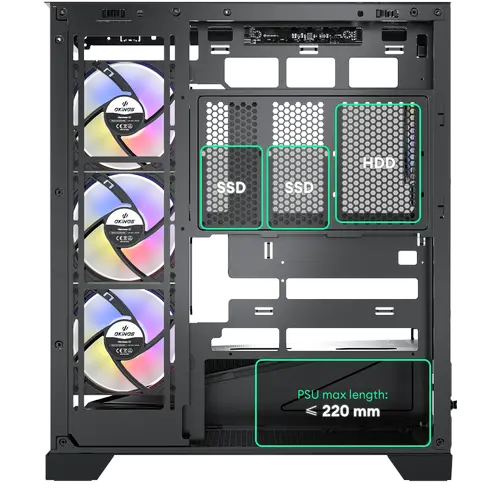

Storage Installation Guide
Before installing the SSD or HDD inside the bracket, first remove the 4 screws on the bracket. After installation, reattach the 4 screws to secure the storage.
Experience Ultimate Cooling Solution
Compatibility

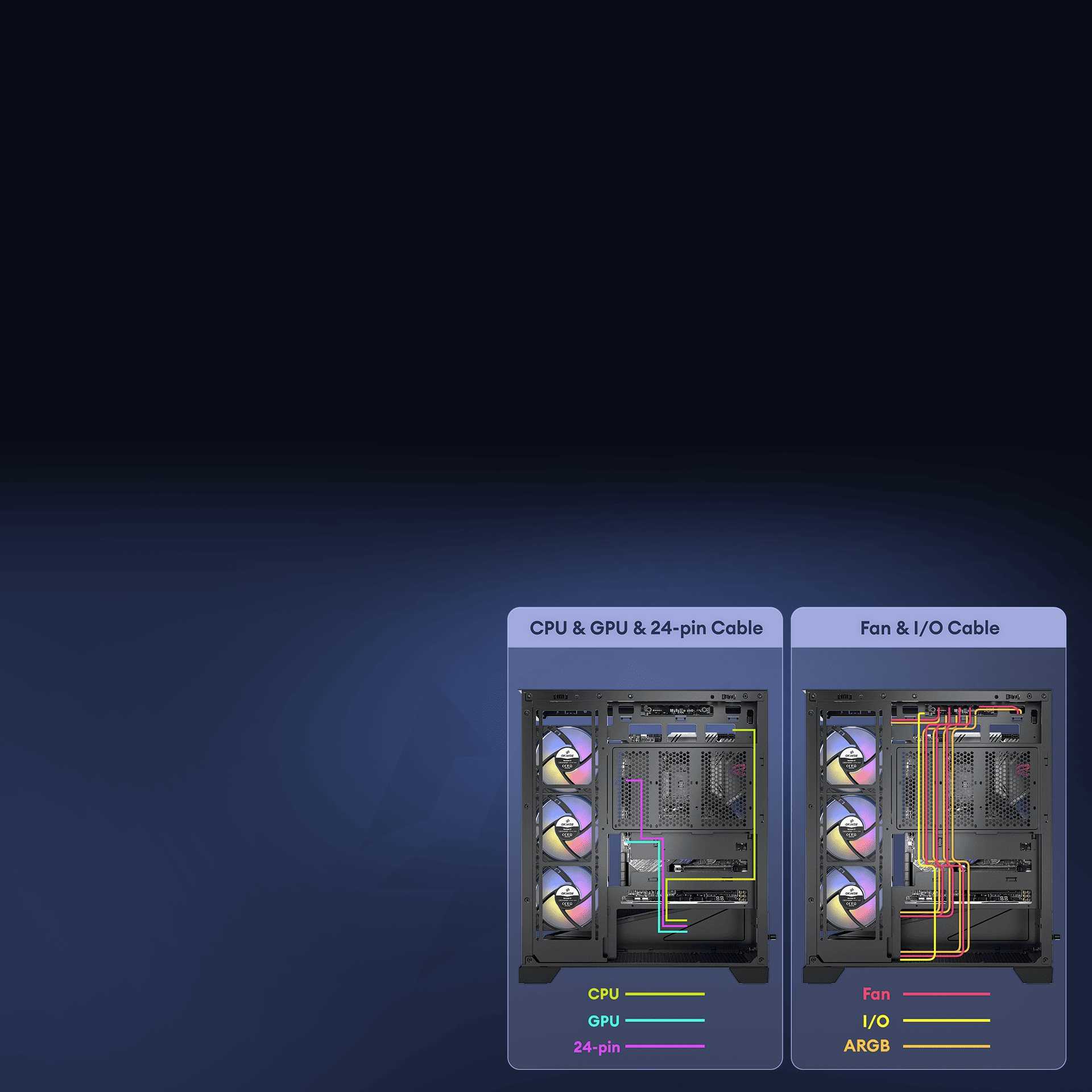

Cable Management Diagram
41mm of cable management space enables easier, cleaner wiring.

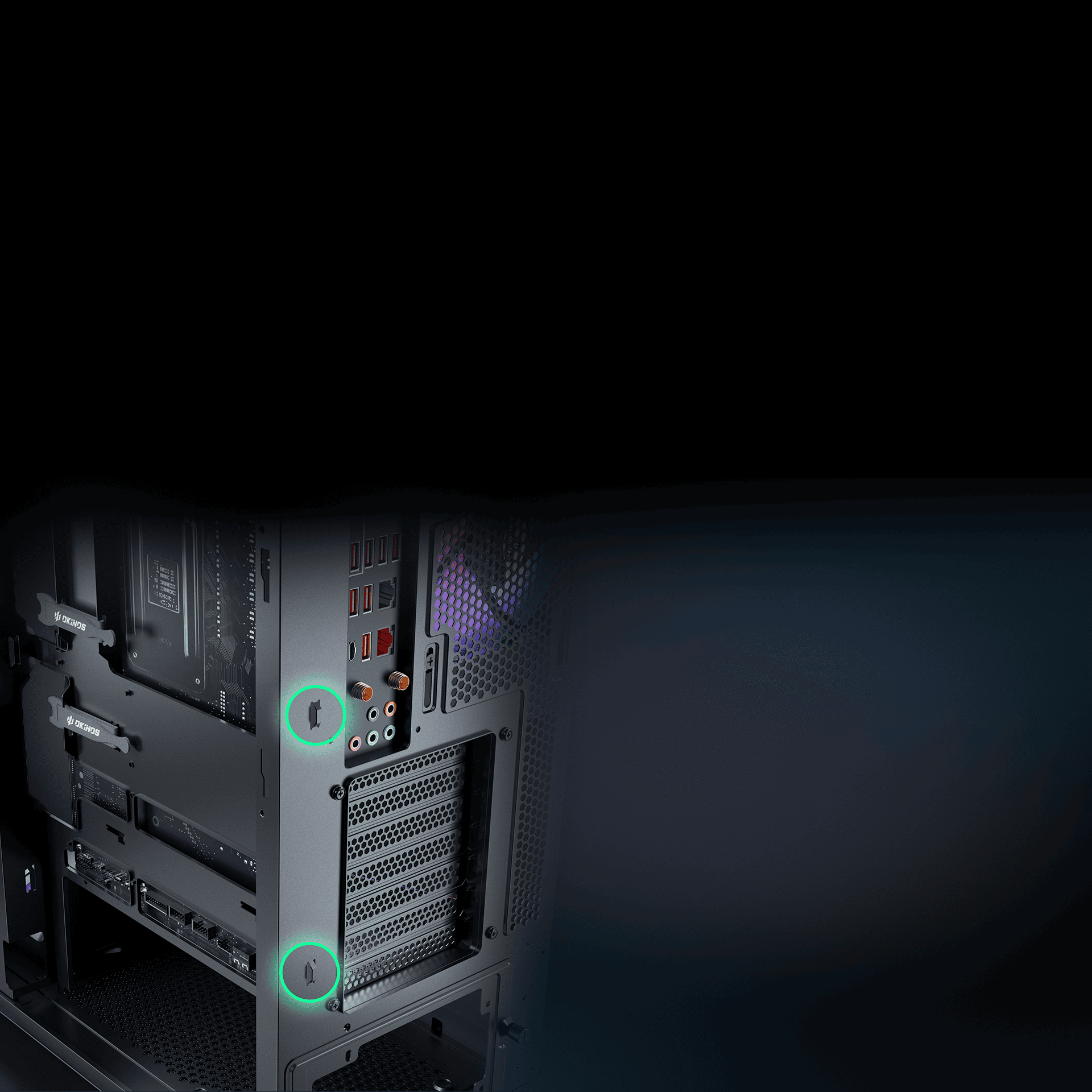

Bridge Design
For the rear IO cable routing.
Specifications
Model Name
Aqua 9 Black ARGB
Model No
UPC # / EAN #
Dimensions
453 x 232 x 518mm (DWH)
Form Factor
Mid Tower
Materials
Glass+ Steel + Plastic
Mainboard Support
ATX, Micro-ATX, ITX
Front Access & Controls
Power, LED Control Button, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps)x 1, Headphone/Mic Combo Jack
Side Panel
4mm Tempered glass
Drive Bays
Expansion Slots
7
3.5″ /2.5″
1
2.5″
2

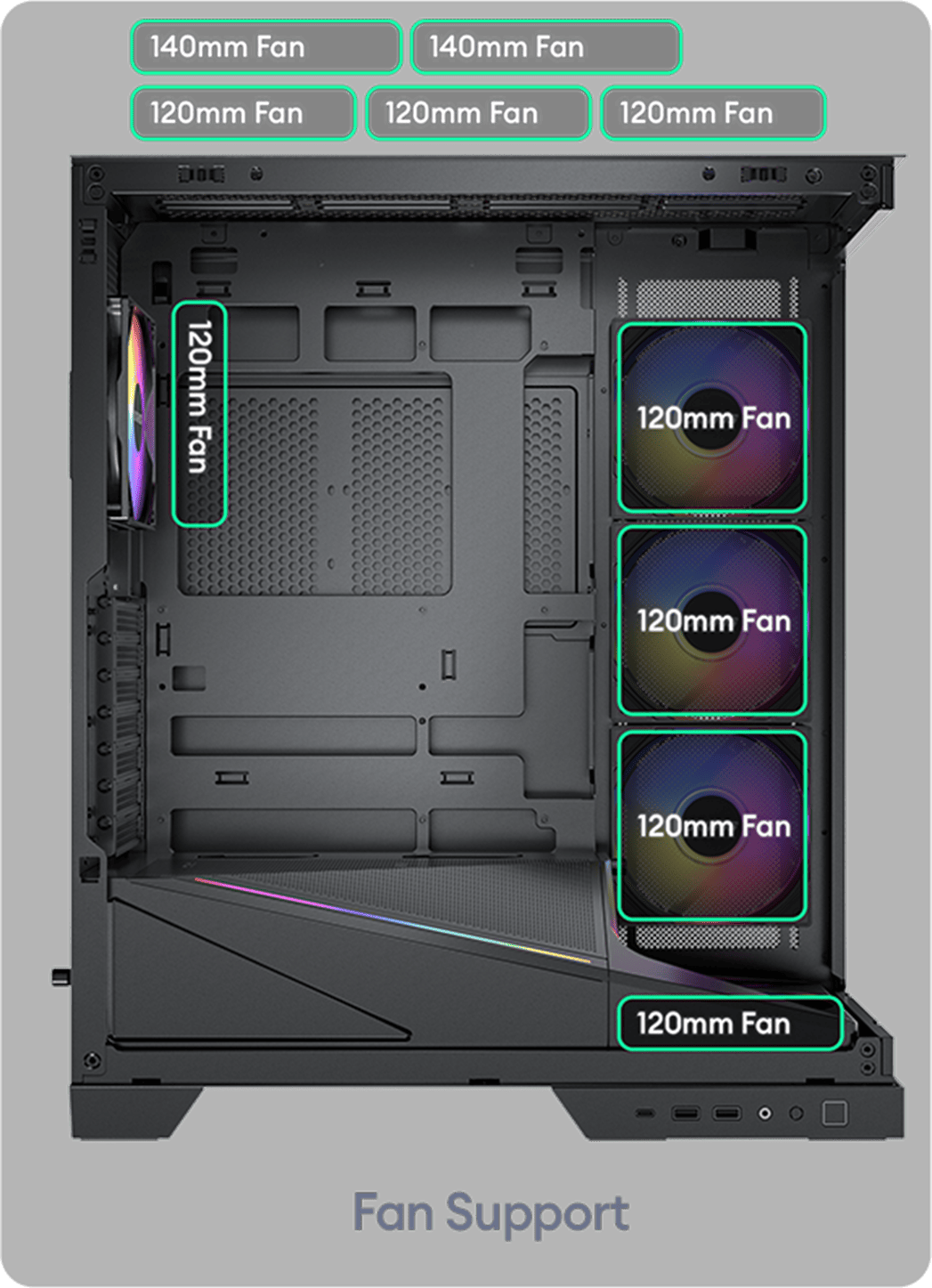

Fan
Top
3 x 120mm/2 x 140mm
Right Hand Side
3 x 120mm
Bottom
1 x 120mm
Rear
1 x 120mm
Included Fan(s)
3 x 120 ARGB PWM reverse fans on right side + 1 x 120mm ARGB PWM reverse fan on bottom + 1 x 120mm ARGB PWM fan in rear + 5-port ARGB PWM fan controller

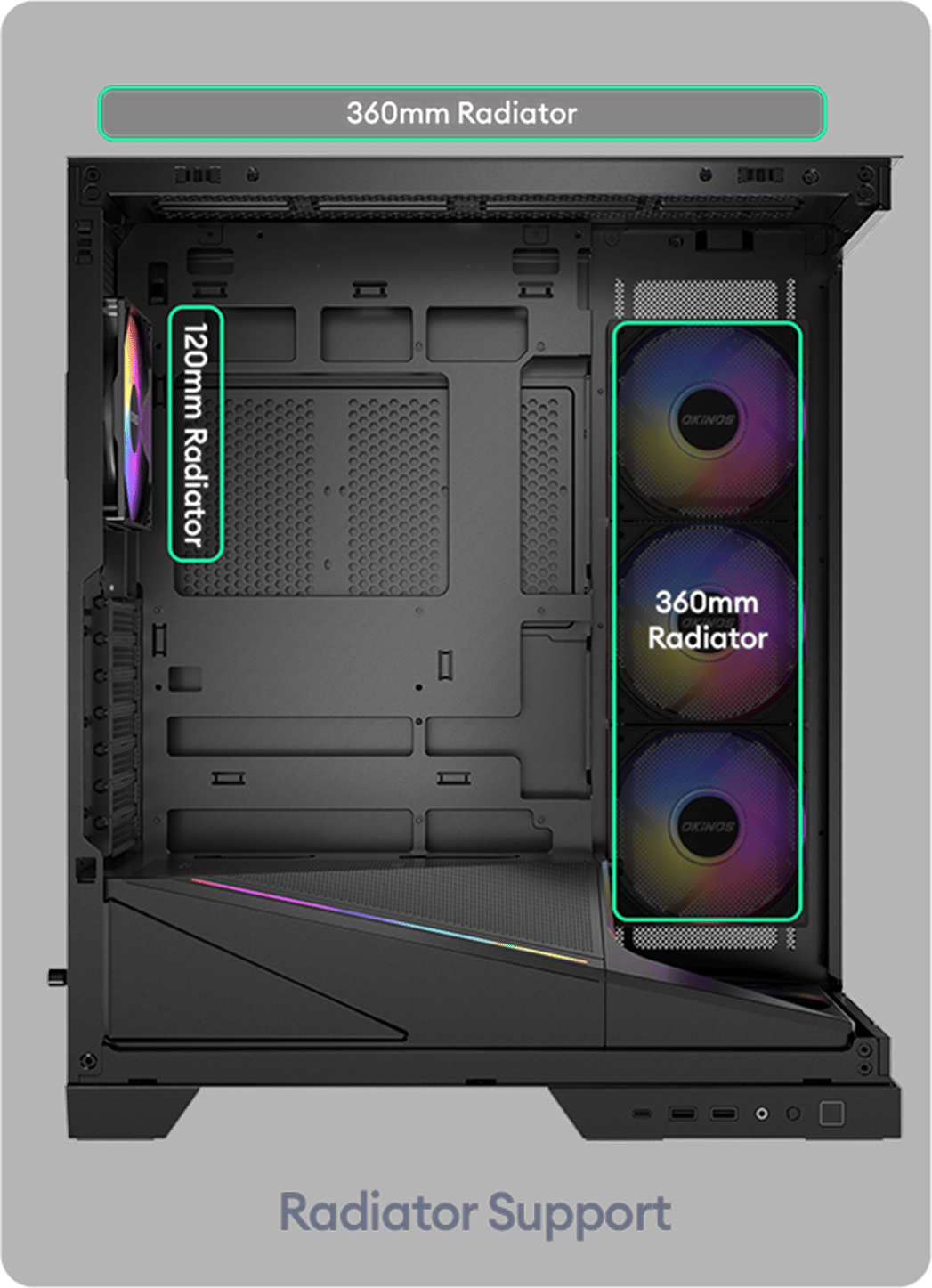

Radiator Support
Top
360/280/240/140/120mm
Right Hand Side
360/240/120mm
Rear
120mm
Clearance
Max GPU Length
≤420mm
Max CPU Cooler Height
≤170mm
Max PSU Length
≤ 220mm
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
9.2 Kg
Gross Weight
EPE : 11.24 Kg / PS : 10.87 Kg
