Exquisite Steel Mesh
1.2mm, Finer grid compare to 3.0mm, prevent dust intake and provide aesthetic looks.

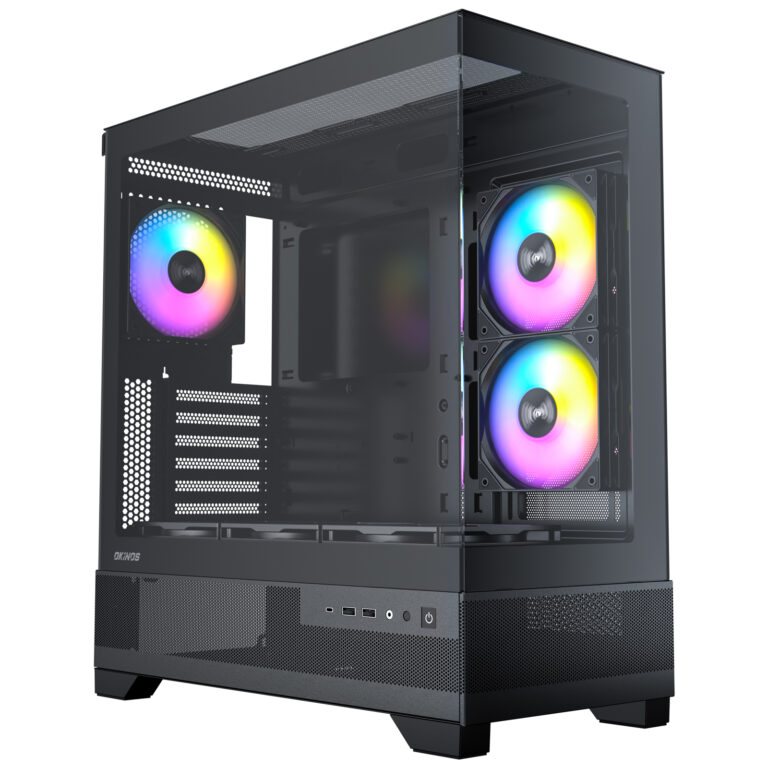

Aqua 7 Black ARGB
Mid-Tower Gaming PC Case
Massive Air Intake
No Air Intake
No Air Intake
Vertical airflow channel, with 1.2mm mesh openings and combined with 3*H12 Reversed Fan.
Absence of mesh openings at the bottom led to no vertical air intake.
Powerful Cooling And Easy Management
Hurricane 120mm Reversed PWM ARGB Fan
Developed only for Aesthetics Panoramic 270° Wide Angle View Case
Provide 53.38 CFM Through 9 Extended Arc Blade and Trio-Segmented Frame Design. Maintain 27.5 dbA.
Mutli-Function Zone
USB ports are primarily for data transfer and not recommended for power charging, as most motherboards USB ports support a maximum voltage of 5V.
Panoramic Design with Diamond Styled Cut
Perfect Graphics Card Compatibility And Ample Cooling Space
Graphics Card Support Up to 4090 in length Even when side H12R x2 were installed(Graphics Card Length will be Reduced to 270mm when AIO is Installed at Side Panel)
7-Slot PCIe Configuration
Aqua7 pcie brackets feature 7 independent pcie brackets, each secured with 7 screws, ensuring firm stability and eliminating the common issue of unevenness.
Advanced quick-release panels
Facilitated easy removal of the front and side glass without the need for screws.
Easily Removable Drive Tray And PSU EVA Shock Absorbing
Easily removable drive tray
Compatibility
Experience Ultimate Cooling Solution
Accommodate 360mm radiator at the top and 240mm radiator on the side simultaneously
Specifications
Model Name
Aqua 7 Black ARGB
Model Number
OKICC-AQUA7-ATXB-H6BA
EAN
4897121940850
Dimensions
436 x 210 x 486mm(DWH)
Form Factor
Mid Tower
Materials
Steel + Glass
Mainboard Support
ATX, Micro-ATX, ITX
Front Access & Controls
Power, LED Control Button, USB 3.0 x 2, Type-C 3.2 Gen 2 x 1, Headphone/Mic Combo Jack
Side Panel
4mm Tempered Glass
Drive Bays
Expansion Slots
7
3.5″ /2.5″
2/1
2.5″
2
Fan
Top
3 x 120mm / 2 x 140mm
Right Hand Side
2 x 120mm
Power Supply Shroud
3 x 120mm
Rear
1 x 120mm
Included Fan(s)
3 x 120mm PWM ARGB reverse fans on PSU shroud + 2 x 120mm PWM ARGB reverse fans on right side + 1 x 120mm PWM ARGB fan in rear
Radiator Support
Top
120/140/240/280/360mm
Right Hand Side
120/240mm
Clearance
Max GPU Length
≤ 410mm
≤ 270mm(When water cooling is installed on the right side)
Max CPU Cooler Height
≤ 160mm
Max PSU Length
(Include cable)≤ 210mm(With HDD)
(Not include cable)≤ 270mm(Without HDD)
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
7.1 Kg
Gross Weight
8.4 Kg
Warranty
1 Year
Gallery
