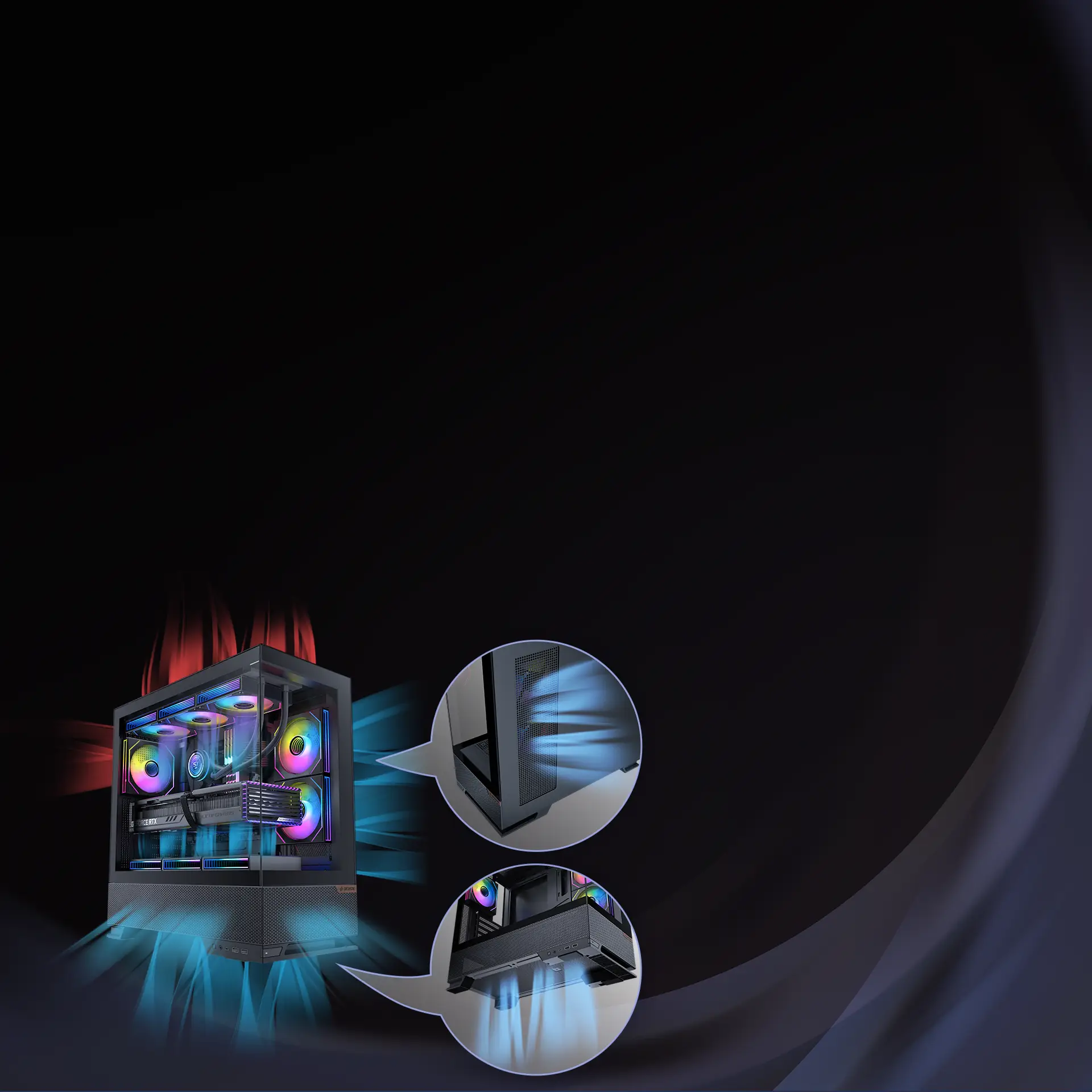

Optimized Airflow with Mesh Design
Accommodates up to 9 fans to deliver powerful airflow and maintain a stable system environment. Multi-zone mesh vents maximize cooling efficiency and airflow performance.
Mutli-Function Zone
Introducing Feature-Rich Multi-Functional Zone for Readily Accessable User-Computer Interaction.

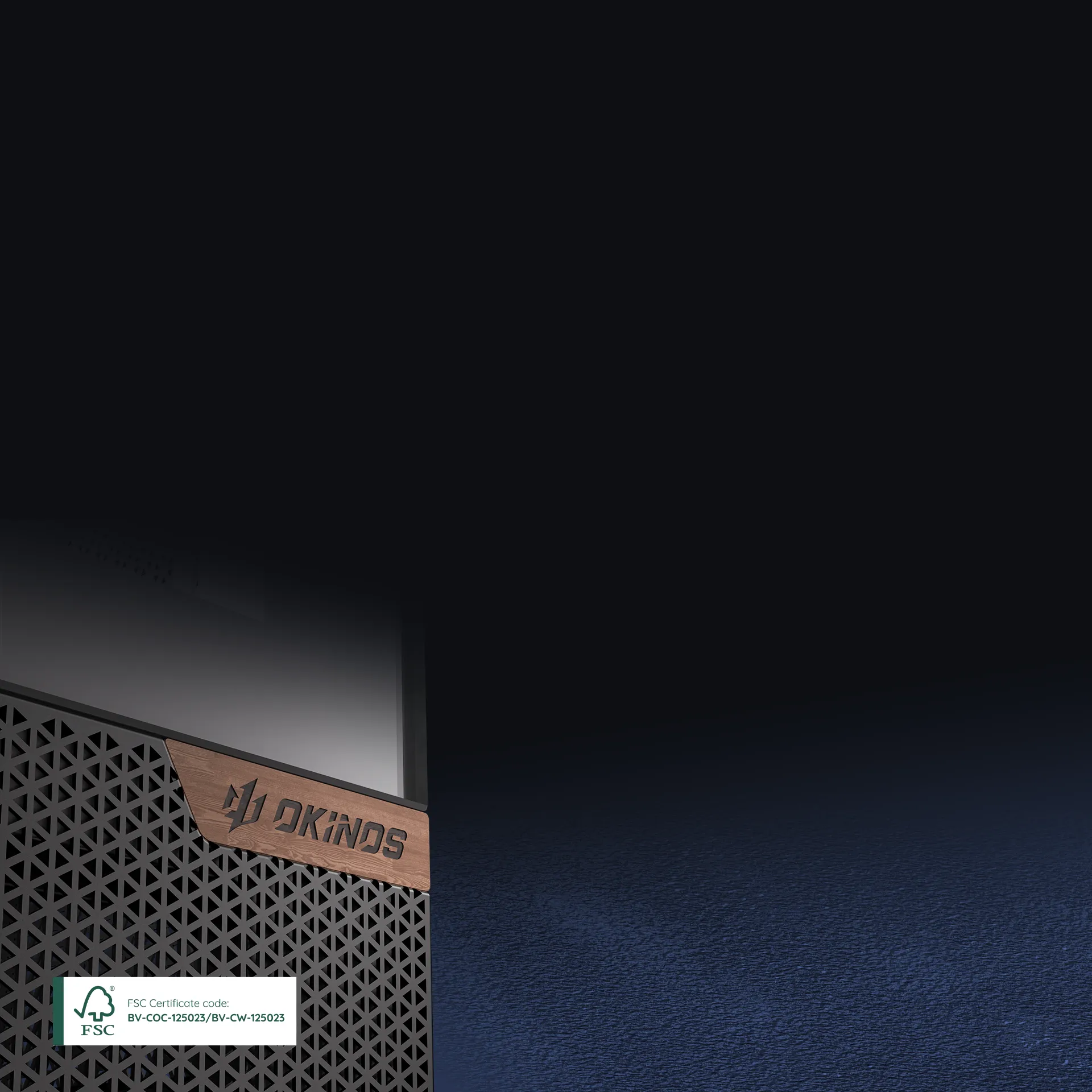

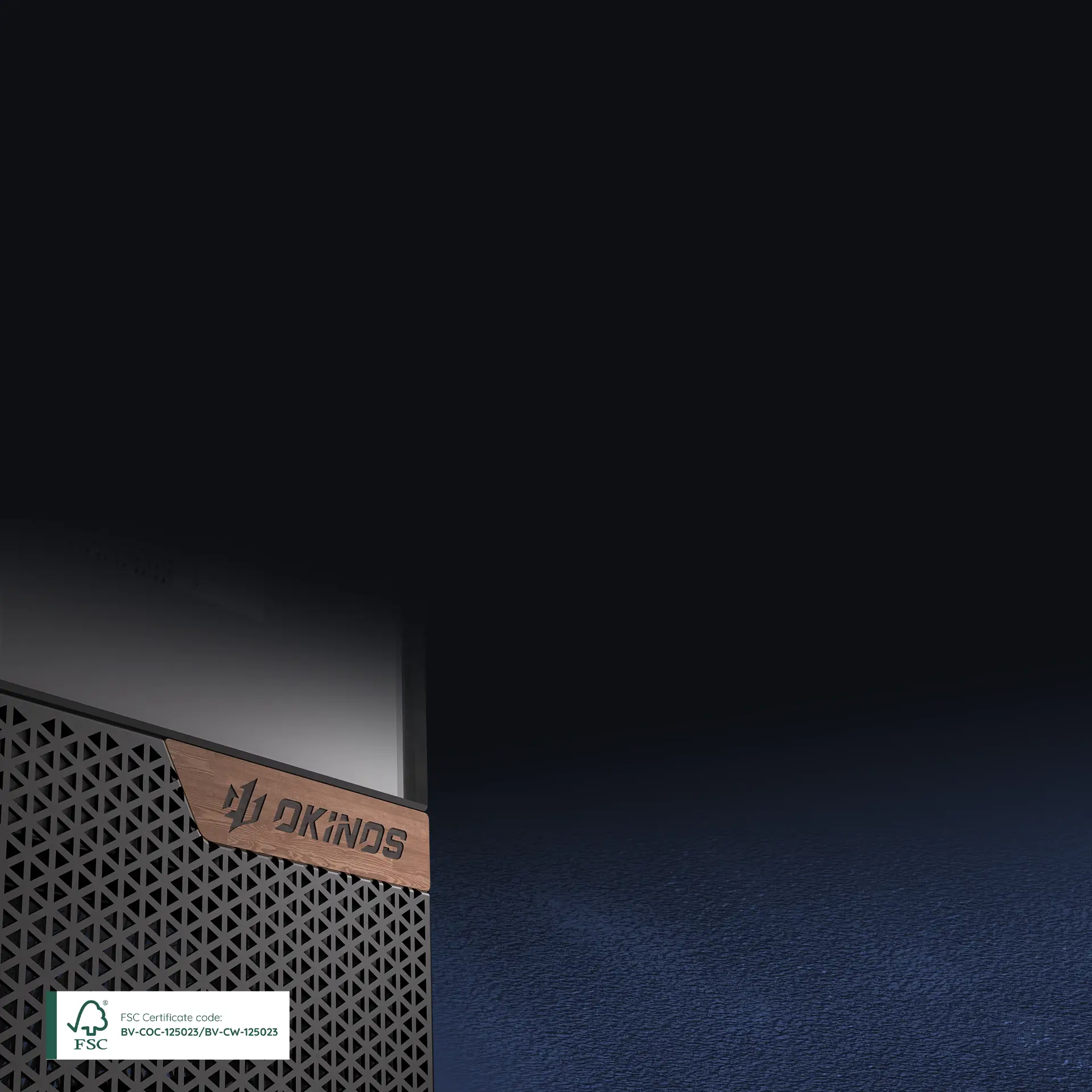

Wooden Logo Badge
FSC-certified North American black walnut ensures premium texture and eco-friendly quality.

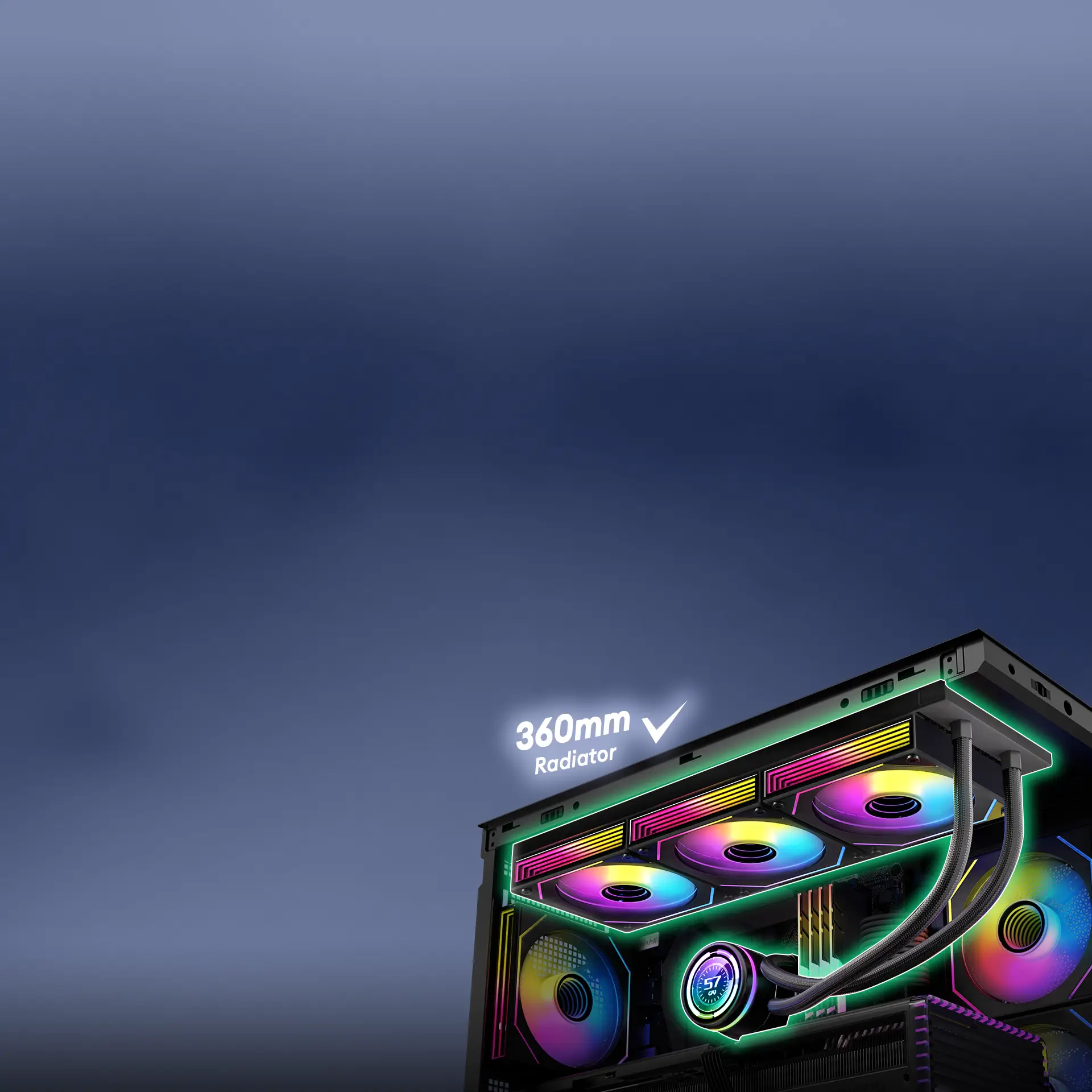

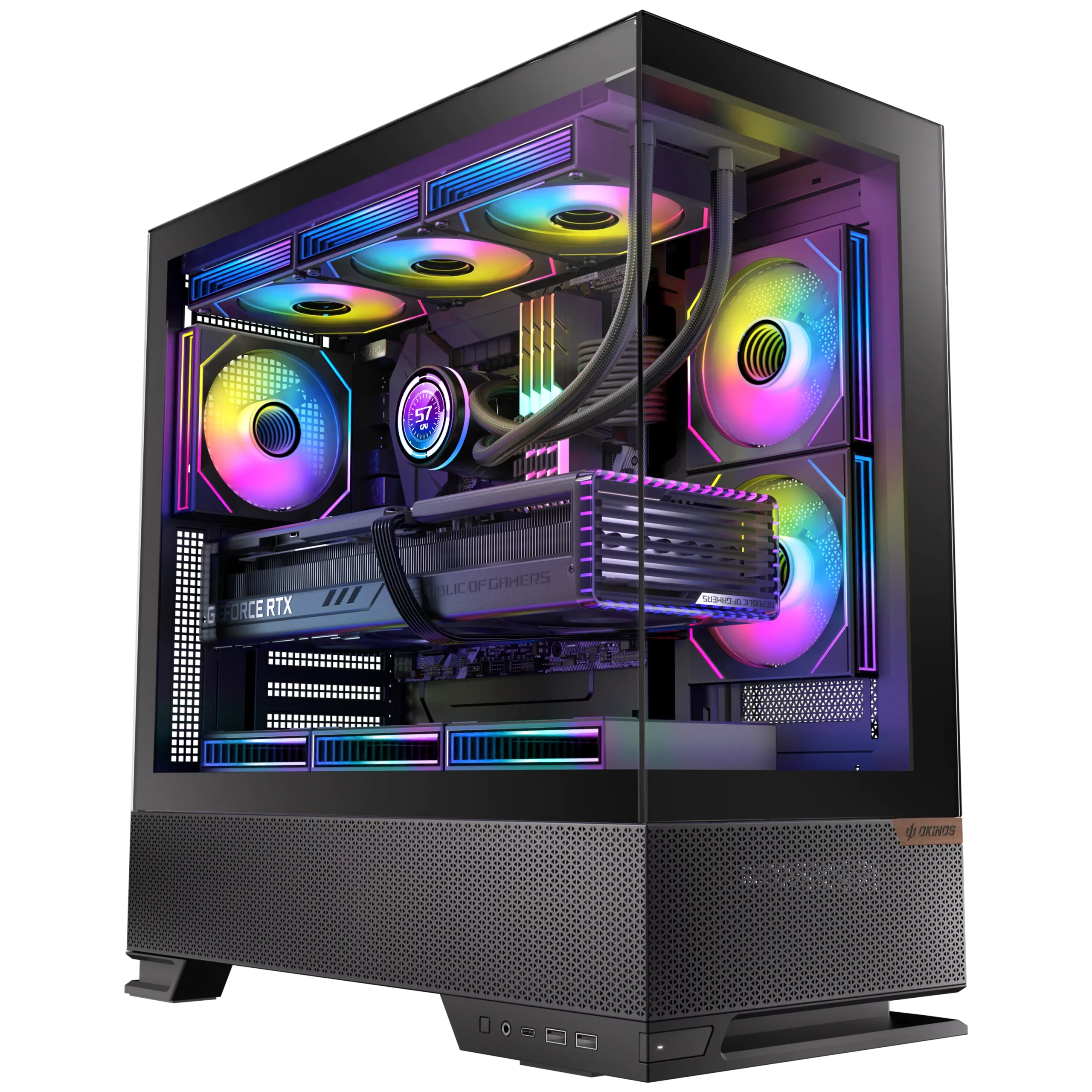

Compatible with 360mm Radiator on Top
- Top Radiator | up to 360mm
- Side Radiator | up to 240mm
- Rear Radiator | up to 120mm (Length≤160mm)

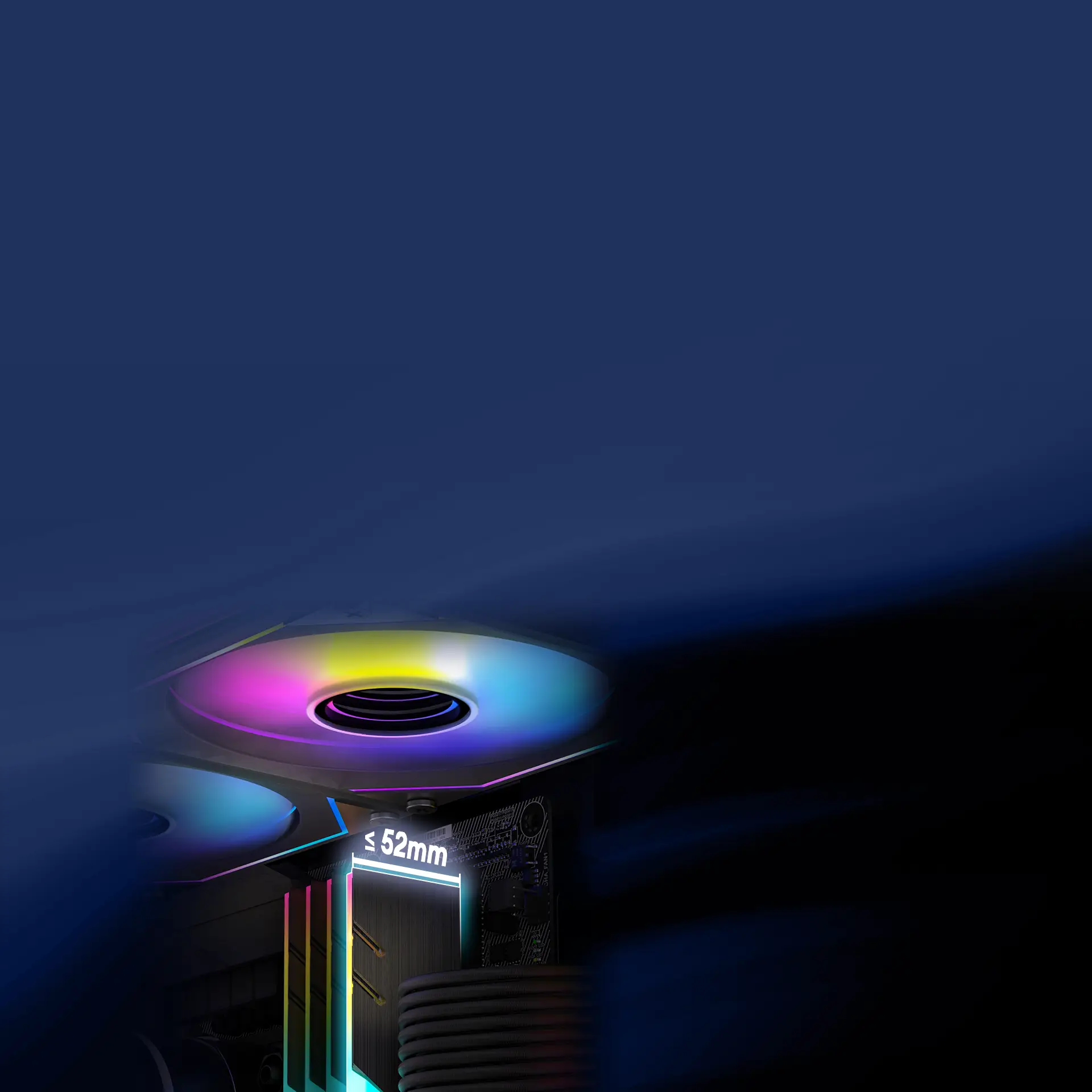

Radiator Compatibility & Installation Tips
Supports RAM clearance up to 52mm. For a hassle-free installation, install your RAM before mounting the top radiator.

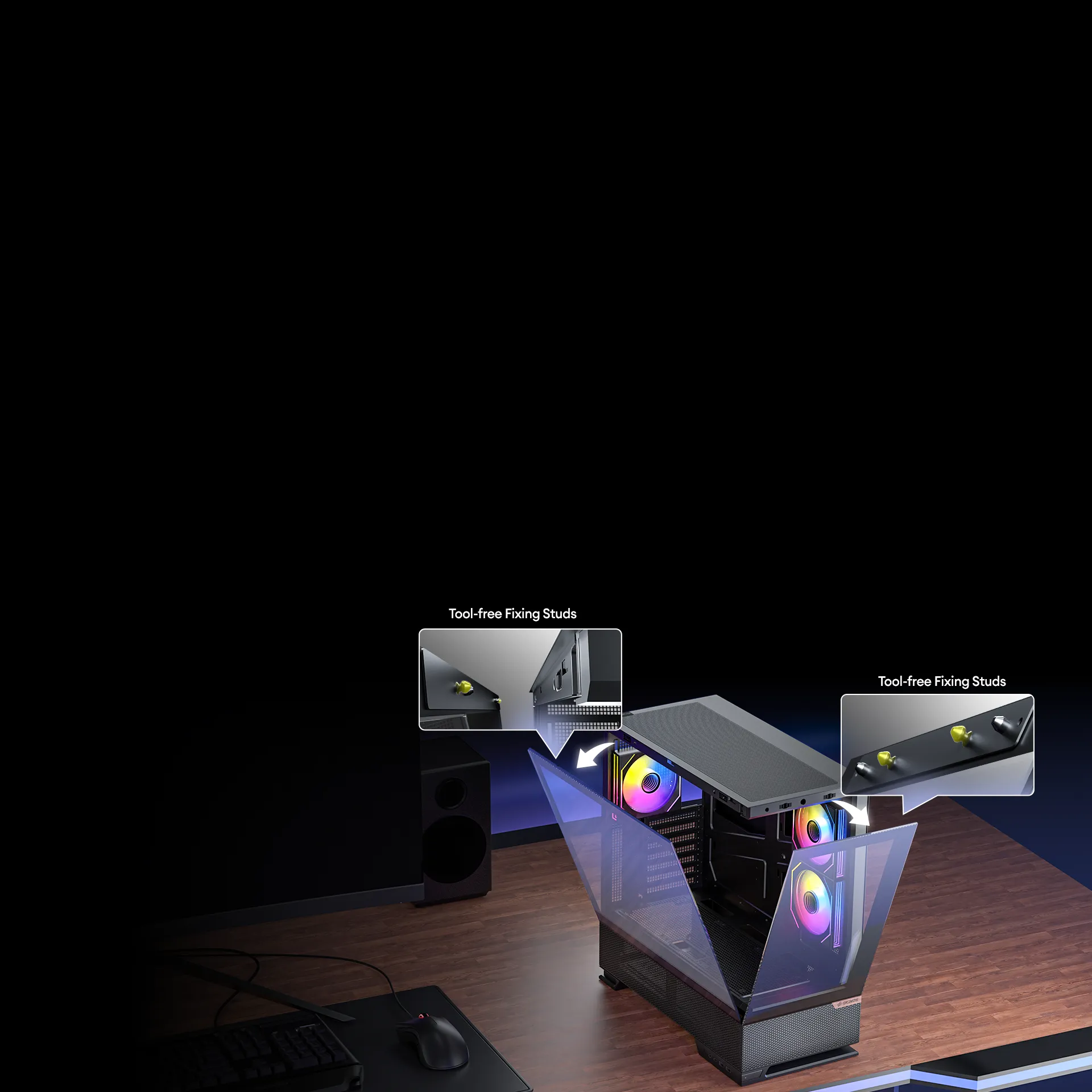

Tool-Free Panel
The front and left side panels use a stud-mount design that makes installation and removal easier while reducing the risk of glass damage.

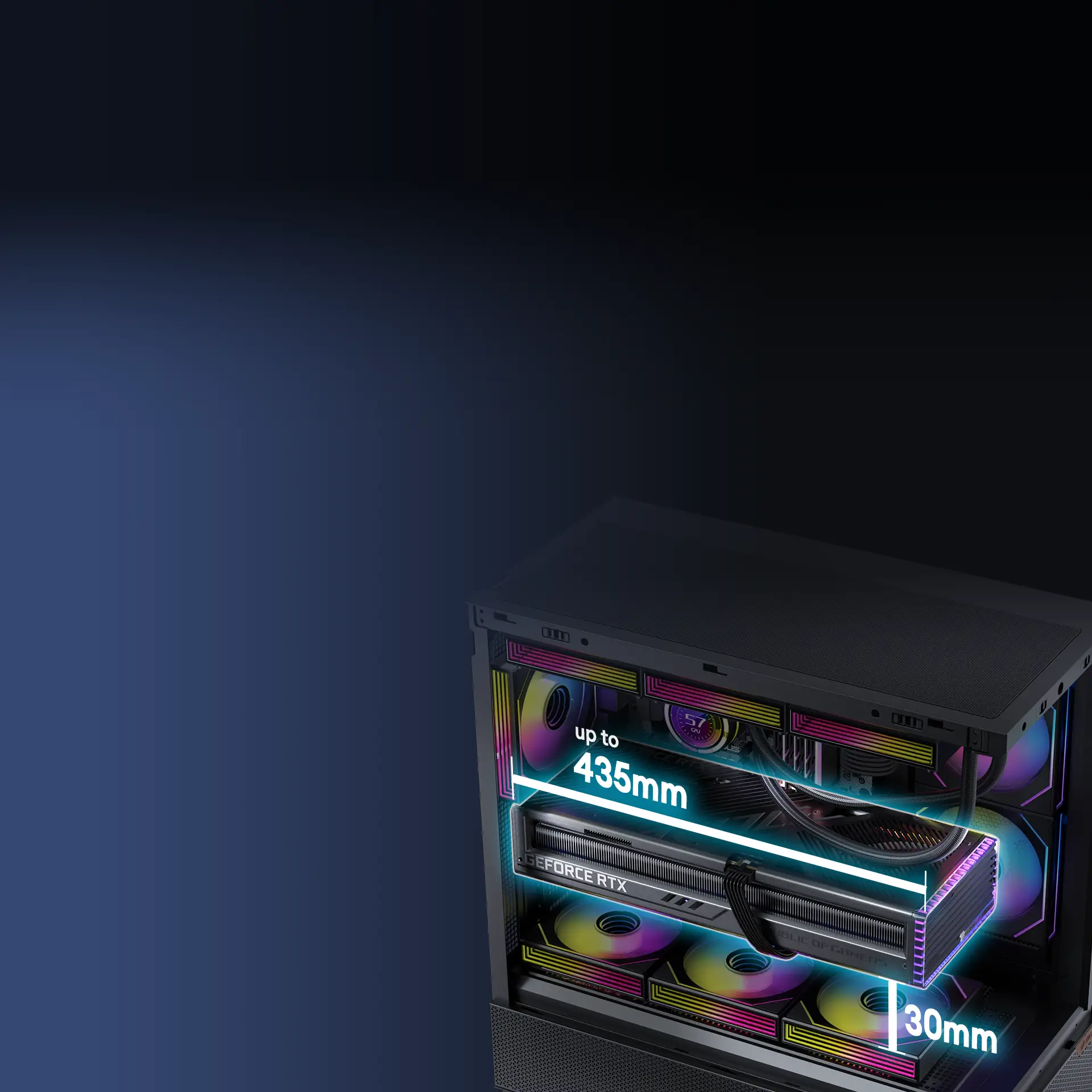

GPU Compatibility
Max. GPU Length ≤ 435mm

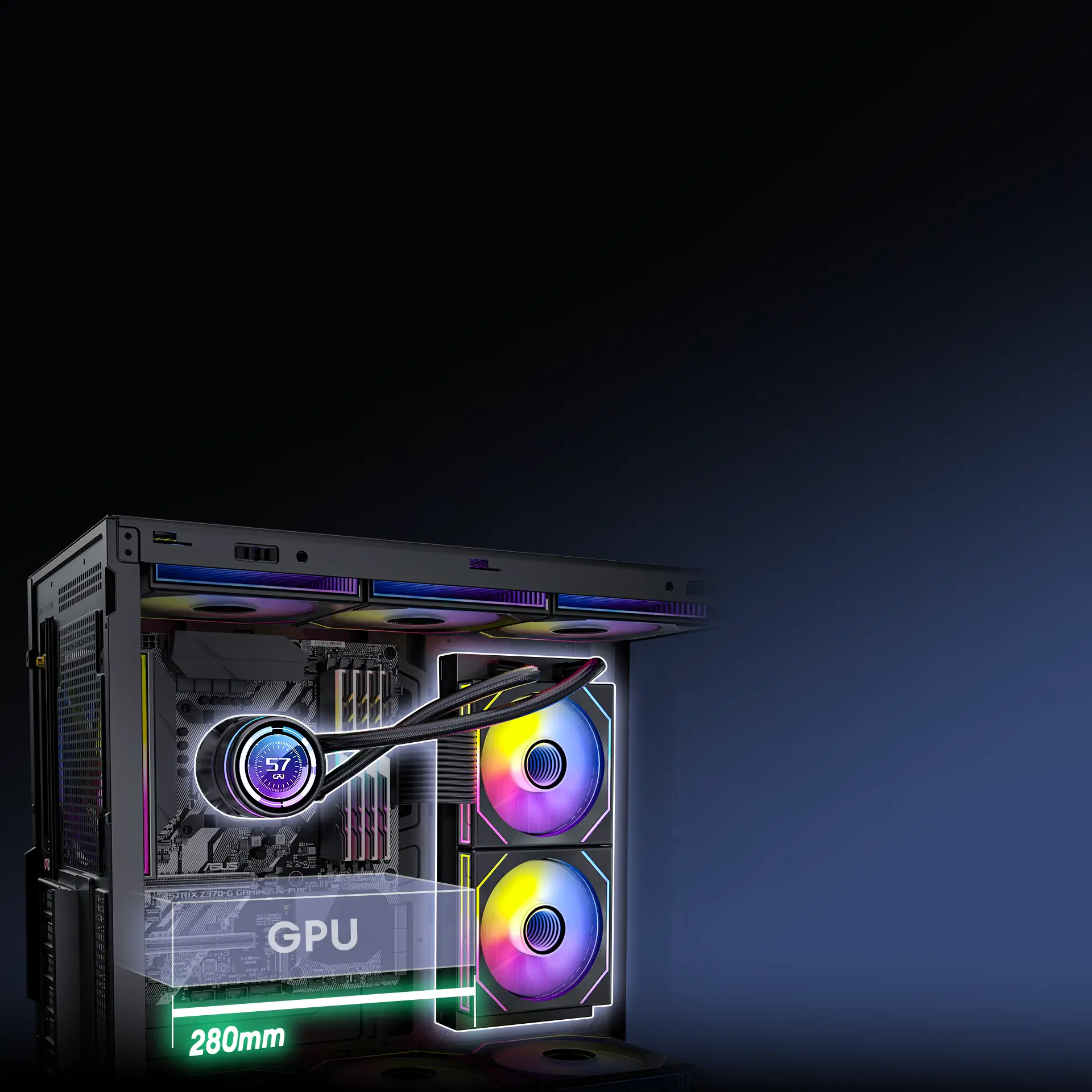

Hardware Compatibility Tips
Installing a 240mm water cooler on the right side of the chassis will interfere with graphics cards that are wider than 280mm.

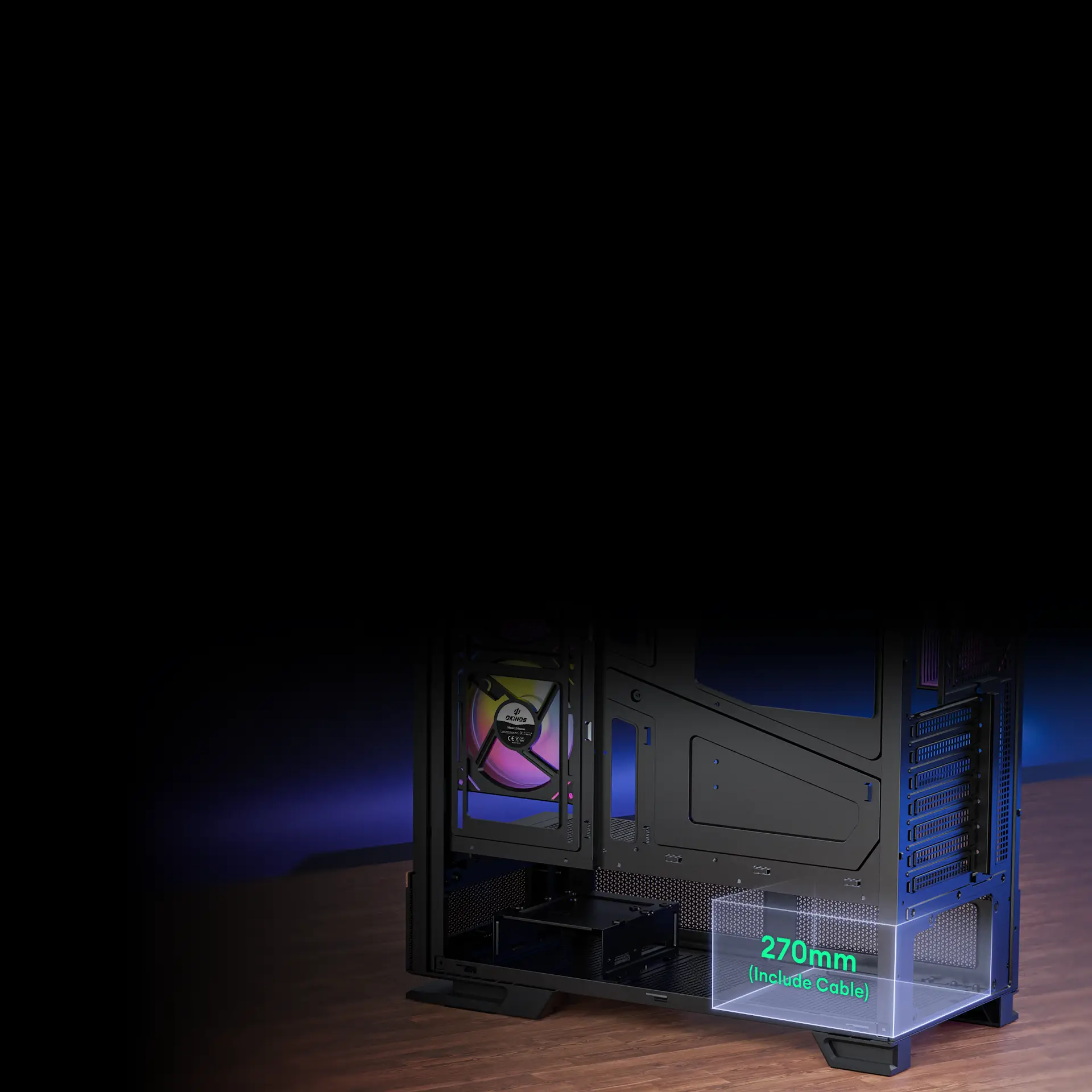

PSU Installation
Side-mounted PSU supports lengths (including cables) up to 270mm.

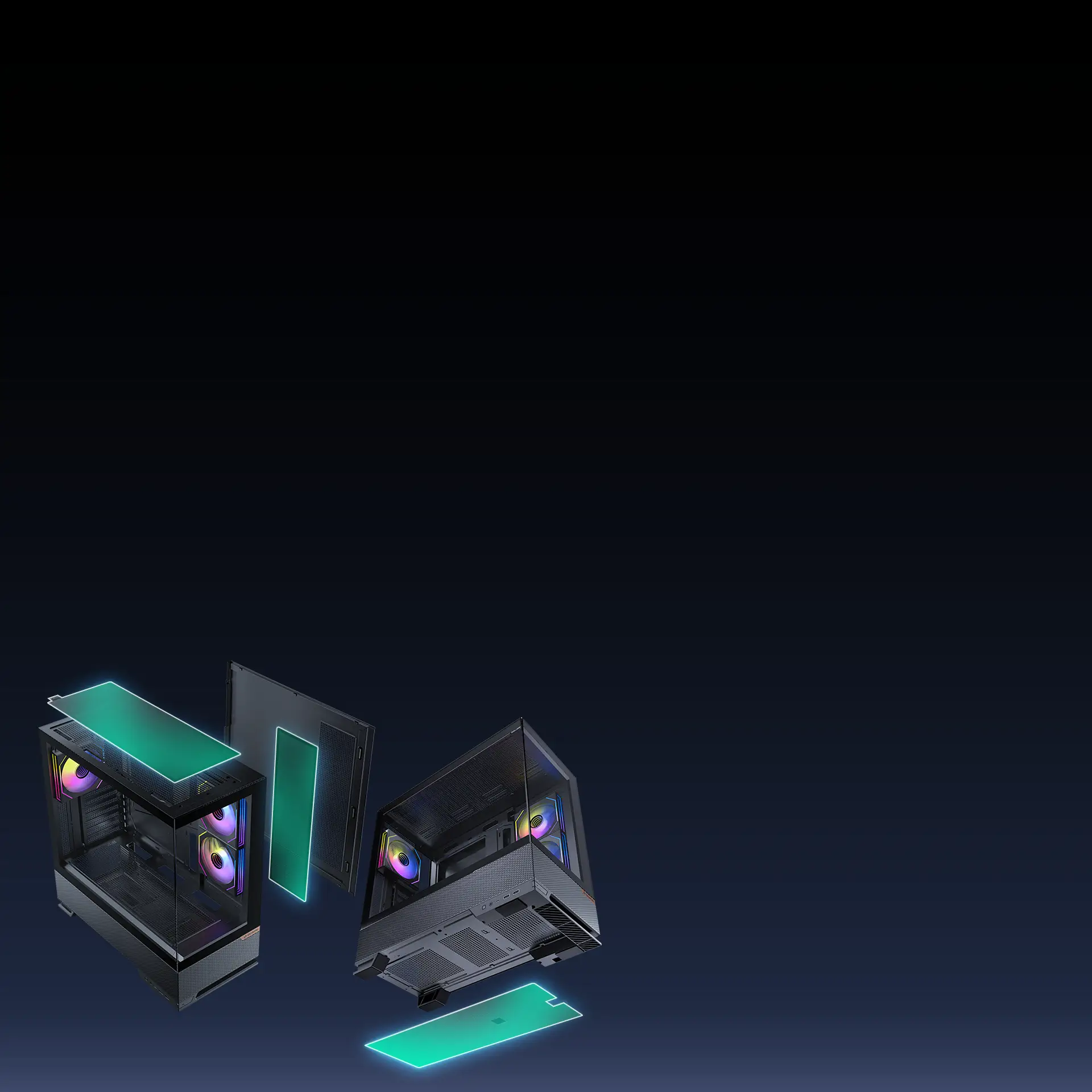

Full Dust Filter
A removable full-length filter maximizes airflow while keeping dust out, making maintenance easy and ensuring long-term protection.

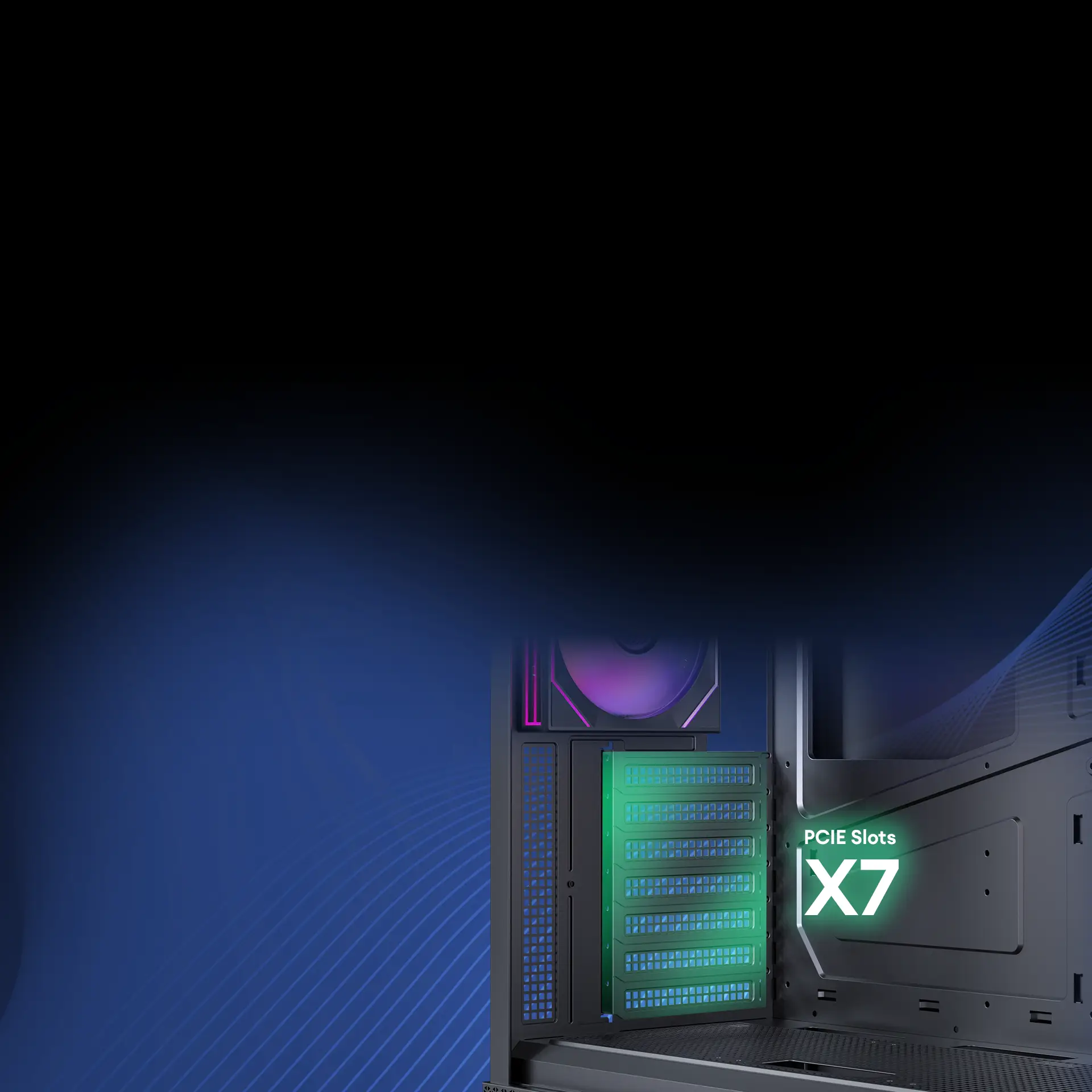

Reusable PCIe Slot
Features 7 reusable PCIe slot covers. Provides ample width to support wider RTX50 series GPU.

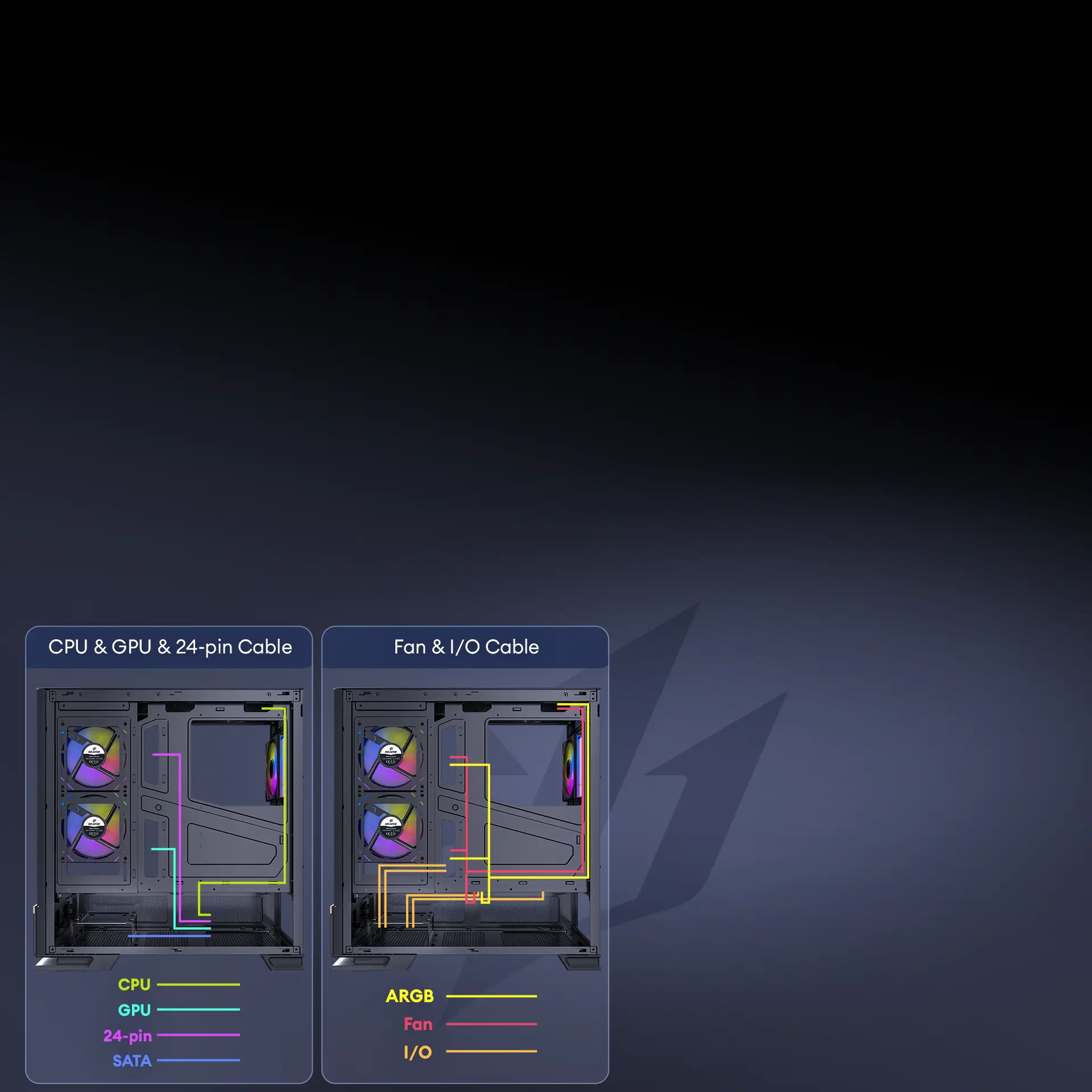

Cable Management Routing
There are 19mm depth on the right side for easy cable management.
Experience Ultimate Cooling Solution

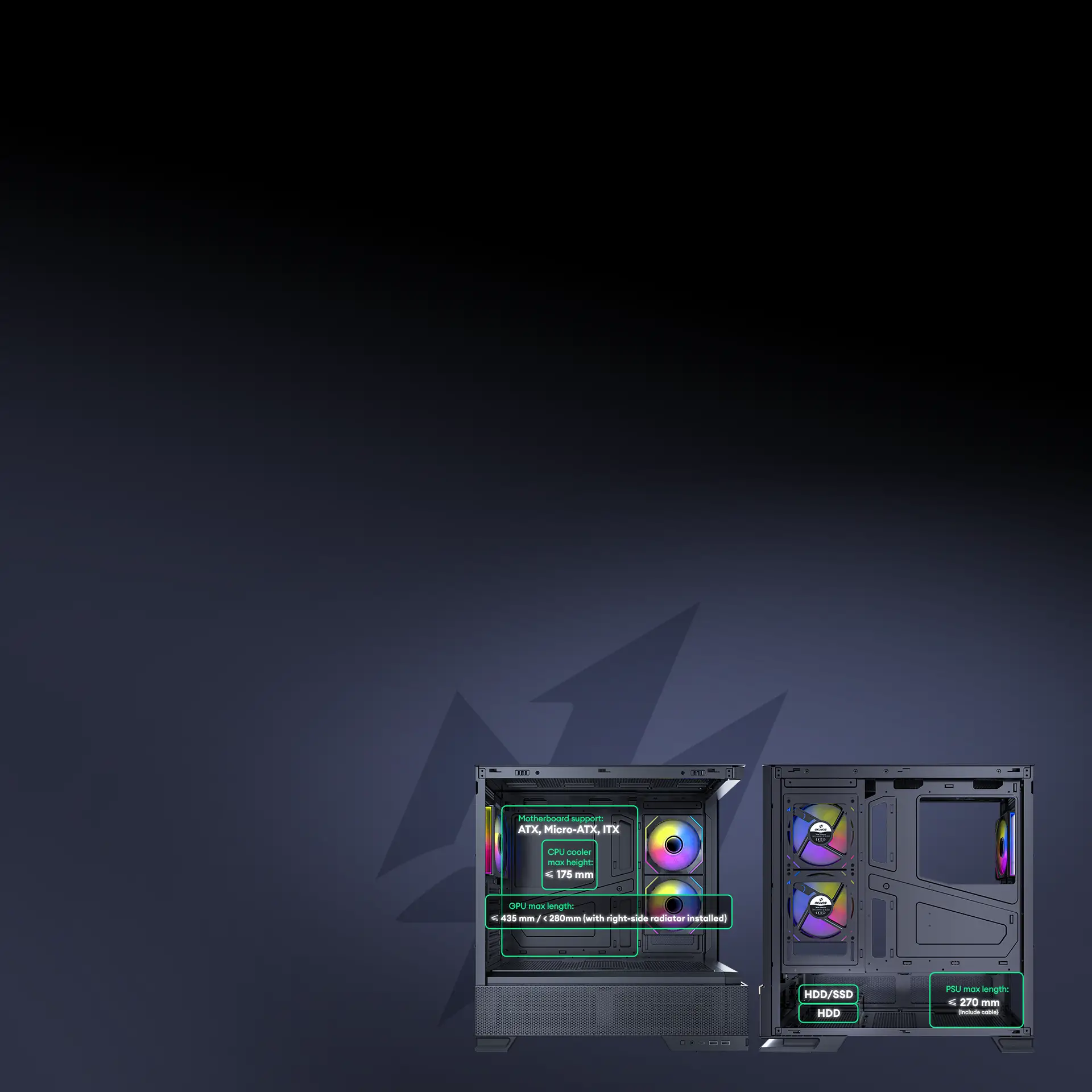

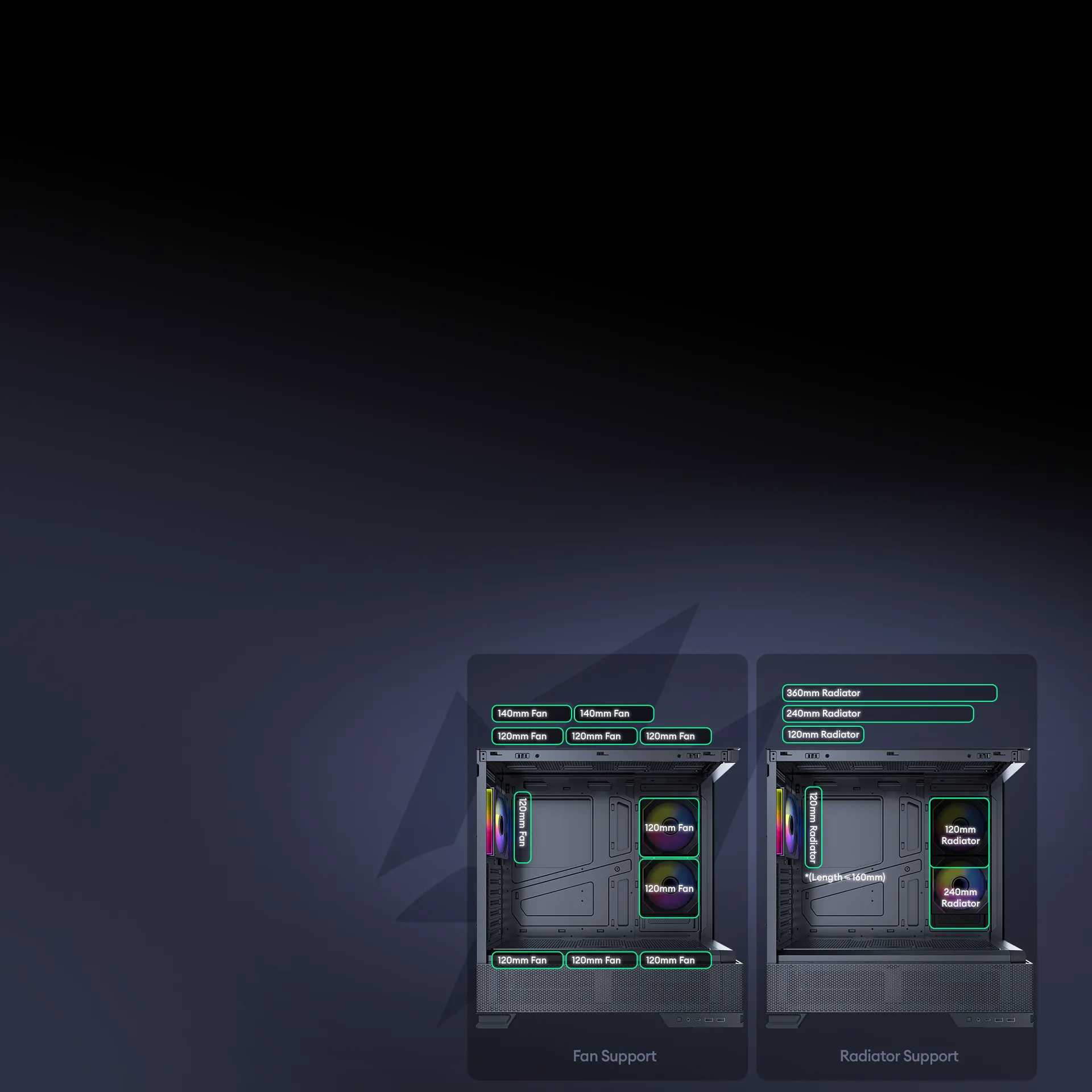

Compatibility
Specifications
Model Name
Aqua 6 infinity
Model Number
OKICC-AQ6-ATXBA
EAN
4897121941437
Dimensions
462 x 222 x 471 (DWH)
Form Factor
Mid Tower
Materials
Steel + Plastic + Wood
Mainboard Support
ATX, Micro-ATX , ITX

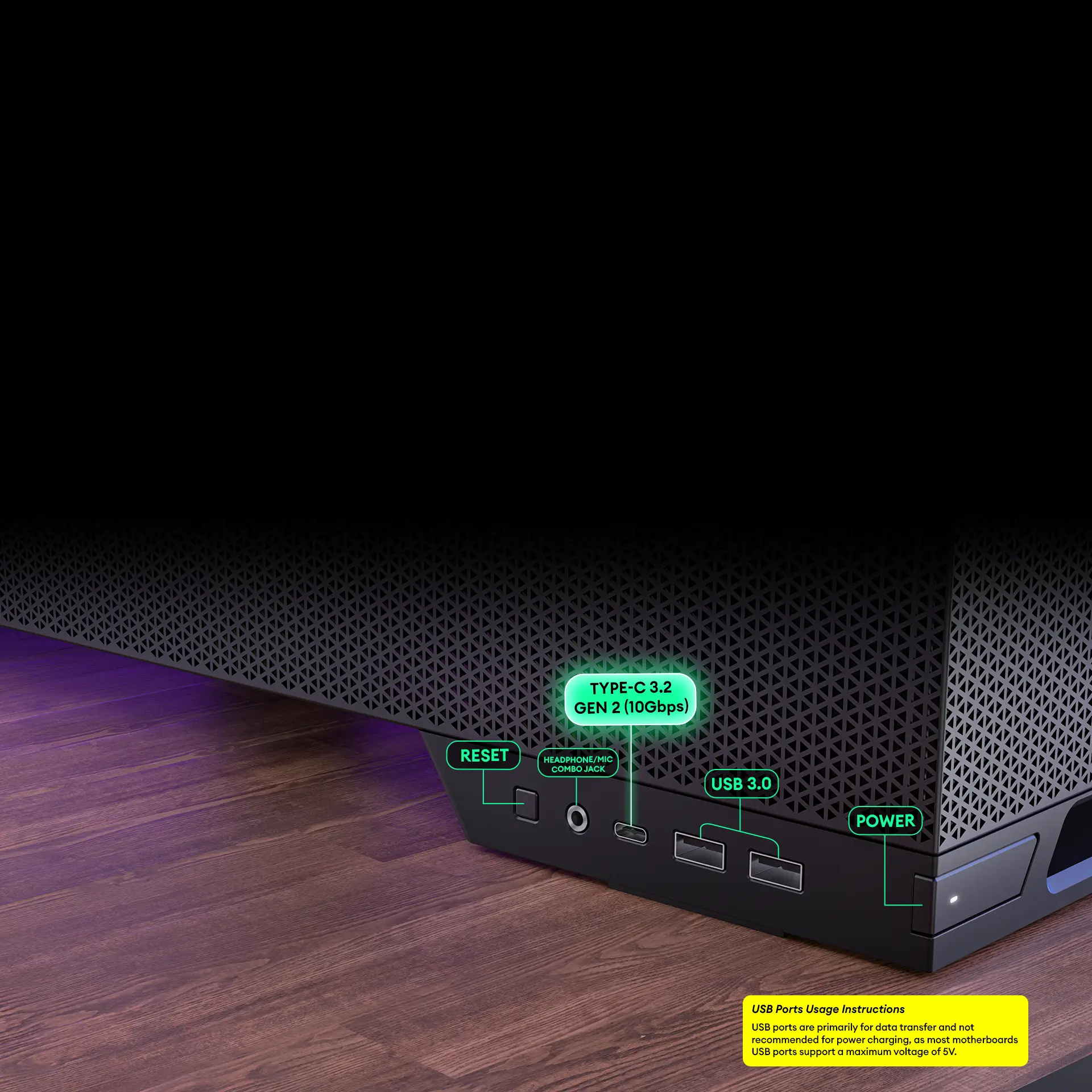

Front Access & Controls
Power, Reset, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps)x 1, Headphone/Mic Combo Jack
Side Panel
4mm Tempered Glass
Drive Bays
Expansion Slots
7
3.5″/2.5″
2/1
Fan
Top
3 x 120mm / 2 x 140mm
Right Hand Side
2 x 120mm
Power Supply Shroud
3 x 120mm
Rear
1 x 120
Included Fan(s)

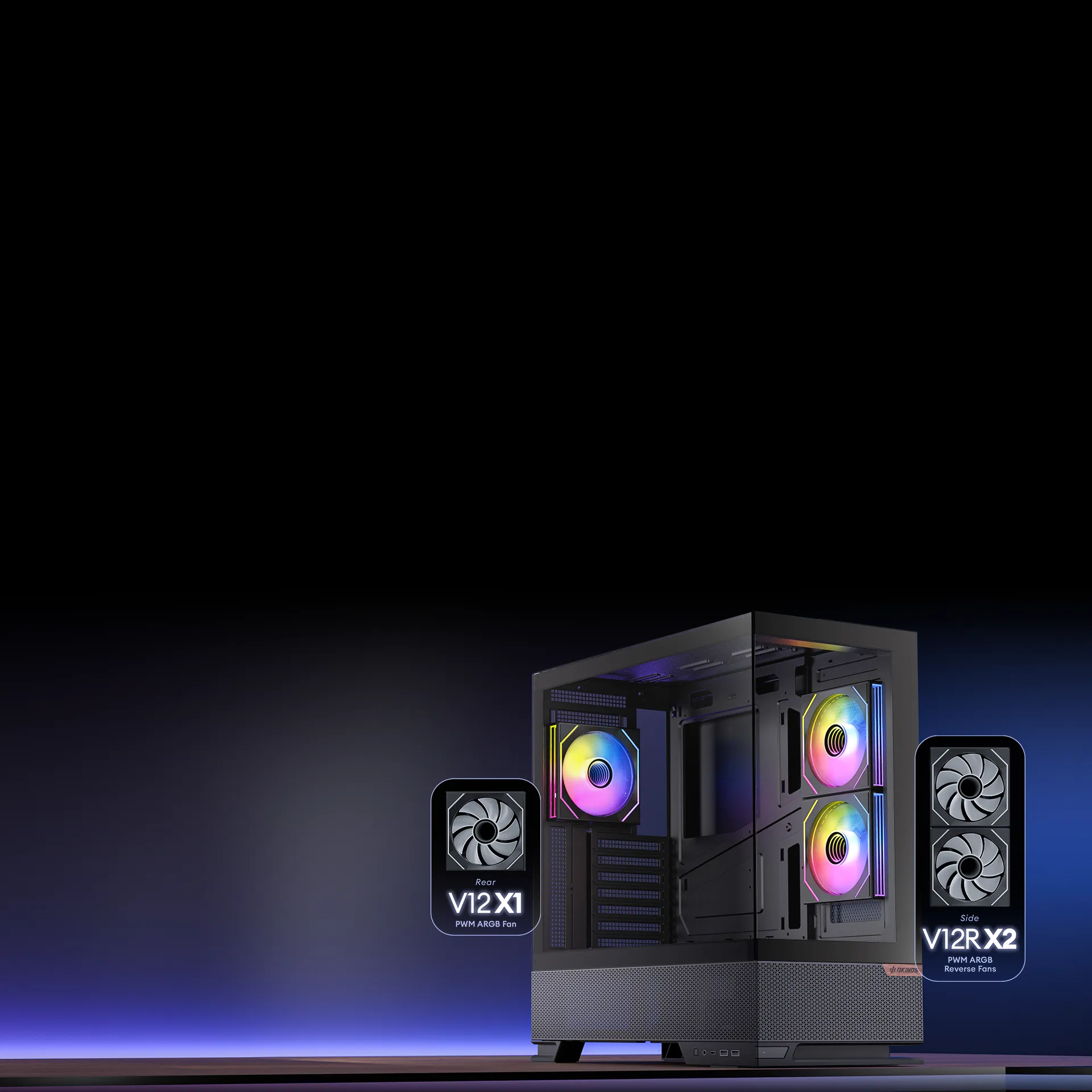

2 x 120mm V12R PWM ARGB Reverse Fans on the right hand side + 1 x 120mm V12 PWM ARGB Fan in the rear
Radiator Support
Top
360/240/120mm
Right Hand Side
240/120mm
Rear
120mm (Length≤160mm)
Clearance
Max GPU Length
≤435mm
< 280mm (with right-side radiator installed)
Max CPU Cooler Height
≤175mm
Max PSU Length
(Include Cable) ≤ 270mm
Miscellaneous
Dust Filter
Top / Bottom / Right Hand Side
Net Weight
7.03 Kg
Gross Weight
8.65 Kg
Special Features
- Panoramic 270° view design with a floating case stand and a walnut wood badge on the front, offering exceptional airflow and a refined fusion of modern elegance.
- Tool-free front and left panels allow quick access, while the right panel is secured with 2 fixed screws for added stability.
- Multi-directional ventilation openings on the bottom, left, top, and right accelerate vertical airflow and improve cooling efficiency.
- Pre-installed with 3 Infinity Mirror ARGB + PWM fans, combining powerful cooling with stunning lighting for an immersive gaming experience.
- Supports 360mm top radiator for high-efficiency liquid cooling setups.
- Convenient left-side lower IO with Type-C 3.2 Gen 2 (10Gbps) for easy desktop access.
- Full-size magnetic filters are included on the top (with a convenient handle), right side, and bottom, ensuring effortless cleaning and comprehensive dust protection.
