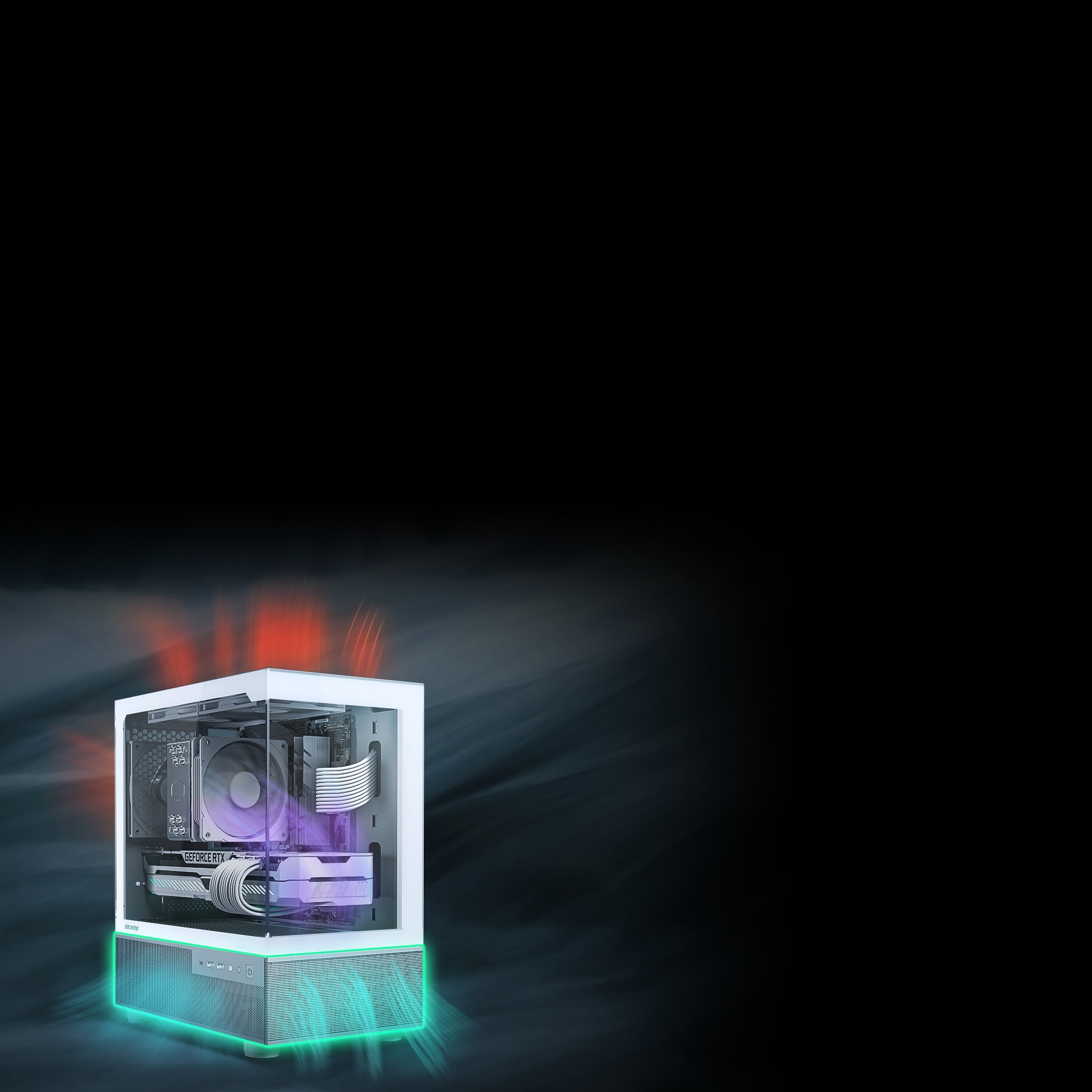

Massive Air Intake
Vertical airflow channel, with 1.2mm mesh openings.
Aqua 3 Black Air

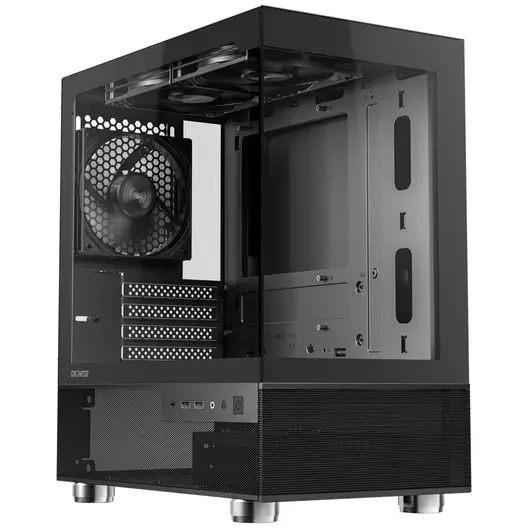

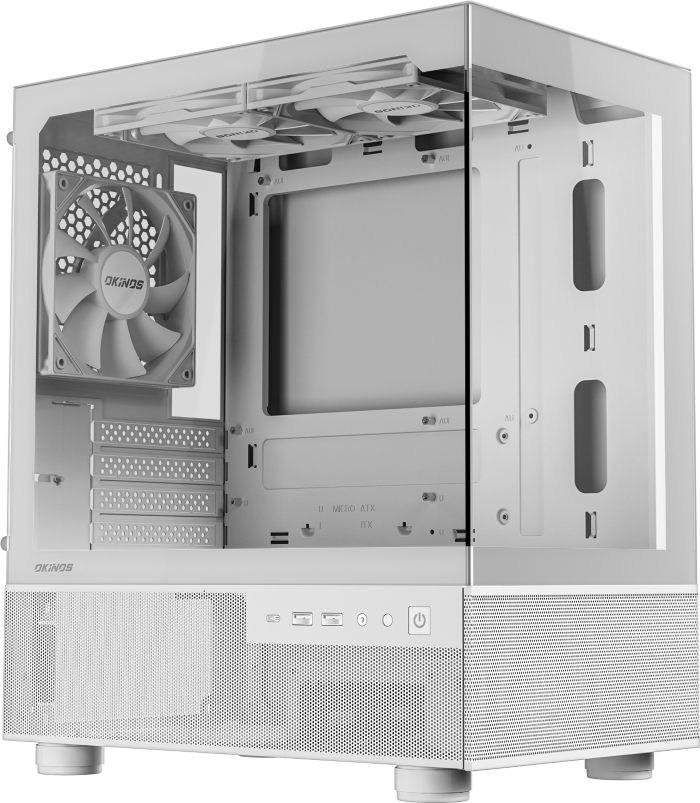

Micro ATX Gaming PC Case
Exquisite steel mesh
1.2mm, finer grid compare to 3.0mm, prevent dust intake and provide aesthetic looks.

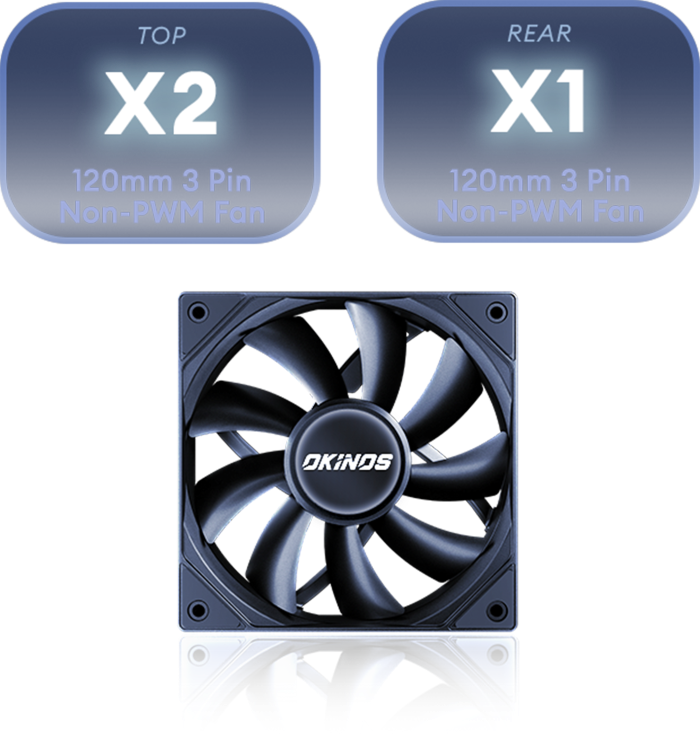

Standard configuration
3 x 120mm 3 Pin Non-PWM Fan (fans speed: 1000RPM).

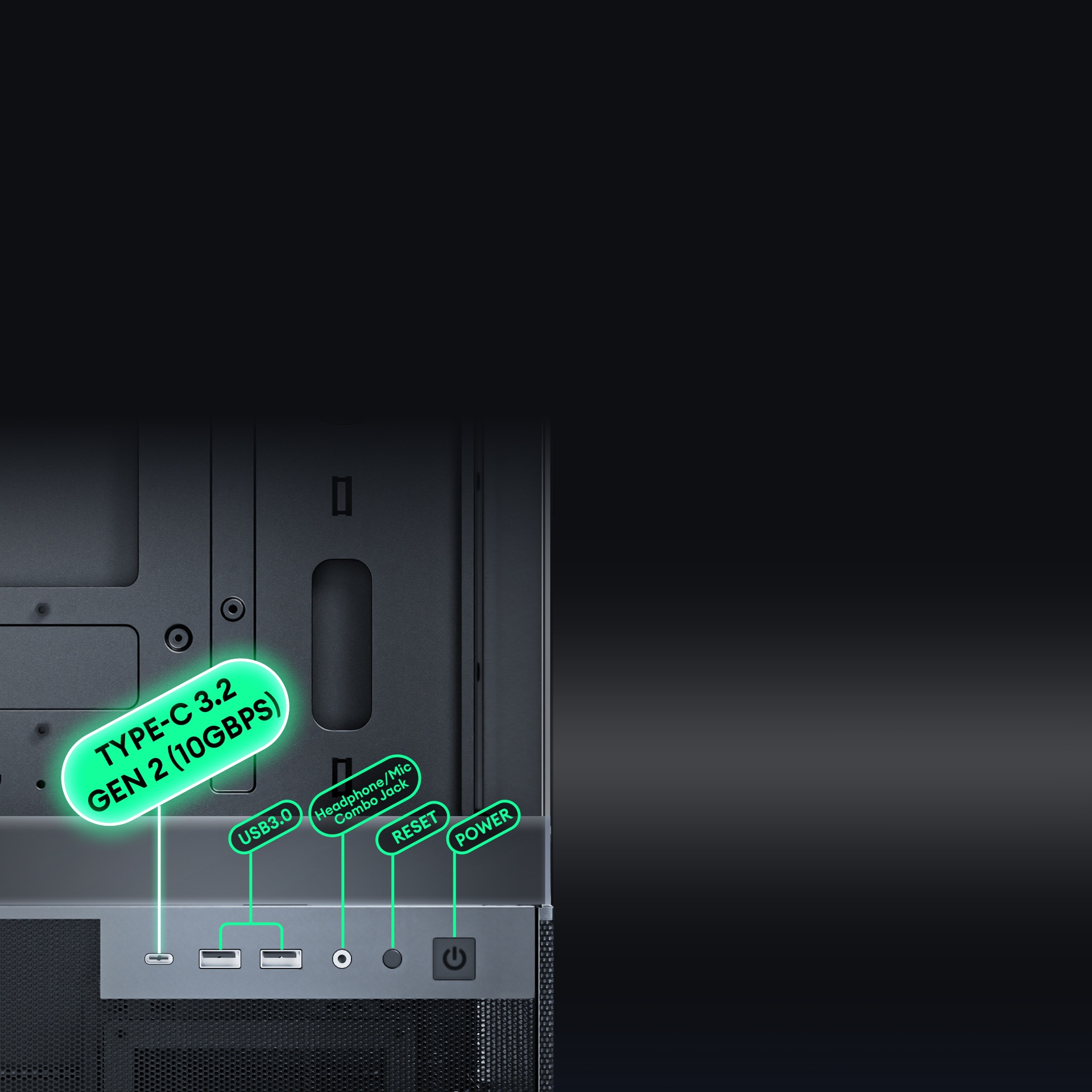

Mutli-Function Zone
USB ports are primarily for data transfer and not recommended for power charging, as most motherboards USB ports support a maximum voltage of 5V.

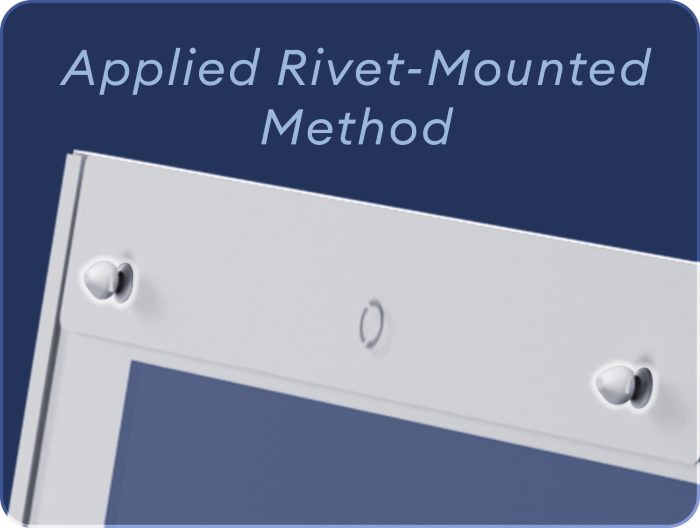

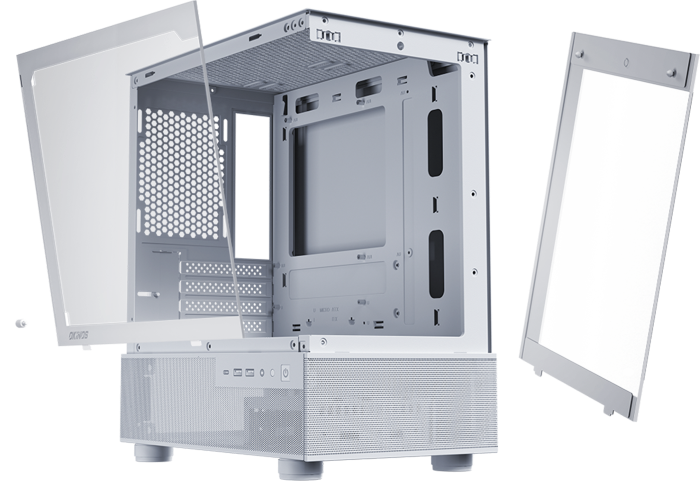

Advanced quick-release panels
Facilitated easy removal of the front glass without the need for screws.

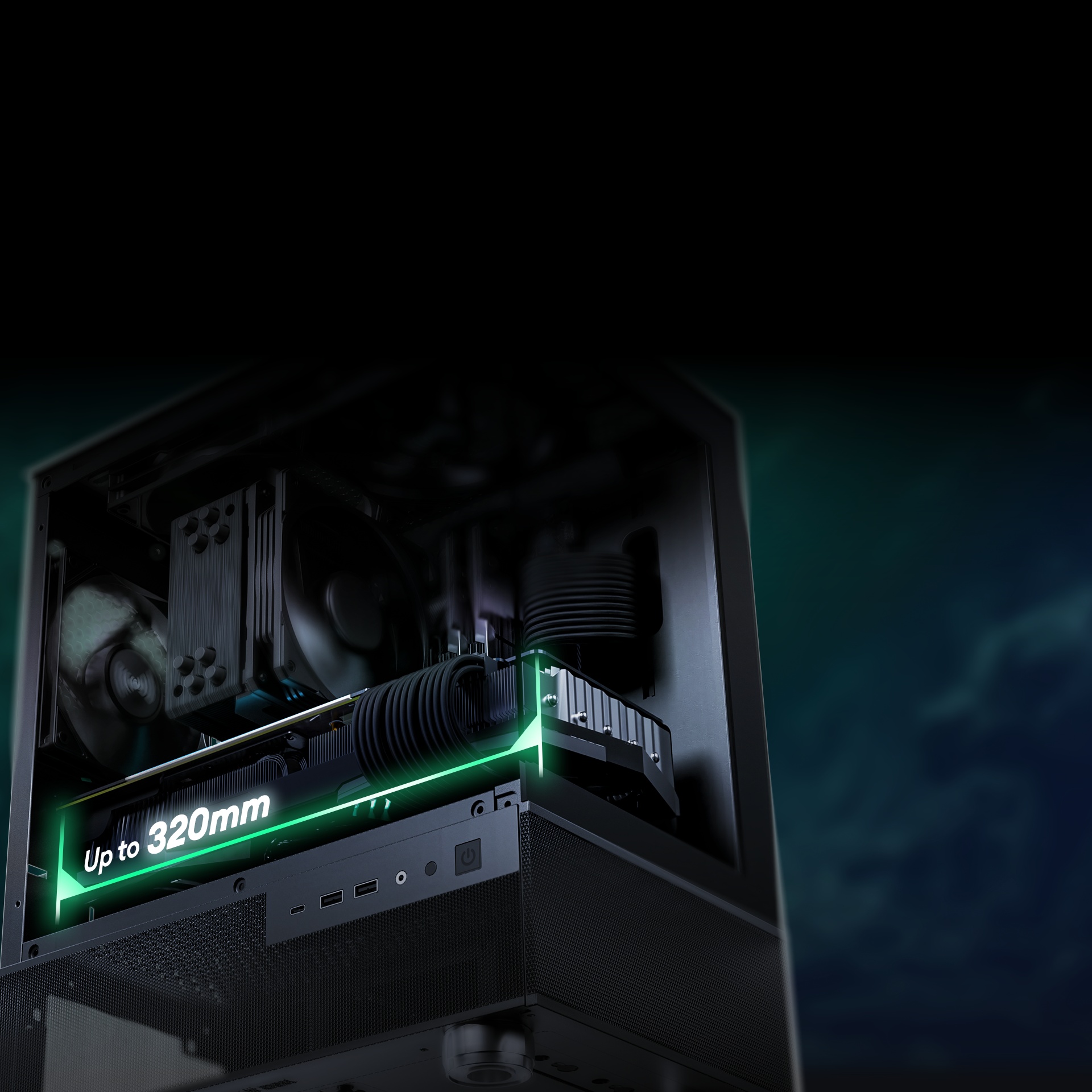

GPU compatibility
Compatible with the highest 4070 series graphics card.

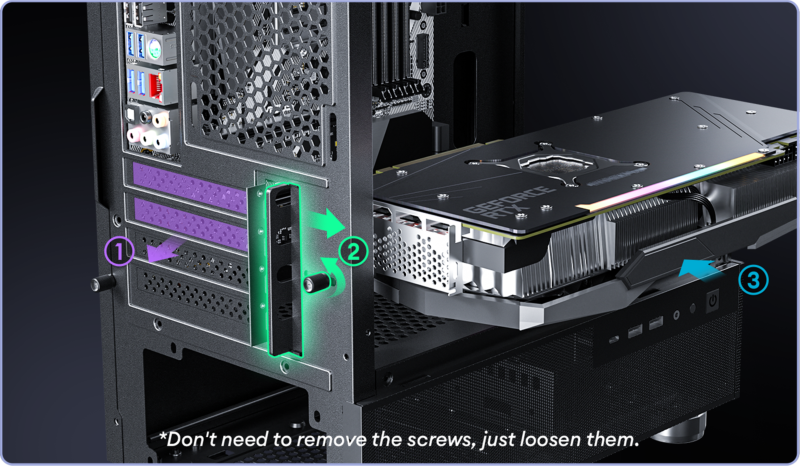

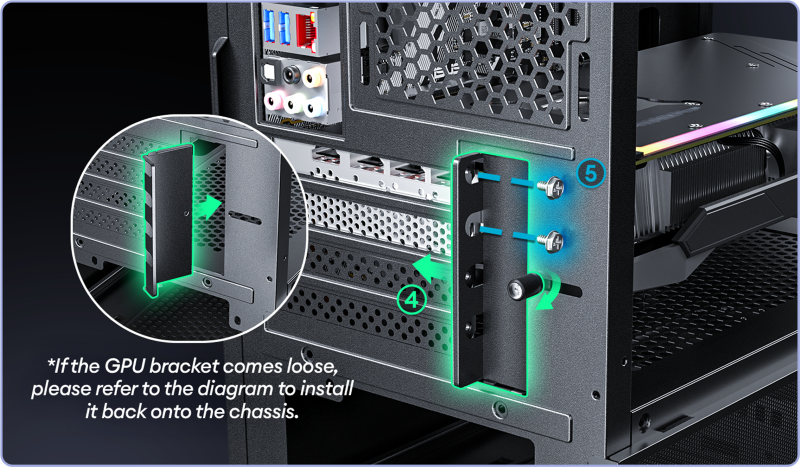

GPU Installation

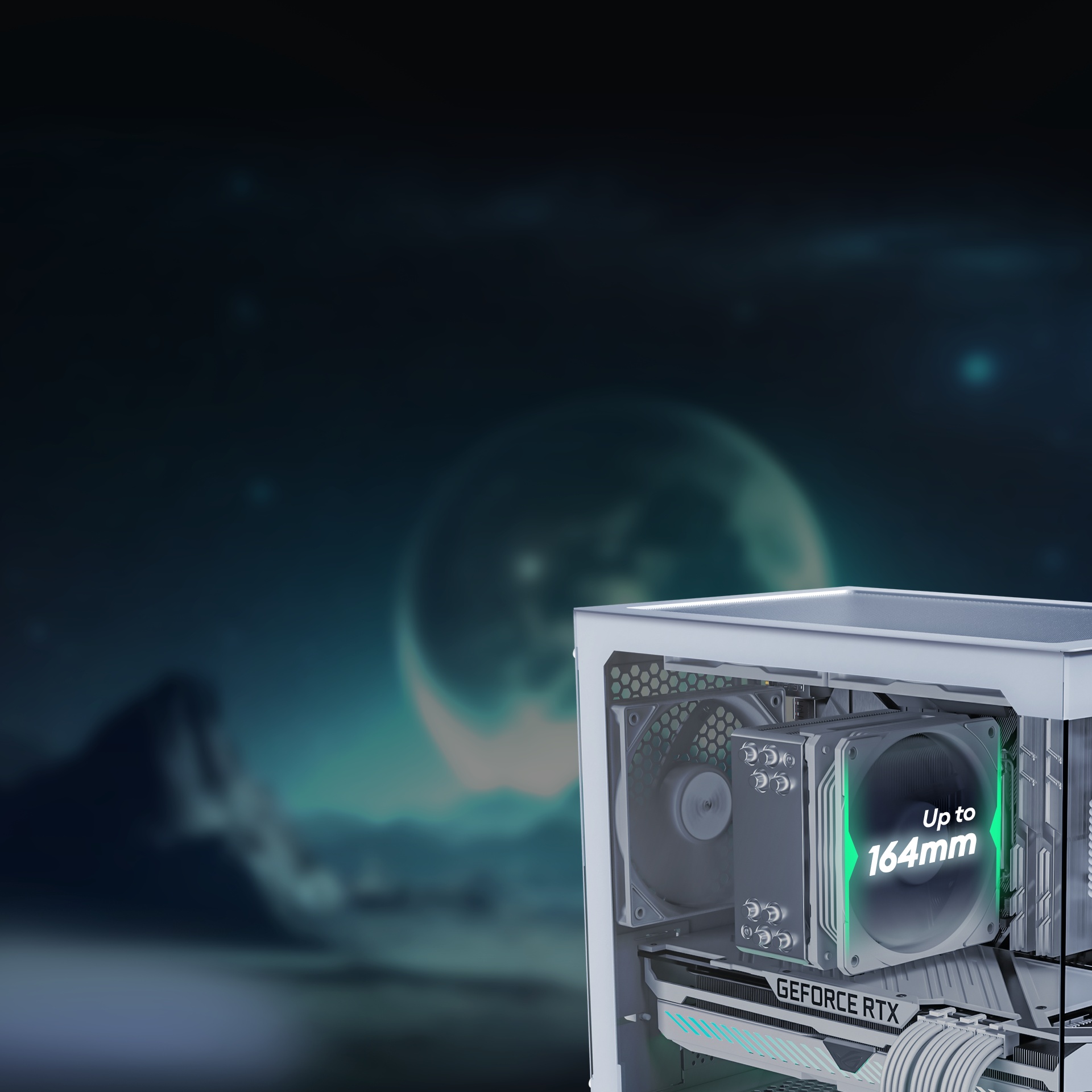

Powerful cooling compatibility
Max. CPU Cooler Height : 164mm.
Supports most of the high-end air coolers.

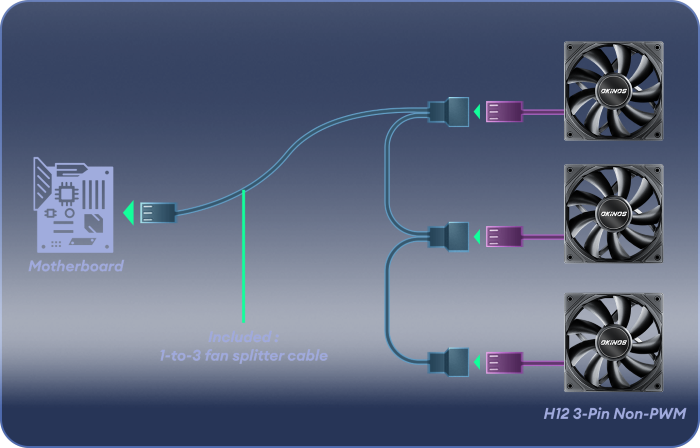

Fan installation

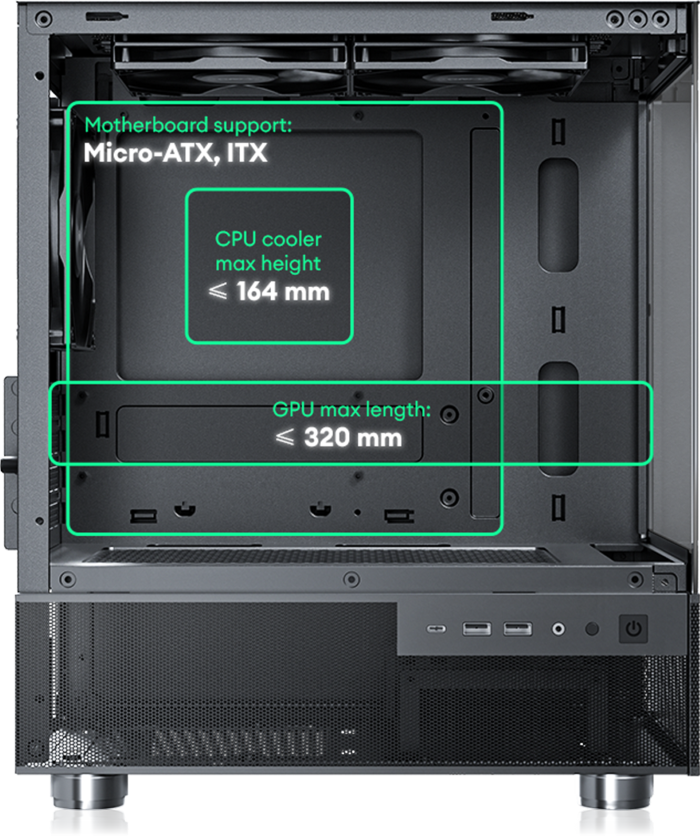

Compatibility

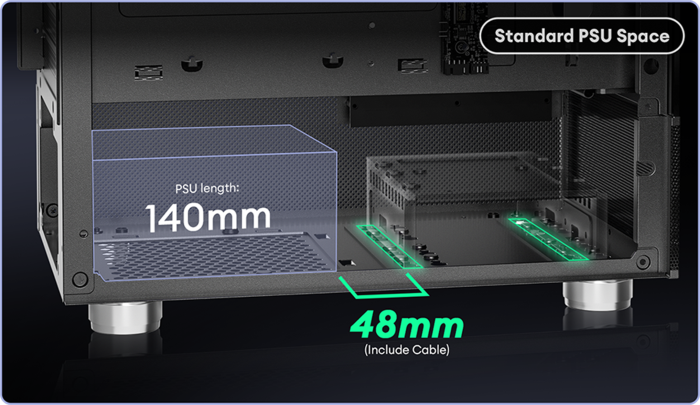

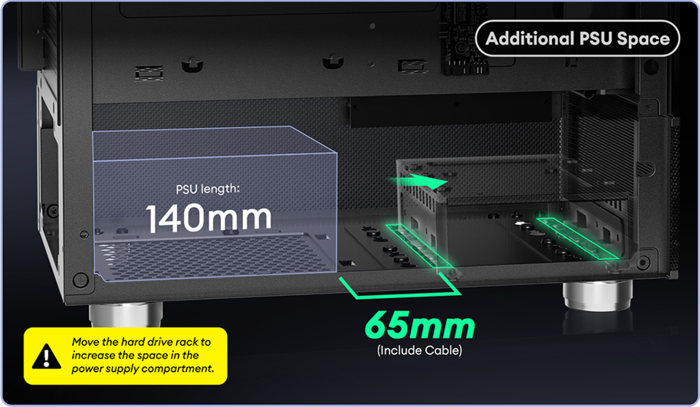

Additional Power Supply Space

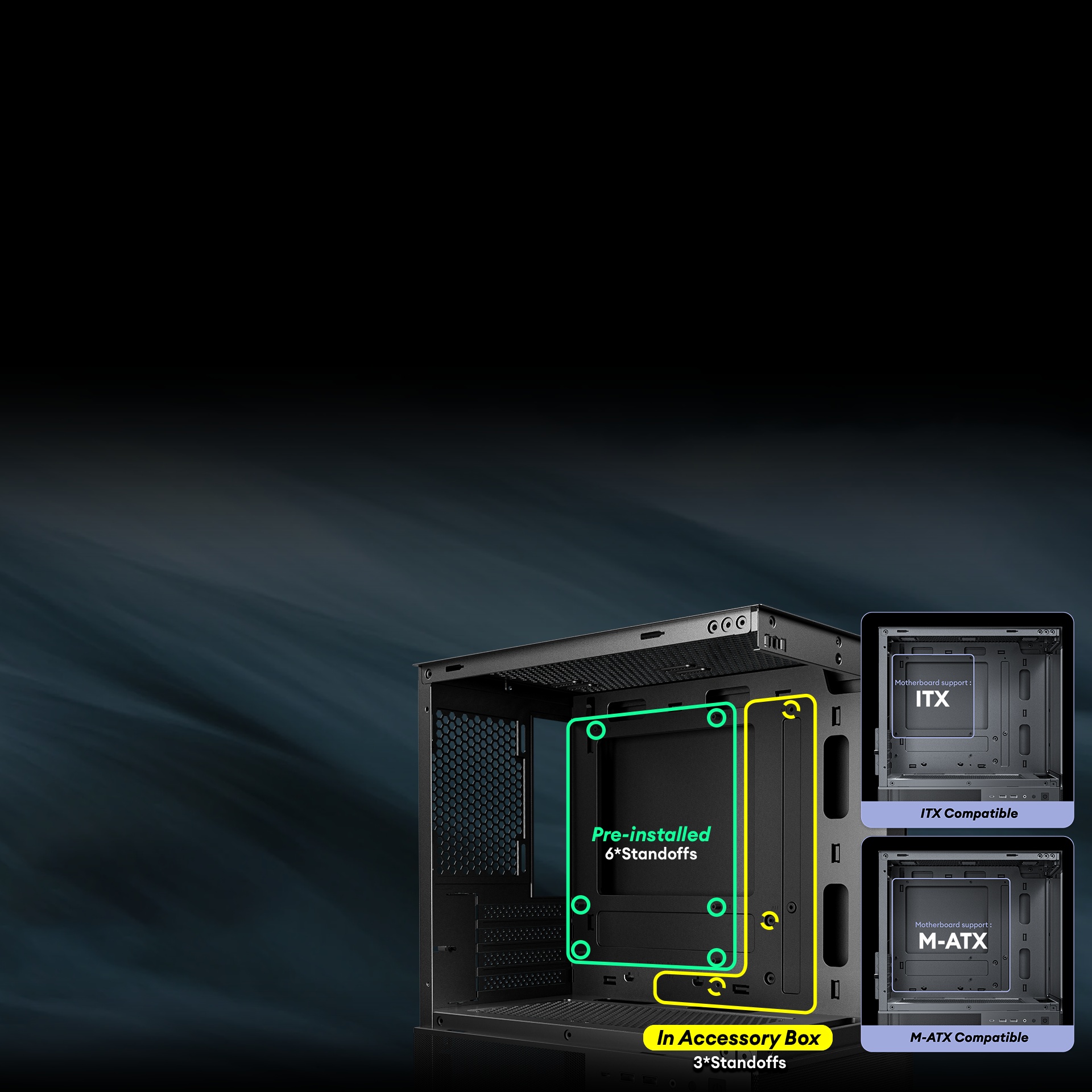

Standoffs & Motherboard Compatible
6*standoffs pre-installed in case & 3*standoffs in accessory box.
Specifications
Model Name
AQUA 3 Air

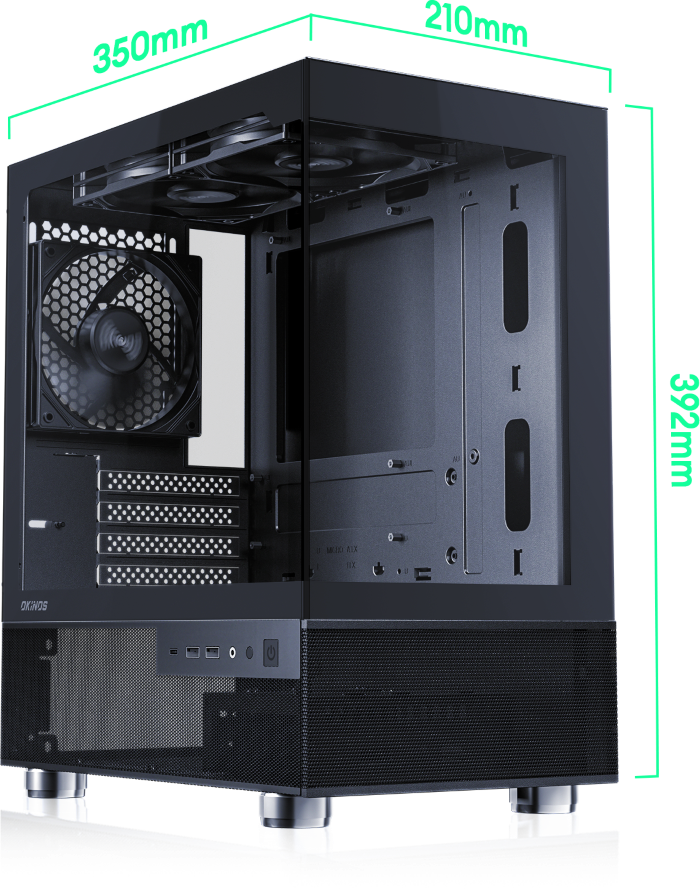

Dimensions
350 x 210 x 392mm (DWH)
Model Number
OKICC-AQ3-MATXB
EAN
4897121941031
Form Factor
Mini Tower
Materials
Steel
Mainboard Support
Micro-ATX , ITX
Front Access & Controls
Power, Reset, USB3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack
Side Panel
Tempered Glass Side Panel

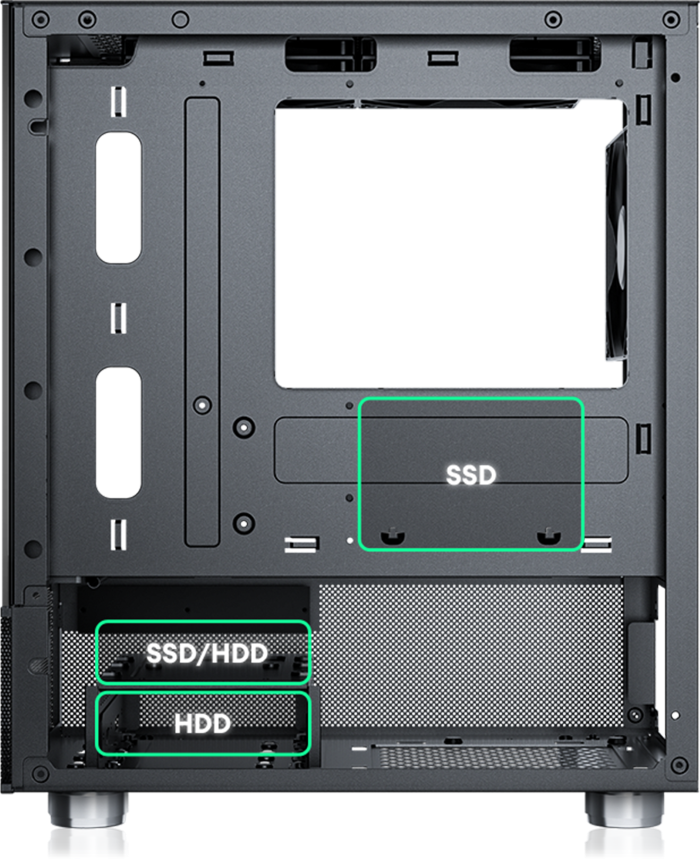

Drive Bays
Expansion Slots
4
3.5″ /2.5″
2/1
2.5″
1
Fan
Top
2 x 120mm / 2 x 140mm
Power Supply Shroud
2 x 120mm
Rear
1 x 120mm
Included Fan(s)
2 x 120mm fans on top + 1 x 120mm fan in rear
Clearance
Max GPU Length
≤320mm
Max CPU Cooler Height
≤164mm
Max PSU Length
(Include cable)≤185mm
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
4.17 Kg
Gross Weight
4.9 Kg
Warranty
1 Year
