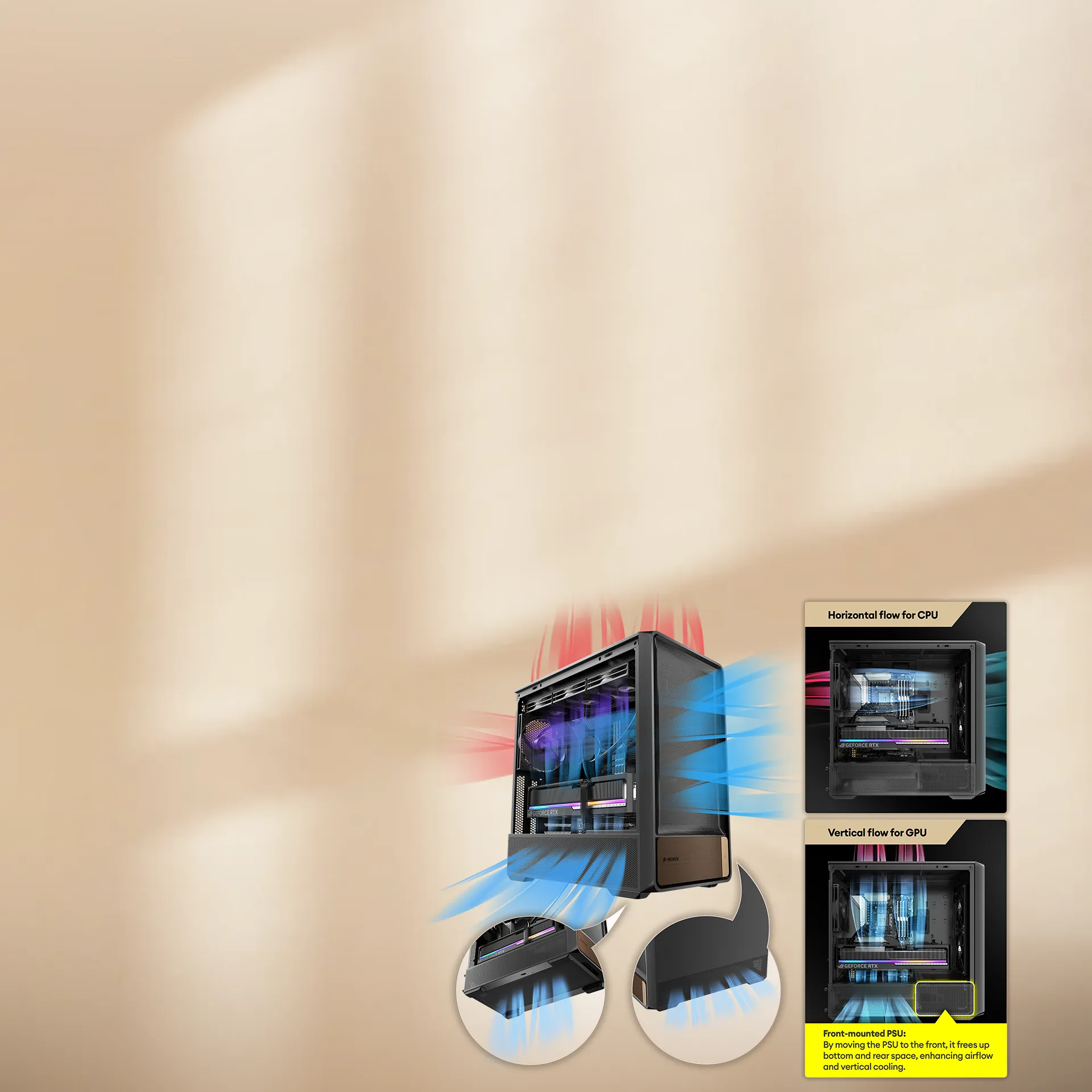

Optimized Intake Space
Front PSU and HDD-free bottom maximize airflow, with reverse fan cooling the GPU directly for performance.

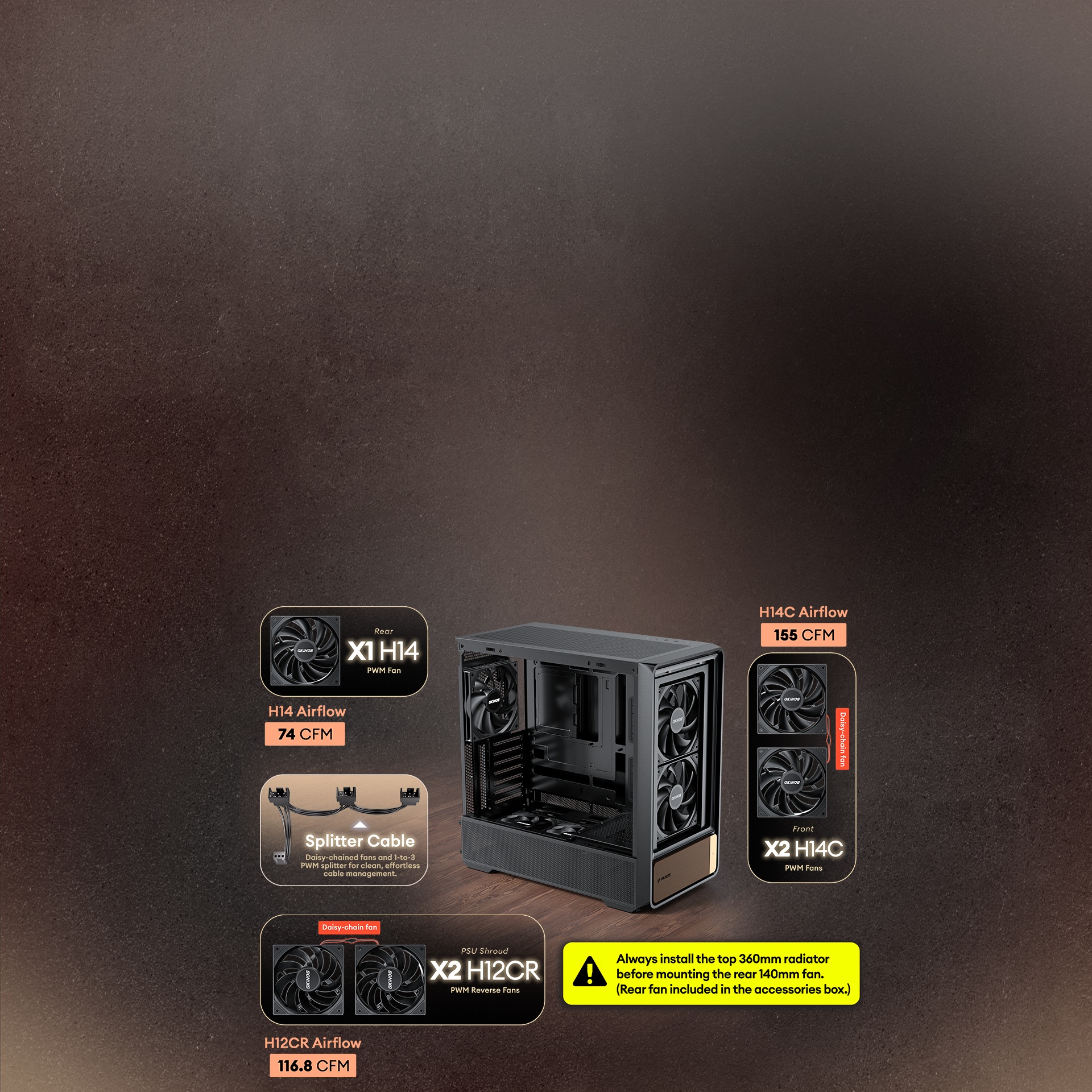

5 Pre Installed High-Performance Fans

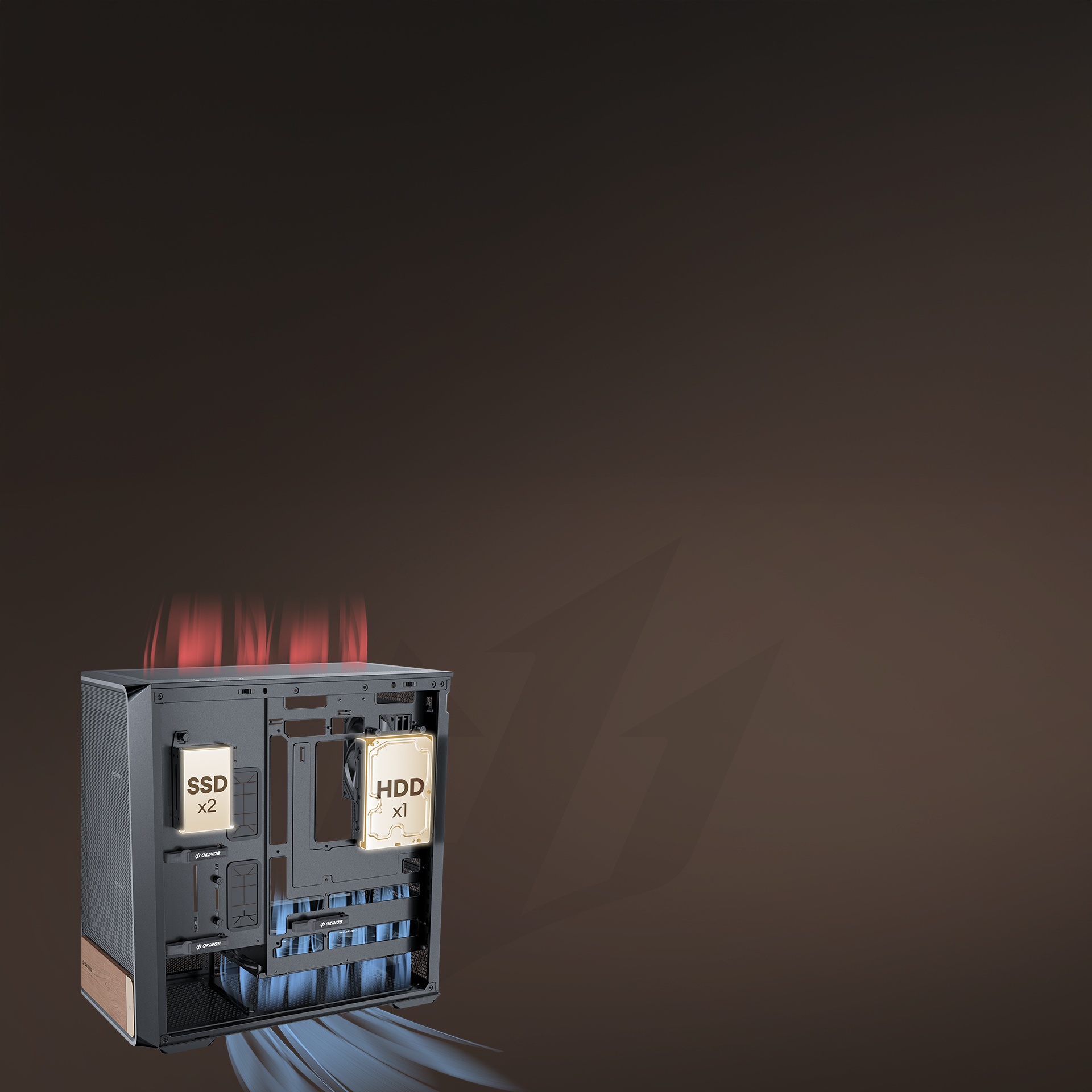

Enhanced Bottom Cooling Space
HDD moved behind motherboard to keep bottom intake clear for better cooling and easier build.
Cable Management Spaces
Cable management spaces are 37mm at the front and 33mm at the back.

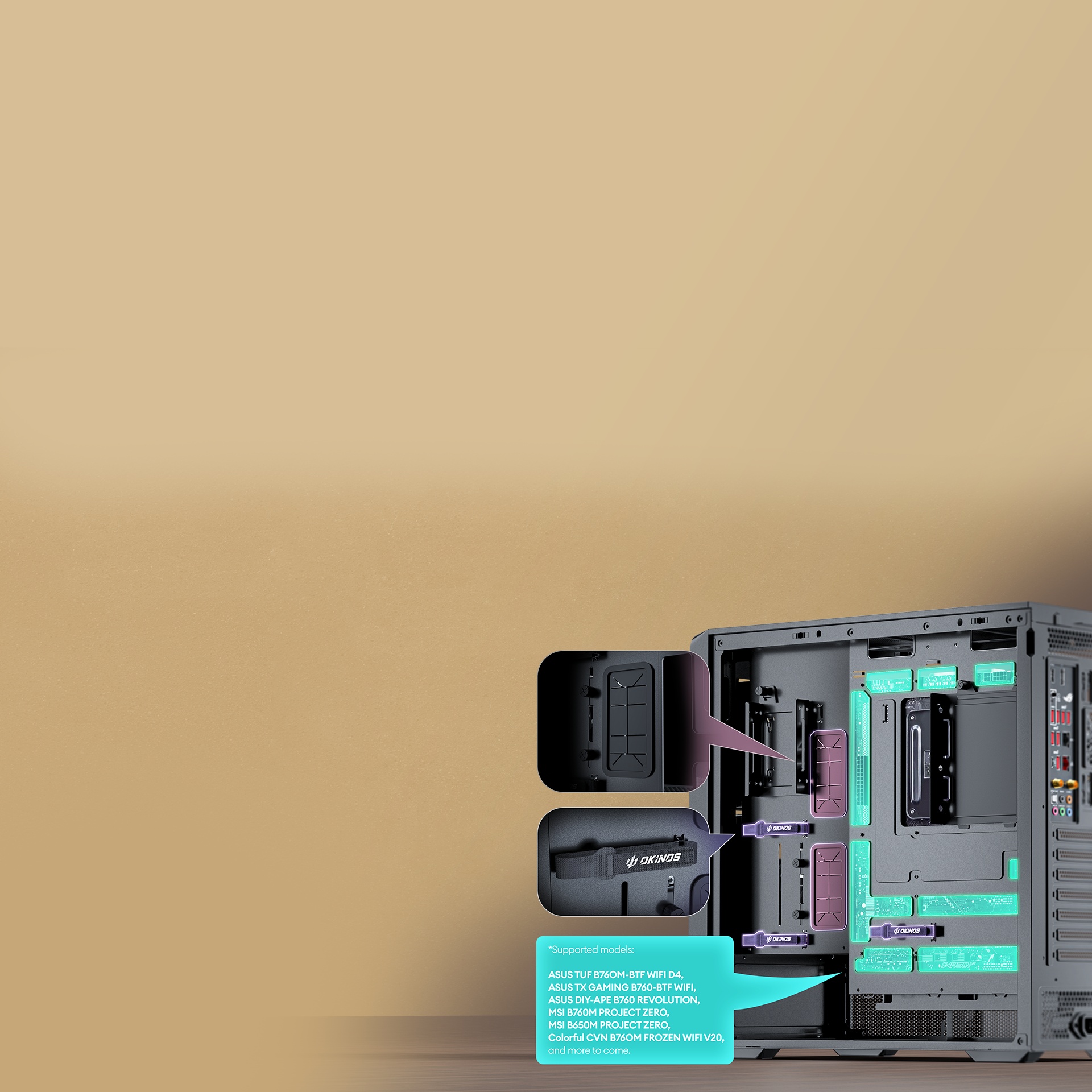

Back Connect Design
Back-connect design hides cables for better airflow and a cleaner look, with grommets and Velcro straps for easy, protected cable management.

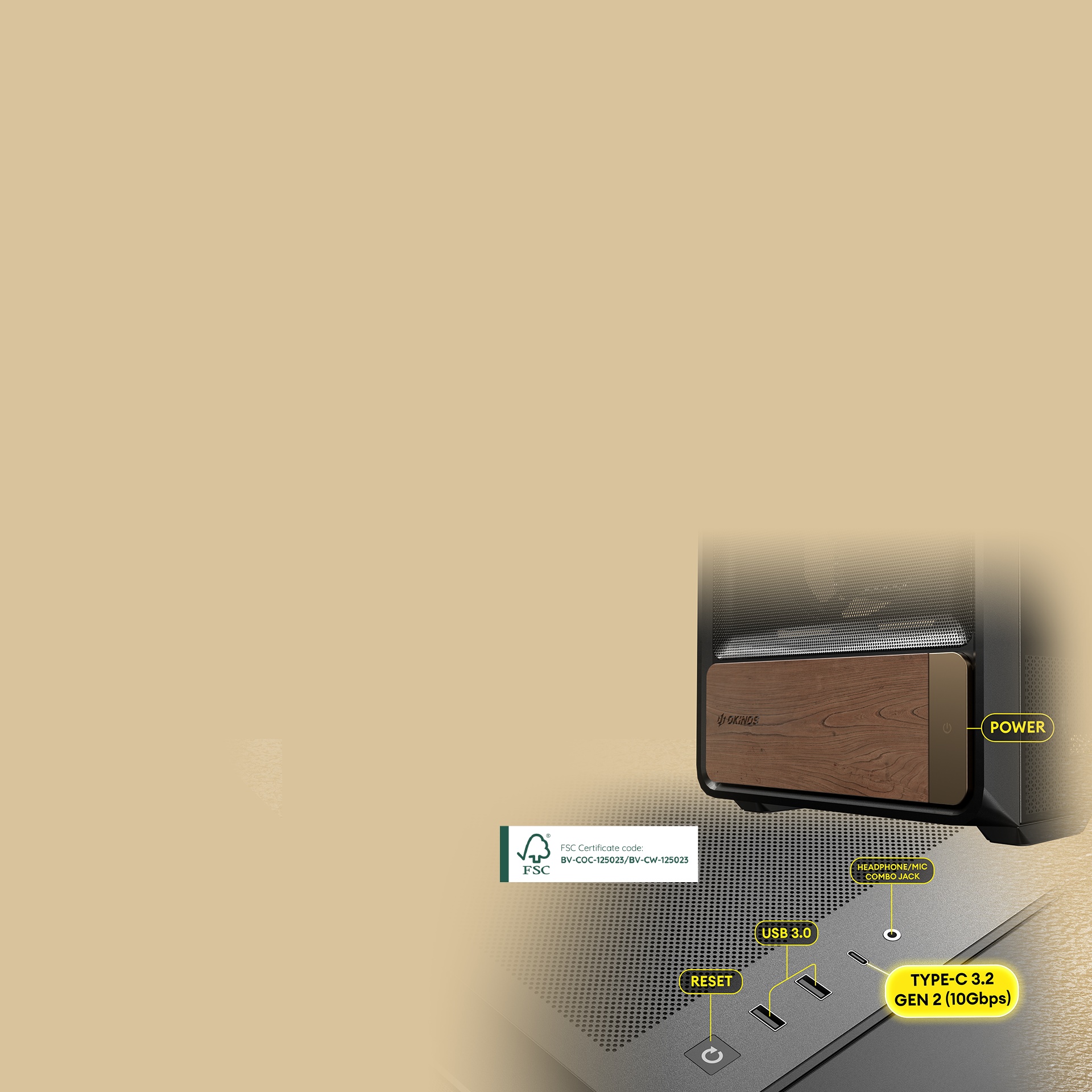

Mutli-Function Zone
USB ports are primarily for data transfer and not recommended for power charging, as most motherboards USB ports support a maximum voltage of 5V.

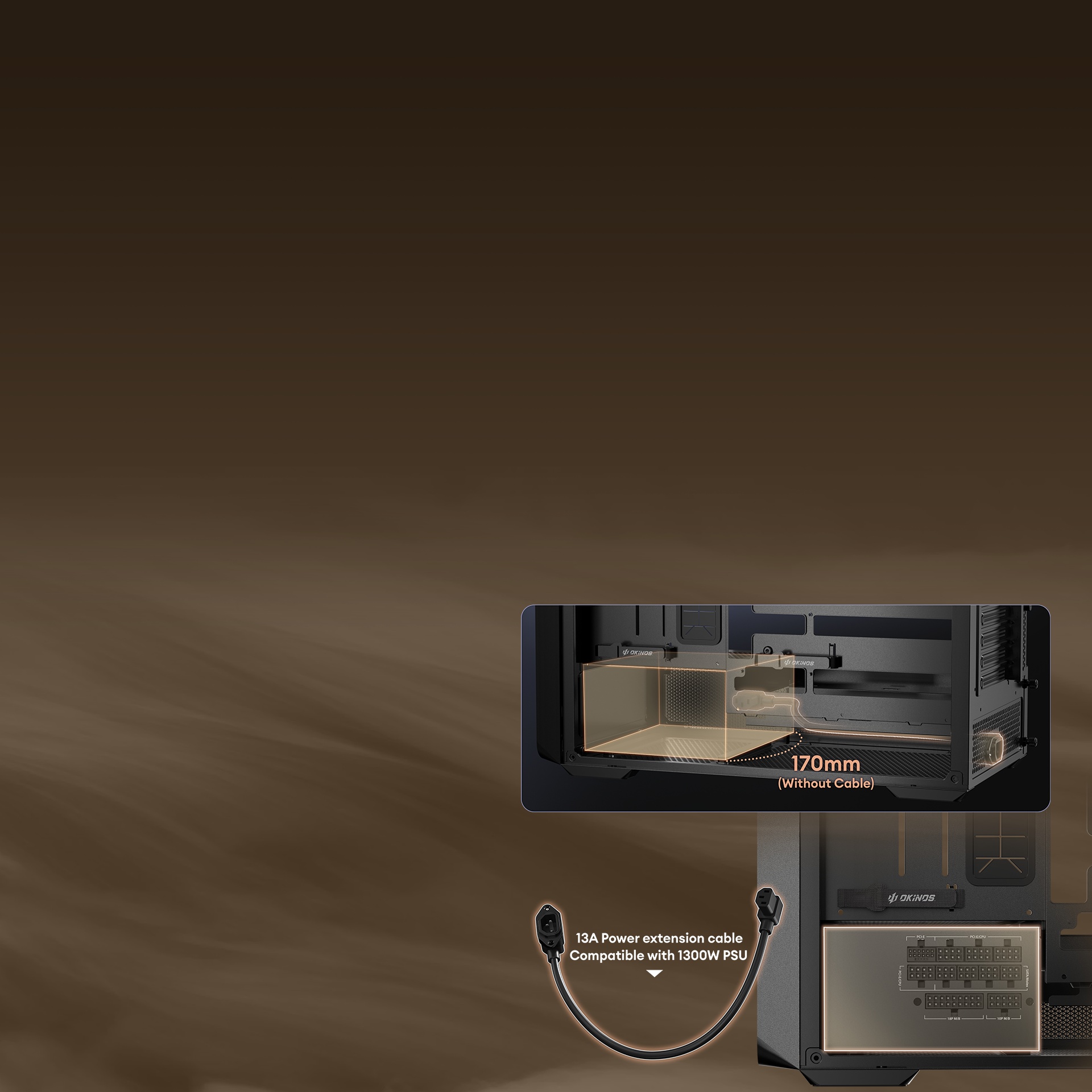

Front mounted PSU Design
By moving the PSU to the front, it frees up bottom and rear space, enhancing airflow and vertical cooling.

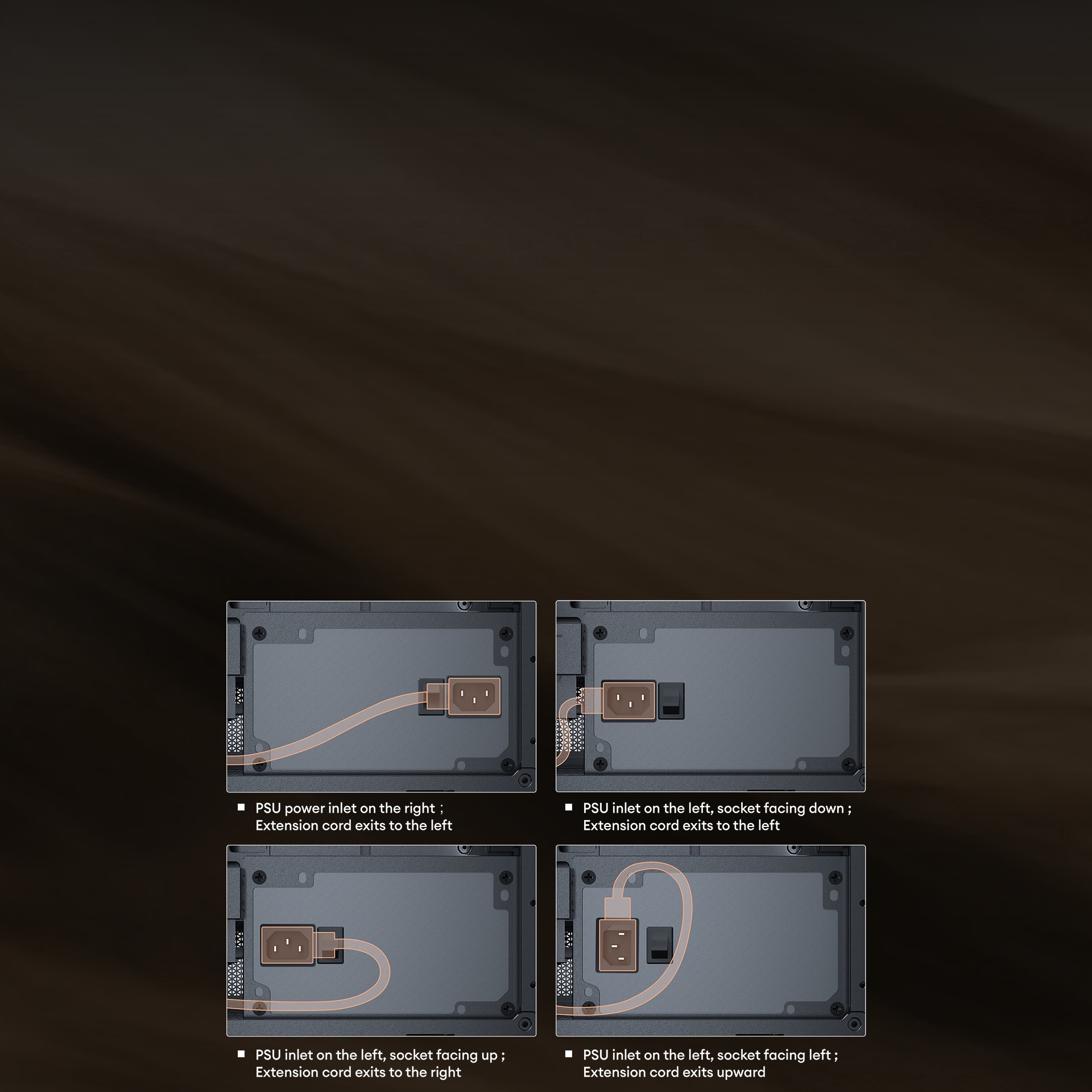

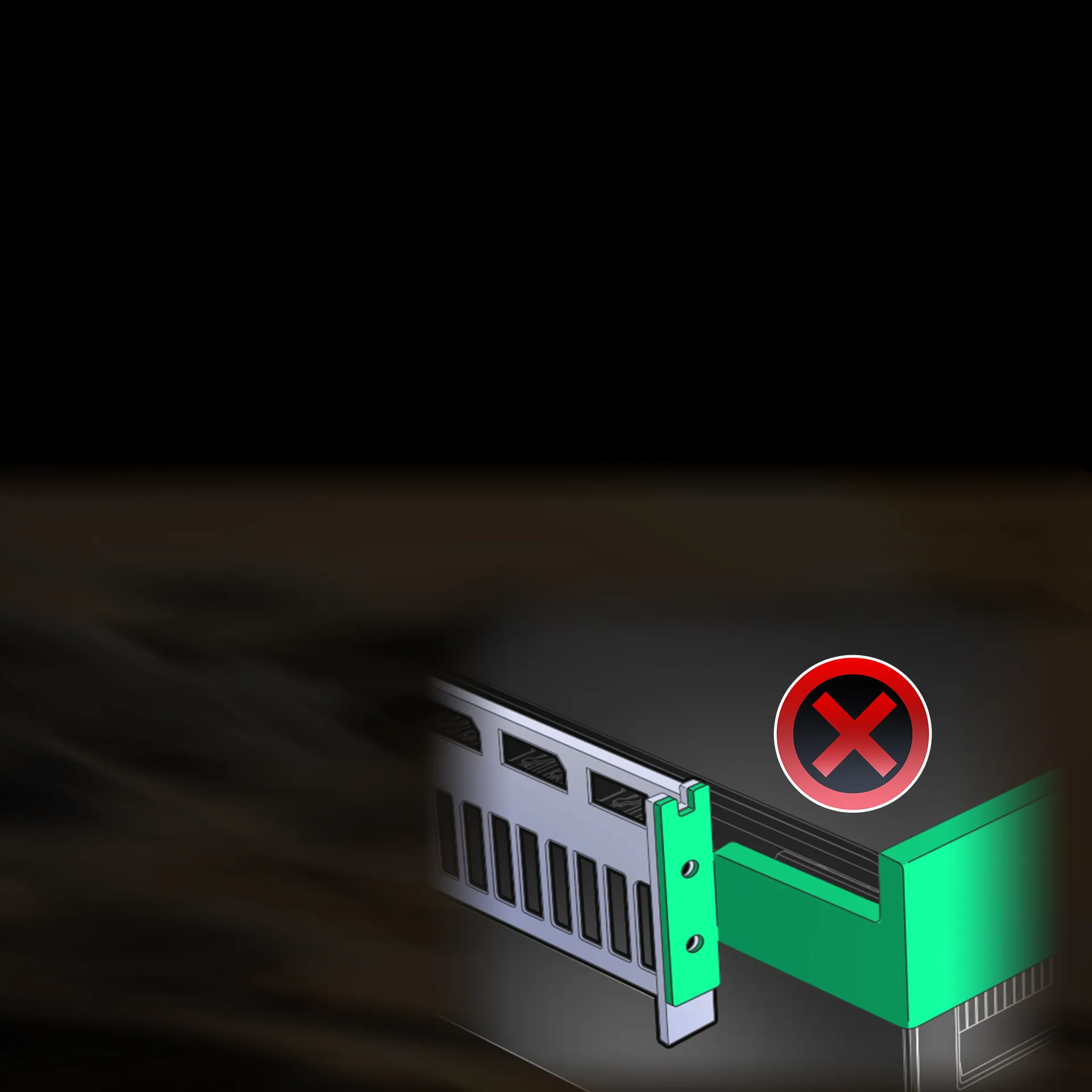

Power Extension Cable Installation

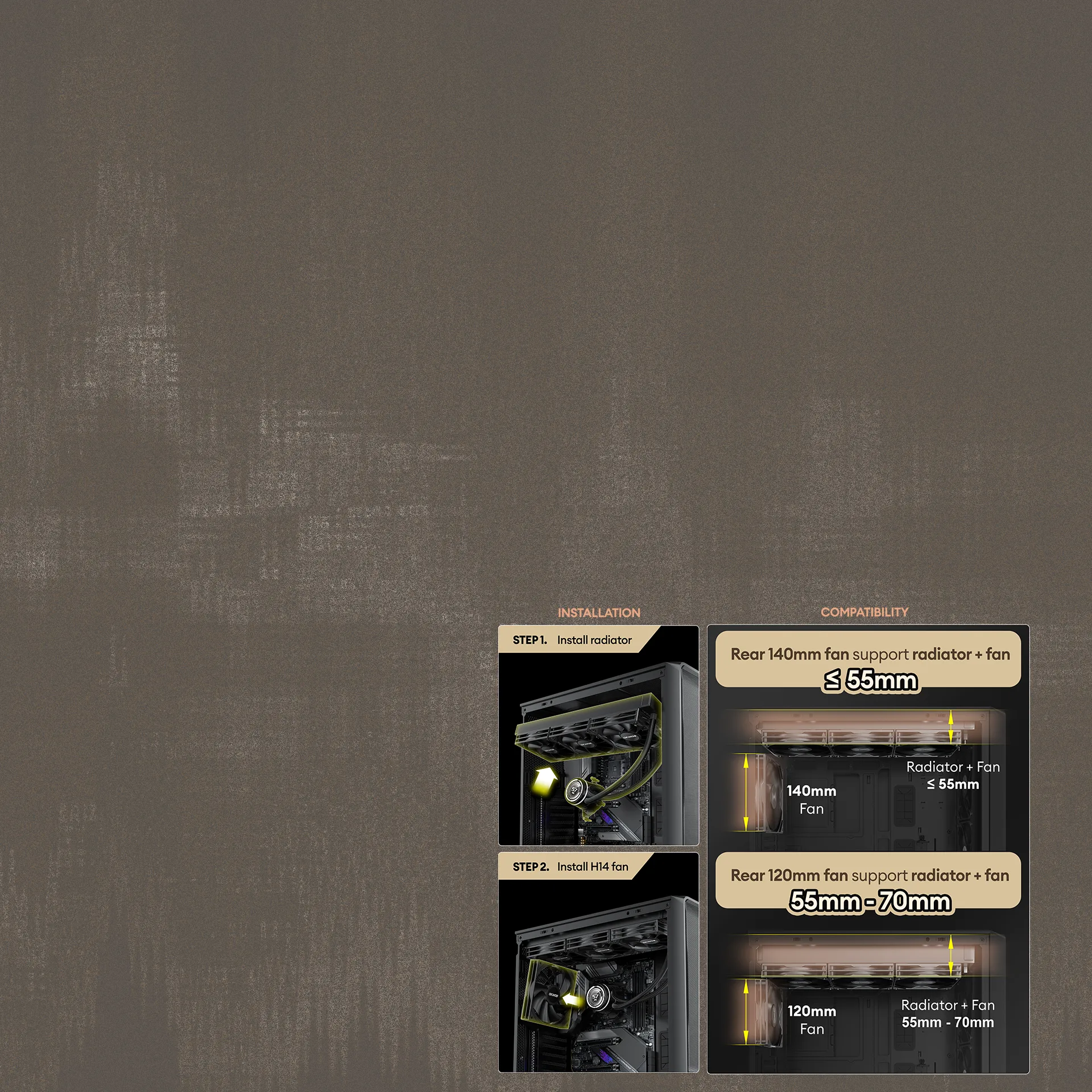

Rear Fan Installation
Always install the top 360mm radiator before mounting the rear 140mm fan.

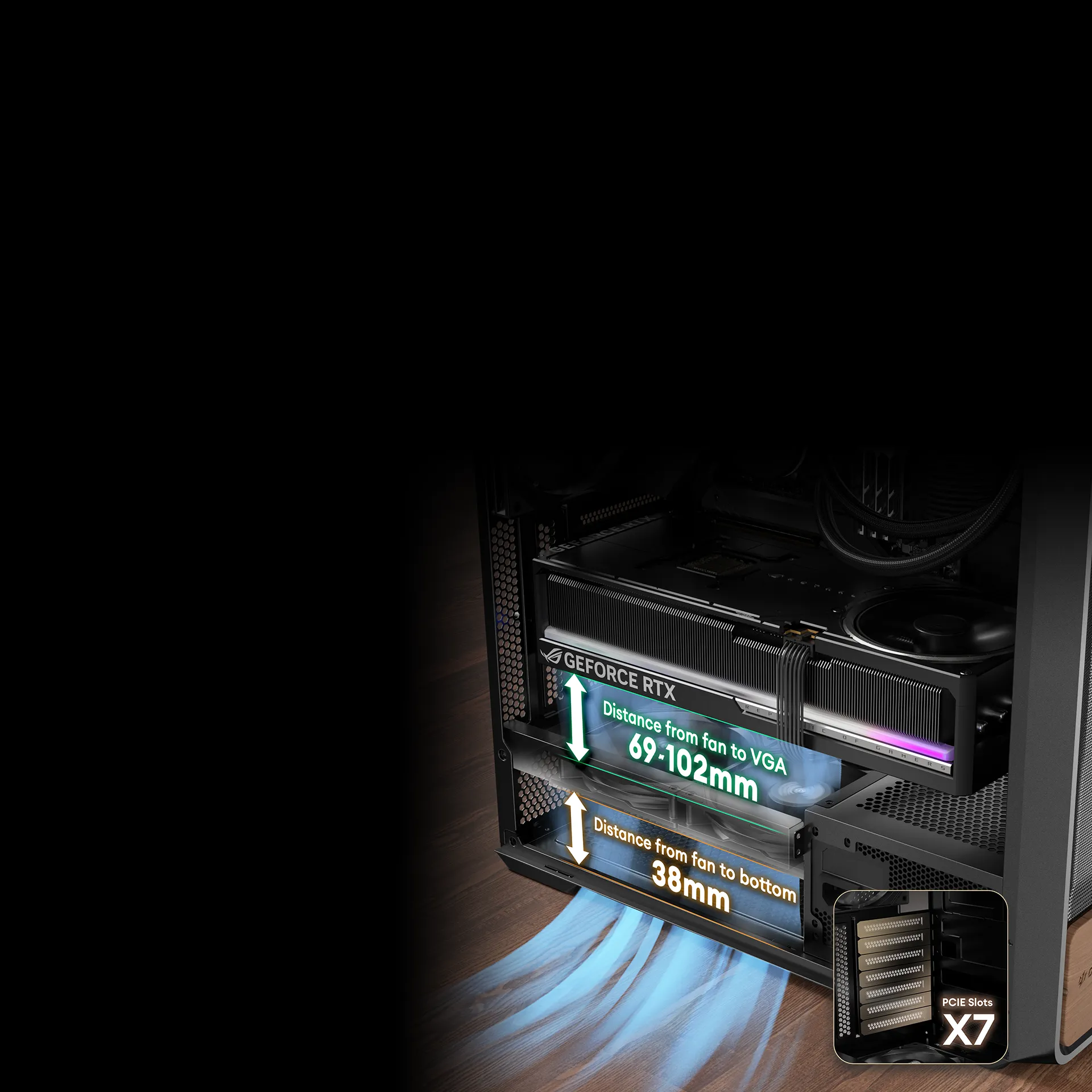

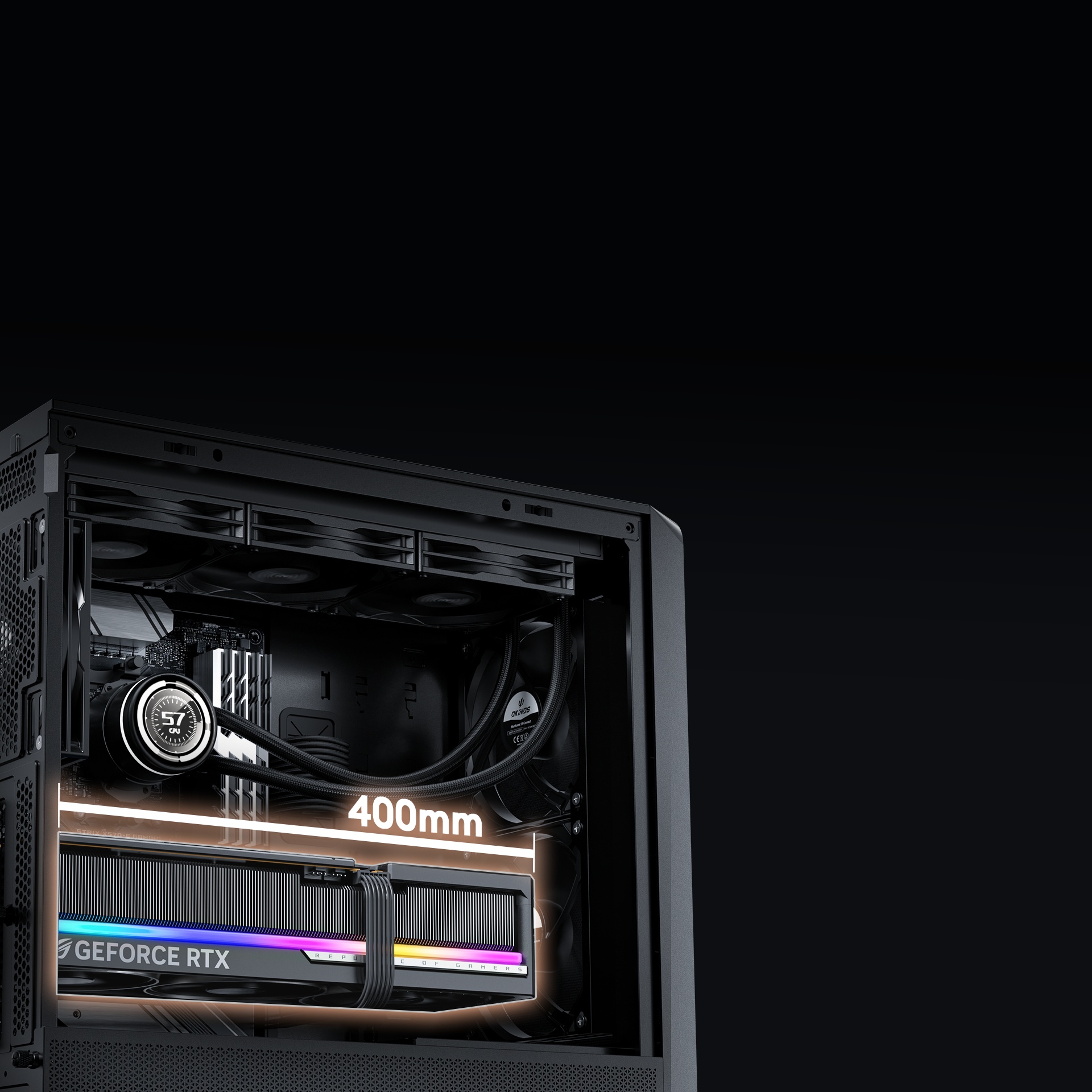

GPU Compatibility
Max. GPU Length ≤ 400mm Perfect fit for 50 Series GPUs.

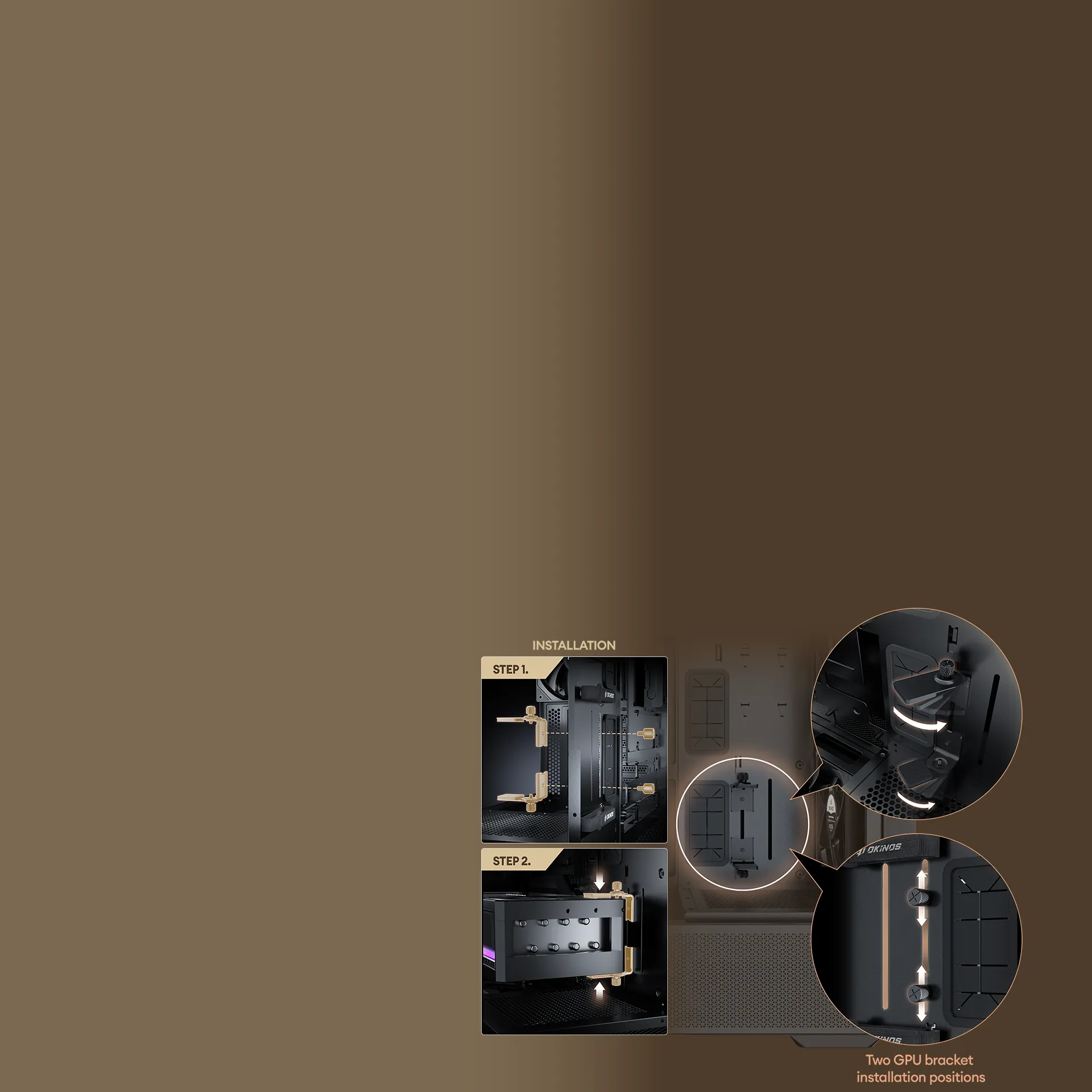

GPU Support Bracket
Removable GPU support bracket, able to be adjusted up, down, left and right.

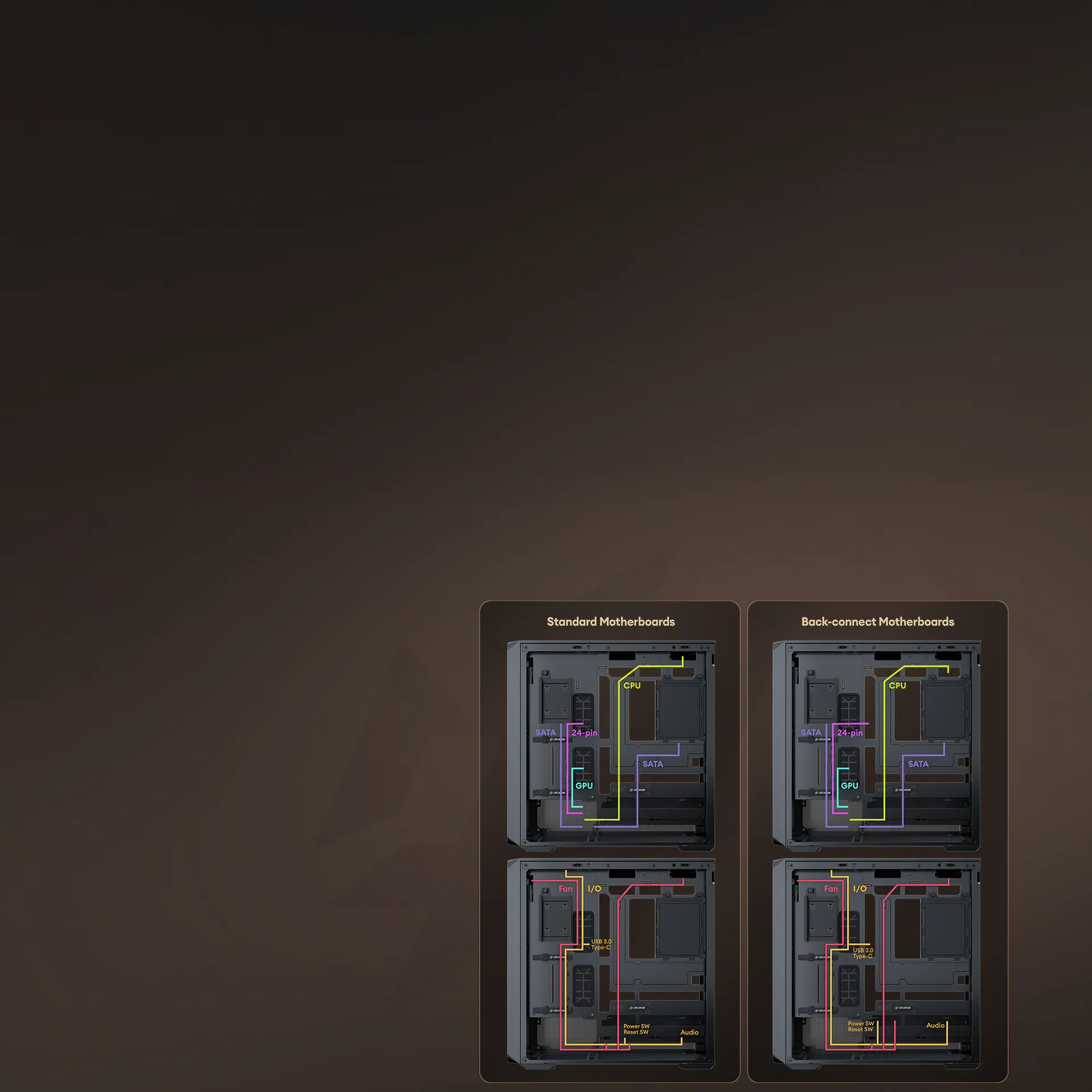

Cable Management Routing
Experience Ultimate Cooling Solution

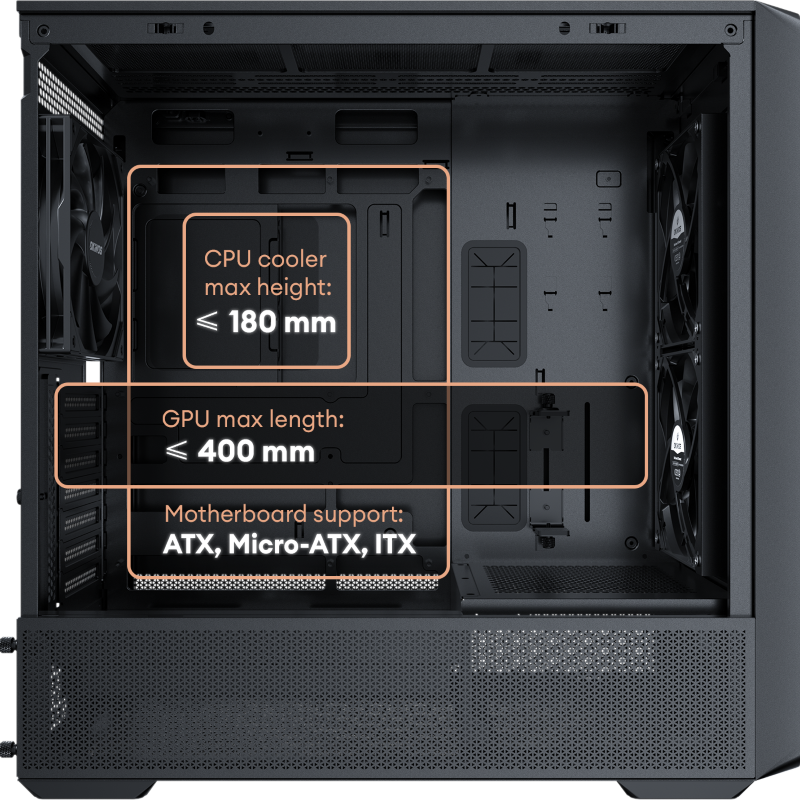

Compatibility
Specifications
Model Name
Air Cross
Model No
OKICC-AIRCROSS-ATXB
UPC # / EAN #
0-XXXXX-XXXXX-X / 0-XXXXX-XXXXX-X
Dimensions
Dimensions 468 x 238 x 462mm (DWH)
Form Factor
Mid Tower
Materials
Steel + Plastic + Wood
Mainboard Support
ATX, Micro-ATX , ITX
Front Access & Controls
Power, Reset ,USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps) x 1, Headphone/Mic Combo Jack
Side Panel
4mm Tempered Glass
Drive Bays
Expansion Slots
7
3.5″
1
2.5″
2
Fan
Front
2x140mm
Top
3×120/2x140mm
Power Supply Shroud
2x120mm
Rear
1×120/1x140mm
Included Fan(s)
2 x 140mm H14C PWM Fans at the front + 2 x 120mm H12CR PWM Reverse Fans on the power supply shroud + 1 x 140mm H14 PWM Fan at the rear + 1-to-3 PWM splitter cable
Radiator Support
Top
360/280/240/140/120mm
Rear
120mm
Clearance
Max GPU Length
≤400mm
Max CPU Cooler Height
≤180mm
Max PSU Length
(Without cable)≤ 170mm
Miscellaneous
Dust Filter
Bottom
Net Weight
8.17 Kg
Gross Weight
9.74 Kg
Special Features
- Air Cross utilizes a dual-channel airflow design—horizontal for CPU, vertical for GPU—to provide focused and efficient cooling.
- Pre-installed with four high-performance PWM fans for exceptional cooling performance out of the box. Rear PWM fan included in accessory box.
- Fully supports BTF / Back-Connect motherboards, delivering a clean, cable-free interior.
- Tool-less design with a press-to-release front mesh and easily removable tempered glass side and top panels for effortless fan and radiator installation.
- Spacious cable routing area with 37mm (front) and 33mm (rear) clearance, complemented by rubber grommets and Velcro straps for neat and simple cable management.
- Premium walnut wood accents and a custom-designed Starlight power button offer a warm, modern look.
- Distinctive triangular mesh on both side panels improves airflow while adding visual flair.
- 13A heavy-duty PSU extension cable for reliable and safe power delivery.
- Integrated GPU support bracket prevents sag and keeps heavy graphics cards securely mounted.
