Optimized Airflow with Mesh Design
Supports up to 10 fans, delivering powerful and consistent airflow for a stable system environment. Multi-zone mesh vents enhance ventilation and maximize cooling efficiency.

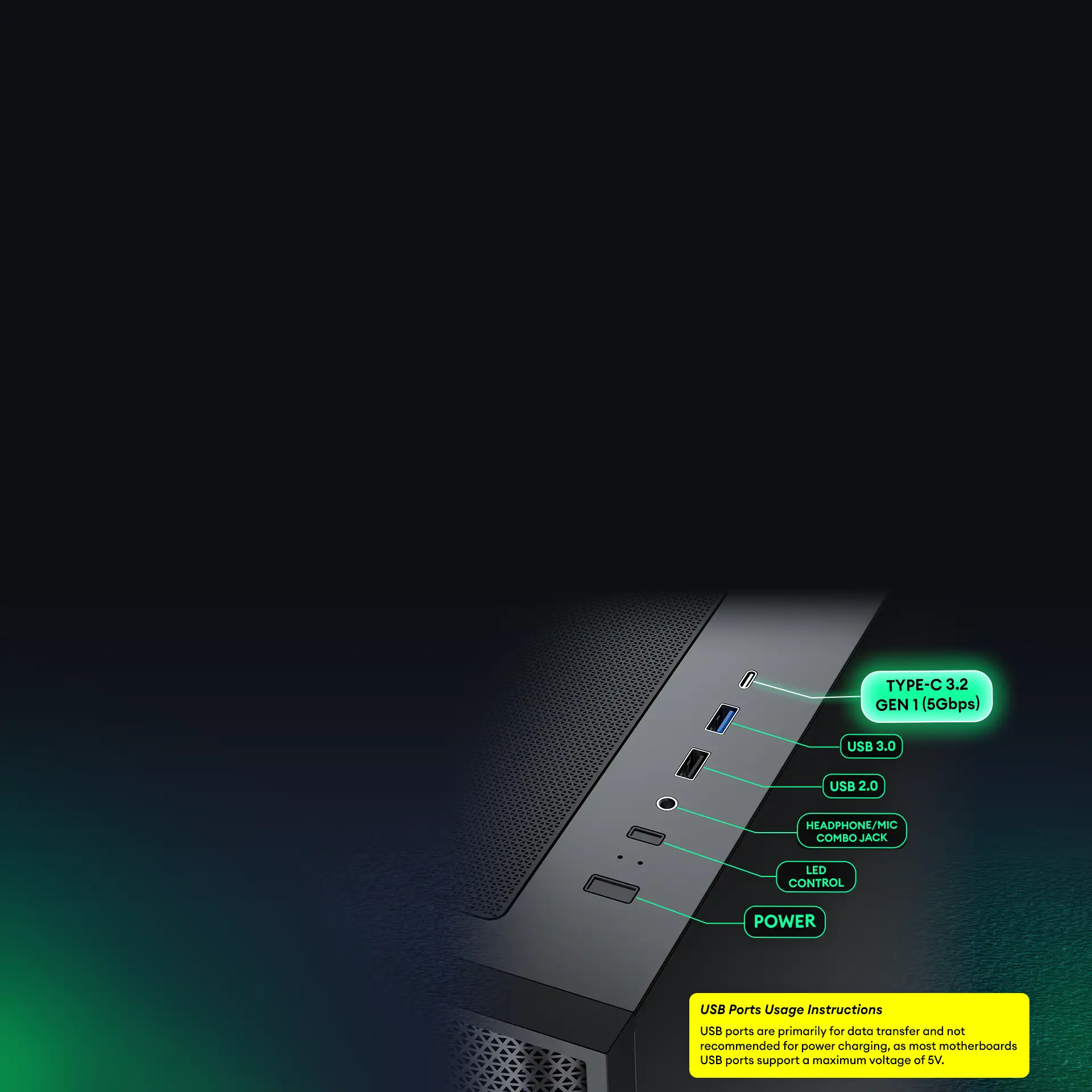

Mutli-Function Zone
Introducing Feature-Rich Multi-Functional Zone for Readily Accessable User-Computer Interaction.
Compatible with 360mm Radiator on Top
- Top Radiator | up to 360mm
- Front Radiator | up to 240mm
- Rear Radiator | up to 120mm (Length≤160mm)
Radiator Compatibility & Installation Tips
Supports RAM clearance up to 52mm. For a hassle-free installation, install your RAM before mounting the top radiator.

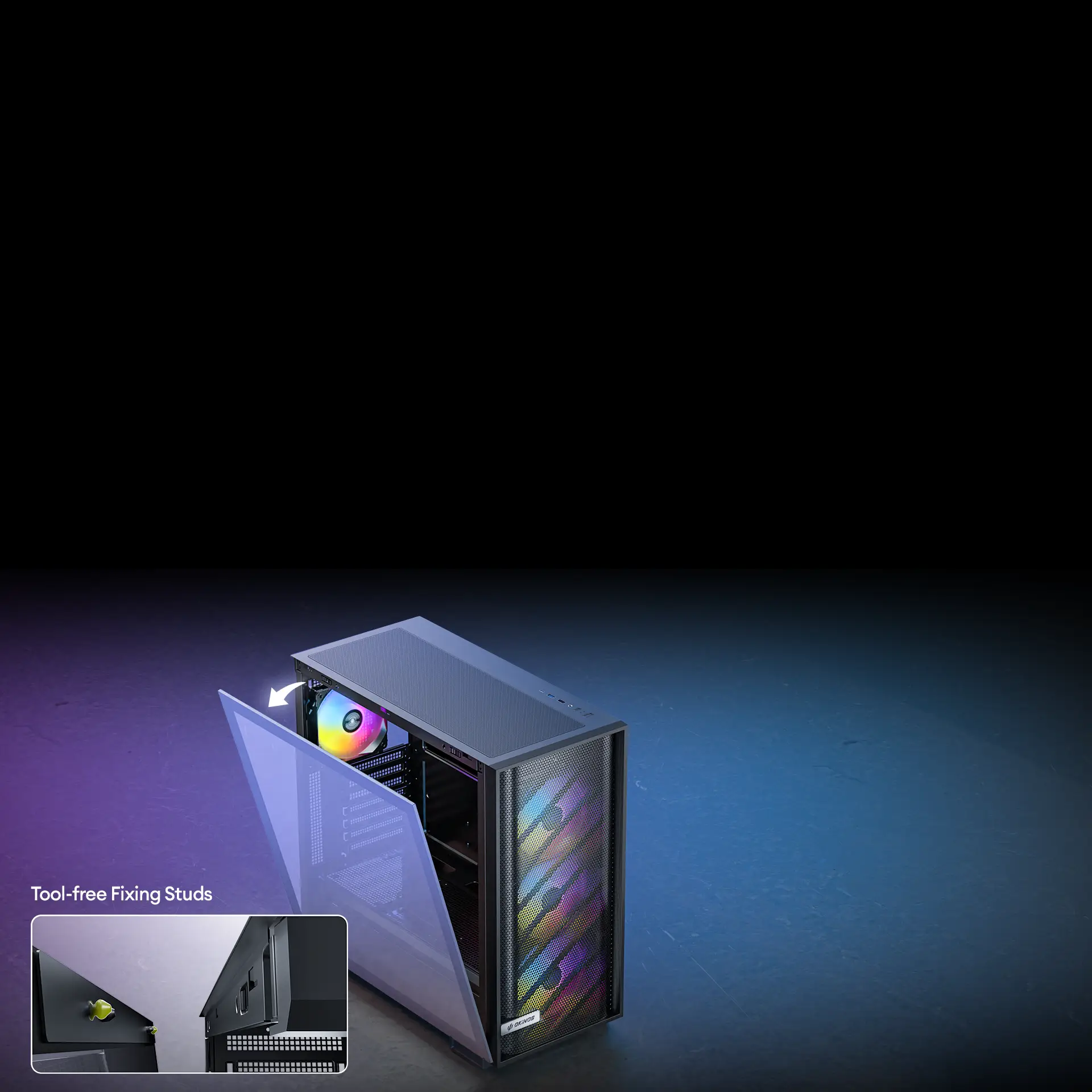

Tool-Free Panel
The left side panels use a stud-mount design that makes installation and removal easier while reducing the risk of glass damage.
GPU Compatibility
Max. GPU Length ≤ 405mm
PSU Installation
Side-mounted PSU supports lengths (including cables) up to 270mm.

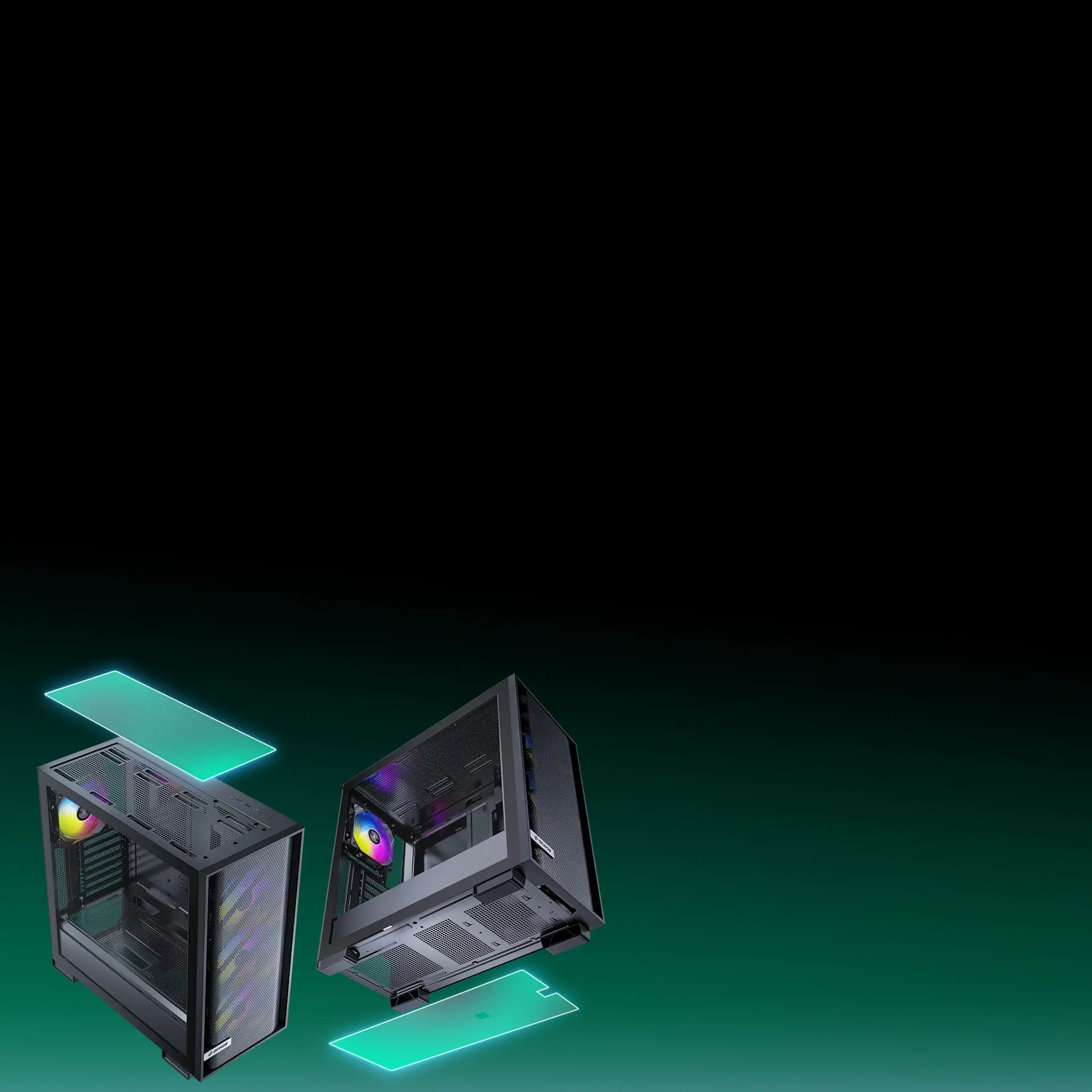

Full Dust Filter
A removable full-length filter maximizes airflow while keeping dust out, making maintenance easy and ensuring long-term protection.
Reusable PCIe Slot
Features 7 reusable PCIe slot covers. Provides ample width to support wider RTX50 series GPU.
Cable Management Routing
There are 29mm depth on the left side and 19mmon the right side for easy cable management.
Experience Ultimate Cooling Solution
Compatibility
Specifications
Model Name
612 ARGB
Model Number
OKICC-612-ATXBA
EAN
4897121941529
Dimensions
474.5 x 222 x 465.5 (DWH)
Form Factor
Mid Tower
Materials
Steel + Plastic
Mainboard Support
ATX, Micro-ATX , ITX
Front Access & Controls
Power, Led, USB2.0 x 1, USB3.0 x 1, Type-C 3.2 Gen 1 (5Gbps) x 1, Headphone/Mic Combo Jack
Side Panel
4mm Tempered Glass
Drive Bays
Expansion Slots
7
3.5″/2.5″
2/1
2.5″
1
Fan
Front
3 x 120mm / 2 x 140mm
Top
3 x 120mm / 2 x 140mm
Power Supply Shroud
3 x 120mm
Rear
1 x 120mm
Included Fan(s)
3 x 120mm PWM ARGB Annex fans at the front + 1 x 120mm PWM ARGB Main fan at the rear
Radiator Support
Front
240/140/120mm
Top
360/240/120mm
Rear
120mm (Length≤160mm)
Clearance
Max GPU Length
≤405mm
Max CPU Cooler Height
≤175mm
Max PSU Length
(Include Cable) ≤ 270mm
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
6.81 Kg
Gross Weight
8.26 Kg
Special Features
- Optimized Airflow Mesh Front Panel – Large, high-permeability mesh design ensures exceptional intake efficiency while maintaining a sleek, modern aesthetic.
- Tool-Free Tempered Glass Side Panel – 4mm glass with a secure snap-on mechanism allows effortless access and a clean showcase of your build.
- Pre-Installed PWM ARGB Cooling System – Includes 3×120mm front and 1×120mm rear PWM ARGB fans for powerful airflow and vivid lighting effects.
- 360mm Radiator Support – Top-mounted radiator support ensures high-performance liquid cooling capability.
- Clean Cable Management – Up to 29mm front and 19mm rear clearance keeps cables neatly organized for a pristine layout.
- Full Dust Protection – Magnetic top and bottom filters provide comprehensive dust defense and easy maintenance.
